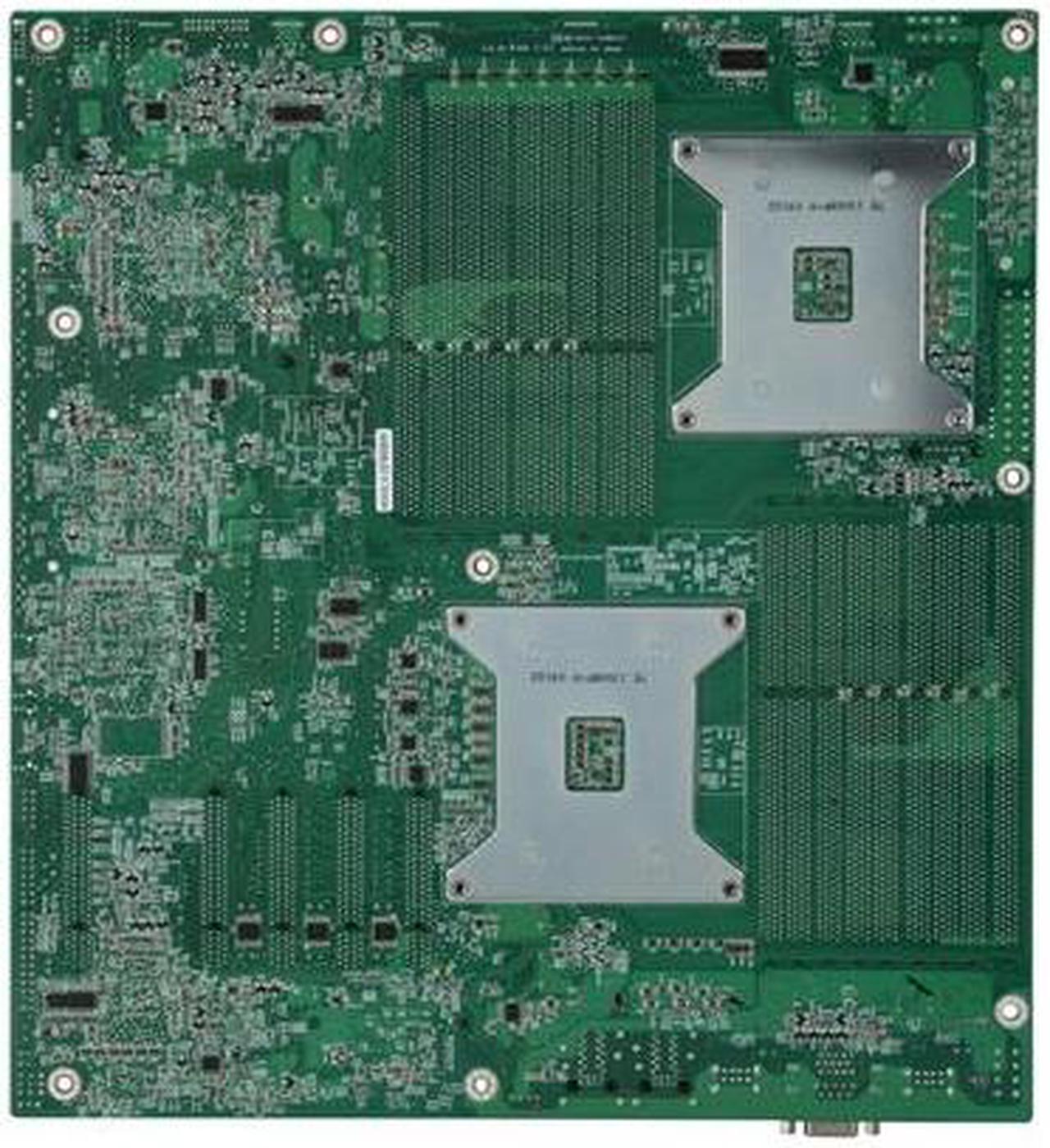

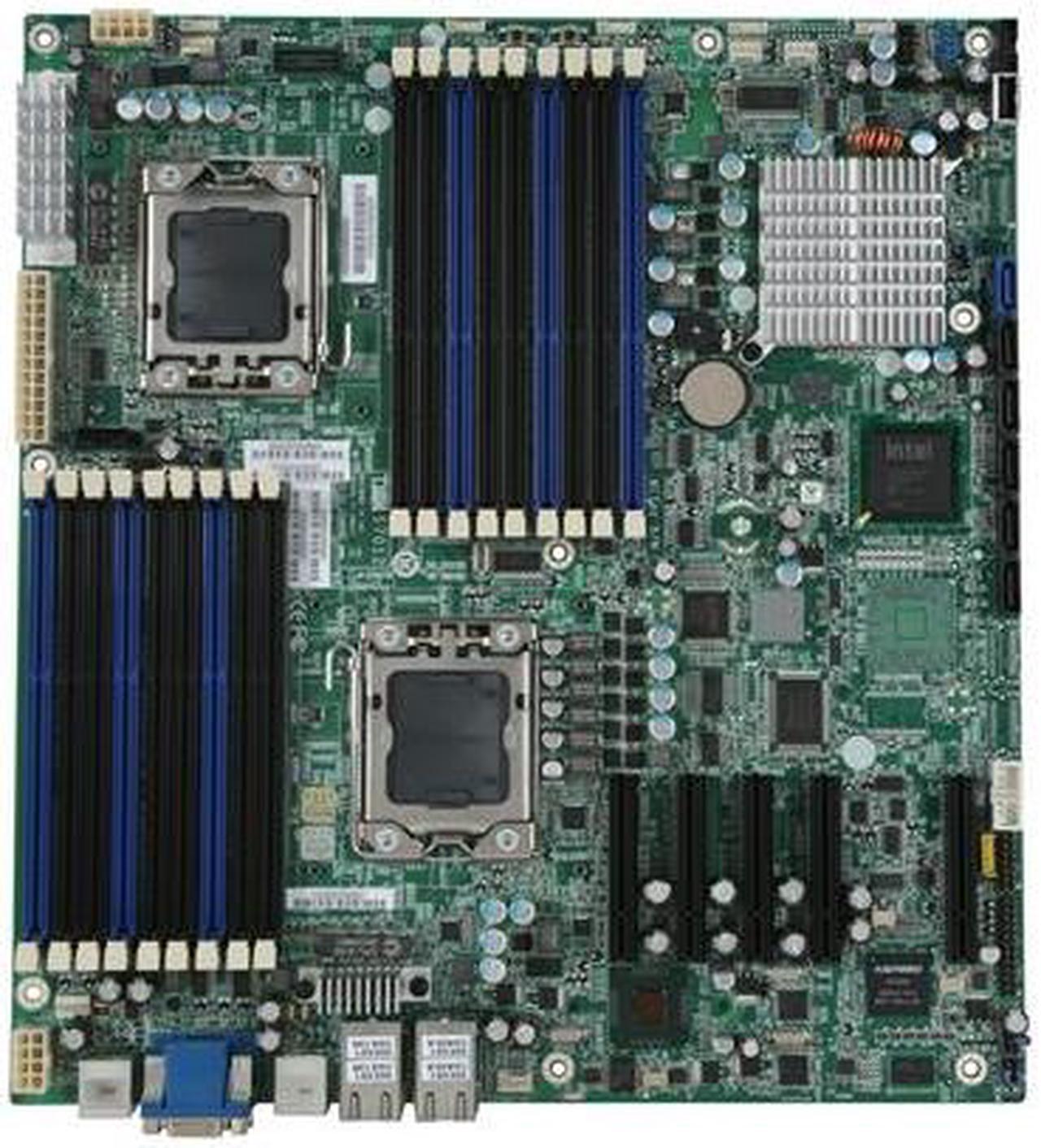

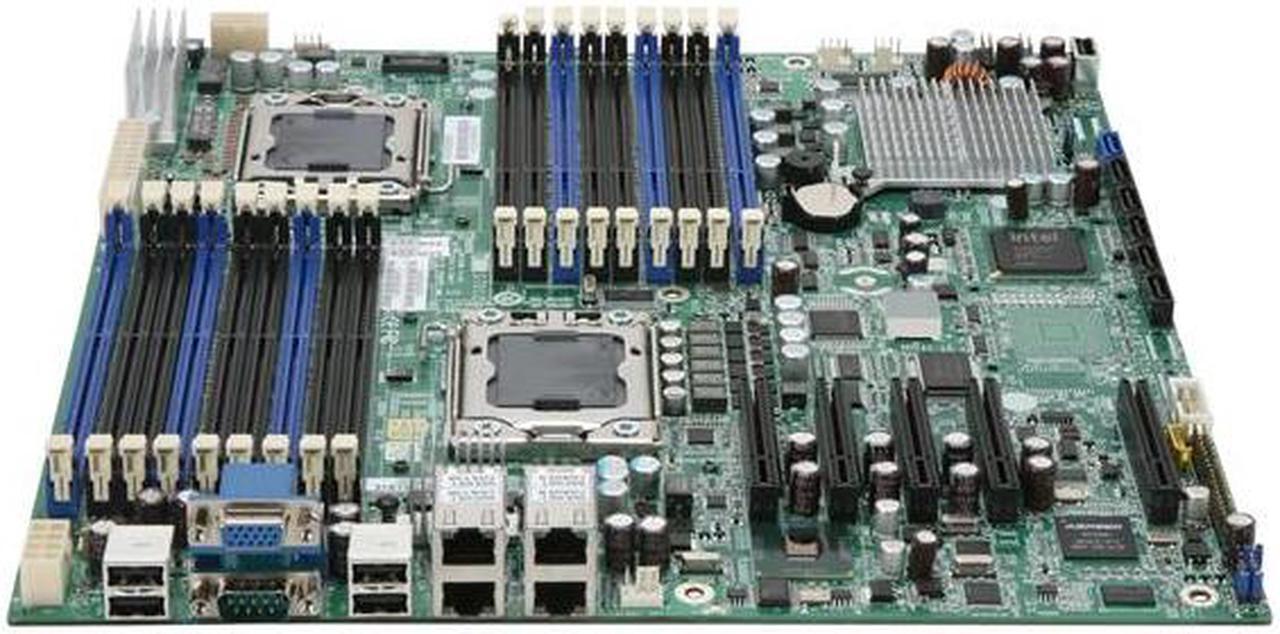

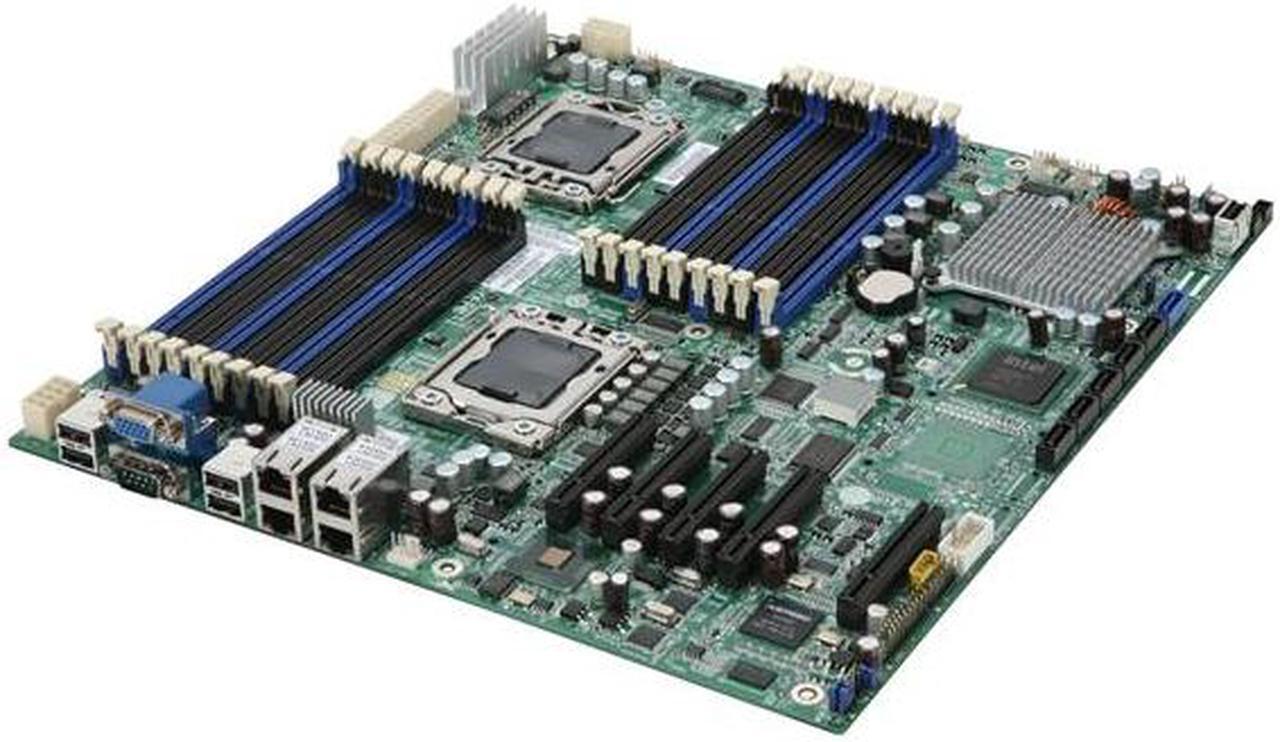

TYAN S7012GM4NR SSI EEB Server Motherboard Dual LGA 1366 Intel 5520 DDR3 1333

(4) Write a Review
  • Dual LGA 1366
  • Intel 5520
  • 18 x 240pin
Overview
Specs
Reviews (4)
The TYAN S7012GM4NR server motherboard supports up to two Dual-Core/Quad-Core Intel Xeon 5500 series processors at 4.8 GT/s, 5.86 GT/s, and 6.4 GT/s speeds via the Intel QuickPath Interconnect to handle even the most demanding applications. With 18 DIMM slots, it can support up to 6-channel registered or unbuffered DDR3 800/1066/1333MHz memory to significantly improve the computing capability.
This motherboard has a full range of expansion choices: it features four PCI Express 2.0 x8 slots, providing substantial I/O bandwidth for current and future application needs; it protects your investment with one PCI Express x8 slot as a flexible option for server utilization.
The server motherboard has integrated 6 SATAII 300MB/s ports which have built-in RAID functions for better data protection. This really benefits small to medium sized business with the best upgrade capability and data protection.
  • neweggSupports Dual Intel Xeon 5500 SeriesWith dual LGA 1366 sockets, the Tyan S7012GM4NR server board supports up to two multi-core Intel Xeon 5500 Series processors, providing the computing platform capability necessary for your increasing computing demand.
  • neweggScalable DDR3 MemoryEighteen 240-pin DIMM sockets support both registered (RDIMM) and unbuffered (UDIMM) DDR3 memory at speeds of 800, 1066 and 1333MHz, ensuring ample capacity for any application.
  • neweggSATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports with built-in RAID 0, 1, 10 and 5 support provide flexible, scalable storage and enhanced data security.
  • neweggFlexible ExpansionWith four PCI Express 2.0 x8 slots plus one PCI Express x8 slot, the Tyan S7012GM4NR supports a wide range of add-on cards for superior expandability.
  • neweggIntegrated ManageabilityThe integrated Baseboard Management Controller (BMC) with IPMI 2.0 support enables out-of-band capabilities for monitoring hardware and software status regardless of the OS or power state.
