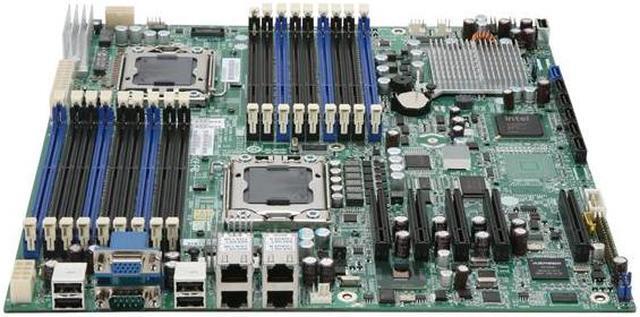

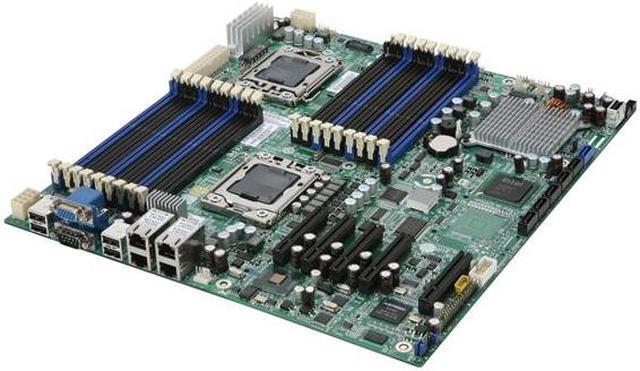

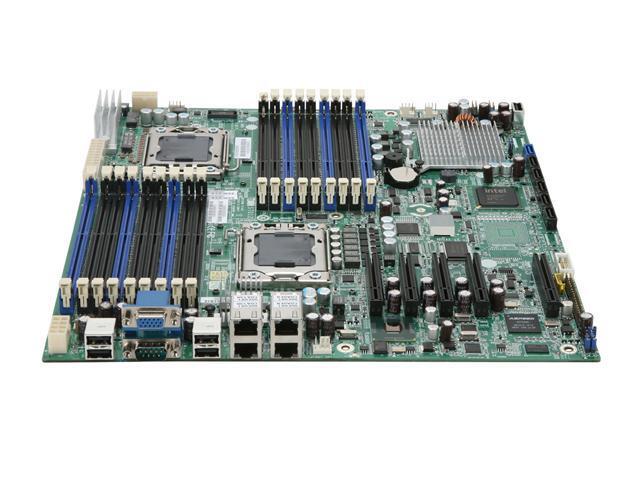

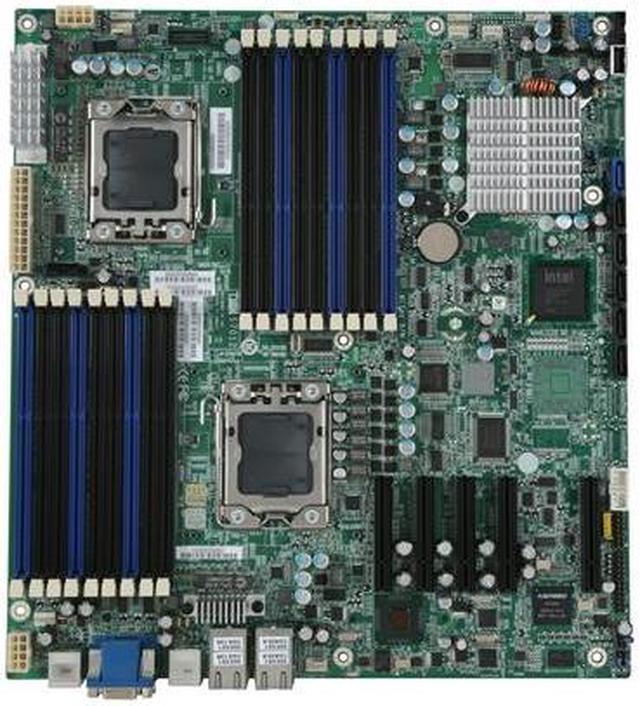

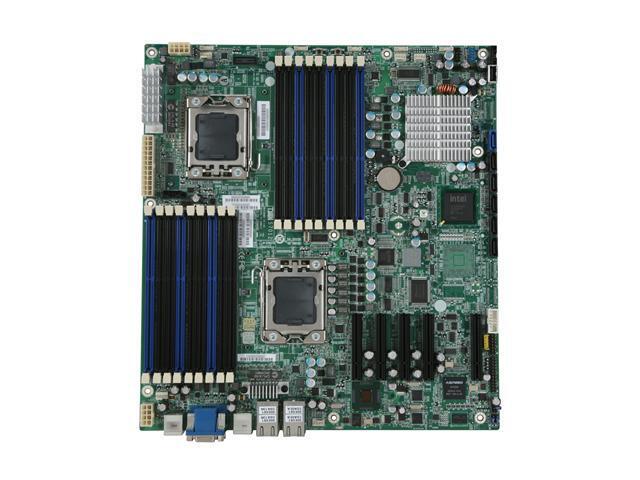

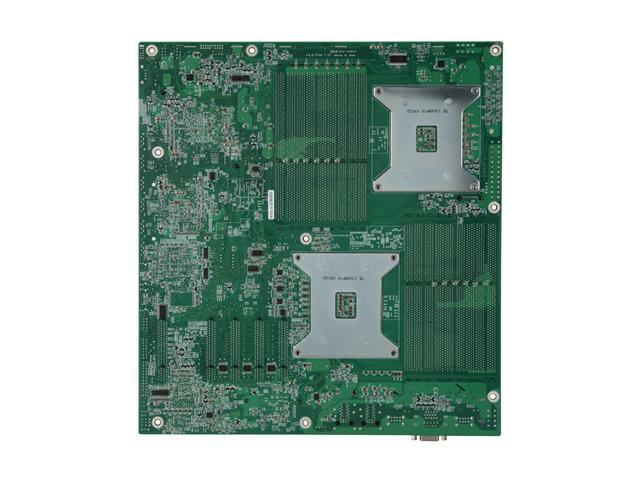

TYAN S7012GM4NR SSI EEB Server Motherboard Dual LGA 1366 Intel 5520 DDR3 1333

OPEN BOX Product Type
OUT OF STOCK.
  • Dual LGA 1366
  • Intel 5520
  • 18 x 240pin
Specs

Learn more about the TYAN S7012GM4NR

Model
Brand TYAN
Model S7012GM4NR
Supported CPU
CPU Socket Type Dual LGA 1366
CPU Type Dual Intel Xeon Processor 5500 Series
QPI 4.8/ 5.86/ 6.4GT/s
Chipsets
North Bridge Intel 5520
South Bridge Intel ICH10R
Memory
Number of DDR3 Slots 18 x 240pin
DDR3 Standard DDR3 1333
Maximum Memory Supported 144GB
Channel Supported Triple Channel
Expansion Slots
PCI Express x8 1 x PCI-E x8 slot (w/ x4 link)
4 x PCI-E Gen.2 x8 slots
Storage Devices
SATA 6 x SATA 3.0Gb/s
SATA RAID RAID 0/1/10/5 (Intel Matrix RAID)
Onboard Video
Onboard Video Chipset Aspeed AST2050
Onboard LAN
LAN Chipset Intel 82574L / Intel 82576
Max LAN Speed Quad 10/100/1000Mbps
Rear Panel Ports
COM 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Dimensions
Form Factor SSI EEB
Dimensions (W x L) 12.0" x 13.0"
Additional Information
Date First Available June 08, 2009
