What type of CPU does the TYAN Combo Deal motherboard come with?

The TYAN Combo Deal motherboard comes with an installed AMD EPYC 7282 CPU, which has 16 cores and 32 threads, operating at 2.8GHz with a TDP of 120W.

What is the maximum memory capacity supported by the TYAN S8030GM2NE-2T motherboard?

The TYAN S8030GM2NE-2T motherboard supports up to 2TB of RDIMM/LRDIMM/NVDIMM DDR4-3200 memory.

Questions & Answers: TYAN Combo Deal, S8030GM2NE-2T ATX Server Motherboard Installed AMD EPYC 7282, 16 Cores, 32 Threads, 2.8GHz, 120W. Factory Installed/Tested/Burn-in/Shipped

(1)

double click image to zoom in

Shop All TYAN Products

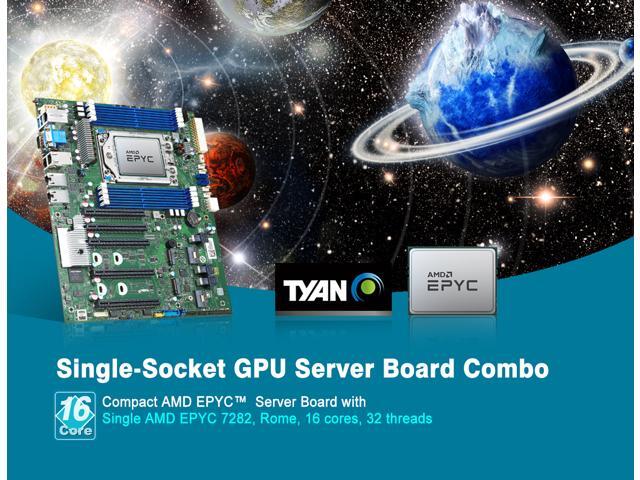

TYAN Combo Deal, S8030GM2NE-2T ATX Server Motherboard Installed AMD EPYC 7282, 16 Cores, 32 Threads, 2.8GHz, 120W. Factory Installed/Tested/Burn-in/Shipped

CPU: Installed AMD EPYC 7282, 16 cores, 32 threads, 2.8G, 120W.
Features support for PCIe Gen 4.0, DDR4-3200, and CPU TDP up to 280W all in a 12x9.8" ATX form factor. Low loss PCB & no PCIe redriver/retimer chips for a low cost PCIe Gen 4.0 solution.
Memory
(8) DDR4 DIMM slots (8 memory channels)
Supporting up to 2TB RDIMM/LRDIMM/NVDIMM DDR4-3200
PCIe Expansion Slots(5) PCIe Gen 4.0 x16 slots
Network
(2) 1000Base-T LAN Ports (Intel i210)
(2) 10GBase-T LAN Ports (Intel X550-AT2)
(1) 1000Base-T Dedicated IPMI Port (Realtek TRL8211 PHY)
Storage
(12) SATA 6G ports across 3x SFF-8643 MiniSAS HD connectors
(2) SATA 6G ports in 7-pin SATA connectors
(4) PCIe Gen 4.0 NVMe ports across two 74P Slimline connectors
(2) 2280/22110 PCIe Gen 3.0 x4 NVMe M.2 ports
Optional TPM 1.2 & 2.0 modules

$1,199^.00 –
