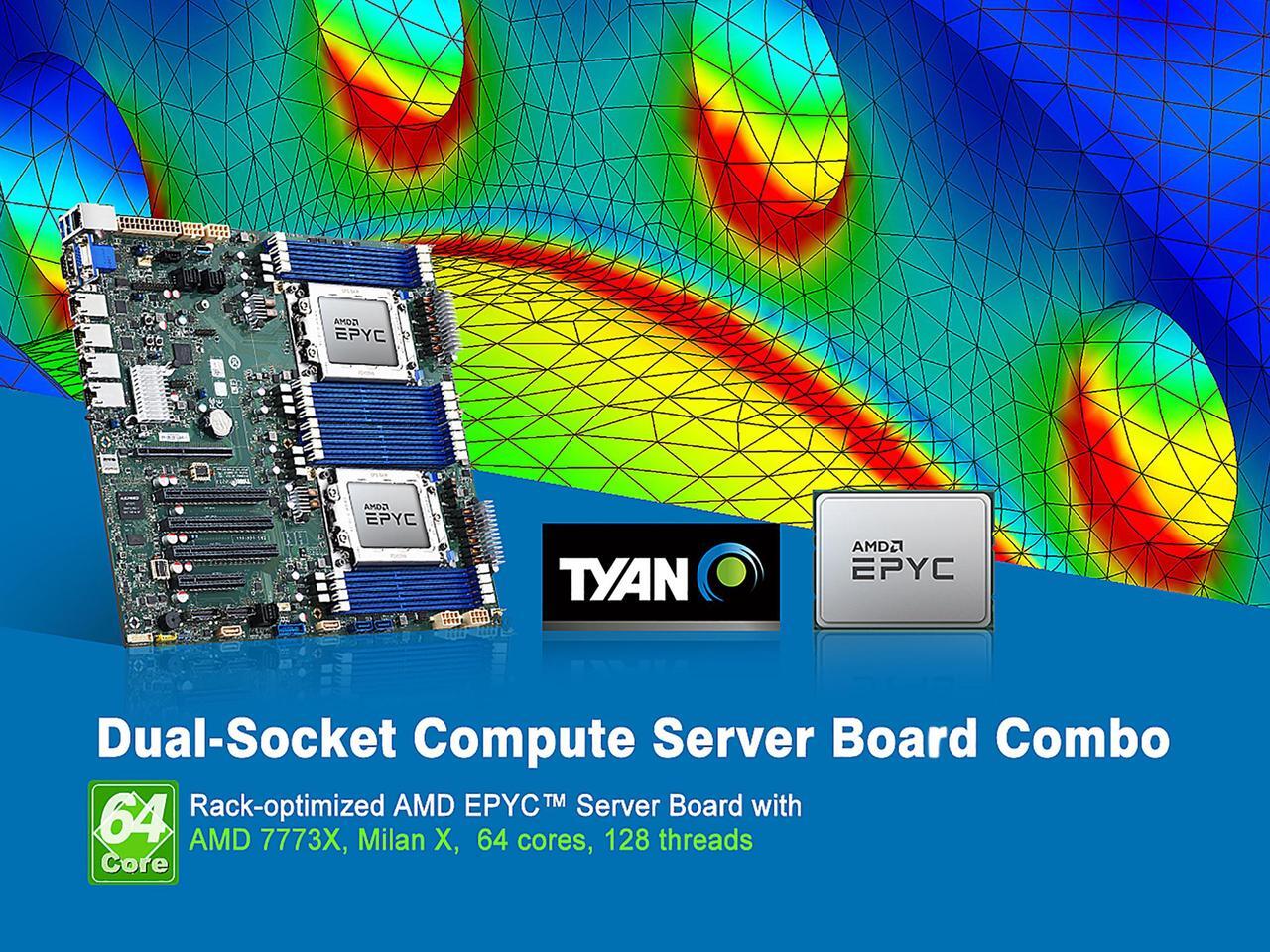

Tyan S8253 Motherboard and AMD Dual Milan 7773X 64-Core CPU combo deal. Factory Installed/Tested/Burn-in/Shipped

Be the first to review this product...
  • Motherboard: Tyan S8253GM4NE-2T motherboard
  • CPU: (2) AMD Milan X 7773X, 64 cores, 128threads, 2.3GHz
  • Memory: Supporting up to (16) DDR4-3200 ECC RDIMM
  • PCIe Slots: (3) PCIe Gen 4.0 x16 slots, (1) PCIe Gen 4.0 x8 slot,
  • Network:
  • (2) 1000Base-T Ethernet Ports (Intel i210)
  • (2) 10GBase-T Ethernet Ports (Intel X550) (S8253GM4NE-2T SKU)
  • (1) 1000Base-T Dedicated IPMI Port (Realtek TRL8211E-VB-CG PHY)
  • Storage(2) 7-pin SATADOM ports +
  • (2) 7-pin SATA ports
  • (12) SATA ports across three SFF-8643 MiniSAS-HD Connectors
  • (4) PCIe Gen 4.0 NVMe ports across two PCIe x8 Slimline Connectors
  • TPMOptional TPM 1.2 & 2.0 modules
  • IPMIAST2500 BMC /w IPMI, iKVM, and Redfish Support
This item is covered under the Manufacturer Only Return Policy.
Specs
Reviews

Learn more about the TYAN S8253GM4NE-2T-7773X

Model
Brand TYAN
Model S8253GM4NE-2T-7773X
Supported CPU
CPU Socket Type Socket SP3
CPU Type Supports AMD EPYC 7002/7003 (with AMD 3D V-Cache Technology) Series Processor
Number of Processor Support 2
Supported CPU Technologies 64-Core, 128-Thread
Memory
Number of DDR4 Slots 16 x 288-pin
DDR4 Standard DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
Maximum Memory Supported Up to 1,024GB RDIMM / 4,096GB LRDIMM 3DS
Channel Supported Eight Channel
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 3
PCI Express x8 1 x PCI Express 4.0 x8
Other Slots 1 x PCI Express 4.0 x32
Storage Devices
SATA 16 x SATA 6.0Gb/s
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard LAN
LAN Chipset Intel I210
Second LAN Chipset Intel X550
Max LAN Speed 10Gbps
Rear Panel Ports
Back I/O Ports (1) USB3.1 Gen.1 port (Type-A) / (1) USB3.1 Gen.1 ports (via Cable) / (2) USB3.1 Gen.1 ports (@ rear)
(1) DB-9 COM Connector (@ rear)
(1) D-Sub 15-pin VGA port (@ rear)
(2) 10GbE ports + (2) GbE ports + (1) GbE dedicated for IPMI
Dimensions
Form Factor Extended ATX
Dimensions (W x L) 12" x 13.4"
Packaging
Package Contents (1) S8253 Motherboard
(1) Quick Installation Guide
(1) TYAN Device Driver CD
(1) I/O Shield
(2) SATA signal cables
(2) AMD EPYC CPU
Additional Information
Date First Available April 07, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
