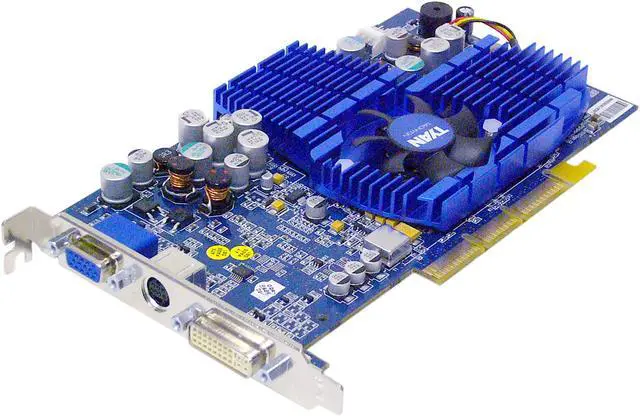

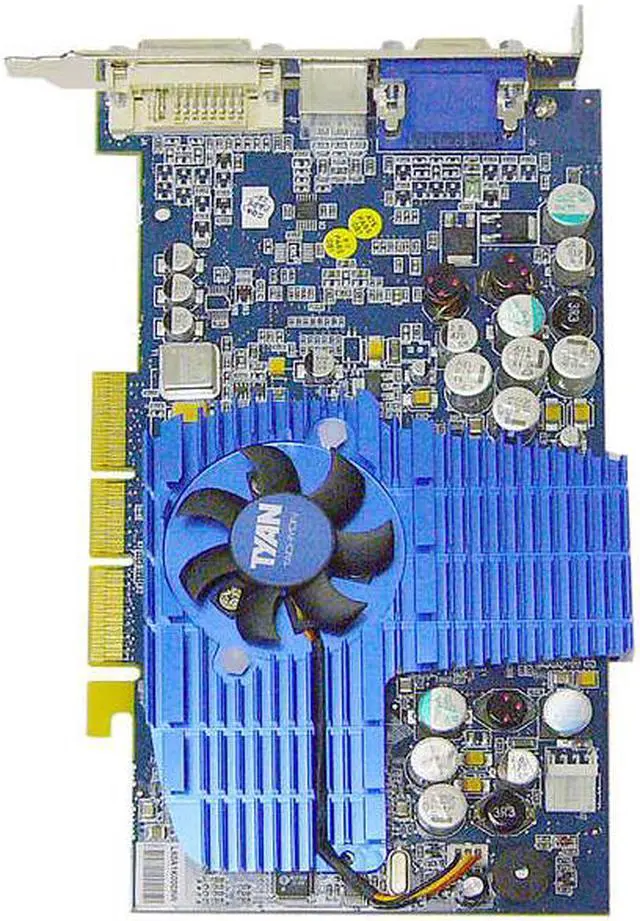

TYAN Radeon 9800PRO 128MB DDR AGP 4X/8X Graphics Card Tachyon G9800 PRO-M
- 128MB 256-Bit DDR
- Core Clock 380 MHz
- 1 x DVI
- AGP 4X/8X
Specs
Reviews (25)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN Tachyon G9800 PRO-M
| Brand | TYAN |
|---|---|
| Model | Tachyon G9800 PRO-M |
| Interface | AGP 4X/8X |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU | Radeon 9800PRO |
| Core Clock | 380 MHz |
| PixelPipelines | 8 |
| Effective Memory Clock | 680 MHz |
|---|---|
| Memory Size | 128MB |
| Memory Interface | 256-Bit |
| Memory Type | DDR |
| DirectX | DirectX 9 |
|---|---|
| OpenGL | OpenGL 2.0 |
| D-SUB | 1 x D-SUB |
|---|---|
| DVI | 1 x DVI |
| TV-Out | S-Video / Composite Out |
| VIVO | No |
| Tuner | None |
|---|---|
| RAMDAC | 400MHz |
| Max Resolution | 2048 x 1536@85Hz |
| Operating Systems Supported | Windows 98/ME/2000/XP |
| System Requirements | Intel® Pentium® 4 / III / II / Celeron™ or compatible with AGP 8X/4X AMD-K6®/Athlon™/Athlon™XP or compatible with AGP8X/4X Windows® XP, 2000, 98/ME 128MB of system memory Installation software requires CD-ROM drive DVD Playback requires DVD drive |
| Features | SMARTSHADER™ 2.1 2.0 Vertex Shaders support vertex programs up to 65,280 instructions with flow control 2.0 Pixel Shaders support up to 16 instructions per pass 128-bit floating point precision Multiple render target support Shadow volume rendering acceleration High precision 10-bit per channel frame buffer support Supports DirectX® 9.0 and the latest OpenGL® SMOOTHVISION™ 2.1 2x/4x/6x full scene anti-aliasing modes with programmable sample patterns 2x/4x/8x/16x anisotropic filtering modes VIDEOSHADER™ Seamless integration of pixel shaders w/ video FULLSTREAM™ Video de-blocking technology HYPER Z™ III+ 3-level Hierarchical Z-Buffer with early Z test Lossless Z-Buffer compression TACHYON GRAPHICS MONITOR Hardware monitoring of VPU and memory temperature and voltage Fan speed adjustment TRUFORM™ 2.0 2d generation N-Patch higher order surface support DISPLAY FEATURES Dual integrated 400MHz DACs Integrated TV-out resolution up to 1024x768 Integrated 165MHz TMDS transmitter HYDRAVISION™ Supports multi-display configurations |
|---|

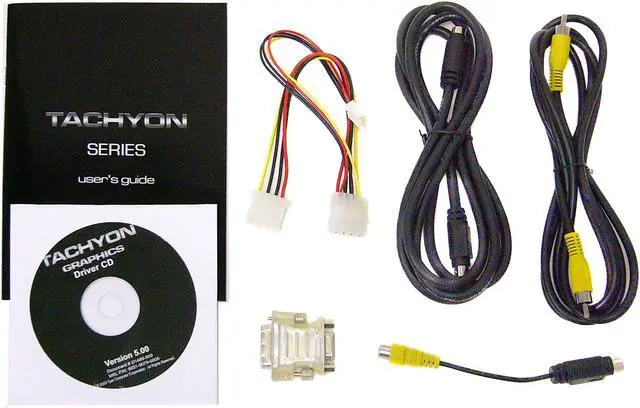

| Package Contents | 4 Cables, VGA via DVI Adapter, Driver CD, Manual |
|---|
| First Listed on Newegg | October 03, 2003 |
|---|
