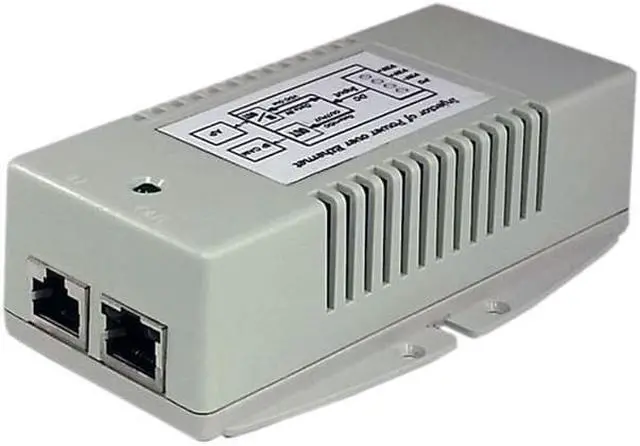

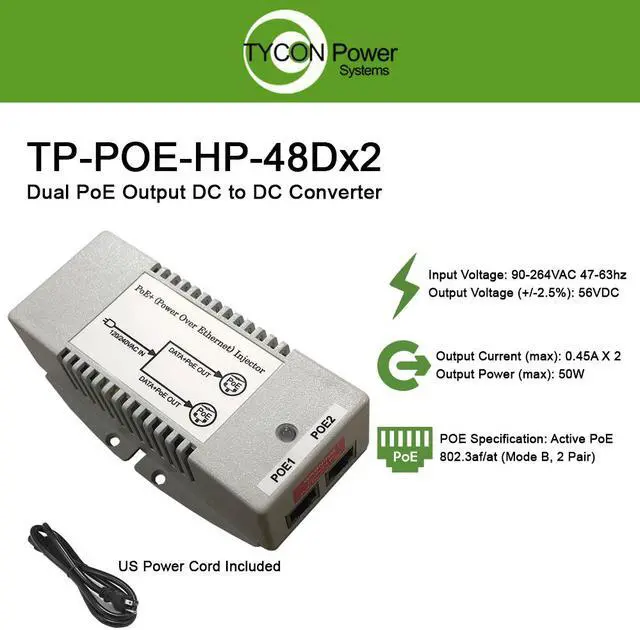

Tycon Systems TP-POE-HP-48Dx2 Dual Output POE Injectors

The TP-POE is unique high power PoE injectors with Dual 802.3af/at compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the units is handled by the injector so no PoE switch is required.

• Input voltage 12vdc, 24vdc or 110vac
• Dual 802.3af/at outputs
• High power output to 70w
• Surge protected to 15kv
• Dual DC inputs for connecting 2 power sources
• 10/100 data compatibility, shielded connectors
• Short circuit, over current and reverse/over voltage protection
• Industrial temperature range, din rail mountable

• Input Voltage - 90-264VAC 47-63hz
• Input Connector - IEC C13
• POE Specification - Active PoE 802.3af/at (Mode B, 2 Pair)
• Output Voltage (+/-2.5%) - 56VDC
• Data in & Data/POE Output Connector - RJ45 (Shielded)
• Output Current (max) - 0.45A x 2
• Output Power (total) - 50W
• Self-Consumption Power - 2W
• Efficiency (min) - 80%
• Line Regulation, Ripple, Noise - 1%
• Load Regulation - 5%
• Operating Temperature - 25 to +50°C
• Operating Humidity (RH) - 5% - 90%
• Storage Temperature - 40 to +80°C
