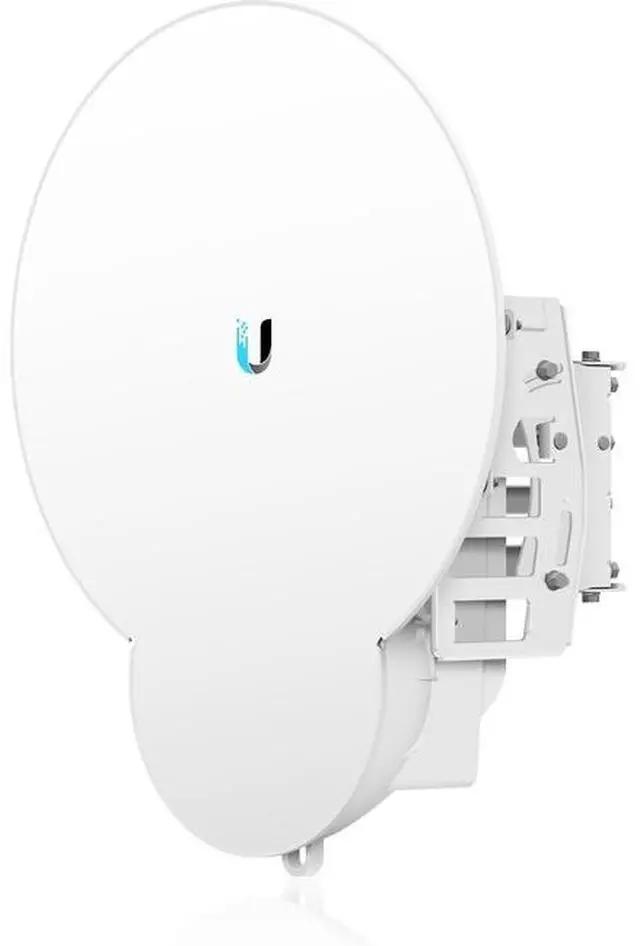

Featuring our INVICTUS™ custom silicon for 2+ million packets-per-second processing, the airFiber®24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance.
Featuring the world’s best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range – up to 20+ km – among 24 GHz products and allows for constellation threshold extension.
The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
 |
 |
 |
 |
|
| AF5 | AF5U | AF24 | AF24HD | |
| Frequency | Mid-Band 5 GHz | High-Band 5 GHz | 24 GHz | 24 GHz |
| Throughput | 1.2+ Gbps | 1.2+ Gbps | 1.4+ Gbps | 2 Gbps |
| Range | 100+ km | 100+ km | 13+ km | 20+ km |
 |
||||
| AF-5X | ||||
| Frequency | 5 GHz | |||
| Throughput | 500+ Mbps | |||
| Range | 200+ km |
