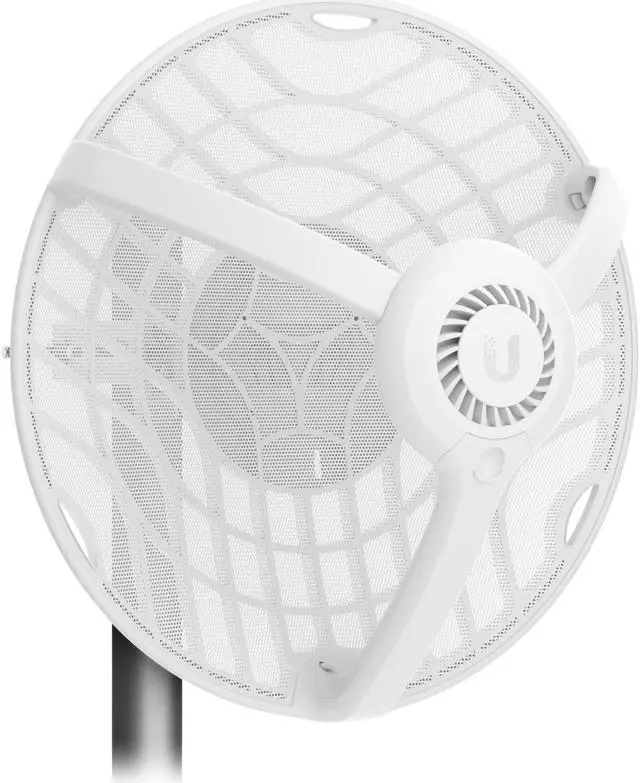

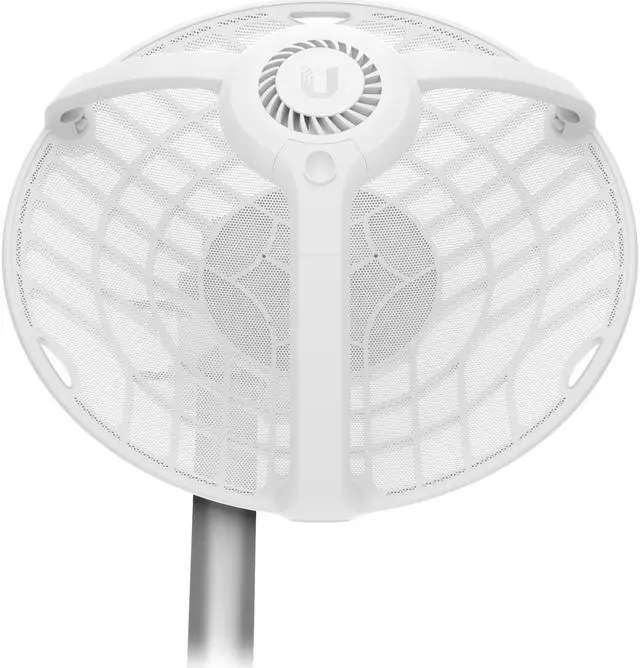

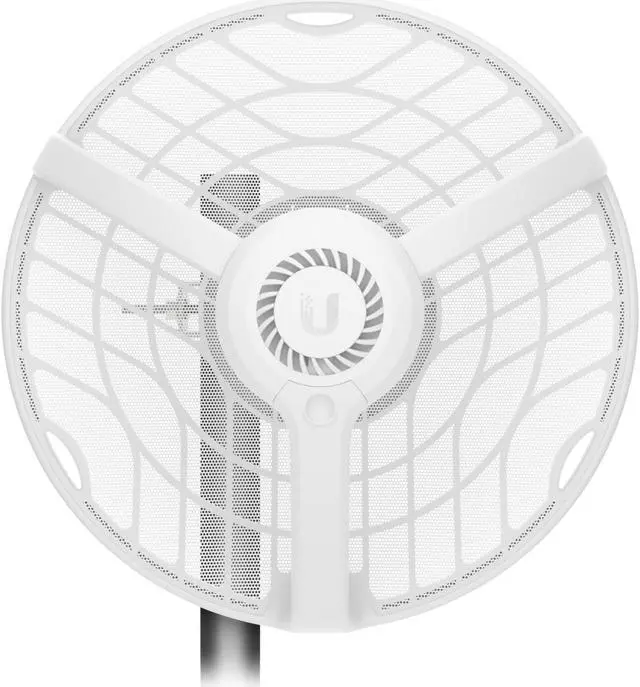

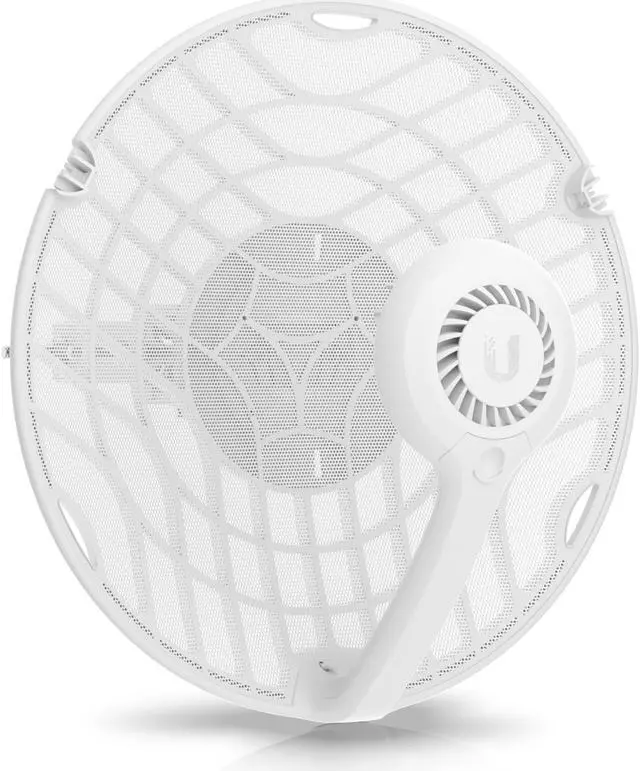

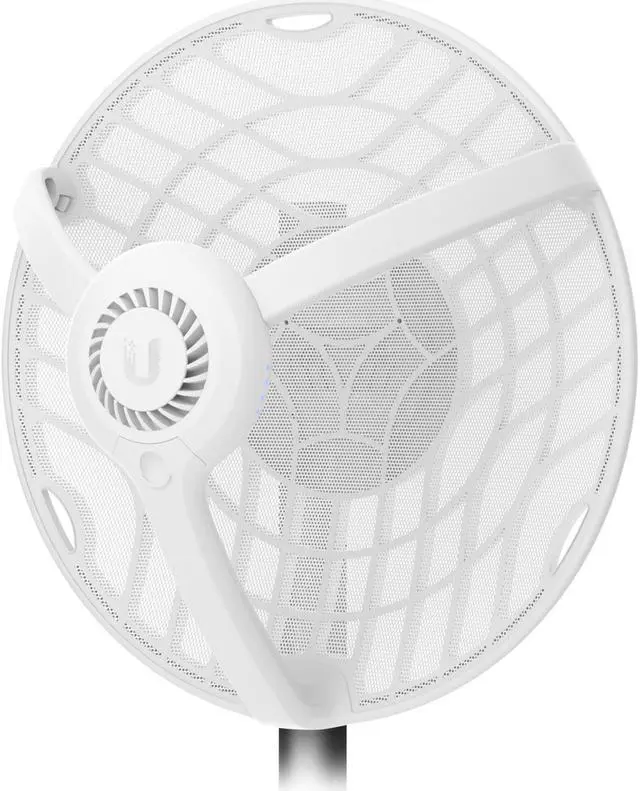

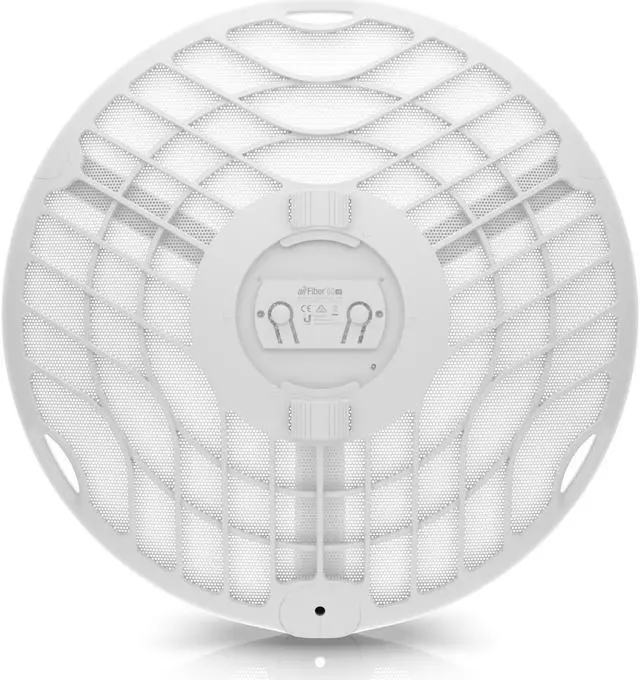

    Ubiquiti Network airFiber 60 Long-Range (AF60-LR)

    Be the first to review this product...
    • Long-range 60 GHz radio system that pairs in PtP mode or connects to a Wave AP as a client in PtMP mode.
    • 12+ km link range
    • 2 Gbps max. total throughput

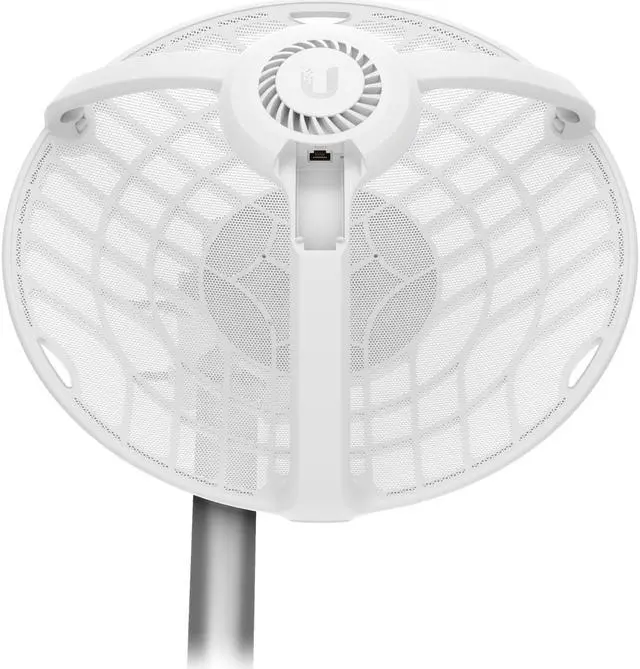

    • (1) GbE RJ45 port

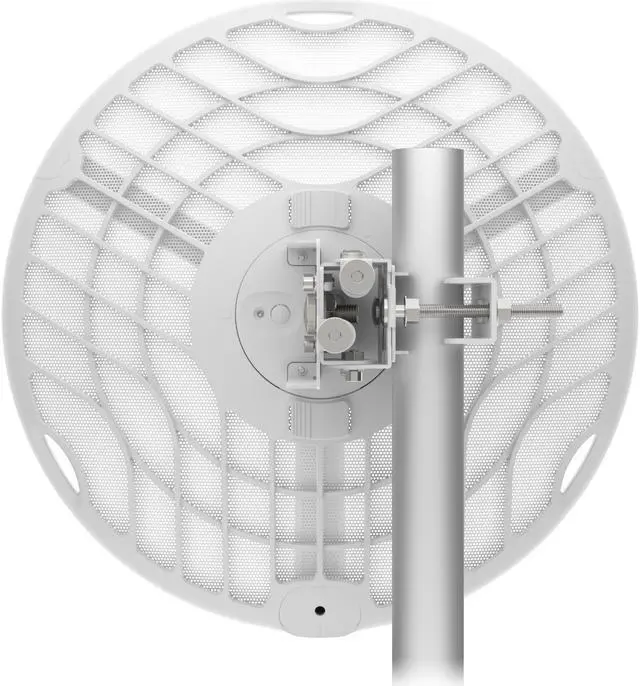

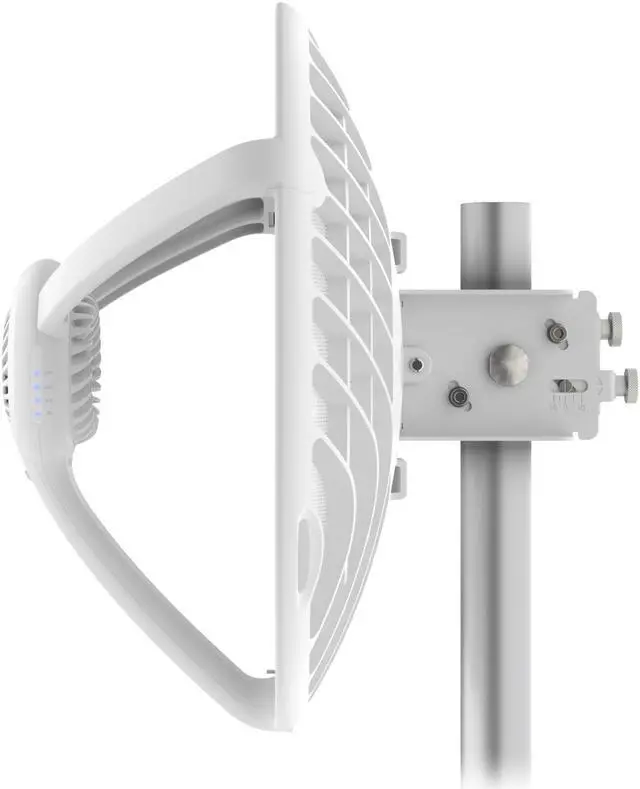

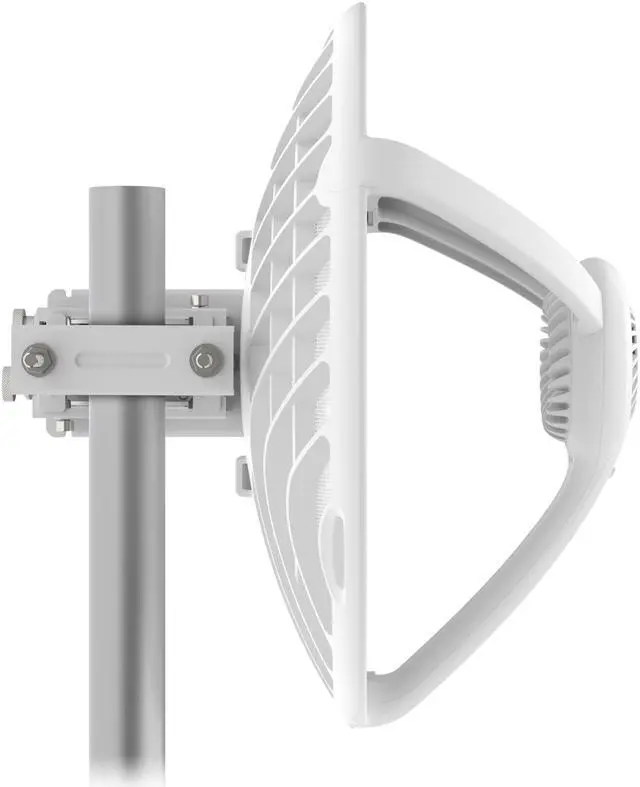

    • Precision alignment mount
    • Integrated GPS & Bluetooth
    • Note. Pairs with another AF60-LR in PtP mode, or connects to Wave-AP or Wave-AP-Micro as a client station in PtMP mode.
    This item is covered under the Manufacturer Only Return Policy.
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Ubiquiti Networks AF60-LR

    Model
    Brand Ubiquiti Networks
    Series Wave 60 GHz
    Model AF60-LR
    Details
    Frequency Band RF
    Operating frequency* 57–71 Ghz
    * Depends on regulatory region.
    Channel bandwidth 2160, 1080 MHz
    Polarization Vertically linear
    Beamwidth Azimuth: 3 dB 1.6°
    Elevation: 3 dB 1.6°
    LEDs Power Flashing white: bootup in progress
    White: not connected to UISP application
    Blue: connected to UISP application
    Ethernet Flashing blue: Ethernet activity
    GPS Blue: receiving at least (4) GPS satellite signals
    60G Blue: active connection
    LAN Ports (1) GbE RJ45 port
    Power Supply Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
    Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
    Power supply 48V DC, 0.65A gigabit PoE adapter (Included)
    Supported voltage range 44–54V DC
    22–27V DC
    Environmental
    Temperature -40 to 60° C (-40 to 140° F)
    Humidity 5 to 95% noncondensing
    Dimensions & Weight
    Dimensions Ø413 x 360 mm (Ø16.3 x 14.2")
    Weight Without mount: 1.5 kg (3.3 lb)
    With mount: 2.7 kg (6 lb)
    Features
    Features Hardware
    Processor Quad-Core ARM® Cortex® A7
    Memory 256 MB DDR3
    Networking interface (1) GbE RJ45 port

    Software
    Operating mode PtP only
    Ubiquiti specific features Wave technology, discovery utility
    Network Bridge mode
    Services UISP, ping watchdog, NTP client
    Tools Antenna alignment, discovery utility, ping, trace route, speed test
    Software management Bluetooth management for easy setup over UISP app
    WEB UI
    Minimum software requirements Any modern web browser/iOS™ or Android™ based smartphone

    System
    Max. throughput 1.95 Gbps
    Max. range 12+ km
    Encryption WPA2-PSK (AES)
    Additional Information
    First Listed on Newegg May 27, 2022

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 1 year
    • Read full details

    Return Policies

    • Return for refund within - Contact Manufacture for Assistance
    • Return for replacement - Contact Manufacture for Assistance
    • This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
