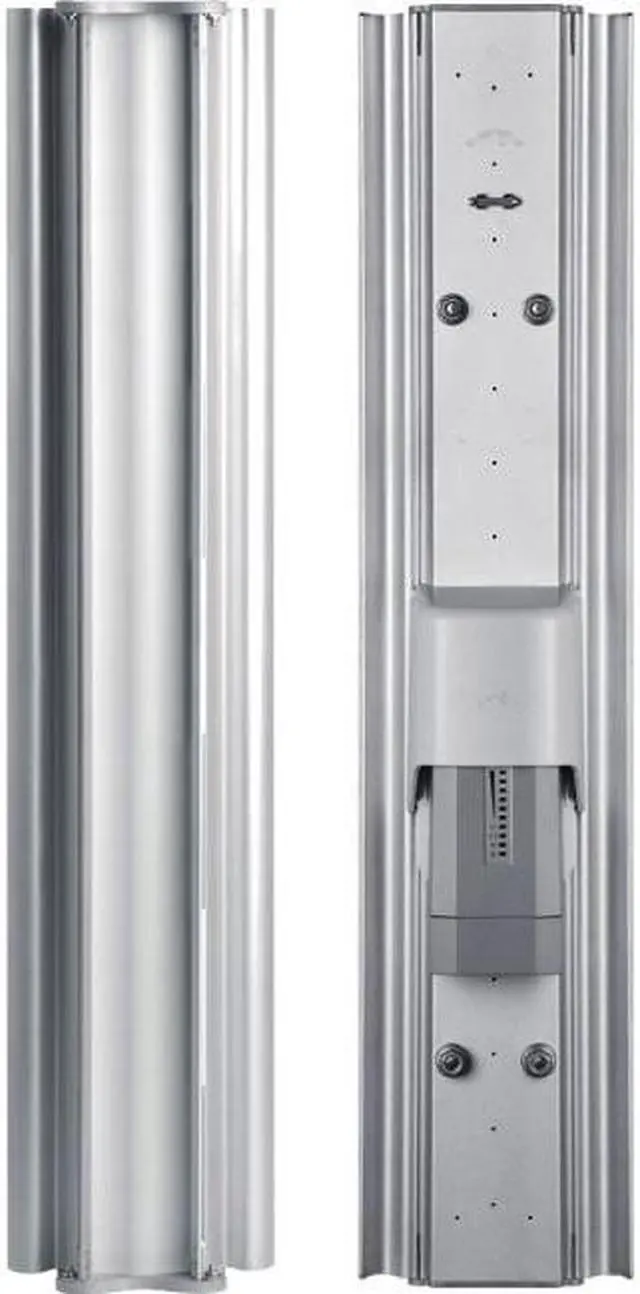

airMAX® 2x2 BaseStation Sector Antenna
Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
Your Browsing History
Meet Your Seller

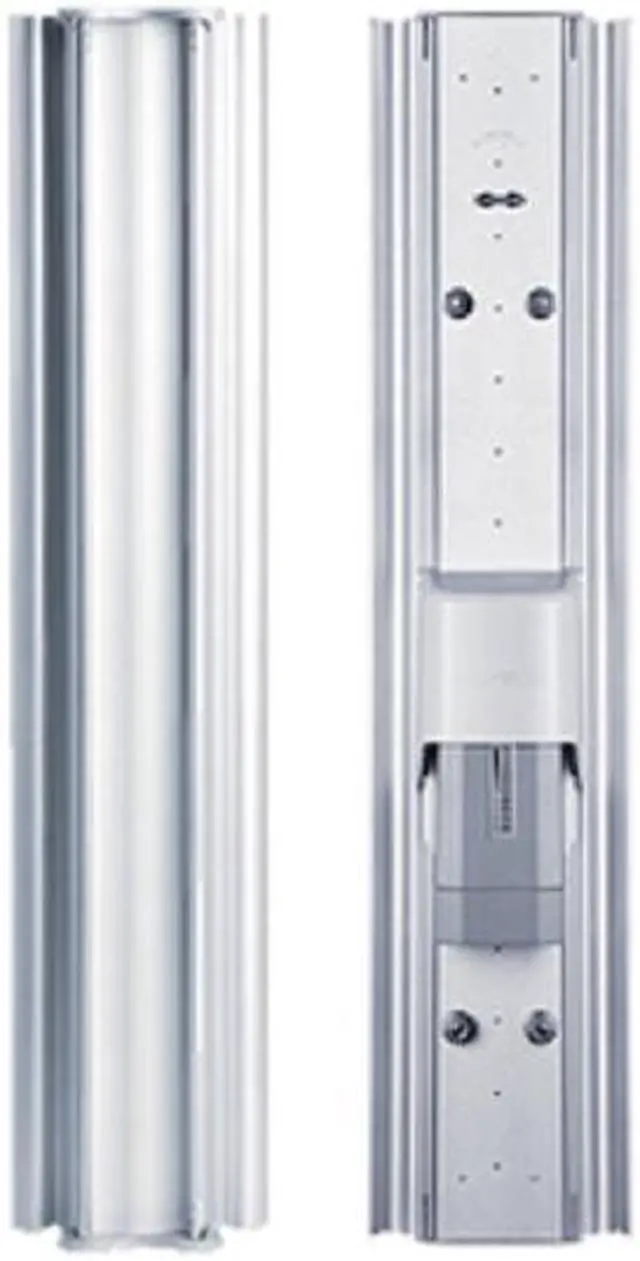

Ubiquiti AM-V5G-Ti-US Titanium 5GHz AirMax Sector 120 19dbi work RM5-Ti RocketM5-Ti
- 5 GHz AirMax 2 x 2 MIMO
- Basestation
- Sector Antennas
- 120 Degree 5 Ghz MIMO 19 dbi
- Long Distance
- Capable of high-speed links up to 50+ km
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Breakthrough Design and Performance
The innovative airMAX® Sector Antennas feature carrier-class construction and 2x2, dual-polarity performance.
AM-V5G-Ti, 5GHz
AM-V2G-Ti, 2.4GHz
Reduced Interference, Higher Gain
Highly resistant to noise interference, the airMAX® Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
RF Isolation and Beamwidth Options

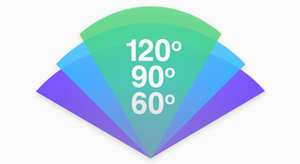

The versatile airMAX® Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.
Industrial-Strength Construction
airMAX® Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration

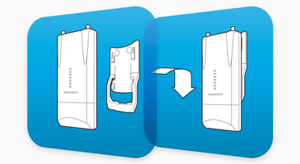

Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

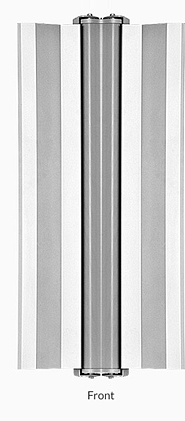

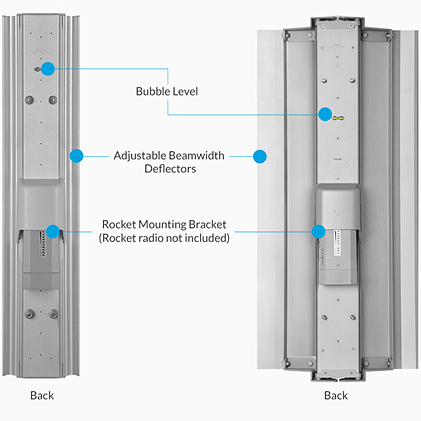

Installing the airMAX® Titanium Sector
Model Comparison
 |
 |
 |
 |
|
| AM-9M13 | AM-2G15-120 | AM-2G16-90 | AM-V2G-Ti | |
| Frequency | 900 MHz | 2.4 GHz | 2.4 GHz | 2.4 GHz |
| Gain | 13 dBi | 15 dBi | 16 dBi | 60°: 17 dBi 90°: 16 dBi 120°: 15 dBi |
 |
 |
 |
 |
|
| AM-3G18-120 | AM-5G16-120 | AM-5G17-90 | AM-M-V5G-Ti | |
| Frequency | 3 GHz | 5 GHz | 5 GHz | 5 GHz |
| Gain | 18 dBi | 16 dBi | 17 dBi | 60°: 17 dBi 90°: 16 dBi 120°: 15 dBi |
 |
 |
 |
||
| AM-5G19-120 | AM-5G20-90 | AM-V5G-Ti | ||
| Frequency | 5 GHz | 5 GHz | 5 GHz | |
| Gain | 19 dBi | 20 dBi | 60°: 21 dBi 90°: 20 dBi 120°: 19 dBi |

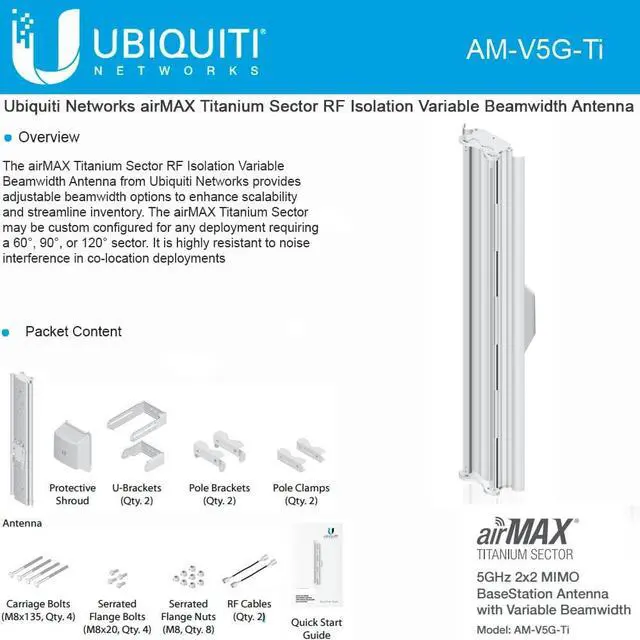

Advanced Carrier-Class PtMP Basestation Antenna Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti's best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology. Reduced Co-Location Interference Drawing on Ubiquiti's depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co-location deployments. Application/Usage: Base Station Application/Usage: Base Station Package Contents: Titanium Sector Advanced RF Isolation Variable Beamwidth Antenna Pole Mount Kit Product Type: Antenna Product Type: Antenna Compatibility: Ubiquiti Basestations: RocketM5 Titanium RocketM5 GPS RocketM5 Manufacturer Part Number: AM-V5G-TI Weight (Approximate): 8.20 lb Form Factor: Sector Connector Type: RP-SMA Form Factor: Sector Frequency: 5.45 GHz to 5.85 GHz Manufacturer: Ubiquiti Networks, Inc Product Model: AM-V5G-TI Product Name: Titanium Sector Advanced RF Isolation Variable Beamwidth Antenna Product Line: airMAX Brand Name: Ubiquiti Brand Name: Ubiquiti Height: 28.4 Width: 5.9 Depth: 3 Antenna Gain: 21 dBi Product Family: airMAX Antenna Gain: 21 dBi Frequency Band Type: SHF
