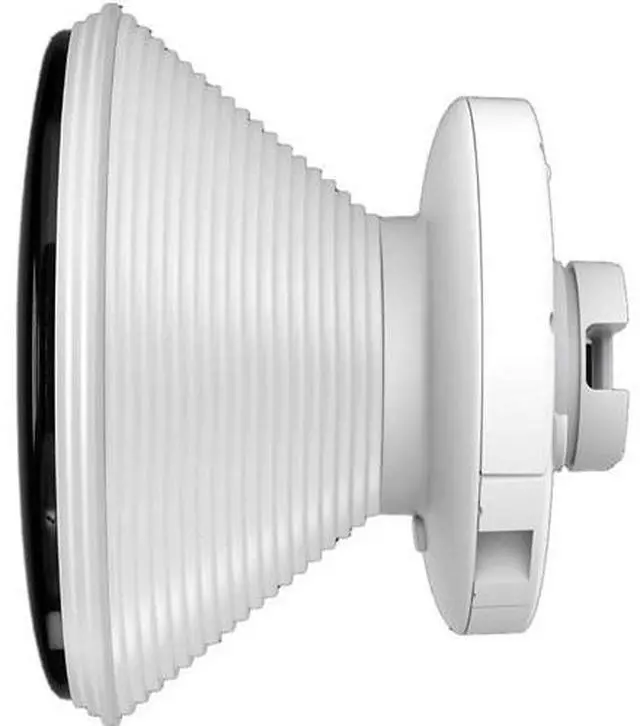

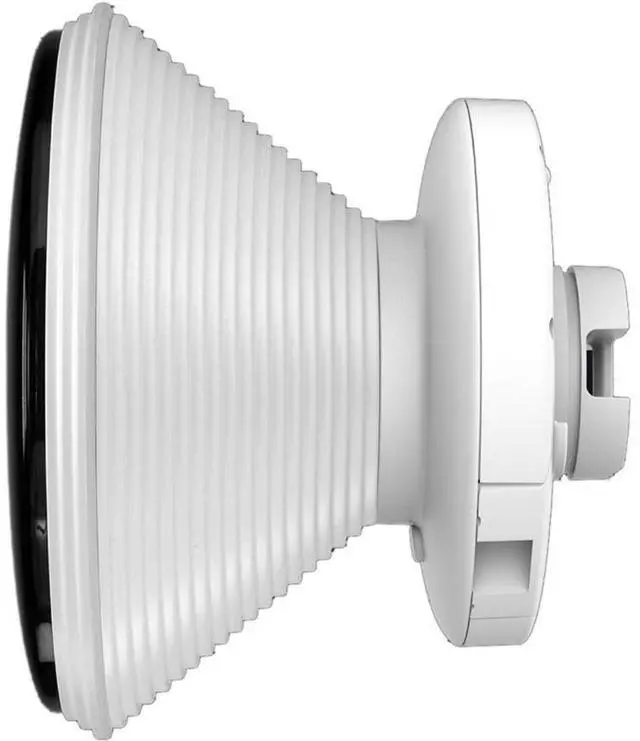

ISOSTATION 5GHZ AIRMAX AC CPE
- 24V, 0.5A Gigabit PoE Adapter
- 1 x 10/100/1000 Ethernet Port
- Interchangeable Isolation Antenna Horn
- All-Metal, Shielded Radio Base
- airMAX ac Processor for Superior Performance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model:IS-5AC-US

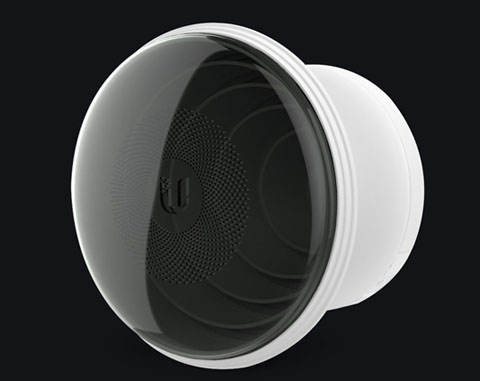

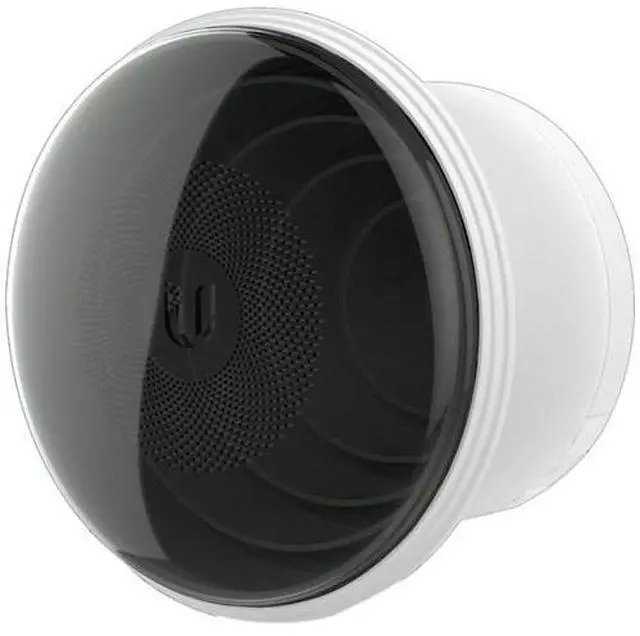

airMAX ac Processor for Superior Performance. Interchangeable Isolation Antenna Horn.All-Metal, Shielded Radio Base.
As the Ubiquiti Networks’ latest generation of airMAX ac CPE (Customer Premises Equipment) with dedicated Wi-Fi management, the IsoStation IS-5AC-US gives you a versatile, cost-effective way to deploy a high-performance, reliable network while making network management easier than ever.

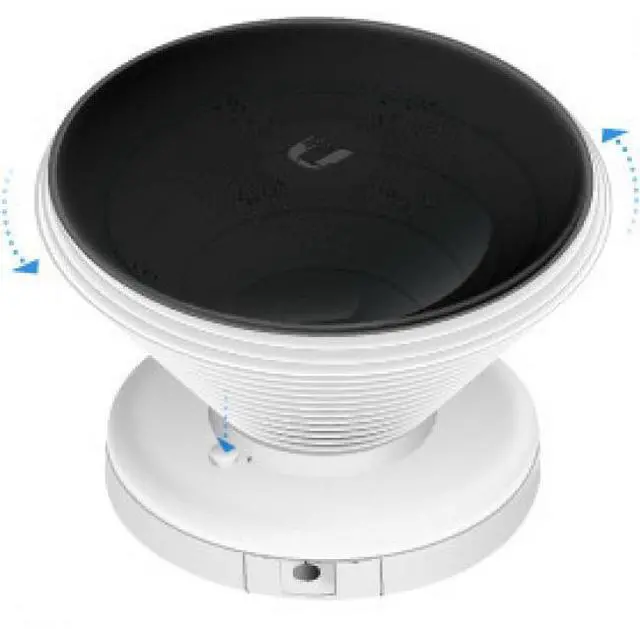

Using airMAX ac technology, the IsoStation IS-5AC-US supports up to 450+ Mbps real TCP/IP throughput. It has a die-cast aluminum shielded enclosure and features interchangeable horn antennas (asymmetrical horn antennas & symmetrical horn antennas) for enhanced beam shaping. The convenient single button release allows for ease of changing antennas. And horn feed comes directly from the radio input/output, so connectors are also eliminated. It provides high isolation solutions in fixed beamwidth increments through interchangeable isolation horn antennas. This feature is especially important in an increasingly congested RF environment. The intuitive, feature-rich airOS v8 operating system lets you easily configure, monitor and administer your network.

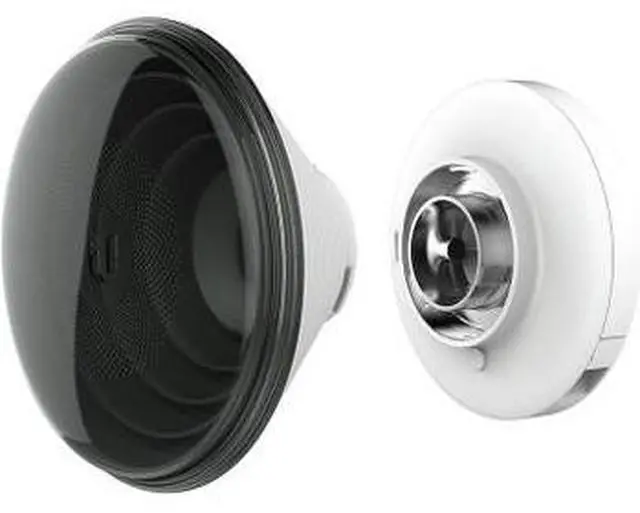

Modular Design
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationT also gets maximum gain out of the smallest footprint.
Beam Performance Perfected

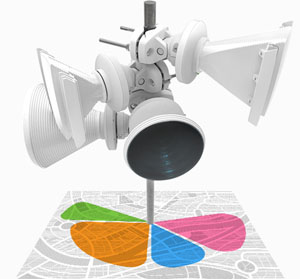

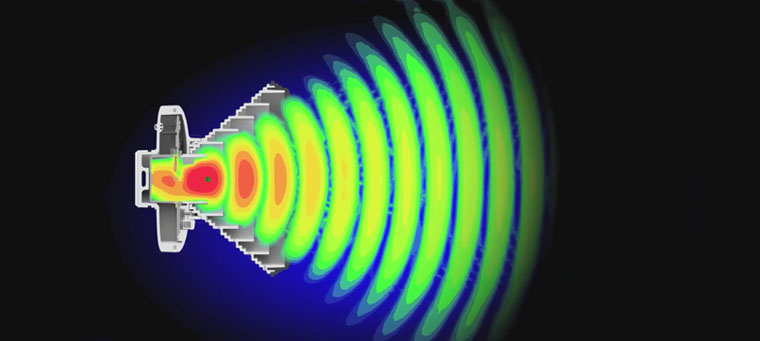

The IsoStation can use a variety of horn antenna sectors, designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.
Enhanced Co-Location

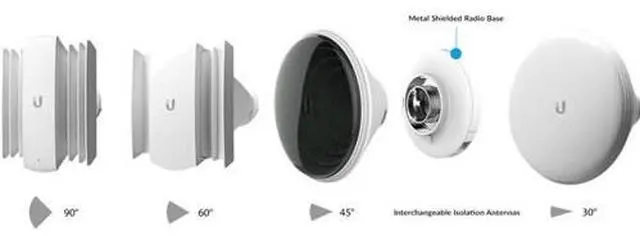

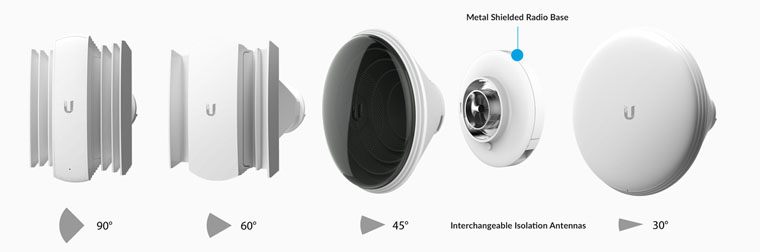

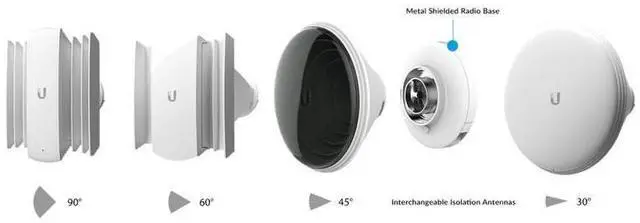

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

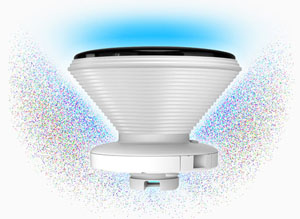

Improved Noise Immunity
IsoStation blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
High MAC Efficiency
High MAC efficiency provides ±80% PHY RATE throughput.
Management Wi-Fi Radio

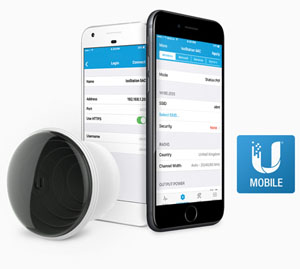

The IsoStation AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

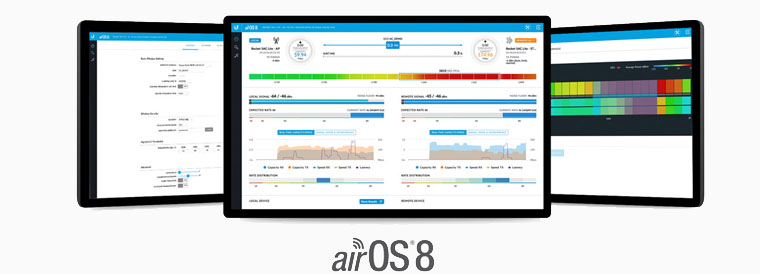

Now with airOS8

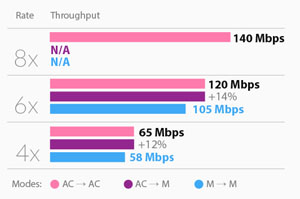

airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
How does the IsoStation AC 5GHz Shielded airMAX ac Radio with Isolation Antenna stand out This innovative product from Ubiquiti Networks, a leader in high-quality networking equipment, is the latest generation of airMAX ac CPE (Customer Premises Equipment). It's designed with a dedicated Wi-Fi management system, ensuring a reliable and efficient wireless connection.
The IsoStation 5AC is a durable, high-quality device that offers high isolation solutions in fixed beamwidth increments. These are achieved through interchangeable horn antennas, optimized for urban environments. The tailored antenna radiation patterns spatially filter both in-band and out-of-band spurious RF emissions, enhancing the noise immunity of the IsoStation 5AC. This feature is particularly crucial in today's congested RF environments.

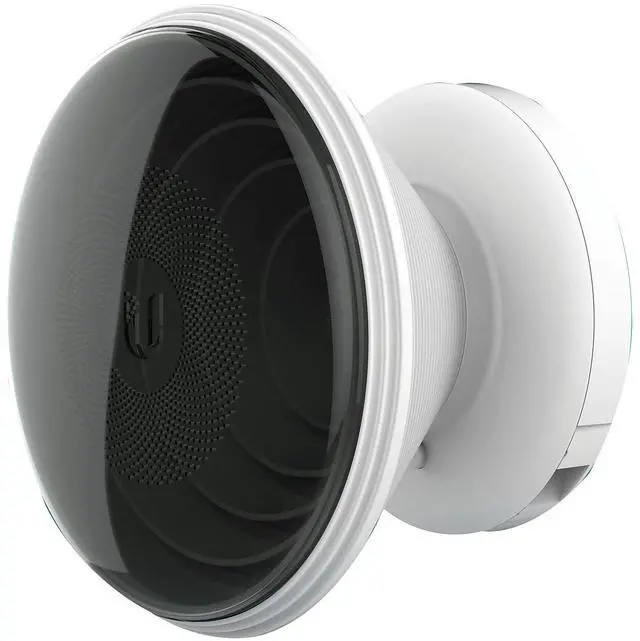

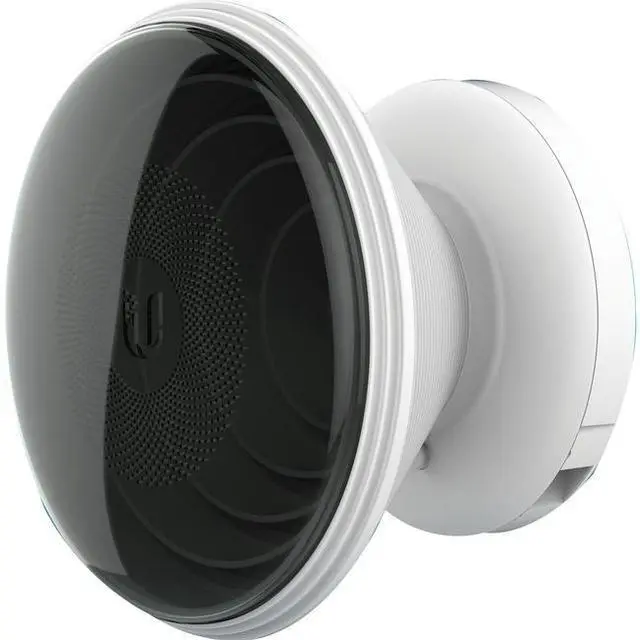

The modular design of the IsoStation 5AC allows for improved beam-shaping to meet specific deployment needs. By default, the device includes a symmetrical horn antenna with a 45-degree beamwidth. The horn antennas enhance co-location performance without sacrificing gain, offering breakthrough scalability options for wireless systems.
The IsoStation 5AC also features enhanced co-location with asymmetrical horn antennas designed to have attenuated side lobes and extremely low back radiation. These antennas are ideal for cluster sector installations with high co-location requirements.
The device can be paired with a robust dish antenna, model U-OMT-Dish, to extend radio performance for a greater number of WISP customers. This antenna offers excellent beam directivity with 27 dBi of gain.
The IsoStation 5AC operates on airOS8 Software, a revolutionary operating system for Ubiquiti airMAX ac products. This software features an all-new design for improved usability and includes powerful wireless features like Access Point PtMP airMAX Mixed Mode, airMAX ac Protocol Support, and Long-Range Point-to-Point (PtP) Link Mode.
The IsoStation 5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. The UNMS (Ubiquiti Network Management System) app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android).
The device also features advanced RF analytics, real-time reporting, and spectral analysis, providing you with the most advanced RF analytics in the industry. Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
With its superior performance, scalability, and long-distance capabilities, the IsoStation AC 5GHz Shielded airMAX ac Radio with Isolation Antenna is a versatile and cost-effective solution for your networking needs.
The IsoStation 5AC is a durable, high-quality device that offers high isolation solutions in fixed beamwidth increments. These are achieved through interchangeable horn antennas, optimized for urban environments. The tailored antenna radiation patterns spatially filter both in-band and out-of-band spurious RF emissions, enhancing the noise immunity of the IsoStation 5AC. This feature is particularly crucial in today's congested RF environments.
The modular design of the IsoStation 5AC allows for improved beam-shaping to meet specific deployment needs. By default, the device includes a symmetrical horn antenna with a 45-degree beamwidth. The horn antennas enhance co-location performance without sacrificing gain, offering breakthrough scalability options for wireless systems.
The IsoStation 5AC also features enhanced co-location with asymmetrical horn antennas designed to have attenuated side lobes and extremely low back radiation. These antennas are ideal for cluster sector installations with high co-location requirements.
The device can be paired with a robust dish antenna, model U-OMT-Dish, to extend radio performance for a greater number of WISP customers. This antenna offers excellent beam directivity with 27 dBi of gain.
The IsoStation 5AC operates on airOS8 Software, a revolutionary operating system for Ubiquiti airMAX ac products. This software features an all-new design for improved usability and includes powerful wireless features like Access Point PtMP airMAX Mixed Mode, airMAX ac Protocol Support, and Long-Range Point-to-Point (PtP) Link Mode.
The IsoStation 5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. The UNMS (Ubiquiti Network Management System) app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android).
The device also features advanced RF analytics, real-time reporting, and spectral analysis, providing you with the most advanced RF analytics in the industry. Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
With its superior performance, scalability, and long-distance capabilities, the IsoStation AC 5GHz Shielded airMAX ac Radio with Isolation Antenna is a versatile and cost-effective solution for your networking needs.
