An innovative addition to Ubiquiti Networks' cutting-edge airMAX CPE (Customer Premises Equipment) line, the NanoBeam 2AC is a high-performance 2.4GH z airMAX ac Bridge with a dedicated management radio and a 13dBi gain. This advanced device is designed to maximize noise immunity with its uniform beamwidth, directing RF energy in a focused direction to block or spatially filter out noise. This feature is particularly beneficial in areas densely populated with RF signals of the same or similar frequency. The NanoBeam 2AC combines the radio and antenna into a compact, efficient design, achieving maximum gain from the smallest footprint.
This innovative form factor, coupled with high performance, makes the NanoBeam 2AC a versatile and cost-effective solution for deployment. Powered by the revolutionary airOS 8 operating system, this device supports a range of powerful wireless features. These include Access Point PtMP airMAX Mixed Mode, airMAX ac Protocol Support, Long-Range Point-to-Point (PtP) Link Mode, and a comprehensive array of diagnostic tools such as RF Diagnostics and the airView Spectrum Analyzer. The NanoBeam 2AC also boasts advanced RF analytics, thanks to its multi-radio architecture. A dedicated radio persistently analyzes the full 2.4 GHz spectrum and every received symbol, providing industry-leading RF analytics.
Real-time reporting and spectral analysis features help you identify noise signatures and plan your networks to minimize noise interference. For ease of installation and management, the NanoBeam 2AC integrates a separate Wi-Fi radio and is compatible with the UNMS app. This app provides instant access to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol is another standout feature of the NanoBeam 2AC. This unique protocol allows each client to send and receive data using pre-designated time slots, eliminating hidden node collisions and maximizing airtime efficiency.
This results in significant performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class. The NanoBeam 2AC also supports high data rates with its proprietary airMAX ac technology, offering up to 330+ Mbps real TCP/IP throughput. This is more than double the throughput of standard airMAX products. With its quick installation, convenient alignment, efficient footprint, and versatile mounting options, the NanoBeam 2AC is not only high-performing but also user-friendly and aesthetically pleasing. It's small enough to blend discreetly into any location, making it an ideal choice for customers seeking a powerful, compact, and efficient airMAX ac Bridge.
Ubiquiti NBE-2AC-13-US NanoBeam AC
High-Performance airMAX ac Bridge with Dedicated Wi-Fi Management Radio

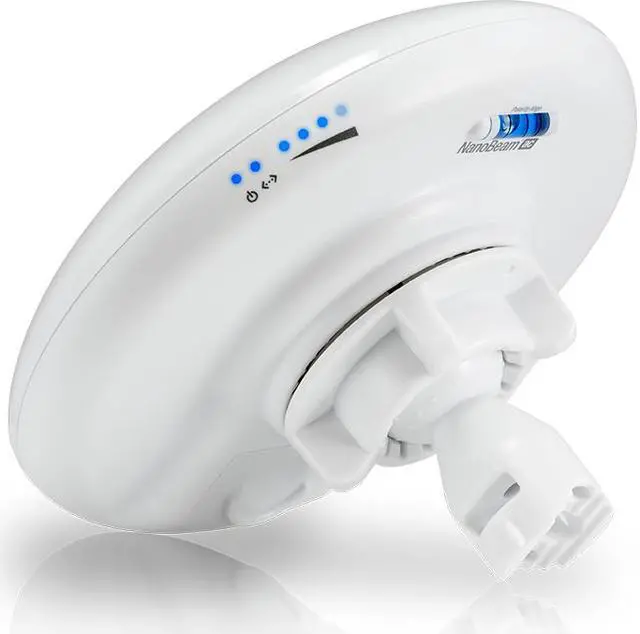

Incorporating innovative industrial design with exclusive airMAX ac technology, the NanoBeam AC is ideal for CPE (Customer Premises Equipment) deployments requiring maximum performance from the smallest possible footprint. The NBE-2AC-13-US operates on 2.4GHz, delivers 330+ Mbps maximum throughput and has an operation range of up to 15+ km. Plus, it comes with a ball joint for easy aiming, and can be mounted on pole, window or wall for easy deployment in various environments.
Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation

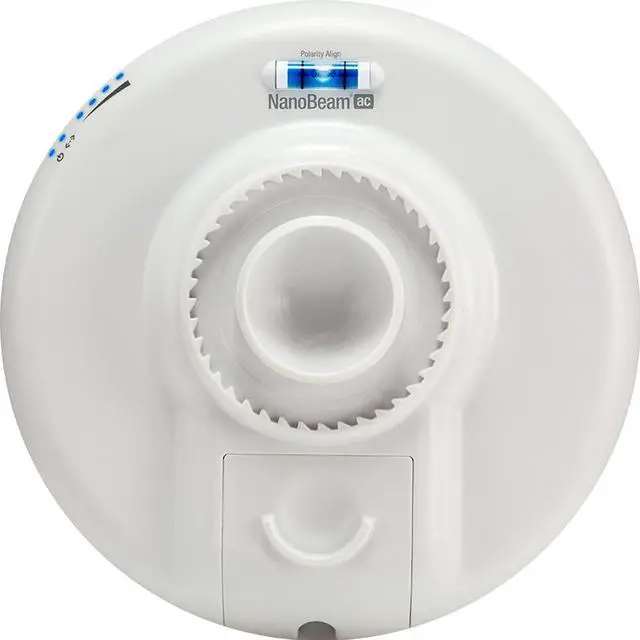

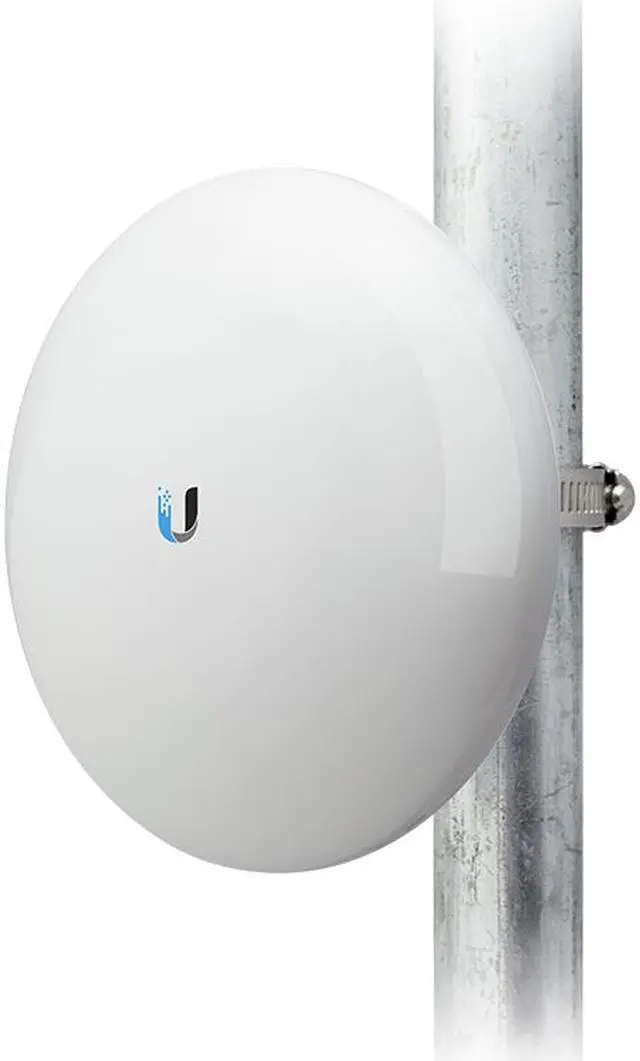

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
