Flex 2.5G PoE
USW-Flex-2.5G-8-PoE
Layer 2 Switch

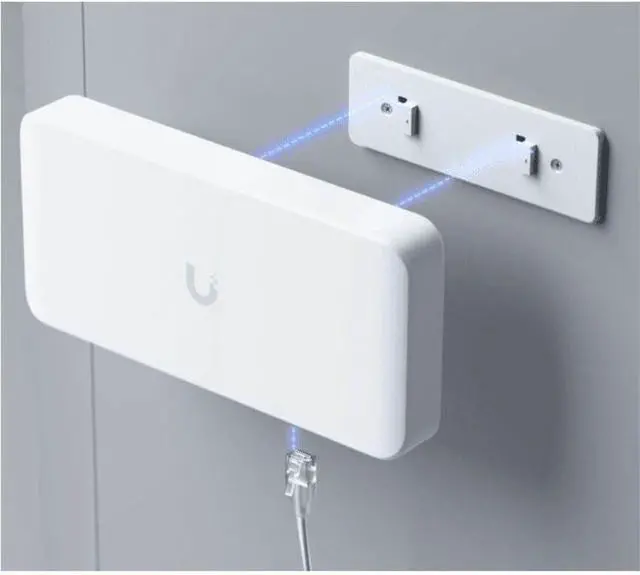

- Compact, Wall-Mountable Switch: Ideal for enclosures and poles.
- PoE+ to PoE+++ Input: Power the Flex 2.5G PoE switch via PoE and pass it through the connected devices.
Deployment
The Flex 2.5G PoE switch offers seamless deployment, ideal for high-speed 2.5 GbE connectivity with PoE++ support in compact environments.

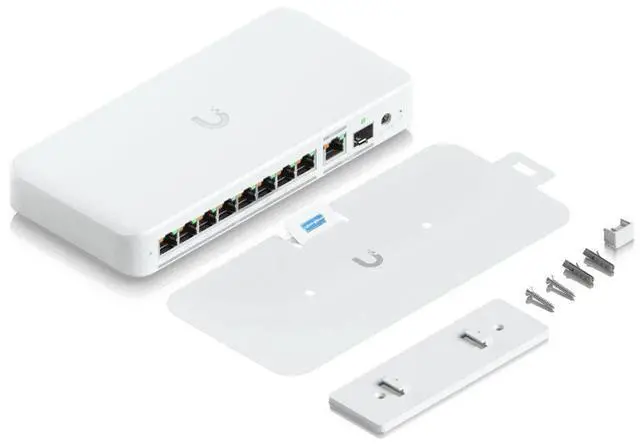

Package Content
Included:
- (1) Switch
- (1) Mounting Accessories
Product Comparison
|
Flex 2.5G PoE Flexible 2.5G PoE++ switch with 10 GbE RJ45/SFP+ uplink |
Flex 2.5G Flexible 2.5G switch with 10 GbE RJ45/SFP+ uplink |
Flex Weatherproof with PoE input support |
Flex Mini 2.5G Compact 2.5G switch with PoE input support |
|
|
Dimensions |
212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3") |
212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3") |
122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1") |
117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8") |
|
Port Count |
(8) 2.5 GbE RJ45 | (8) 2.5 GbE RJ45 | (5) GbE RJ45 | (5) GbE RJ45 |
|
Downlink Speed |
2.5 Gbps | 2.5 Gbps | 1 Gbps | 2.5 Gbps |
|
Uplink Speed |
10 Gbps | 10 Gbps | 1 Gbps | 2.5 Gbps |
|
PoE Output |
Up to PoE++ | — | PoE+ | — |
|
PoE Availability |
Up to 196 W | — | Up to 46 W | — |
|
Power Method |
AC power or PoE+ to PoE+++ input1 | AC power or PoE+ input | AC power or PoE to PoE++ input | AC power or PoE input |
|
Mounting |
Desktop Wall DIN rail2 |
Desktop Wall DIN rail2 |
Desktop Wall/Pole |
Desktop |
|
Outdoor-Ready |
— | — | ✓ | — |
Notes:
1. AC power or PoE+/PoE++/PoE+++ input required for PoE output.
2. DIN Rail Mount sold separately.
