Ubiquiti U7 Pro Wall, Wall-Mounted W-iFi 7 Access Point (U7-Pro-Wall)

  • U7 Lite
  • U7 In-Wall
  • U7 Long Range
  • U7-Outdoor
  • U7 Pro
  • U7 Pro 5-Pack
  • U7 Pro Max
  • U7 Pro Wall
  • U7 Pro Outdoor
  • U7 Pro XG Wall
  • U7 Pro XG
  • U7 Pro XG - Black
  • U7 Pro XGS
  • U7 Pro XGS - Black

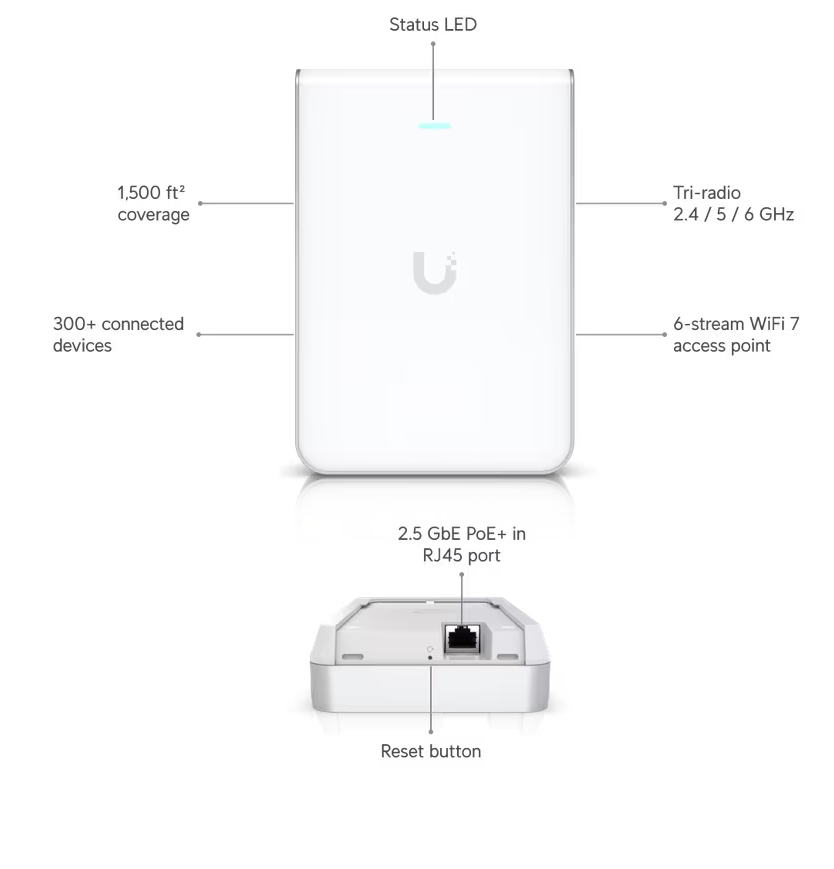

  • Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
  • WiFi 7 with 6 GHz support
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink
  • Versatile deployment with optional Flush Mount and Table Stand accessories*
+
+
Overview
Specs
Reviews (3)
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

U7 Pro Wall

U7-Pro-Wall

Ubiquiti Networks U7 Pro Wall WiFi 7 Access Point

WiFi 7 Access Point

  • 2.5 GbE Power: The U7 Pro Wall Wi-Fi 7 access point features an integrated 2.5 GbE PoE switch.
  • Versatile mounting: This wall-mounted WiFi 7 access point is designed for home builders, offering seamless installation and advanced features.

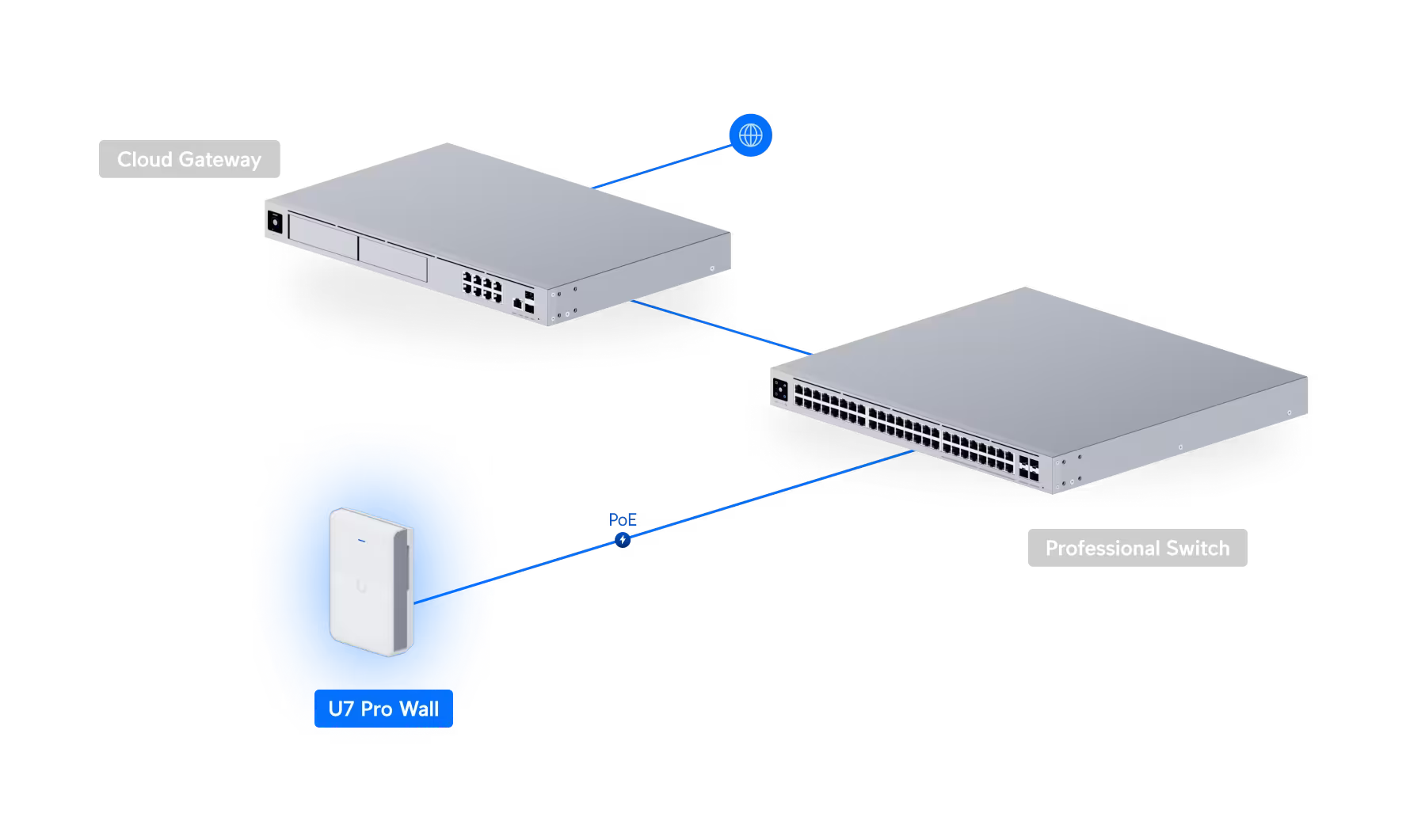

Deployment

Ubiquiti Networks U7 Pro Wall WiFi 7 Access Point

UniFi Site Manager allows you to quickly visualize and optimize channel distribution across the entire deployment.

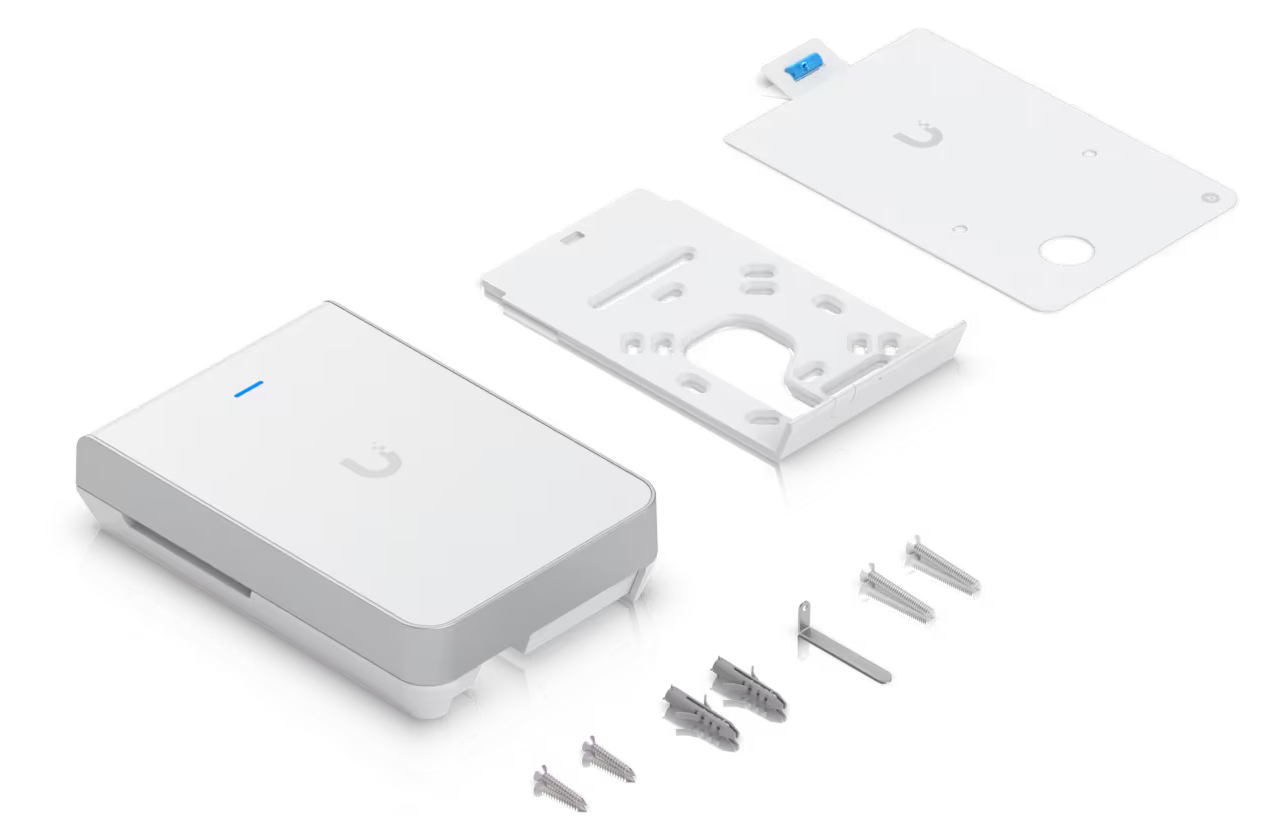

Package Content

Ubiquiti Networks U7 Pro Wall WiFi 7 Access Point

Included:

  • (1) Access Point
  • (1) Mounting Accessories

Product Comparison

U7 Pro Wall1

WiFi 7 and 6 GHz, tailored for interiors.

U7 In-Wall

WiFi 7 AP with integrated 2.5 GbE PoE switch

U6 Enterprise In-Wall

Additional 6 GHz radio for high-density environments

U6 In-Wall

Low-profile WiFi 6 AP with a built-in PoE switch

U6 Extender

Easy-to-deploy WiFi 6 extender that plugs into a wall outlet

Dimensions

150 x 103 x 36 mm
(5.9 x 4.1 x 1.4")
137 x 98.7 x 30.2 mm
(5.4 x 3.9 x 1.2")
159.7 x 156.7 x 33.8 mm
(6.3 x 6.2 x 1.3")
139.7 x 96 x 31.2 mm
(5.5 x 3.8 x 1.3")
169.7 x 112.2 x 32.2 mm
(6.7 x 4.4 x 1.3")

Connected Devices

300+ 200+ 600+ 300+ 300+

Uplink

2.5 GbE 2.5 GbE 2.5 GbE GbE Meshes with UniFi WiFi

Coverage

140 m² (1,500 ft²) 115 m² (1,250 ft²) 115 m² (1,250 ft²) 115 m² (1,250 ft²) 115 m² (1,250 ft²)

Power Method

PoE+ PoE / PoE+2 PoE+ / PoE++2 PoE / PoE+2 Plugs in to AC wall outlet

WiFi Technology

WiFi 7
Tri-radio 2.4 / 5 / 6 GHz
6 spatial streams
WiFi 7
Dual-radio 2.4 / 5 GHz
4 spatial streams
WiFi 6E
Tri-radio 2.4 / 5 / 6 GHz
10 spatial streams
WiFi 6
Dual-radio 2.4 / 5 GHz
6 spatial streams
WiFi 6
Dual-radio 2.4 / 5 GHz
6 spatial streams

6 GHz Radio

✓ — ✓ — —
Notes:

1. With optional Table Stand accessory.

2. PoE+ or PoE++ is required for PoE out.

Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.
LOADING...
LOADING...

The Ubiquiti U7 Pro Wall is an indoor, wall-mounted Wi‑Fi 7 access point with 6 GHz support, six spatial streams, and a 2.5 GbE uplink, suited to home builders seeking fast, multi-band wireless coverage in a clean wall-mounted installation.

Recommended For

  • Home renovators or remodelers who can run Ethernet to a wall location and want Wi-Fi 7 coverage without installing an access point on the ceiling.
  • UniFi home or small-office network owners adding a wired access point in a specific room, especially where compatible Wi-Fi 7 devices can use its 6 GHz band.
  • Remote or hybrid workers who want a centrally managed access point near a home office, with a wired Ethernet uplink and Wi-Fi 7 connectivity for newer laptops and phones.
  • People planning room-by-room Wi-Fi in a multi-AP UniFi setup who can place an access point near the devices that need stronger local coverage rather than relying on one AP through the whole building.

Spec Summary

AttributeValue
Best ForIndoor wall-mounted Wi-Fi 7 deployments that need 6 GHz connectivity, support for 300+ clients, and a 2.5 GbE uplink
Wireless Standards And Data RatesWi-Fi 7 with 802.11a/b/g/n/ac/ax/be support; maximum listed rates are 54 Mbps for 802.11a/g, 300 Mbps for 802.11n, 1.7 Gbps for 802.11ac, 2.4 Gbps for 802.11ax, and 5.7 Gbps for 802.11be
Radio ConfigurationSix spatial streams across 2.4, 5, and 6 GHz, with 2×2 DL/UL MU-MIMO on each band; transmit power is 22 dBm at 2.4 GHz, 26 dBm at 5 GHz, and 23 dBm at 6 GHz
Wired Connectivity And PowerOne 1/2.5 GbE RJ45 port and PoE+ power input
Network Management And SecurityWPA-PSK and WPA-Enterprise security, including WPA/WPA2/WPA3/PPSK; supports 802.1Q VLANs, up to 8 BSSIDs per radio, per-user rate limiting, and guest traffic isolation
CapacitySupports 300+ connected clients
Installation And EnvironmentDesigned for indoor mounting; listed operating range is up to 140 m indoors and outdoors; operating temperature -30 to 60°C (-22 to 140°F), with 5–95% noncondensing humidity
Physical SpecificationsWhite; 150 × 103 × 36 mm (5.9 × 4.1 × 1.4 in); 580 g (1.3 lb)
Warranty And Compliance5-year extended warranty; FCC ID SWX-U7PROW
Model IdentifiersUbiquiti Networks U7 Pro Wall; model U7-Pro-Wall; WiFi access points series
