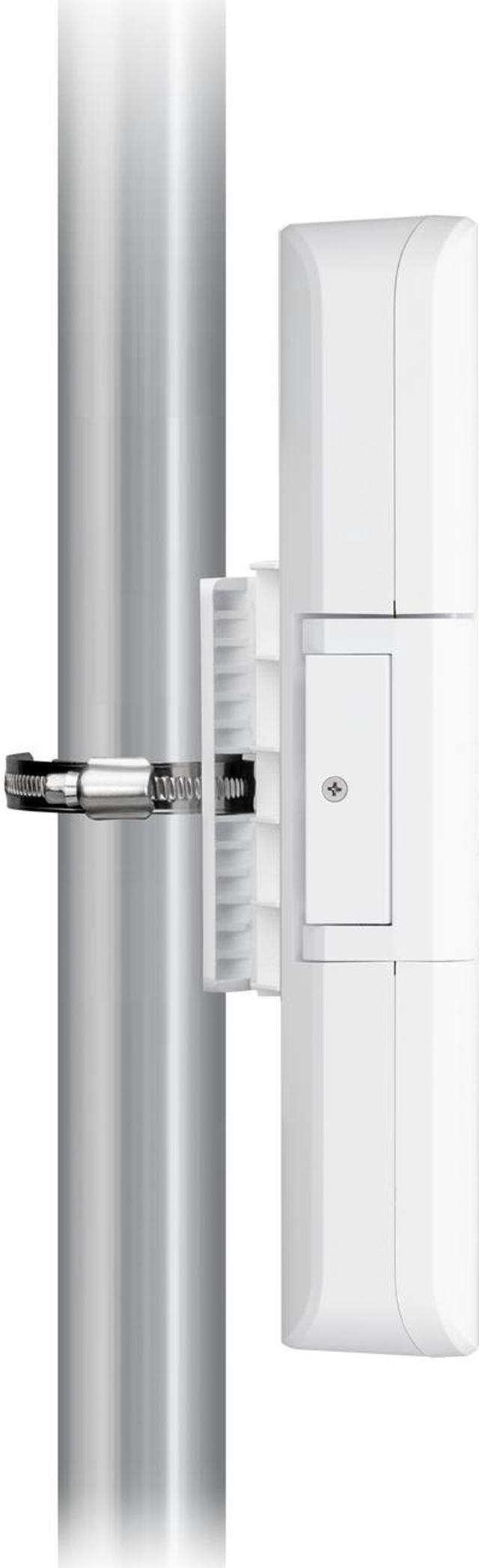

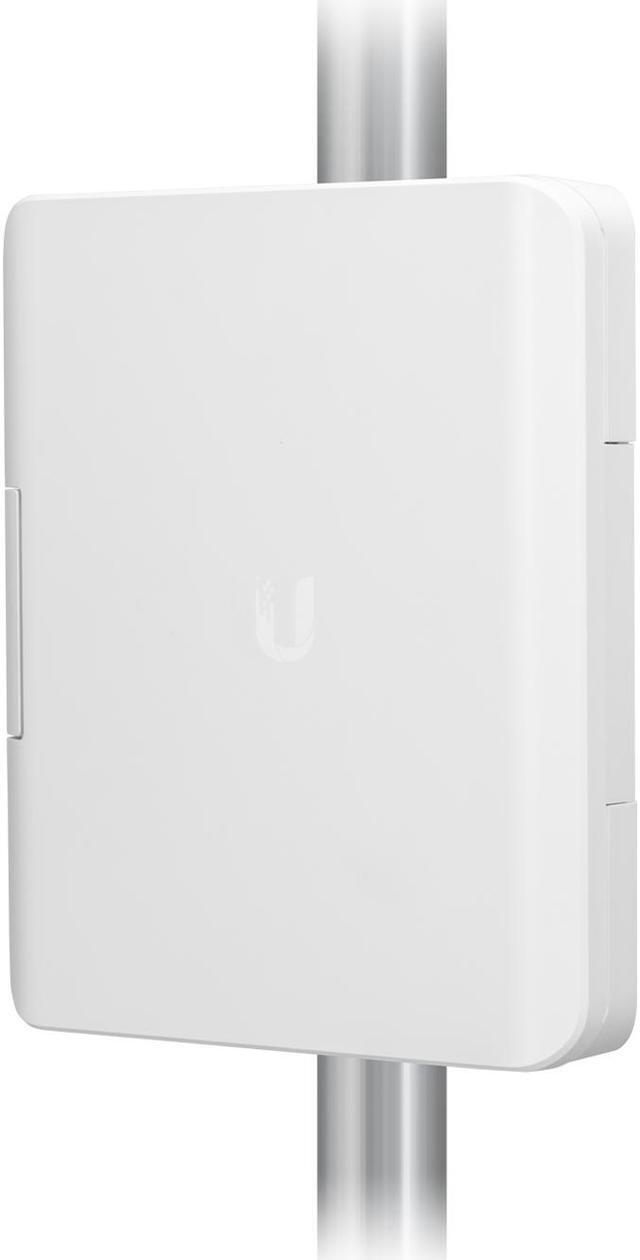

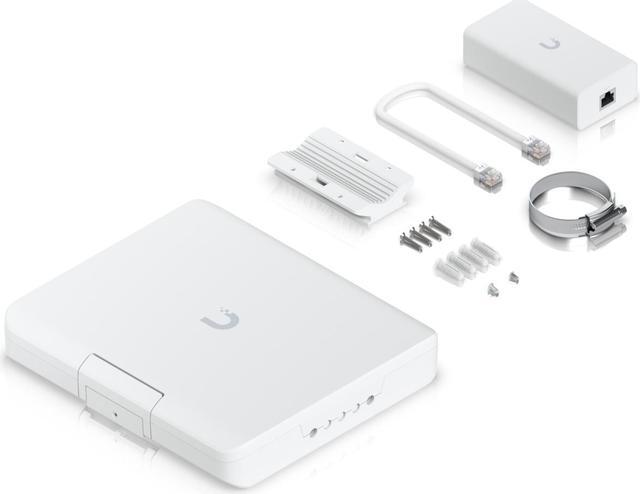

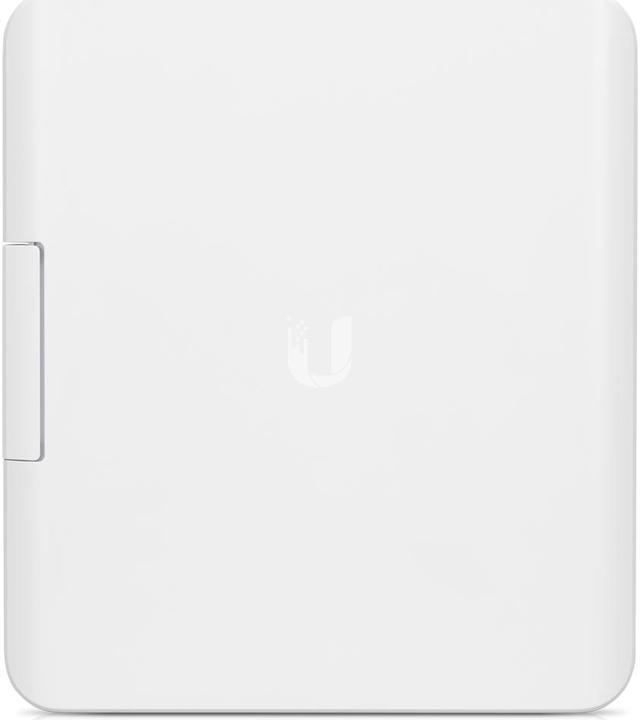

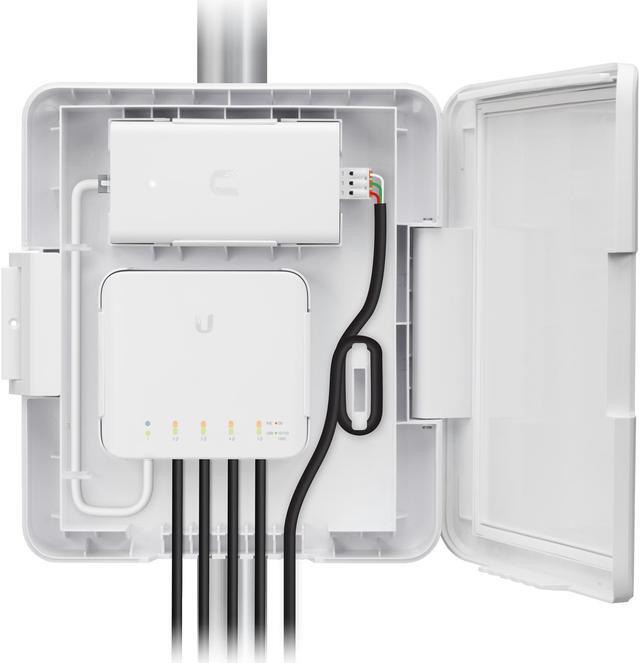

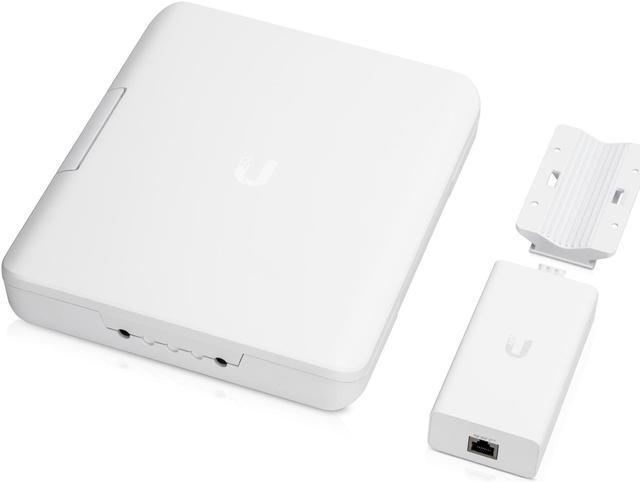

Flex Switch Adapter Kit for Street Light Pole Applications
Learn more about the Ubiquiti Networks USW-Flex-Utility
Model
Brand
Ubiquiti Networks
Series
Network Switch
Model
USW-Flex-Utility
Format & Standards
Format
External
Features
Features
60W PoE Adapter Output voltage 54V, 1.11A Rated voltage 100-240V AC Input current Max. 1.5A Efficiency > 86% Output ripple 200mVpp Line regulation < 1% Load regulation < 3% 4-pair powering Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- Ambient operating temperature -20 to 60° C (-4 to 140° F) Storage temperature -30 to 70° C (-22 to 158° F) Ambient operating humidity 5 to 90%, noncondensing Surge immunity 4kV difference and Common mode
Dimensions & Weight
Dimensions
Enclosure: 249 x 218 x 60 mm (9.8 x 8.6 x 2.4") Adapter: 118.5 x 63 x 34.7 mm (4.7 x 2.5 x 1.4")
Weight
Enclosure: 740 g (26.1 oz) Adapter: 206 g (7.27 oz)
Additional Information
Date First Available
July 22, 2020
