What are the dimensions and weight of the Ubiquiti Flex switch?

The dimensions of the Ubiquiti Flex switch are 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1 inches) and it weighs 230 g (8.1 oz).

What types of power over Ethernet (PoE) ports does the Ubiquiti Flex switch have?

The Ubiquiti Flex switch has (4) GbE PoE+ ports and (1) GbE PoE++ input port for power.

$111^.49

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

Adorama

Top Rated

4.5 (5,730 total ratings)

$119^.99
+ FREE SHIPPING

BTE Outlet

3.5 (1,435 total ratings)

$152^.89
+ FREE SHIPPING

Get Educated

Make informed decisions with expert advice. Learn More

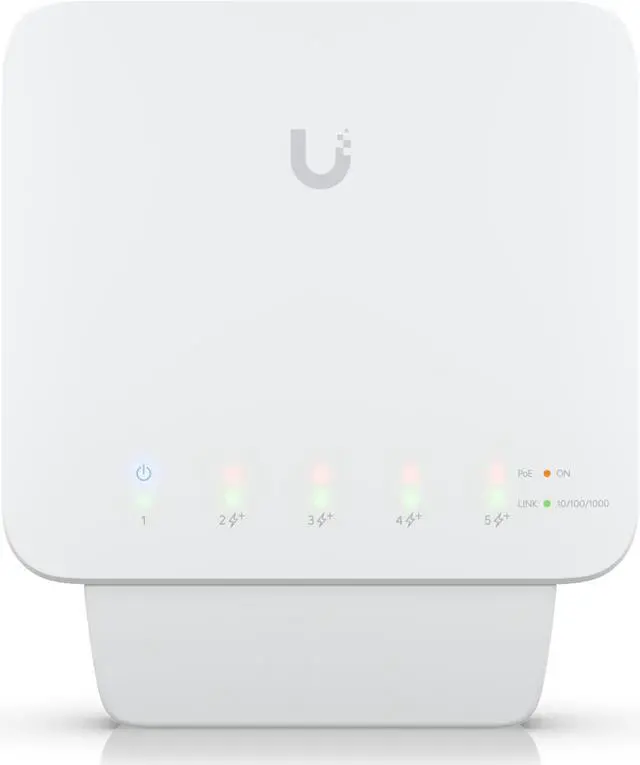

Main image of Ubiquiti Flex, 5-port Layer PoE Switch (USW-Flex (46W))

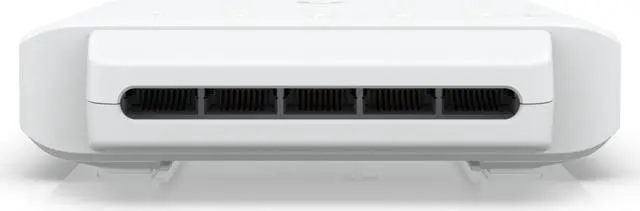

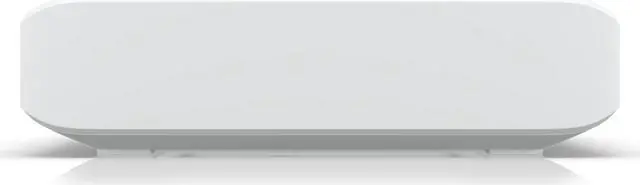

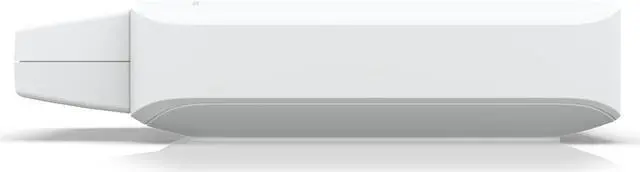

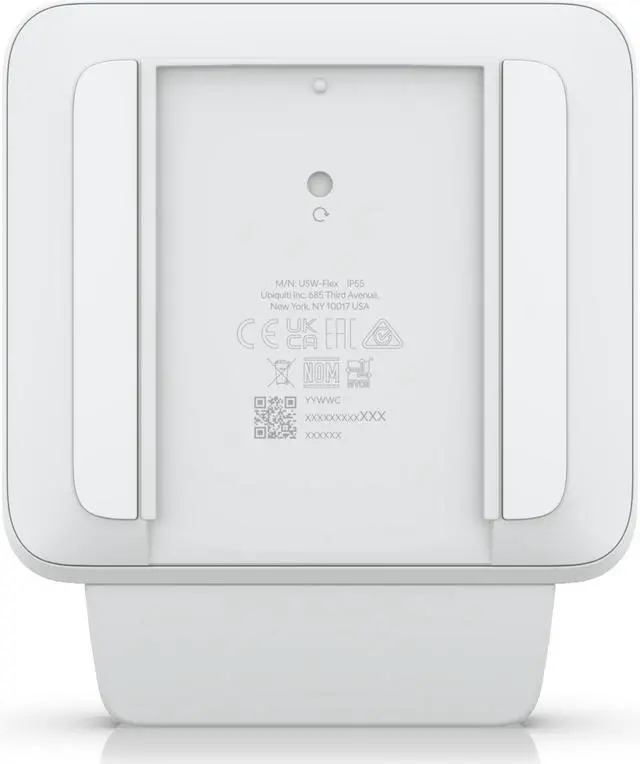

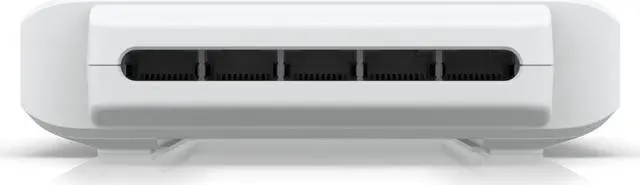

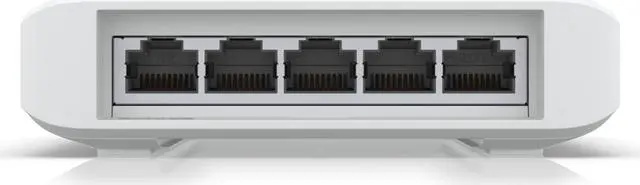

Alt view image 2 of 7 - Ubiquiti Flex, 5-port Layer PoE Switch (USW-Flex (46W))

Alt view image 3 of 7 - Ubiquiti Flex, 5-port Layer PoE Switch (USW-Flex (46W))

Alt view image 4 of 7 - Ubiquiti Flex, 5-port Layer PoE Switch (USW-Flex (46W))

Alt view image 5 of 7 - Ubiquiti Flex, 5-port Layer PoE Switch (USW-Flex (46W))

Alt view image 6 of 7 - Ubiquiti Flex, 5-port Layer PoE Switch (USW-Flex (46W))

Alt view image 7 of 7 - Ubiquiti Flex, 5-port Layer PoE Switch (USW-Flex (46W))

Shop All Ubiquiti Networks Products

Ubiquiti Flex, 5-port Layer PoE Switch (USW-Flex (46W))

(1) Write a Review

Model: Flex

Mission Critical
Lite 16 PoE
Lite 8 PoE
Ultra
Ultra 60W
Ultra 210W
Flex
Flex Mini
Flex 2.5G
Flex Mini 2.5G
Flex Mini 3-Pack
Flex 3-Pack

Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
(4) GbE PoE+ ports
(1) GbE PoE++ input port for power
— 46W PoE availability* PoE++ input
— 20W PoE availability PoE+ input
— 8W PoE availability PoE input
Indoor/Outdoor
*When powered with a PoE++ switch or a 60W PoE adapter (sold separately).

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (1)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Expand your network with the fully manageable UniFi Switch Flex 5-Port Managed Gigabit PoE Network Switch from Ubiquiti. Designed for both indoor and outdoor use, this 5-port Gigabit Ethernet switch features a total power budget of 46W when a compatible PoE-compliant switch or adapter is connected to its 60W 802.3 bt PoE++ port. Its four auto-sensing ports deliver 802.3 af PoE output to connected devices such as network security cameras. The UniFi Switch Flex also features a host of flexible mounting options, including on the wall or ceiling, on a pole, or using its magnetic backing to securely attach to a steel surface.

Administrators may monitor and manage the switch using the UniFi Network Controller application.

Best Seller Ranking	#75 in Switches

Model
Brand	Ubiquiti Networks
Series	Network Switch
Model	Flex
Part Number	USW-Flex (46W)

Format & Standards
Format	Desktop
Network Management Type	Managed

Ports & Interface
Primary Ports	5 x RJ45
Primary Port Speed	Total non-blocking throughput 5 Gbps Switching capacity 10 Gbps
Primary Port Type	(5) GbE RJ45 ports

Details
PoE	Yes
Layer	2
Layer 2 Features	Port isolation Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit
LEDs	System Status Ethernet PoE Speed/link/activity PoE Link/activity

Power Supply
PoE Ports	(4) PoE+ (Pins 1, 2+; 3, 6-)
Power	PoE/PoE+ (Pins 1, 2+; 3, 6-) PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) 50V/60W PoE adapter (Not included)

Dimensions & Weight
Dimensions	122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")
Weight	230 g (8.1 oz)

Environmental
Temperature	46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F)
Humidity	5 to 95% noncondensing
