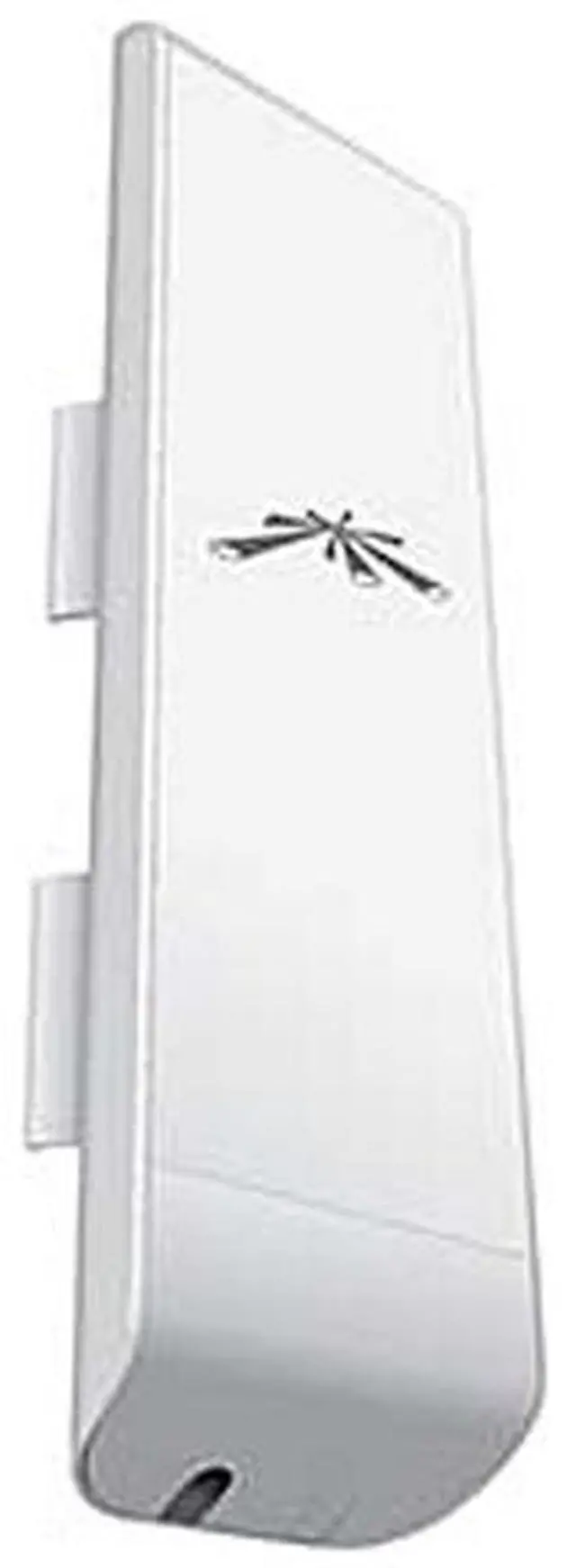

Indoor/Outdoor airMAX® CPE
Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
Your Browsing History
- Free 30-day Returns
$414.59
Ships from Canada.
Meet Your Seller
Ubiquiti NanoStation NSM365-US Wireless Bridge - 2 x Network (RJ-45) - Pole-mountable
- 150+ Mbps real outdoor throughput
- 15km+ range
- Intelligent POE
- 11 dBi Antenna
- Compact design
- Cost effective
+
+
Overview
Specs
Reviews (1)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now

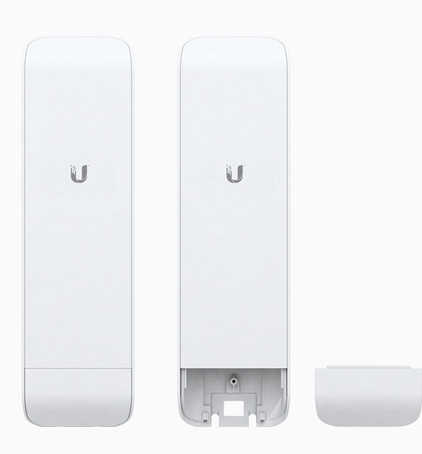

Compact CPE Design
The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
Plug and Play Installation
The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.

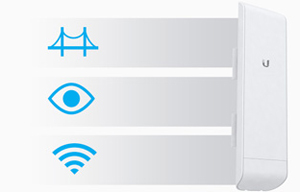

Versatile Application Use
The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.

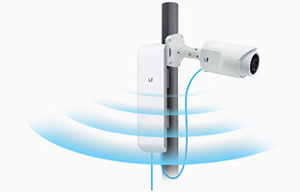

Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

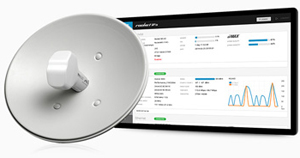

Powerful airOS® Features
Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

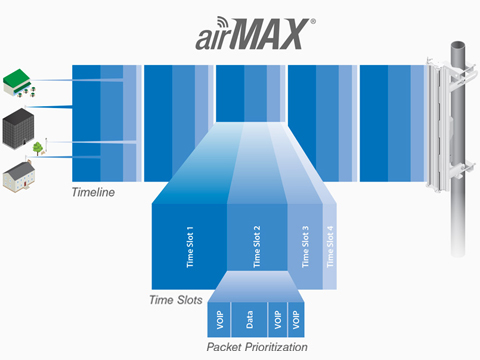

Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Window/Wall Mounting Kit
Use the NanoStation® Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
Wall/Pole Mounting Kit
The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation®M. 90° tilt adjustment allows for easy positioning.
Model Comparison
 |
 |
 |
 |
|
| locoM9 | NSM2 | locoM2 | NSM3 | |
| Frequency | 900 MHz | 2.4 GHz | 2.4 GHz | 3 GHz |
| Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | 150+ Mbps |
| Range | 10+ km | 13+ km | 5+ km | 15+ km |
 |
 |
 |
||
| NSM365 | NSM5 | locoM5 | ||
| Frequency | 3.65 GHz | 5 GHz | 5 GHz | |
| Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | |
| Range | 15+ km | 15+ km | 10+ km |
MAIN OVERVIEW FEATURES: Wireless
LAN Standard: IEEE 802.11 nFrequency
Band: 3.65 GHzWireless
Transmission Speed: 150
Mbit/sEthernet Technology: Ethernet, Fast EthernetNumber of
Network (RJ-45) Ports: 2PoE (RJ-45)
Port: NoPoE
PD Port:
YesVGA:
NoHDMI:
NoUSB:
NoPowerline: NoForm
Factor:
Pole-mountableHeight: 11.57" (294 mm)
Width: 3.15" (80 mm)
Depth: 1.22" (31 mm)
Weight (Approximate): 500 gPackage
Contents: NanoStation NSM365 Wireless BridgePole-Mount KitEnvironmentally Friendly: YesEnvironmental
Certification: RoHSLimited
Warranty: 1 Year
LAN Standard: IEEE 802.11 nFrequency
Band: 3.65 GHzWireless
Transmission Speed: 150
Mbit/sEthernet Technology: Ethernet, Fast EthernetNumber of
Network (RJ-45) Ports: 2PoE (RJ-45)
Port: NoPoE
PD Port:
YesVGA:
NoHDMI:
NoUSB:
NoPowerline: NoForm
Factor:
Pole-mountableHeight: 11.57" (294 mm)
Width: 3.15" (80 mm)
Depth: 1.22" (31 mm)
Weight (Approximate): 500 gPackage
Contents: NanoStation NSM365 Wireless BridgePole-Mount KitEnvironmentally Friendly: YesEnvironmental
Certification: RoHSLimited
Warranty: 1 Year
