Is I see the voltage rating is universale ~90-~260, what about the hz rating?

According to the label on my unit (GP-A240-050) the input voltage is 100-240V ~50/60Hz Max 0.3A with an output of 24VDC @ 0.5A with a +(4,5) pins and -(7,8) pins I haven't used mine at any other input than 120VAC/60Hz so I cannot judge how it works with other inputs. It powers my Ubiquiti Bullet just fine. I have not used the above unit much because my Ubiquiti Bullet seems to also work fine at 12VDC that is more convenient for me to supply.

does this work with 1000M network?

No. This one is 100M . If you want 1000M, look for POE-24-12W-G.

$14^.12

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Adorama

Hot Seller

4.5 (5,716 seller ratings)

Shipped by Adorama

Best Sellers

BTE Outlet

3.5 (1,429 total ratings)

$45^.30
+ FREE SHIPPING

Newegg

$15^.99
+ FREE SHIPPING

Meet Your Seller

Adorama

See Seller Store

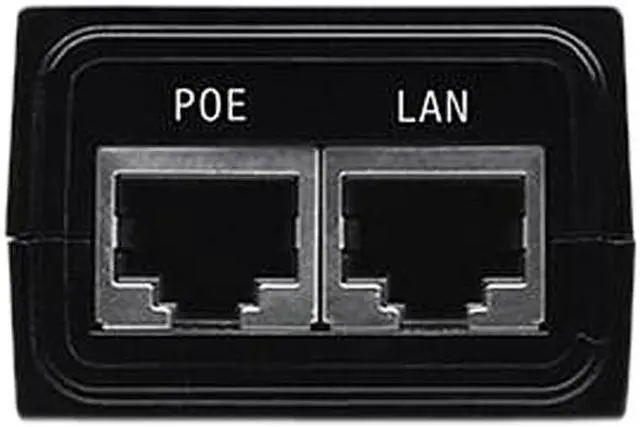

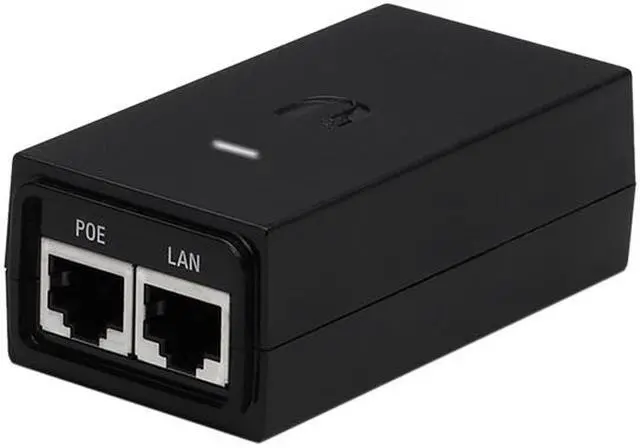

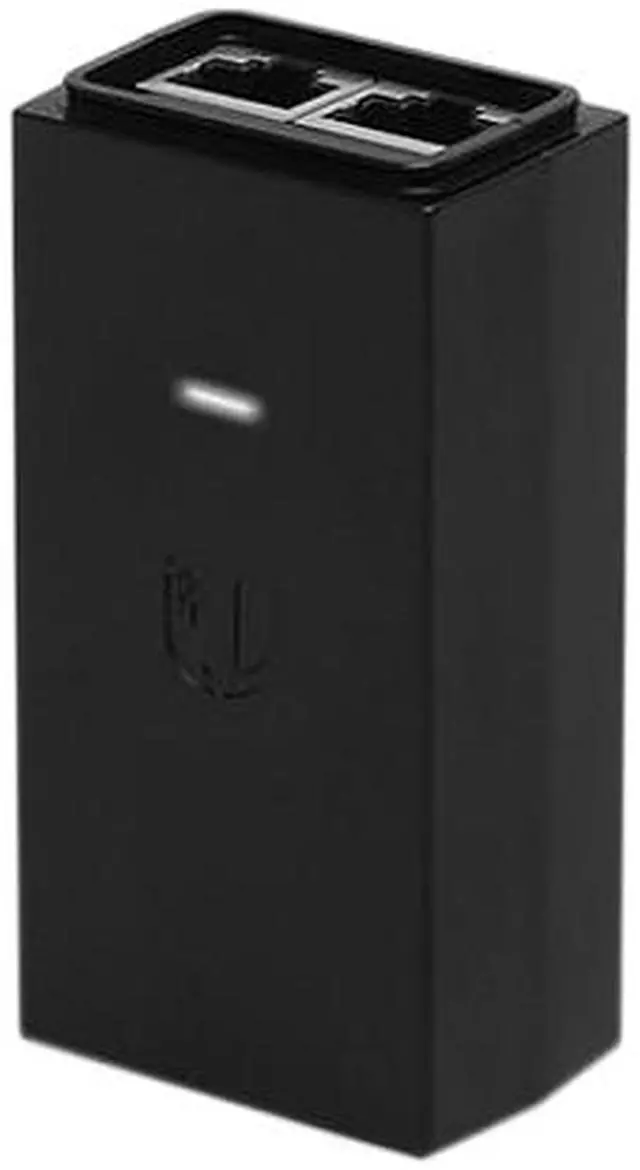

Main image of Ubiquiti 24V 12W PoE Adapter 24V 12W PoE Adapter

Alt view image 2 of 4 - Ubiquiti 24V 12W PoE Adapter 24V 12W PoE Adapter

Alt view image 3 of 4 - Ubiquiti 24V 12W PoE Adapter 24V 12W PoE Adapter

Alt view image 4 of 4 - Ubiquiti 24V 12W PoE Adapter 24V 12W PoE Adapter

Shop All Ubiquiti Networks Products | Visit Adorama Store

Ubiquiti 24V 12W PoE Adapter 24V 12W PoE Adapter

(7) Write a Review

Provides Earth Grounding and Surge Protection
Helps Protect Against ESD Events
Powers Ubiquiti PoE Devices

Overview

Specs

Reviews (7)

Any questions? Our AI beta will help you find out quickly.

Try me now

Power over Ethernet Adapters

PoE Adapters power Ubiquiti® products that support passive PoE.

Device Protection

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Convenient Wall-Mounting

The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

Seamless airGateway™ Compatibility

The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.

Model Comparison


	POE-15-12W	POE-24-12W	POE-24-12W-G	POE-24-24W	POE-24-24W-G
Output Voltage	15VDC @ 0.8A	24VDC @ 0.5A	24VDC @ 0.5A	24VDC @ 1.0A	24VDC @ 1.0A
Gigabit LAN Port	No	No	Yes	No	Yes


	POE-48-24W	POE-48-24W-G	POE-50-60W
Output Voltage	48VDC @ 0.5A	48VDC @ 0.5A	50VDC @ 1.2A
Gigabit LAN Port	No	Yes	Yes

Ubiquiti 24V-12W PoE Adapter
Brand New
Includes One Year Limited WarrantyProduct # POE-24-12W

The Ubiquiti 24V 12W PoE Adapter is highly reliable and provide surge protection, earth grounding, clamping protection, maximum surge discharge and protection against electrostatic discharge events when used with Ubiquiti TOUGHCable™. An adapter can mount on the wall with help of optional wall-mount brackets. This adapter works with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.

24V 12W PoE Adapter Features:

PoE Switch
Surge Protection
Clamping Protection
Maximum Surge Discharge
Peak Pulse Current
AC Cable with Earth Ground

Best Seller Ranking	#33 in Wired & Wireless Accessories

Model
Brand	UBiQuiTi
Model	POE-24-12W

Details
Type	PoE Adapter
Color	Black
Specifications	Dimensions: 3.43" x 1.73" x 1.14" Weight: 0.20 lb. Rated Voltage: 100-240VAC @ 50/60Hz Input Current: 0.3A @ 120VAC, 0.2A @ 240VAC Inrush Current: <30A Peak @ 120VAC, <60A Peak @ 230VAC Efficiency: 75+% Output Ripple: 1% Max. Switching Frequency: 50 kHz Line Regulation: <= 3% Load Regulation: <= 5% 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-) Operating Temperature: 0 to 40°C (32 to 104°F) Storage Temperature: -30 to 70°C (-22 to 158°F) Operating Humidity: 35 to 95% Noncondensing AC Connector: IEC-320 C6 Data IN / POE: RJ45 Shielded Socket Surge Protection: Difference and Common Mode Clamping Protection: 11V Data, 60V Power 1 Max. Surge Discharge: 1500A (8/20 μs) Power Peak Pulse Current: 36A (10/1000 μs) Data Shunt Capacitance: <5 pF data Response Time: <1 ns Certifications: CE, FCC, IC, UL

Features
Features	Provides Earth Grounding and Surge Protection Helps Protect Against ESD Events Powers Ubiquiti PoE Devices
