Ubiquiti UniFi AC access point
In–Wall 802.11ac Wi–Fi Access Point (UAP-AC-IW)
Ideal for new or retrofit installations, the UniFi AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11ac Wi-Fi access point with two Gigabit Ethernet ports. The wireless AP supports dual band simultaneous operation with wireless speed up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. One of the two Ethernet ports provides PoE for powering and connecting a PoE enabled device. And its sleek design allows an easy fit with any room or office settings.
An intuitive UniFi Controller is included, which can be installed on the computers within the network. It can be assessed using web browsers, and allows you to configure, monitor and manage the Wi-Fi network with easy-to-use and user-friendly interface. Mobile apps for iOS and Android devices are also available, which put control right in your hand.
Easier Than You Think
Ideal for new and retrofit installations, the UniFi AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11ac Wi-Fi access point with two Gigabit Ethernet ports.
- Scalable. Dedicated Wi-Fi per room
- Easy Setup, Monitoring, and Control
- Fast. Two radios, 802.11ac
The Power of PoE
Turn existing wiring into per-room Wi-Fi with the UniFi PoE Switch series.*
* Requires Cat5e or higher
Versatile Data and PoE Output

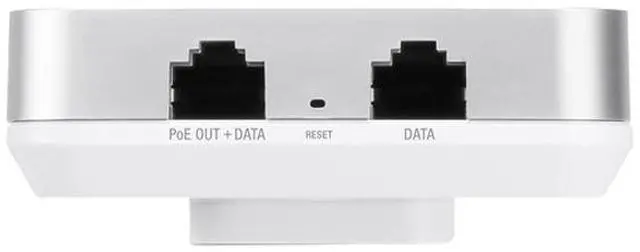

An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source.
Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.
Simple and Scalable Device Management
The UniFi Controller provides a graphical user interface for easy configuration and monitoring of the UniFi Switch and other UniFi devices.
Simple Setup
Download the app and set up your unit in under 60 seconds.
Know Your Network
Easily keep track of your devices, clients, and data usage.
Stay Secure
Keep track of all of your network security with constant reporting.
Scalable Enterprise Wi-Fi Management Uni
Fi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. Uni
Fi 802.11AC Dual-Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser, the Uni
Fi Controller software is a powerful software engine ideal for high-density client deployments requiring lowlatency and high uptime performance. Use the Uni
Fi Controller software to quickly configure and administer an enterprise Wi-Fi network - no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated. Extend Your Coverage With the Uni
Fi Controller software running in a NOC or in the cloud, administrators
can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Below are some deployment examples. Uni
Fi Controller Packed with Features Use the Uni
Fi Controller to provision thousands of Uni
Fi APs, map out networks, quickly manage system traffic, and provision additional Uni
Fi APs. Breakthrough RF Map Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting. Powerful RF Performance Features Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering. Detailed Analytics Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting. Wireless Uplink Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired Uni
Fi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology. Guest Portal/Hotspot Support Easy customization and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use Uni
Fi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. All Uni
Fi APs include
Hotspot functionality: Built-in support for billing integration using major credit cards. Built-in support for voucher-based authentication. Built-in Hotspot Manager for voucher creation, guest management, and payment refund. Full customization and branding of Hotspot portal pages. Multi-Site Management A single Uni
Fi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts. WLAN Groups The Uni
Fi Controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.
Product Type: Wireless Access Point
Product Type: Wireless Access Point
Manufacturer Part Number: UAP-AC-IW
Limited Warranty: 1 Year
Weight (Approximate): 7.05 oz
Form Factor: Wall Mountable
Product Model: UAP-AC-IW
Form Factor: Wall
Mountable Manufacturer: Ubiquiti Networks, Inc
Product Model: UAP-AC-IW
Product Name: Uni
Fi AC UAP-AC-IW Wireless Access Point
Product Line: Uni
Fi AC
Wireless Transmission Speed: 1.14 Gbit/s
Brand Name: Ubiquiti Wireless
Transmission Speed: 1.14 Gbit/s
Brand Name: Ubiquiti
Height: 5.5
Width: 3.4
Depth: 1
Frequency Band: 5 GHz
Frequency Band: 2.40 GHz
Wireless LAN Standard: IEEE 802.11 ac
Ethernet Technology: Gigabit
Ethernet USB: No
HDMI: No
VGA: No Number of
Network (RJ-45) Ports: 3
Product Family: Uni
Fi AC Powerline: No
Management Port: No
PoE (RJ-45) Port: No Total Number of
Antennas: 1 Number of
Internal Antennas: 1
MIMO Technology: Yes PoE PD
