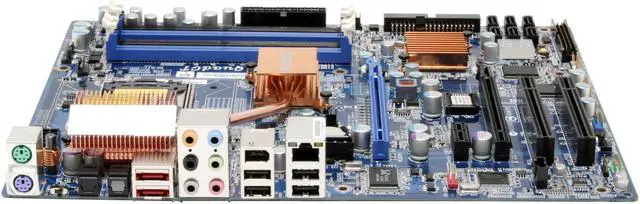

ABIT AB9 QuadGT LGA 775 Intel P965 Express ATX Intel Motherboard

(88) Write a Review
  • Intel P965 Express
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (88)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Universal abit USA AB9 QuadGT

Model
Brand ABIT
Model AB9 QuadGT
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel P965 Express
South Bridge Intel ICH8R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 at x16, 1 at x4
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID Intel Matrix Storage Tech(AHCI & RAID0/1/5/10)
2 x eSATA 3Gb/s through JMicron JMB363 support 0,1JBOD RAID function
Additional RAID Controller JMicron JMB363
Onboard Audio
Audio Chipset AC97 Codec
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 1Gbps
Rear Panel Ports
PS/2 2
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 2 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
S/PDIF In 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Onboard 1394 1 x 1394a connector supports 1 port
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.
Packaging

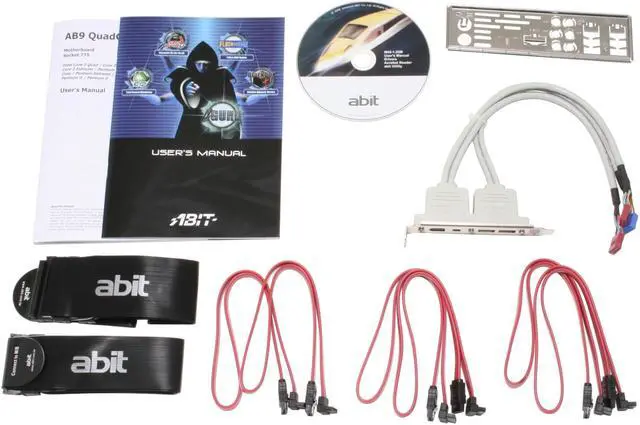

Package Contents AB9 QuadGT
Additional Information
First Listed on Newegg January 10, 2007
