- The projector uses LED light source, which has the characteristics of low power consumption, fast reaction speed and vivid color restoration. The projection color is bright and clear, with an ultra long life of 20000 hours, and the contrast is up to 2000:1 , 1920 * 1080 resolution.
- In addition, the projector adopts a closed dust-proof and heat dissipation design, with low working noise.It supports USB to play high-definition video (up to 64G), pictures and other multimedia files, fully decoded 480p, 720p, 1080P and other high-definition movie sources, and can be displayed in more than 20 international languages, including English, Japanese, Simplified Chinese, Traditional Chinese, Spanish, German, Italian, French, Russian, etc.
- Support 500G-2T large capacity mobile hard disk (the mobile hard disk needs external power supply).
- Text format: Txt
- Bluetooth: 5.1
- OSD/WiFi: 1. Wireless (Apple/Android) /2.4G/5G; 2. Wired with the screen (Apple/Android), Android phones only support video does not support audio, Apple phones support audio and video
- TF Card interface, insert a USB flash disk to play audio, video and picture files in the USB flash disk.
- Video and audio signal input ports, connecting VCD and DVD video signal output terminals.
- Audio output headphone socket port to connect external audio signal amplification equipment or headphones.
- USB interface, which can play audio, video and picture files in the USB disk when inserted into the USB disk.
- HDMI high-definition video signal port, connecting the HDMI output signal terminal of computer and DVD.
- AC power input interface, input power AC110-240V.
- The computer signal input port is connected with the output signal terminal of the computer.
- Remote control receiving window at the rear of the machine.
- Brightness:300±10 lumens
- Contrast ratio:2000:1
- Resolution:1920*1080 Support 576i,720P,1080i,1080P
- Screen size: 40-150 inch
- Projection distance: 1.35-4.8M
- Projection ratio: 1.45:1
- Image display ratio: Auto / 4:3 / 16:9
- Image scaling: 25 levels of electronic image scaling
- Light source brightness uniformity: less than 60%
- Focusing mode: Manual
- Projection color: 16.77 million colors
- TF card (U disk) maximum support: 64G
- Ports: VGA input*1, TF card input*1, USB*1, HDMI*1, AV*1)
- Audio output: EAR*1(L/R)
- Power consumption standard: 70±2W
- Built-in speaker: 2W/4ohm
- Noise: less than 46dB
- HDMI/VGA/AV/USB: 576i, 720P, 720i, 720P, 1080i, 1080P
- Movie format support: MPEG1, MPEG4, RM, RMVB, MOV, MJPEG, Divx, VOB, MKV.
- Audio format support: WMA, MP3, M4A (AAC), APE, FLAC, WAV.
- Image format support: JPEG, BMP, PNG, PNG
- Display technology type: LCD technology
- Light source technology type: matrix LED light source
- Projection color: 16.77 million colors
- Light source life: more than 20000 hours
- Operating temperature range: 0~40Celsius
- Storage temperature range: -20~45Celsius
- Operating Humidity Range: 10%RH~80%RH
- Storage humidity range: 10%RH~60%RH1
- Menu language: Chinese, English, Russian, French, German, Italian, Spanish, Portuguese,etc.(more than 20 languages)
- Image flip: Image can be flipped up and down, left and right, support front projection, rear projection selection
- Remote control: full-featured remote control (remote control distance test more than 5 meters); Key: Sensitive
- Chromaticity/brightness/contrast: Without abnormalities
- Other: no interference/ no color difference/ no ripple
- Power input: AC100-240V 50/60Hz
- Color: black, white
- Accessories: UT-V6,product manual, remote control, power cable
1. Overview
The projector uses LED light source, which has the characteristics of low power consumption, fast reaction speed and vivid color restoration. The projection color is bright and clear, with an ultra long life of 20000 hours, and the contrast is up to 2000:1, 1920 * 1080 resolution.
In addition, the projector adopts a closed dust-proof and heat dissipation design, with low working noise.
It supports USB to play high-definition video (up to 64G), pictures and other multimedia files, fully decoded 480p, 720p, 1080P and other high-definition movie sources, and can be displayed in more than 20 international languages, including English, Japanese, Simplified Chinese, Traditional Chinese, Spanish, German, Italian, French, Russian, etc.
Support 500G-2T large capacity mobile hard disk (the mobile hard disk needs external power supply).

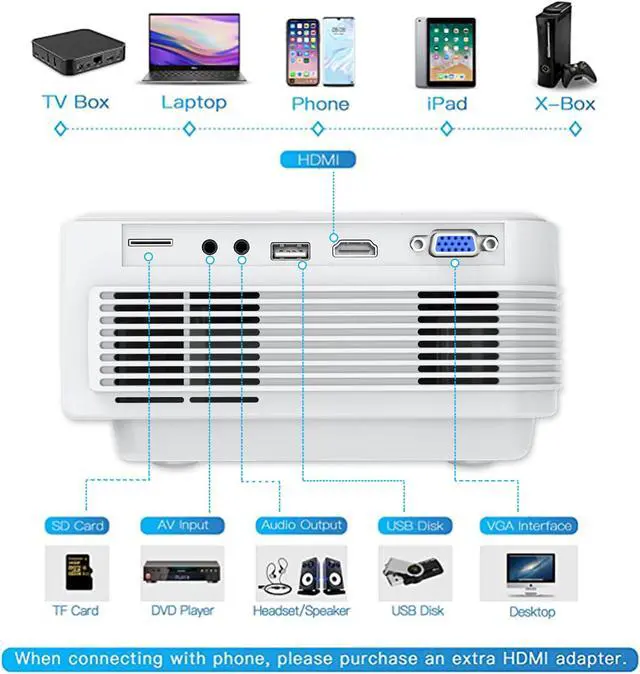

2. Product interface
TF Card interface, insert a USB flash disk to play audio, video and picture files in the USB flash disk.
Video and audio signal input ports, connecting VCD and DVD video signal output terminals.
Audio output headphone socket port to connect external audio signal amplification equipment or headphones.
USB interface, which can play audio, video and picture files in the USB disk when inserted into the USB disk.
HDMI high-definition video signal port, connecting the HDMI output signal terminal of computer and DVD.
AC power input interface, input power AC110-240V.
The computer signal input port is connected with the output signal terminal of the computer.
Remote control receiving window at the rear of the machine.
3. Parameter
Model: UT-V6
Projection type: portable projector
Display technology type: LCD technology
Light source technology type: matrix LED light source
Brightness: 300±10 lumens
Contrast ratio: 2000:1
Resolution: 1920*1080 Support 576i, 720P, 1080i, 1080P.
Screen size: 40-150 inch
Projection distance: 1.35 - 4.8M
Projection ratio: 1.45: 1
Image display ratio: Auto / 4:3 / 16:9
Image scaling: 25 levels of electronic image scaling
Light source brightness uniformity: 60%
Focusing mode: Manual
Projection color: 16.77 million colors
Light source life: 20000 hours
TF card (U disk) maximum support: 64G
Ports: VGA input*1, TF card input*1, USB*1, HDMI*1, AV*1)
Audio output: EAR*1(L/R)
Power consumption standard: 70±2W
Built-in speaker: 2W/4ohm
Noise: 46dB
HDMI/VGA/AV/USB: 576i, 720P, 720i, 720P, 1080i, 1080P
Movie format support: MPEG1, MPEG4, RM, RMVB, MOV, MJPEG, Divx, VOB, MKV.
Audio format support: WMA, MP3, M4A (AAC), APE, FLAC, WAV.
Image format support: JPEG, BMP, PNG, PNG
Text format: Txt
Bluetooth: 5.1
OSD/WiFi:
1. Wireless (Apple/Android) / 2.4G /5G;
2. Wired with the screen (Apple/Android), Android phones only support video does not support audio, Apple phones support audio and video
Operating temperature range: 0~40 (32~104)
Storage temperature range: -20~45 (-4~113)
Operating Humidity Range: 10%RH~80%RH
Storage humidity range: 10%RH~60%RH1
Menu language: Chinese, English, Russian, French, German, Italian, Spanish, Portuguese, etc. (more than 20 languages)
Image flip: Image can be flipped up and down, left and right, support front projection, rear projection selection
Remote control: full-featured remote control (remote control distance test 5 meters);
Key: Sensitive
Chromaticity/brightness/contrast: Without abnormalities
Other: no interference/ no color difference/ no ripple
Power input: AC100-240V 50/60Hz
Color: black, white
Accessories: UT-V6, product manual, remote control, power cable
N. W.: 1.33K g
2Android version Android configuration
Solution: Amlogic S9255 Quad-Core Cortex-A53@ 1.5GH z (DVFS),
GPU: Penta-core Mali-450 up to 750MHz (DVFS)
Process technology: 40nm process
FLASH: 8G ROM
SDRAM: 1GB DDR3
OS: Android 9.0
3OSD version configuration
RK3036 support wireless / wired mirroring
