Ushio EmArc Enhanced SMR-200/D1 Metal Arc Discharge Lamp - High-Performance UV Lighting Solution for Specialized Industrial and Scientific Applications - 5001399
- High-performance UV-enhanced metal arc discharge lamp.
- Designed for specialized applications requiring UV illumination.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

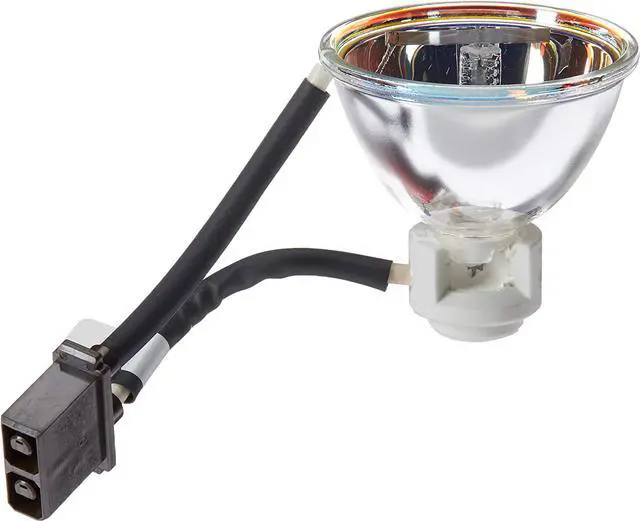

Ushio EmArc Enhanced SMR-200/D1 Metal Arc Discharge Lamp - 5001399
Features Benefits
Up to 60 lumens per watt efficacy two times that of Xenon sourcesHighly durable, rugged elliptical and parabolic reflector designs very high light path efficiencies for small diameter fiber optic bundle applications
Precise filling control, electrode design and tight manufacturing tolerances with tipless arc tube construction allows for tightly confined and stable plasma discharge, long life with minimal color temperature drift over life, better optical control, no shadowing
Far better color control over life than conventional metal halide lamps
Hot reignition
Power ranges from 160-200 watts versatility/ power tunability
Custom reflector designs available
Small arc gap sizes down to 1.2 mm highly effective optical collection capability
Unique hybrid gas discharge technology 2, 000 hours of life; no internal pressure when cold
Operation on lower cost DC power supplies reducing OEM system design costs
6000K correlated color temperature Xenon-like light for crisp, white imaging
Applications
Medical fiber optics for endoscopy or headlight illumination
Biotechnology / Micro-ArrayIndustrial UV Curing
Machine VisionCosmetic DentistryProjection / EntertainmentMicroscopyBoroscopyPhototherapy
Ushio SMR-200D1
Ordering Code: 5001399
Lamp Series: EmArc
Voltage: 43
Wattage: 160-200
Amperage: 4.65
Burn Position: V
Color Temp: 6500K
Arc Gap: 1.2 mm
Luminous Flux: 5100 lm
Life: 2000 hr
Reflector: 70 mm
Features Benefits
Up to 60 lumens per watt efficacy two times that of Xenon sourcesHighly durable, rugged elliptical and parabolic reflector designs very high light path efficiencies for small diameter fiber optic bundle applications
Precise filling control, electrode design and tight manufacturing tolerances with tipless arc tube construction allows for tightly confined and stable plasma discharge, long life with minimal color temperature drift over life, better optical control, no shadowing
Far better color control over life than conventional metal halide lamps
Hot reignition
Power ranges from 160-200 watts versatility/ power tunability
Custom reflector designs available
Small arc gap sizes down to 1.2 mm highly effective optical collection capability
Unique hybrid gas discharge technology 2, 000 hours of life; no internal pressure when cold
Operation on lower cost DC power supplies reducing OEM system design costs
6000K correlated color temperature Xenon-like light for crisp, white imaging
Applications
Medical fiber optics for endoscopy or headlight illumination
Biotechnology / Micro-ArrayIndustrial UV Curing
Machine VisionCosmetic DentistryProjection / EntertainmentMicroscopyBoroscopyPhototherapy
Ushio SMR-200D1
Specifications
:Ordering Code: 5001399
Lamp Series: EmArc
Voltage: 43
Wattage: 160-200
Amperage: 4.65
Burn Position: V
Color Temp: 6500K
Arc Gap: 1.2 mm
Luminous Flux: 5100 lm
Life: 2000 hr
Reflector: 70 mm
