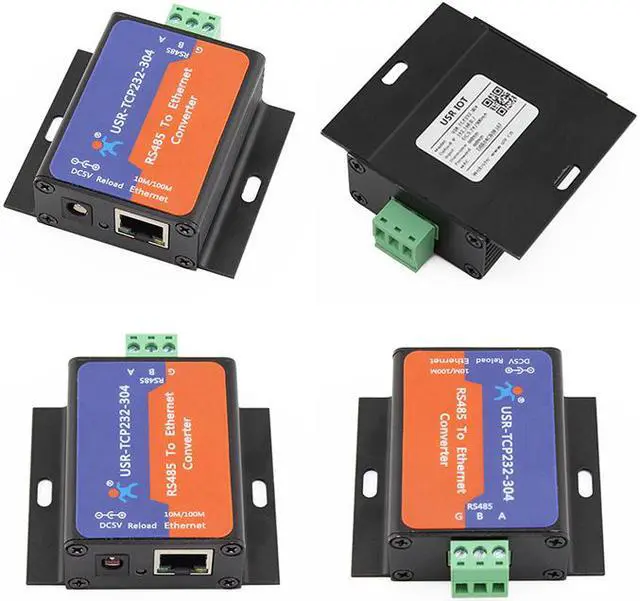

USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported

USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with
Built-in Webpage DHCP/DNS Supported----Kindly note: It will replace the old version USR-TCP232-204 Introduction of RS485 Ethernet ServerThis is a serial RS485 to Ethernet server, used for data transparent transmission. USR-TCP232-304 is a low-cost serial device server, whose function is to realize bidirectional transparent transmission between RS485 and Ethernet. USR-TCP232-304 is internally integrated with TCP/IP protocol. User can apply it to device networking communication. Features of RS485 Ethernet ServerSupport DHCP, automatically obtain an IP address and query IP address through serial setting protocolSupport DNS functionSet parameters through webpageUpgrade firmware via networkAuto-MDI/MDIX, RJ45 port with 10/100MbpsSerial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and
SpaceWork mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD ClientSupport virtual serial port and provide corresponding software USR-VCOM
Heartbeat package mechanism to ensure connection is reliable, put an end to dead linkUser-defined registration package mechanism, check connection status and use as custom packet headerUnder TCP Server mode, Client number ranges from 1 to 16; default number is 4The global unique MAC address bought from IEEE, user can define MAC addressRestore factory defaultAcross the gateway, switches, routersCan work in LAN, also can work in the Internet (external network) Provide PC TCP/IP socket programming example such as VB, C++, Delphi, Android and IOS

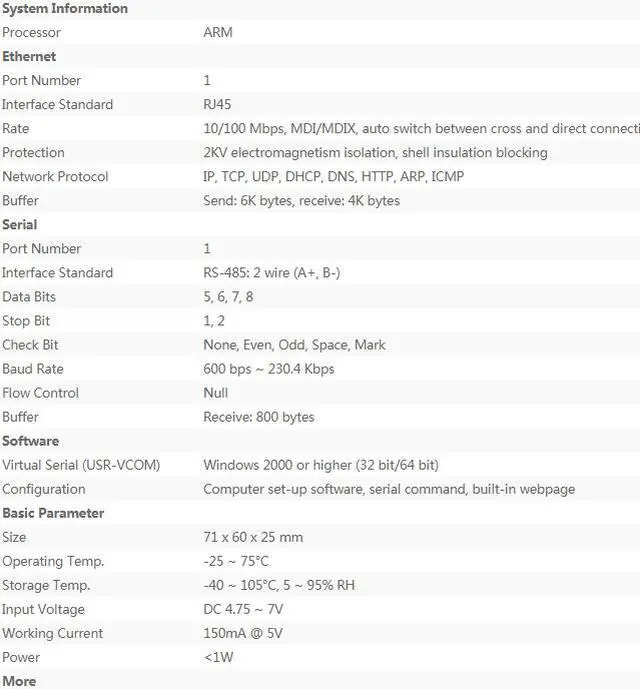

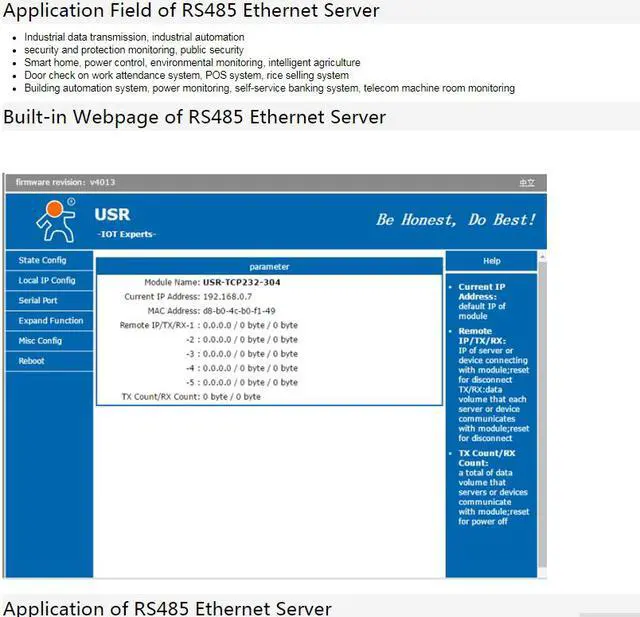

Support customizationApplication Field of RS485 Ethernet ServerIndustrial data transmission, industrial automationsecurity and protection monitoring, public securitySmart home, power control, environmental monitoring, intelligent agricultureDoor check on work attendance system, POS system, rice selling systemBuilding automation system, power monitoring, self-service banking system, telecom machine room monitoringBuilt-in Webpage of RS485 Ethernet ServerSystem Information Processor ARM
Ethernet Port Number 1Interface Standard RJ45Rate 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connectionProtection 2KV electromagnetism isolation, shell insulation blockingNetwork Protocol IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
Buffer Send: 6K bytes, receive: 4K bytesSerial Port Number 1Interface Standard RS- 485: 2 wire (A+, B-)Data Bits 5, 6, 7, 8Stop Bit 1, 2Check Bit None, Even, Odd, Space, MarkBaud Rate 600 bps ~ 230.4 KbpsFlow
Control NullBuffer Receive: 800 bytesSoftware Virtual Serial (USR-VCOM) Windows 2000 or higher (32 bit/64 bit)Configuration Computer set-up software, serial command, built-in webpageBasic Parameter Size 71 x 60 x 25 mmOperating Temp. -25 ~ 75°CStorage Temp. -40 ~ 105°C, 5 ~ 95% RHInput Voltage DC 4.75 ~ 7VWorking Current 150mA @ 5VPower <1WMore Warranty 2 yearsAccessory 5V1A power supply
