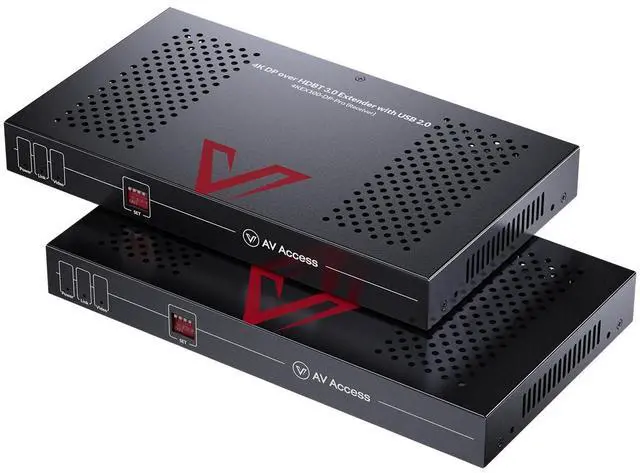

AV Access 4K DisplayPort 1.2a KVM Extender DP Over Ethernet HDBaseT 3.0 PoE, Uncompressed 4K Transmission up to 100m/330ft, High Refresh Rate, 4X USB 2.0 Ports, Bi-Directional Audio, Zero Latency
- [Uncompressed DisplayPort 1.2a Transmission] Utilizing HDBaseT 3.0, this extender transmits uncompressed DisplayPort 1.2a signals at 4K@60Hz with zero latency, ensuring high-quality video output for professional and gaming environments.
- [100m/330ft Long-Distance Signal Extension] Achieves reliable transmission up to 100m/330ft using a single Cat 6A/7 F/FTP or U/FTP cable, making it suitable for large-scale setups in business, education, and home use.
- [High Refresh Rates for Smooth Performance] Supports high refresh rates, including 1080P@240Hz and 2560x1440@144Hz, ensuring ultra-smooth visuals for gaming, video editing, and other high-performance applications.
- [Effortless USB Device Extension] Equipped with 4x USB 2.0 ports on the receiver. Easily extend keyboards, webcams, speakerphones, and other peripherals up to 100m for remote PC control.
- One-Way Power over HDBaseT With 12V PoH integrated inside, only requires one power supply connected to any side to power both units.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:

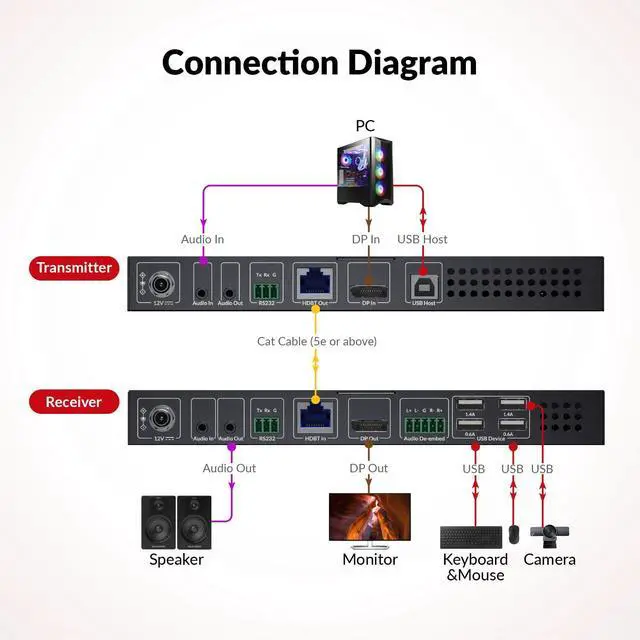

This product is a 100m DisplayPort HDBT 3.0 Extender. It supports DP 1.2 a up to 4K@60Hz 4:4: 4 8bit and compatible with HDCP 2.2, and also features USB 2.0, audio, and RS232 pass-through. It offers the distribution of uncompressed 4K@60Hz UHD video, audio, power, RS232 and USB 2.0 together up to 100m/330ft over a single Cat 6A cable. With one-way PoH integrated, it only needs one power adapter to be connected to the receiver to power both units. It also supports firmware upgrade through RS232 ports, and RS232 function can be set through DIP switches.
Features:
Uncompressed DP 1.2 a up to 4K@60Hz 4:4: 4 8bit and HDCP 2.2 compatibility.
Supports DP 4 lanes, and up to 5.4G bps per lane.
Supports DP SST mode.
Supports all HDR formats, including static HDR (HDR10, HLG) and dynamic HDR (Dolby Vision, HDR10+).
Transmits 4K@60Hz 4:4: 4 8bit signals to 100m/330ft via a single Cat 6A/7 F/FTP or U/FTP cable.
Supports USB 2.0, audio and RS232 pass-through.

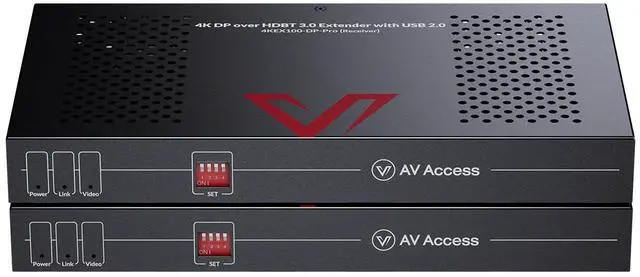

Built-in DIP switches to set RS232 functions.
Supports one-way PoH function, and one power adapter is needed to be connected to the receiver to power both units.
Supports firmware upgrade through RS232 ports.
Package Contents:
Before you start the installation of the product, please check the package contents
Transmitter x 1
Receiver x 1
Power Adapter (DC 12V/3A) x 1
USB 2.0 Type-A to USB Type-B Cable (L = 1.5 m) x 1
Phoenix Male Connectors ( 3.5 mm, 3 Pins) x 2
Phoenix Male Connectors ( 3.5 mm, 5 Pins) x 1
Mounting Brackets (with Screws) x 8
User Manual x 1
This product is a 100m DisplayPort HDBT 3.0 Extender. It supports DP 1.2 a up to 4K@60Hz 4:4: 4 8bit and compatible with HDCP 2.2, and also features USB 2.0, audio, and RS232 pass-through. It offers the distribution of uncompressed 4K@60Hz UHD video, audio, power, RS232 and USB 2.0 together up to 100m/330ft over a single Cat 6A cable. With one-way PoH integrated, it only needs one power adapter to be connected to the receiver to power both units. It also supports firmware upgrade through RS232 ports, and RS232 function can be set through DIP switches.
Features:
Uncompressed DP 1.2 a up to 4K@60Hz 4:4: 4 8bit and HDCP 2.2 compatibility.
Supports DP 4 lanes, and up to 5.4G bps per lane.
Supports DP SST mode.
Supports all HDR formats, including static HDR (HDR10, HLG) and dynamic HDR (Dolby Vision, HDR10+).
Transmits 4K@60Hz 4:4: 4 8bit signals to 100m/330ft via a single Cat 6A/7 F/FTP or U/FTP cable.
Supports USB 2.0, audio and RS232 pass-through.
Built-in DIP switches to set RS232 functions.
Supports one-way PoH function, and one power adapter is needed to be connected to the receiver to power both units.
Supports firmware upgrade through RS232 ports.
Package Contents:
Before you start the installation of the product, please check the package contents
Transmitter x 1
Receiver x 1
Power Adapter (DC 12V/3A) x 1
USB 2.0 Type-A to USB Type-B Cable (L = 1.5 m) x 1
Phoenix Male Connectors ( 3.5 mm, 3 Pins) x 2
Phoenix Male Connectors ( 3.5 mm, 5 Pins) x 1
Mounting Brackets (with Screws) x 8
User Manual x 1
