Overview:

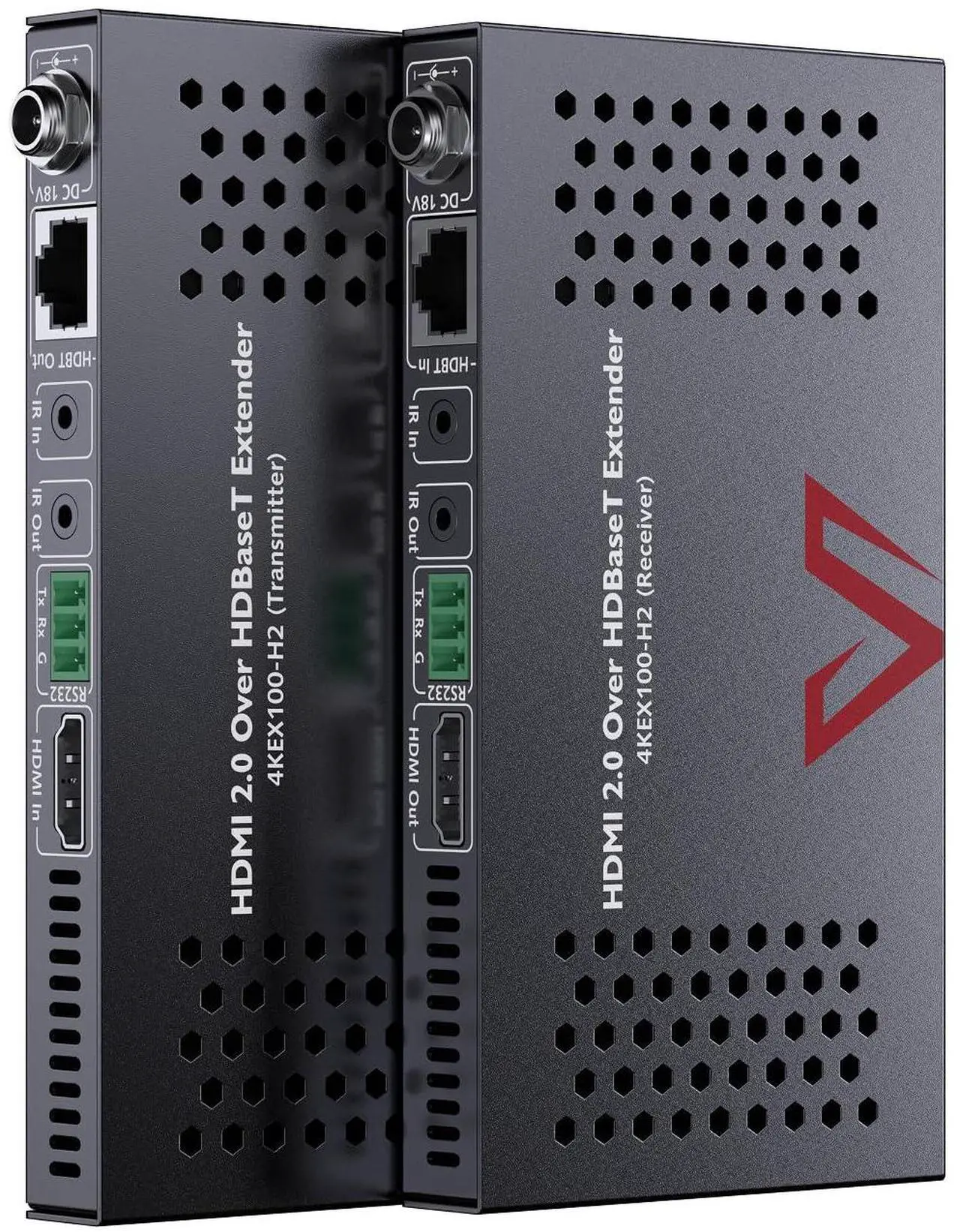

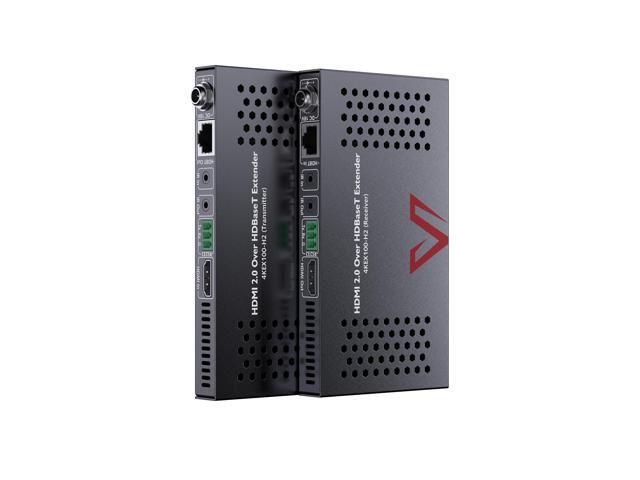

4KEX100-H2 is a slim HDBT transmitter receiver set with HDCP 2.2 compatibility. Itsupports resolutions up to 4K@60Hz 4:4: 4 8bit, extending 4K signal up to 70m/230ft and 1080P signal up to 100m/330ft over a Cat 5e/6 cable. It features bi-directional PoC. It also supports bi-directional IR and RS232 pass-through.
Features:
Supports resolutions up to 4K@60Hz 4:4: 4 8bit and HDCP 2.2.
Supports HDR (High Dynamic Range), including HDR 10 and Dolby Vision*.
Over a Cat 6a/7 cable, HDBT
transmits 4K@60Hz 4:4: 4 8bit up to 100m/330ft and 1080P up to 100m/330ft.
Over a Cat 5e/6 cable, HDBT
transmits 4K@60Hz 4:4: 4 8bit up to 70m/230ft and 1080P up to 100m/330ft.

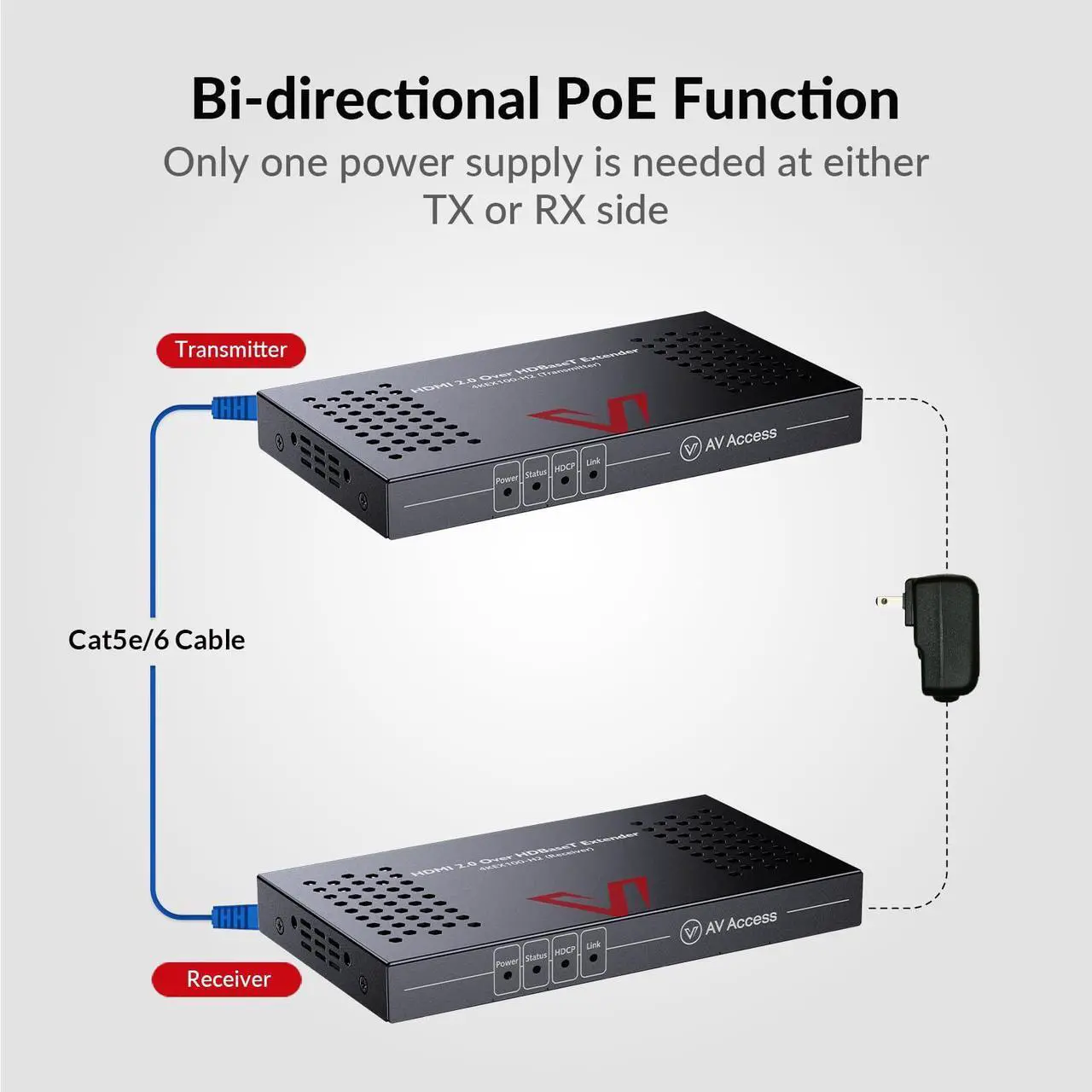

Bi-directional PoC, one power adapter at either transmitter or receiver side can power both units.

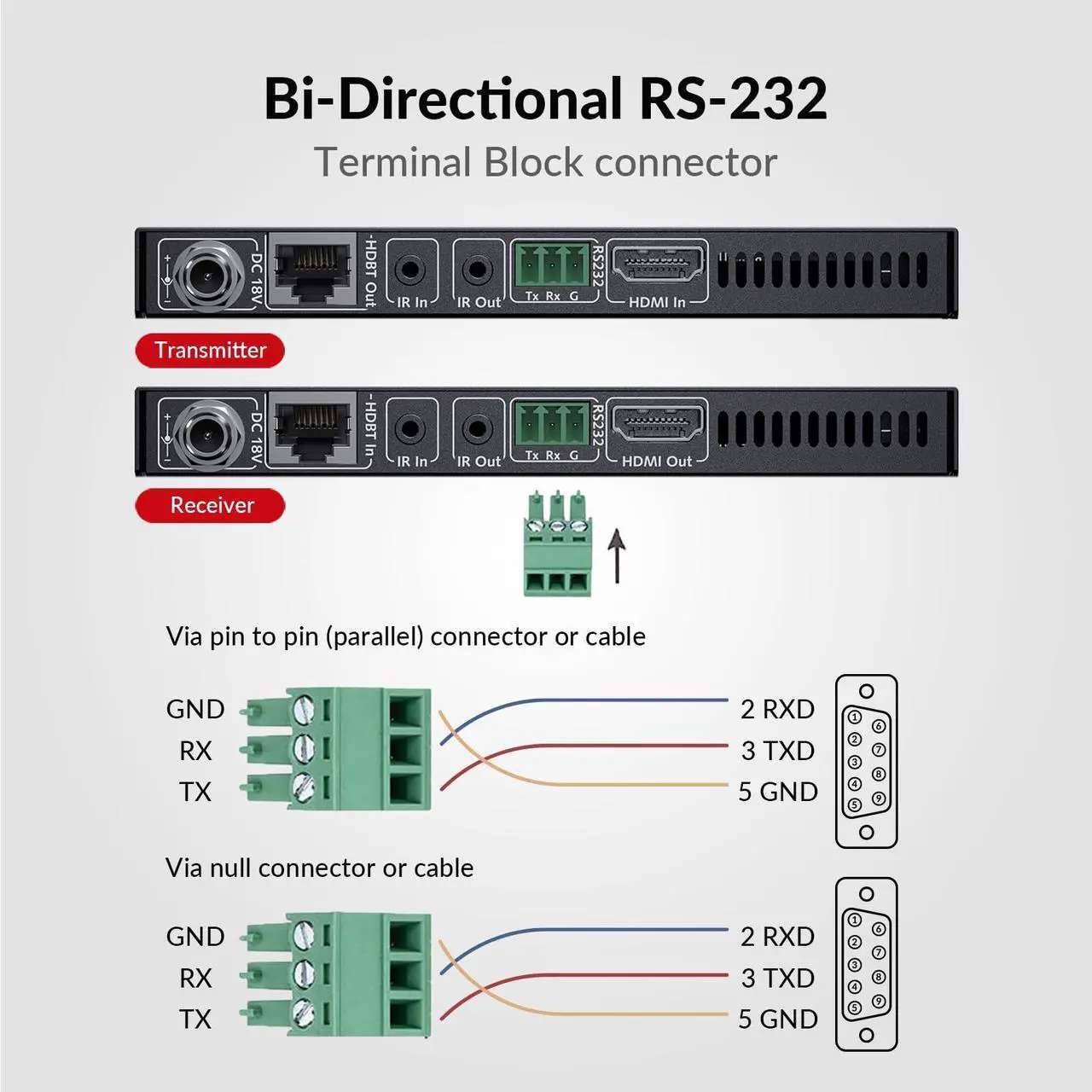

Supports bi-directional IR and RS232 pass-through.
Slim profile, space saving and easy-to-install.
*Note: 4KEX100-H2 supports Dolby Vision only if the data rate is less than or equal to 10.2G bps.
Package Contents:
Before you start the installation of the product, please check the package contents
Transmitter x 1
Receiver x1
Power Adapter (DC 18V 1A) with US Pins x1
IR Emitter x1
Broadband IR Receiver (30 KHz ~ 50 KHz) x1
Phoenix Male Connector ( 3.5 mm, 3 Pins) x 2
Mounting Brackets (with Screws) x 4
User Manual x 1
