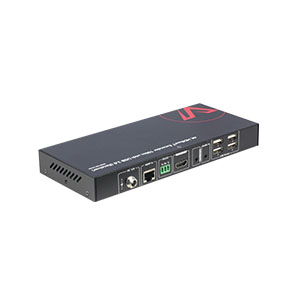

AV Access HDMI USB Extender(HDBaseT) KVM, 100m/330ft 4K 60Hz 1080p 120Hz Over Cat5e/6/6a/7, 4 Ports USB2.0, No Signal Loss and Latency, RS232, POE, Independent EDID Management (4KEX100-KVM)

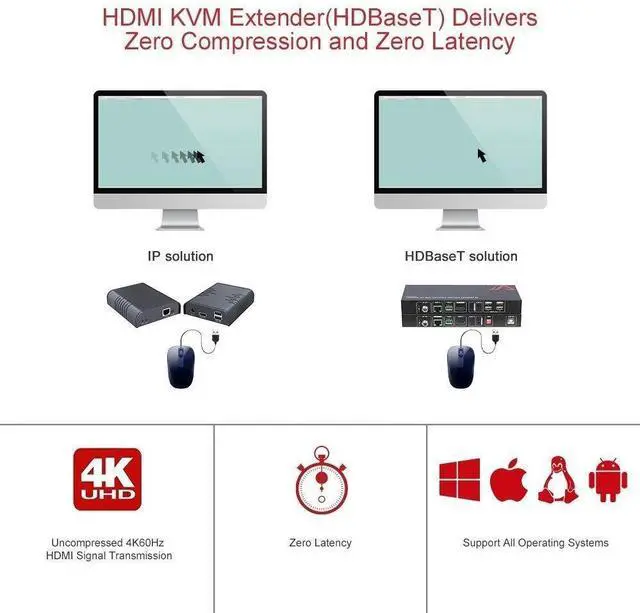

[4K@60Hz and 1080P@120Hz over 100m]With the HDBaseT 2.0 uncompressed technology, the device can extend 4K@60Hz ultra HD (YUV4:2:0 8bit) HDMI signal over single Cat 5e/6/6a/7 cable up to 330ft/100m. With audio input/output ports both on transmitter and receiver, it also supports bi-directional 3.5mm stereo pass through.
[High-speed USB 2.0 up to 480Mbps]It provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps pass through over HDBaseT with zero delay.
[Main Functions]No video loss, no time delay, with one way PoE(from transmitter to receiver), RS232 pass through over HDBaseT; DIP switch for EDID management; USB 2.0 pass through,1 x USB-Host connector built in transmitter and 4 x USB-Devices connector built in receiver;

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Over View:

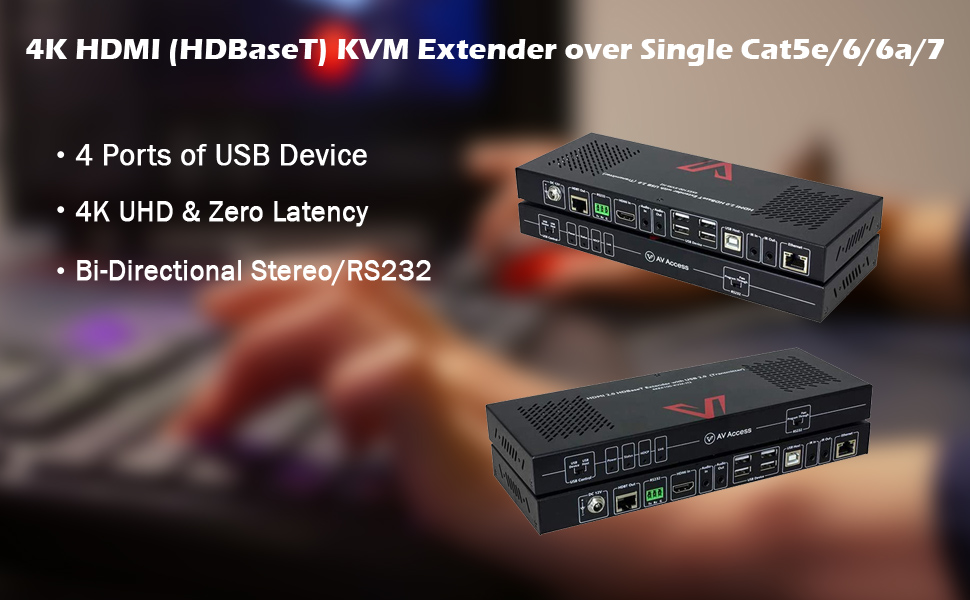

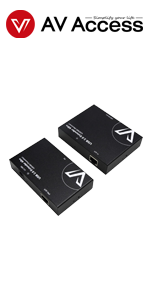

4KEX100-KVM is a 100m 4K HDBaseT 2.0 Extender which offers the distribution of uncompressed 4K@60Hz UHD video, Analog Stereo, power, RS232 and USB 2.0 up to 100m/330ft over a single Cat6 or above cable.
With USB 2.0 pass-through and USB Host connector in TX, and USB Device connectors in RX, it provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 100m.

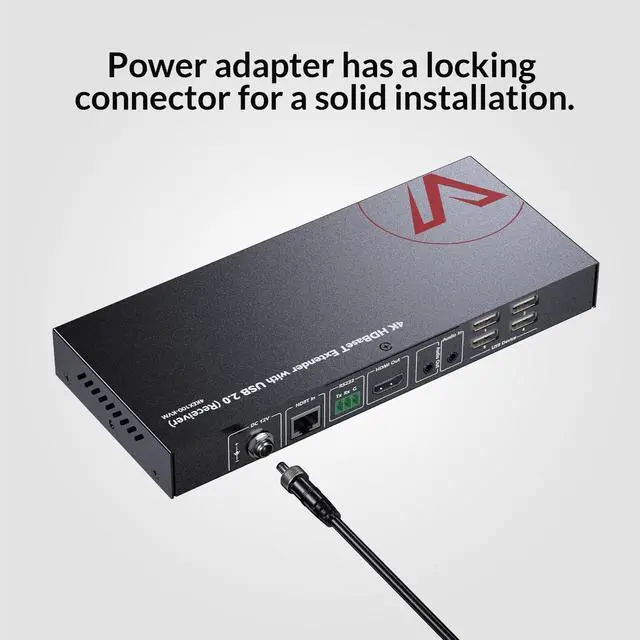

With 48V PoH integrated inside, the extender needs only one power supply connected to TX to power both units. Its 12V power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.

Package Contents

1x Transmitter
1x Receiver
1x 12V DC 2A Power Supply
2x Phoenix Male Connector (3.5 mm,3 pins)
2x Mounting Ear (Pair)
1x User Manual

General Information

Dimension: 210mm x 25mm x 90.2mm
Weight: 0.46kg
Mounting: Mounting Brackets
Power Supply: 12V DC 2A Power Supply
Power Consumption: 12W

Technical Details

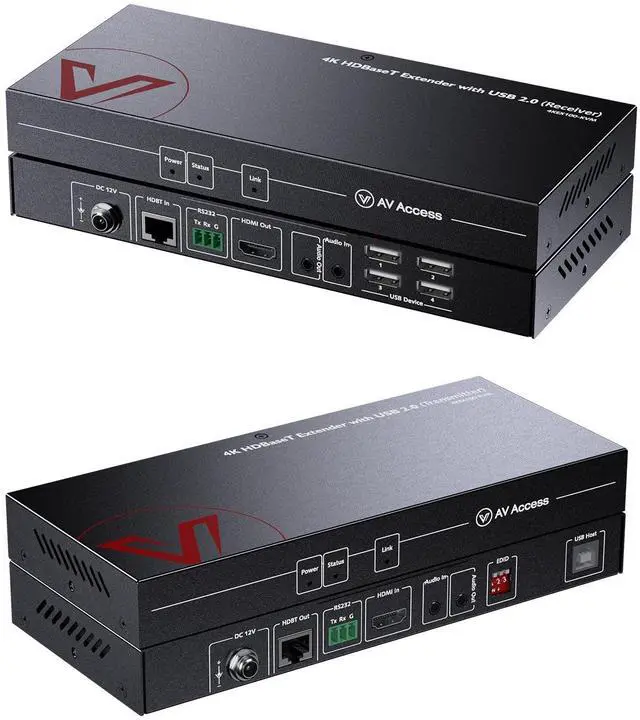

I/O Connections:
1 x HDMI IN,1 x HDBT OUT(TX)
1 x HDBT IN,1 x HDMI OUT,4 x USB 2.0
Input/Output Signal Type:
HDMI 1.4 with 4K@60Hz 4:2:0 8bit, HDBT 2.0;Does not support HDCP
Input/Output Resolution Support:
4096x2160@24/25/30/50/60Hz
3840x2160@24/25/30/50/60Hz
1080P, 1080I, 720P, 576p, 576i, 480p
Transmission Distance :
Via Cat6/6a/7 cables, 4Kx2K@60Hz output up to 100m,1080P@60Hz up to 100m
Via Cat5e cable, 4Kx2K@60Hz output up to 90m,1080P@60Hz up to 100m
High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to 100m

Product information

Operation Mode	manual
Current Rating	2 Amps
Operating Voltage	12 Volts
Contact Type	Normally Open
Connector Type	Plug In
Brand	v AV Access
Terminal	Through Hole
Item dimensions L x W x H	9.84 x 5.12 x 0.79 inches
Circuit Type	2-way
Contact Material	Metal
Is Discontinued By Manufacturer	No
Product Dimensions	9.84 x 5.12 x 0.79 inches; 1.01 Pounds
Item model number	4KEX100-KVM
Date First Available	June 12, 2016
Manufacturer	AV Access
Country of Origin	China

Additional Features

[NOTE: It doesn't support HDCP]when connecting 2 or above USB devices to the receiver, please make sure that each ports power consumption is less than 5V 0.5A.
[Durability]Certificated by FCC, CE. Built-in surge/Lightning protection -Superior ESD protection: +/- 8KV (Air-gap discharge) +/- 4KV (contact discharge).

AV Access is the world’s professional manufacturer and innovator of advanced Pro AV products and smart home office devices.
As a contributing member of the HDBase-T alliance, we own strong R&D, supply chain and manufacturing capability, which ensure our products are of consistently high-level quality and at competitive prices.
Idock Series
No Latency Extenders
Best Selling KVM Switch
Renovate Your Hybrid Life
KVM HDMI Extenders
Dual Monitor KVM Switch
Other Products from AV Access

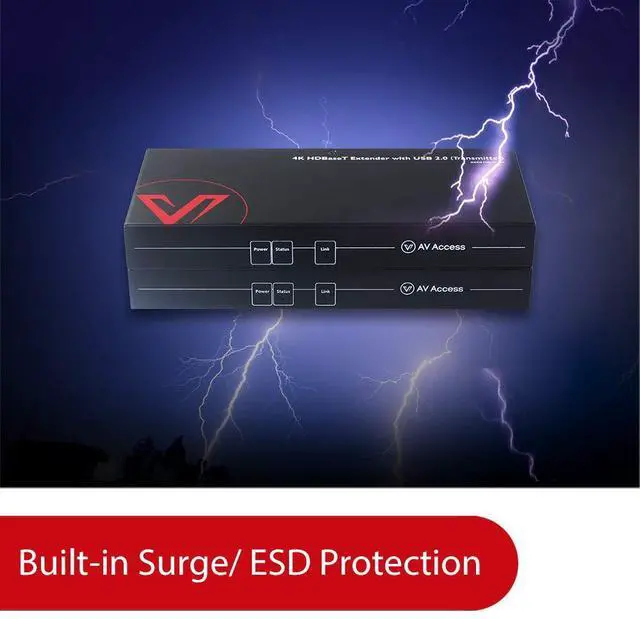

Preventing thunder Strikes

ESD Protection: +/- 8KV(Air-gap discharge) +/- 4KV(contact discharge)
Surge Protection: Voltage: +/- 1KV

4K HDMI KVM EXTENDER

HDMI 1.4 with 4k@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDBT 2.0 compliance
USB 2.0 pass through, USB-Host connector built in TX and 4 x USB-Device connector built in RX
High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to 100m/330ft

Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft, 1080P@60Hz up to 100m/330ft
Via Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz up to 100m/330ft

Easy Install

Plug & Play. No driver needed.
Mounting ear for easy installation
Used for various application scenario, especially for engineering project usage.

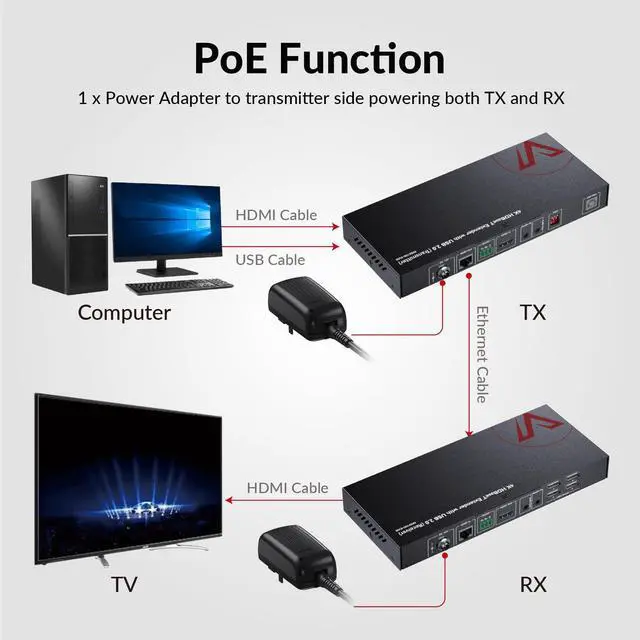

One-way POE

One-way POE, transmitter (PSE) with PSU to power both transmitter and receiver (PD)

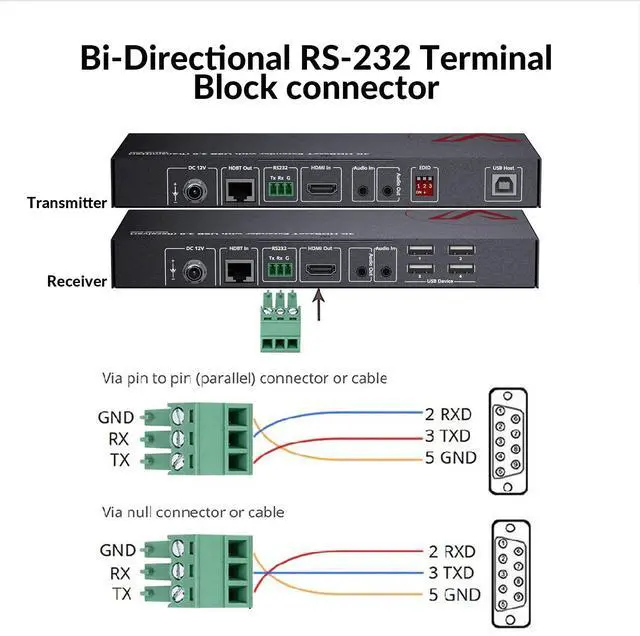

RS232 pass through supports serial communication

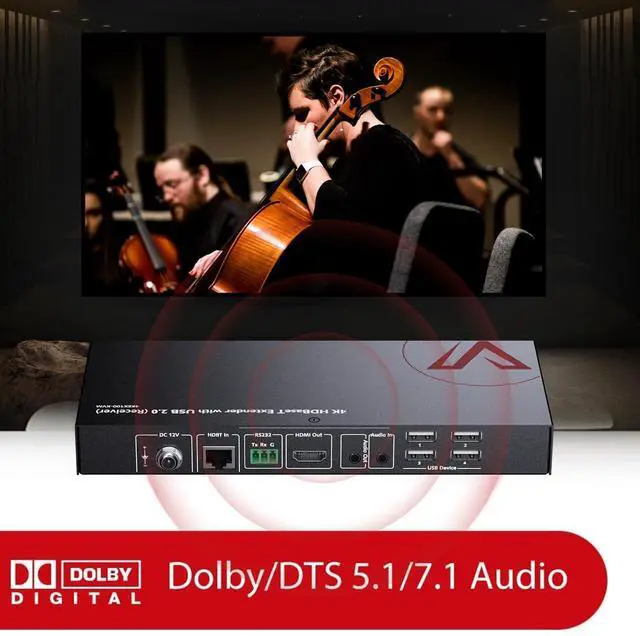

Bi-directional Analog Stereo passthrough

Independent DIP switch for EDID management

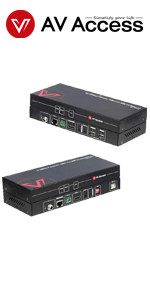

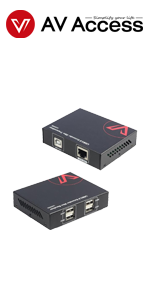

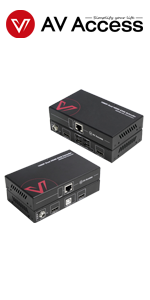

	U2EX50	U2EX60	HDEX80-KVM	HDEX60-DM	4KIP100-KVM	4KEX100-KVM

Customer Reviews	—	—	—	—	—	—
Price	—	—	—	—	—	—
Dual Monitor	x	x	x	?	x	x
Video Resolution	×	×	1080p @60Hz	1080p @60Hz	4K@30Hz 1080p@120Hz	4K@60Hz 4:2:0 1080p@120Hz
Transmission Range	197ft (60m)	197ft (60m)	260ft (80m)	197ft (60m)	390ft (120m)	330ft (100m)
USB Ports	4 x USB 2.0	4 x USB 2.0	2 x USB 2.0	4 x USB 2.0	3 x USB 2.0	4 x USB 2.0
EDID Dip Switch	×	×	×	×	×	v
RS232	×	×	×	×	×	?
POE	×	Uni-Direction	Bi-Direction	Uni-Direction	×	Uni-Direction
Router/Ethernet Switch Compatible	×	×	×	×	Yes. Up to 16 Sets	×
HDMI Version	x	x	1.3	1.3	1.4	1.4
HDCP Version	x	x	1.4	1.4	1.4	x

4K HDMI KVM EXTENDER

Preventing thunder Strikes

ESD Protection: +/- 8KV(Air-gap discharge) +/- 4KV(contact discharge)
Surge Protection: Voltage: +/- 1KV

HDMI 1.4 with 4k@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDBT 2.0 compliance
USB 2.0 pass through, USB-Host connector built in TX and 4 x USB-Device connector built in RX
High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to 100m/330ft

Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft, 1080P@60Hz up to 100m/330ft
Via Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz up to 100m/330ft

Easy Install

Plug & Play. No driver needed.
Mounting ear for easy installation
Used for various application scenario, especially for engineering project usage.

One-way POE

One-way POE, transmitter (PSE) with PSU to power both transmitter and receiver (PD)

RS232 pass through supports serial communication

Bi-directional Analog Stereo passthrough

Independent DIP switch for EDID management

	U2EX50	U2EX60	HDEX80-KVM	HDEX60-DM	4KIP100-KVM	4KEX100-KVM

Customer Reviews	—	—	—	—	—	—
Price	—	—	—	—	—	—
Dual Monitor	x	x	x	?	x	x
Video Resolution	×	×	1080p @60Hz	1080p @60Hz	4K@30Hz 1080p@120Hz	4K@60Hz 4:2:0 1080p@120Hz
Transmission Range	197ft (60m)	197ft (60m)	260ft (80m)	197ft (60m)	390ft (120m)	330ft (100m)
USB Ports	4 x USB 2.0	4 x USB 2.0	2 x USB 2.0	4 x USB 2.0	3 x USB 2.0	4 x USB 2.0
EDID Dip Switch	×	×	×	×	×	v
RS232	×	×	×	×	×	?
POE	×	Uni-Direction	Bi-Direction	Uni-Direction	×	Uni-Direction
Router/Ethernet Switch Compatible	×	×	×	×	Yes. Up to 16 Sets	×
HDMI Version	x	x	1.3	1.3	1.4	1.4
HDCP Version	x	x	1.4	1.4	1.4	x
