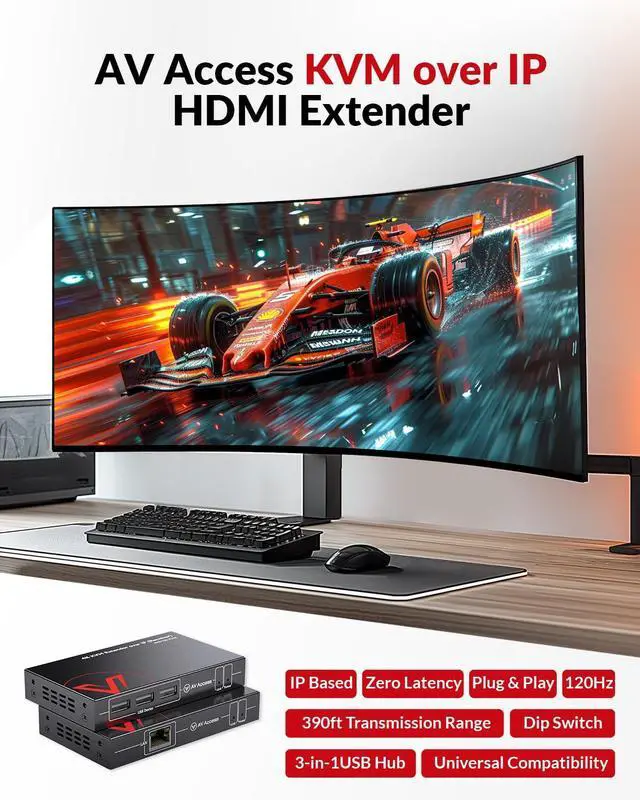

Professional 390ft(120m) UHD 4K@30Hz KVM Extender Over TCP/IP Ethernet

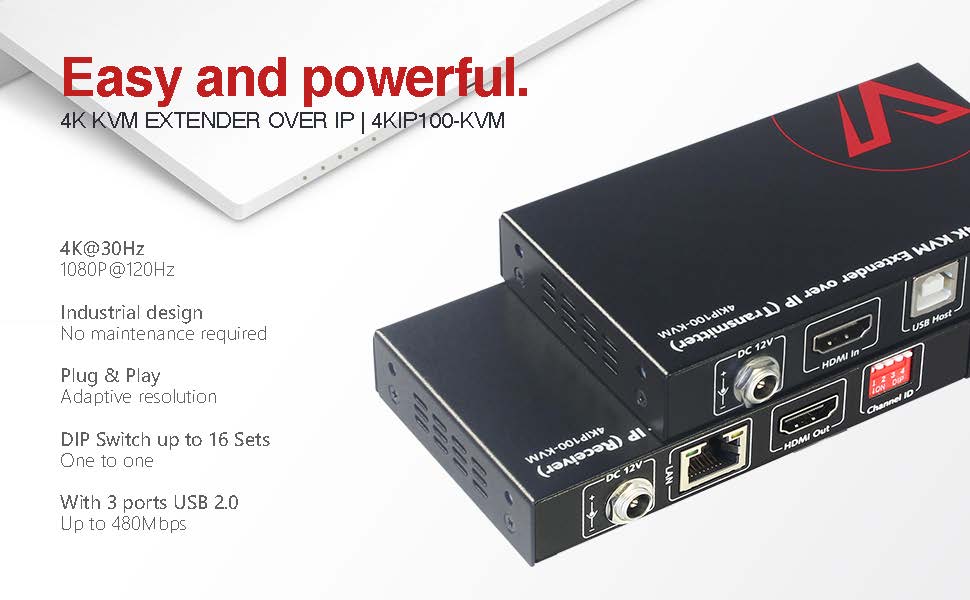

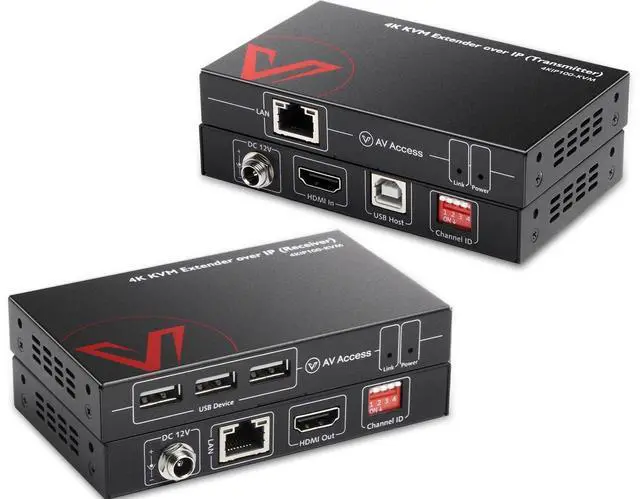

4KIP100-KVM is a professional 4K@30Hz IP based KVM Extender. It extends 4K video and USB 2.0 signals over TCP/IP ethernet, Far-reaching up to 120M(390ft) over single cat5e/6/7 Ethernet cable. It provides 3 USB 2.0 for USB 2.0 devices and 4-Pin DIP switch for more sets works in a same network, up to 16 sets.
Features
- IP based, 1 Gigabit network support 4K video
- UHD 4K@30Hz and HDCP 1.4
- EDID Management
- Far-reaching up to 120m (395ft) with Cat 5e/6/6a/7 cable,
- 3 USB 2.0 ( Up to 480Mbps )
- DIP Switch up to 16 Sets
Package
- KVM Extender x1
- Power Supply (DC 12 V 1A) x2
- USB 2.0 Type-B to Type-A Cable (L=1.5m) x 1
- Mounting Brackets (with Mounting Screws) x4
- User Manual x1

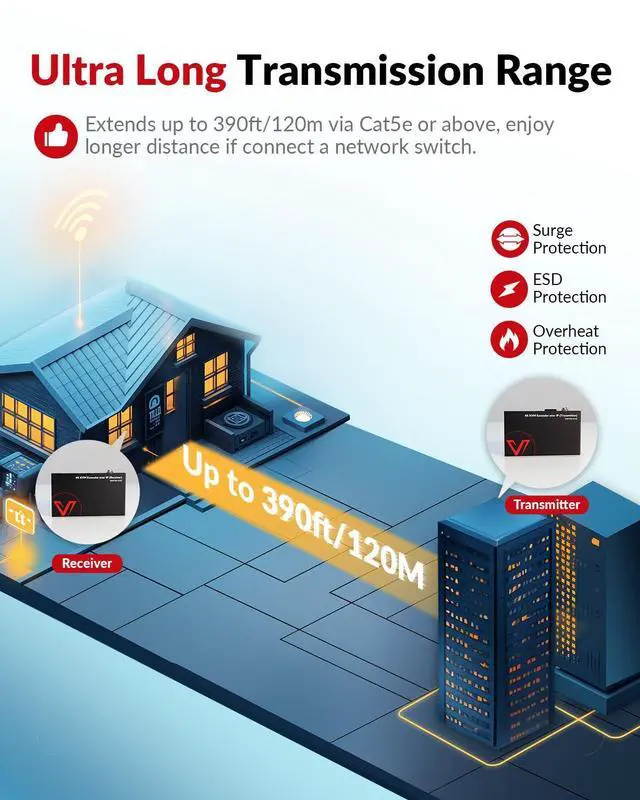

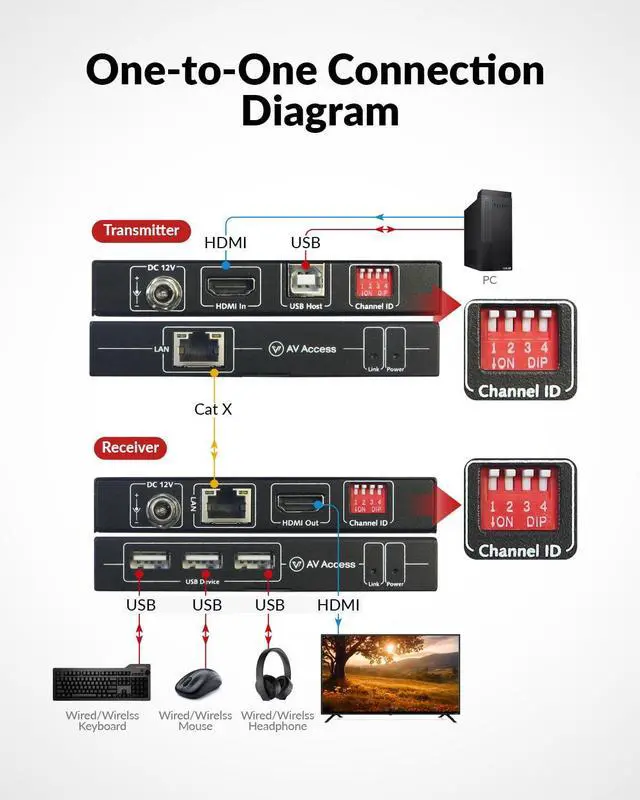

Far Reaching up to 390ft 120M
It could be connected directly with a Cat 5e or above cable. As a extender set, it extends HDMI and USB signals over a long distance up to 120m 90t.
Note
HDMI cables length must be within 15m 49ft.
One transmitter can be only paired with one receiver individually in the same network, i.e. only one set DIP switch of transmitter and receiver can be set to the same position.

Supports high resolution up to 4K@30Hz and 1080p@120hz

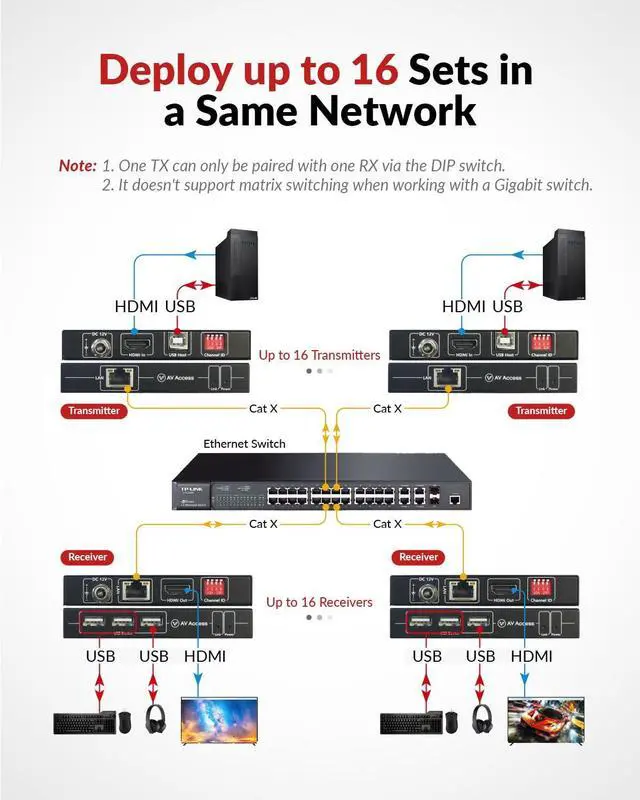

Support 4-Pin DIP switch for 16 sets to work in a same network.

Supports fantastic audio effect such as Digital Plus, TrueHD, DTS-HD, DTS-HD Master Audio, etc.

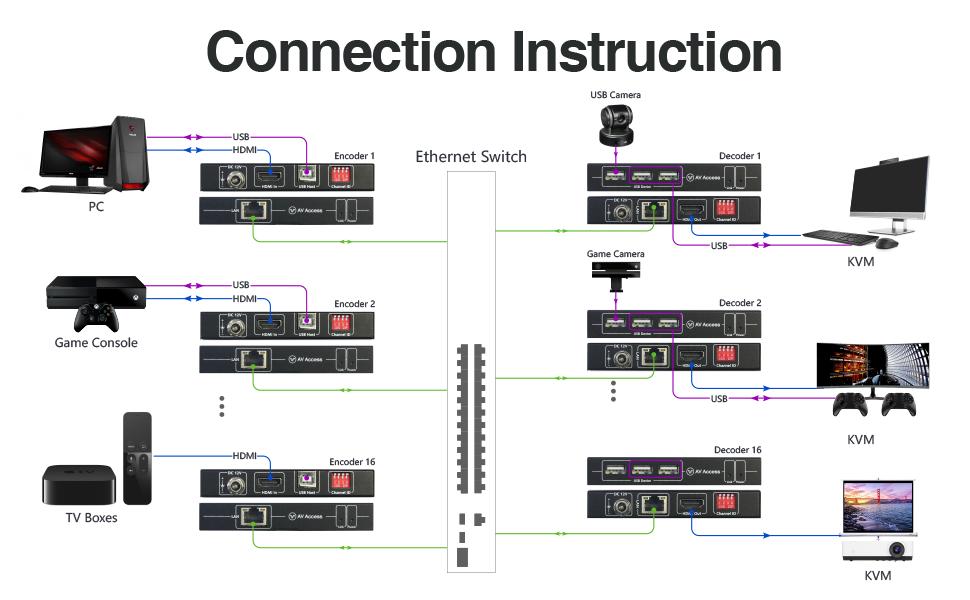

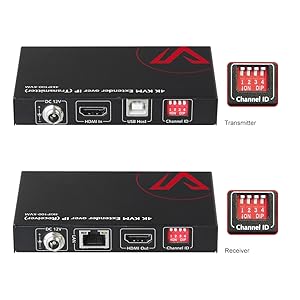

To route the signal from a transmitter to a receiver, toggle each individual switches of the DIP Switch in receiver to the same positions as these in transmitter. If you want to link the receiver to a different transmitter, change the receiver switch settings in the same way as how the switch of transmitter is positioned.
Note
You need to repower the transmitter and receiver for the switch setting changes to take effect.
One transmitter can be only paired with one receiver individually in the same network, i.e. only one set DIP switch of transmitter and receiver can be set to the same position.
