v AV Access iDock D23 8K KVM Switch Docking Station for 2 Computers PCs & 3 Monitors, DisplayPort 2.0, 1G Ethernet, USB 3.0, 165/144/120Hz for Gaming
- NoteThis model only support desktops with 3 DisplayPort output, do not support laptop.
- 3 Screens, Triple Productivity: Built with 6x DisplayPort input ports (supports MST, 3 in 1 group) and 3x DisplayPort output ports.
- 12-in-1 Docking Station: Your two PCs can share abundant peripheral ports like 3x USB 3.0, 1x USB 2.0, 1x USB 1.1 (for keyboard hotkey), 1x USB-C, 1x 1G Ethernet, 1x 3.5mm headset, 1x SD card and 3x DP out. Build a powerful workstation with ease.
- Immersed in 8K Ultra HD: DisplayPort 2.0 & HDCP 2.3 compliant. Supports up to 8K@60Hz, and all HDR formats, like HDR10, HLG, HDR10+ and Dolby Vision.

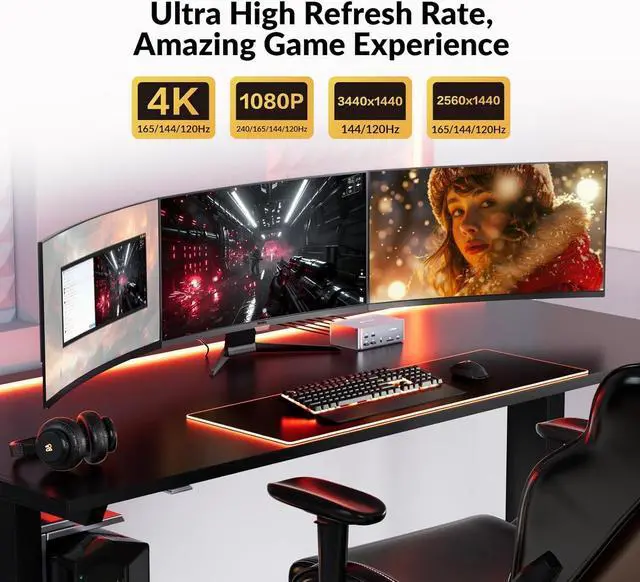

- High Refresh Rate: Supports 4K@165/144Hz, 3440×1440@165/144/120Hz, 2560×1440@240/165/144Hz and 1080P@240/165Hz, etc.

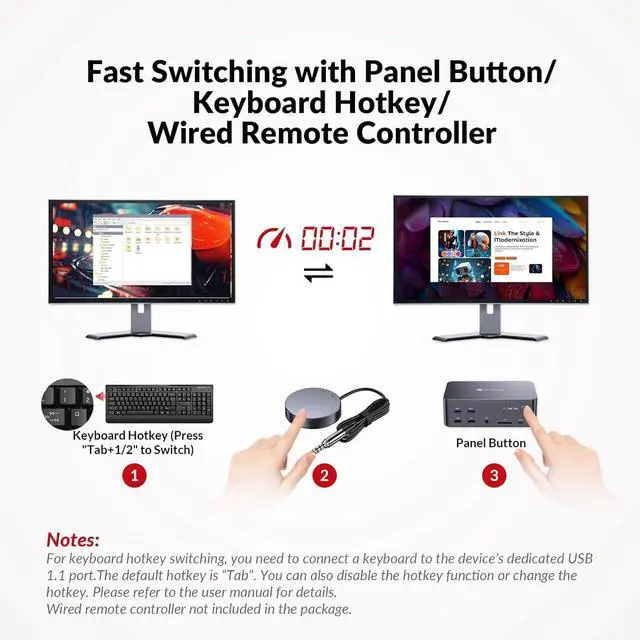

- Super Fast Switching: With the automatic PC wake-up function, it only takes you 2-3 seconds to switch between your PC sources. Press the front control button, use the wired remote controller (not included) or your keyboard hotkey to switch effortlessly.
+
+
Overview
Specs
Reviews

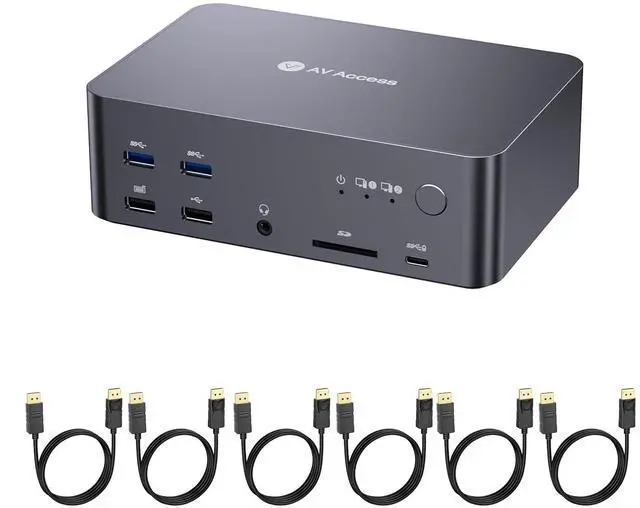

Package Contents
Before you start the installation of the product, please
check the package contents:
Switch Docking x 1
Power Adapter (DC 12V 3A) x 1
USB 3.0 Type-A to Type-B Cable x 2
DP 1.4 a Cable x 6
User Manual x 1
Features

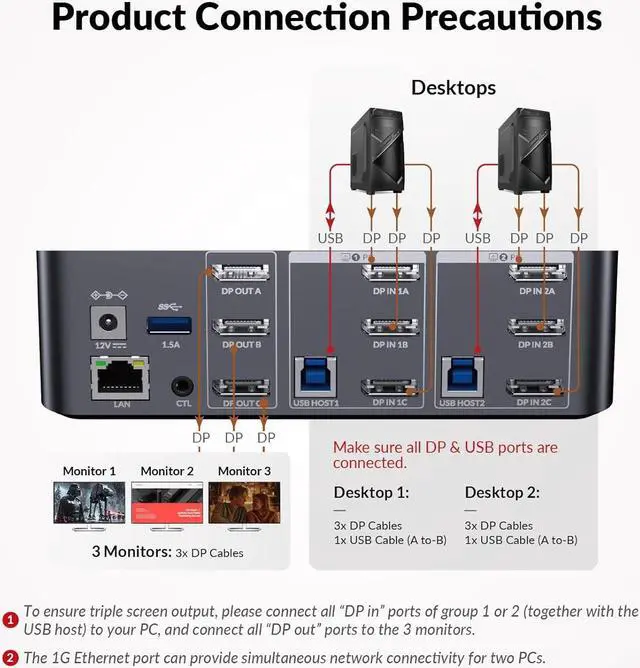

2 in 1 triple-monitor KVM switcher:
Each input group support three independent DP input channels, which can be connected to three DP output ports of the PC and extended to three external monitors.
Each monitor has independent channel, which can support
different resolution.
Supports 8K resolution and high refresh rate - supports the standards of DP 1.4 a HBR3 and DP 2.0 UHBR 13.5, and
supports the following resolutions:
8K@60Hz/30Hz
4K@165Hz/144Hz/120Hz/60Hz
3440x1440@144Hz/120Hz/60Hz (UWQHD)
2560x1440@165Hz/144Hz/120Hz/60Hz
1080P@240Hz/165Hz/144Hz/120Hz/60Hz
Supports 1.5 m input cable and 3m output cable.
Note: please use the cables certified by DP 2.0 and DP 1.4 a.
Supports multiple DP features:
MST - Supports DP MST, each DP port can be connected with multiple DP monitors.
HDR - Supports all HDR formats.
VRR - Supports VRR variable refresh rate.
Multiple Peripherals interfaces:
Three USB 3.0 type-A ports with 5Gbps data transmission rate per port, one of the three ports supports 1.5A current output, and the other two ports share 2A current output.
One USB 2.0 port with 480Mbps data transmission rate, and one USB 1.1 port for keyboard (for hotkey switching).
Provides one headset ( 3.5 mm TRRS) port.
One USB-C port, supports for USB-C (5V/ 1.5A power output) data Panel transmission.
One CTL port, supports for connecting an extended button control device (need to purchase separately) for button control.
One SDXC card slot (maximum: 2TB) with the maximum transmission rate of 104MB/s.
One LAN port, support for 1Gb Ethernet performance.
Supports new generation PC automatic wake-up function automatically wake up the PC in standby mode when switching.
Fast switching time of 2-3s, based on the virtual interaction function.
New compatibility Hotkey design fully pass-through mode and newly upgraded hotkey algorithm:
All key values are passed-through and compatible with various types of keyboards on the market.
Specially optimized hotkey algorithm for complex gaming keyboards and macro defined keyboards.
Supports multiple control options, including button switch, and hotkey switch.
Provides six high grade DP 1.4 a cables, which can support transmitting 8K signals, and provides two USB 3.0 cables, which can support transmitting 5Gbps signals.
Before you start the installation of the product, please
check the package contents:
Switch Docking x 1
Power Adapter (DC 12V 3A) x 1
USB 3.0 Type-A to Type-B Cable x 2
DP 1.4 a Cable x 6
User Manual x 1
Features
2 in 1 triple-monitor KVM switcher:
Each input group support three independent DP input channels, which can be connected to three DP output ports of the PC and extended to three external monitors.
Each monitor has independent channel, which can support
different resolution.
Supports 8K resolution and high refresh rate - supports the standards of DP 1.4 a HBR3 and DP 2.0 UHBR 13.5, and
supports the following resolutions:
8K@60Hz/30Hz
4K@165Hz/144Hz/120Hz/60Hz
3440x1440@144Hz/120Hz/60Hz (UWQHD)
2560x1440@165Hz/144Hz/120Hz/60Hz
1080P@240Hz/165Hz/144Hz/120Hz/60Hz
Supports 1.5 m input cable and 3m output cable.
Note: please use the cables certified by DP 2.0 and DP 1.4 a.
Supports multiple DP features:
MST - Supports DP MST, each DP port can be connected with multiple DP monitors.
HDR - Supports all HDR formats.
VRR - Supports VRR variable refresh rate.
Multiple Peripherals interfaces:
Three USB 3.0 type-A ports with 5Gbps data transmission rate per port, one of the three ports supports 1.5A current output, and the other two ports share 2A current output.
One USB 2.0 port with 480Mbps data transmission rate, and one USB 1.1 port for keyboard (for hotkey switching).
Provides one headset ( 3.5 mm TRRS) port.
One USB-C port, supports for USB-C (5V/ 1.5A power output) data Panel transmission.
One CTL port, supports for connecting an extended button control device (need to purchase separately) for button control.
One SDXC card slot (maximum: 2TB) with the maximum transmission rate of 104MB/s.
One LAN port, support for 1Gb Ethernet performance.
Supports new generation PC automatic wake-up function automatically wake up the PC in standby mode when switching.
Fast switching time of 2-3s, based on the virtual interaction function.
New compatibility Hotkey design fully pass-through mode and newly upgraded hotkey algorithm:
All key values are passed-through and compatible with various types of keyboards on the market.
Specially optimized hotkey algorithm for complex gaming keyboards and macro defined keyboards.
Supports multiple control options, including button switch, and hotkey switch.
Provides six high grade DP 1.4 a cables, which can support transmitting 8K signals, and provides two USB 3.0 cables, which can support transmitting 5Gbps signals.
