AV Access KVM Switch Docking Station for MacBook, USB-C KVM Switch 2 Monitors 2 Computers, 4K Dual HDMI Displays, 1 Laptop+1 Desktop Switching, Ethernet, 100W Power Delivery, EDID Emulation(iDock M10)

Overview

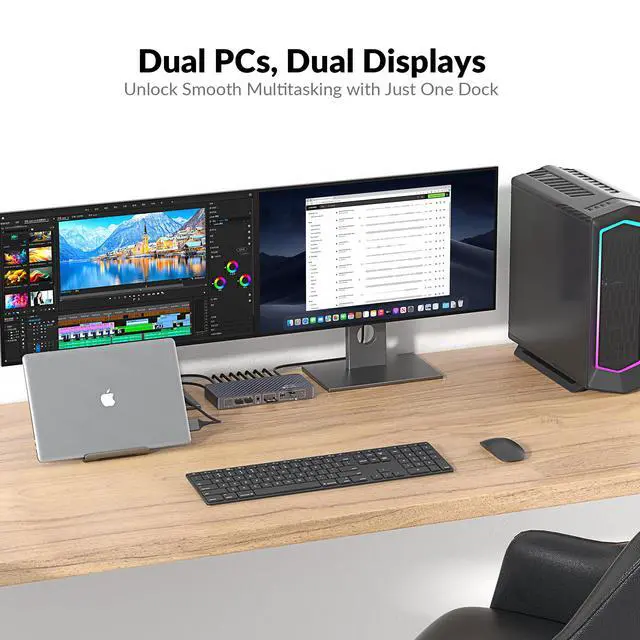

This product is a dual-computer, dual-monitor KVM switch docking station designed specifically for MacBook laptops and desktop PCs.

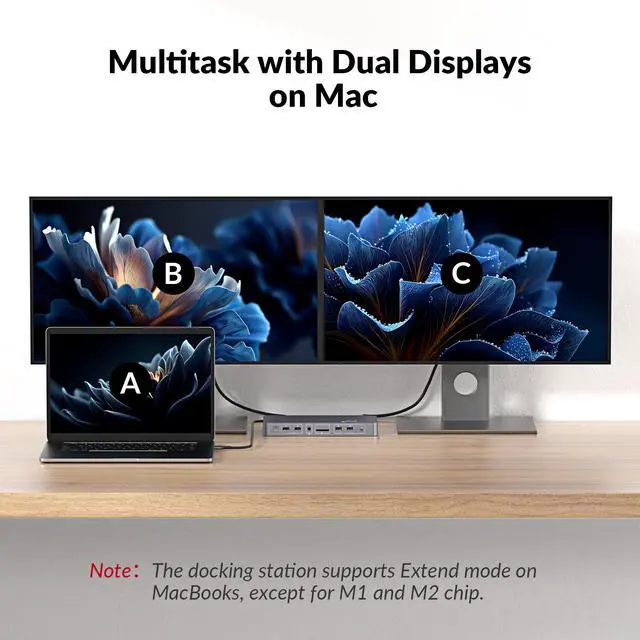

For MacBook users, it features a dedicated dual USB-C input that connects to the two Thunderbolt ports on the left side via the included dual-head USB-C cable. This enables dual 4K video output, USB 3.2 Gen 2 (10Gbps) data transfer, 1Gb Ethernet connectivity, and up to 100W power delivery.

For desktop PCs, the docking station offers a combined DP + HDMI + USB Host input, allowing seamless integration and easy switching between systems.

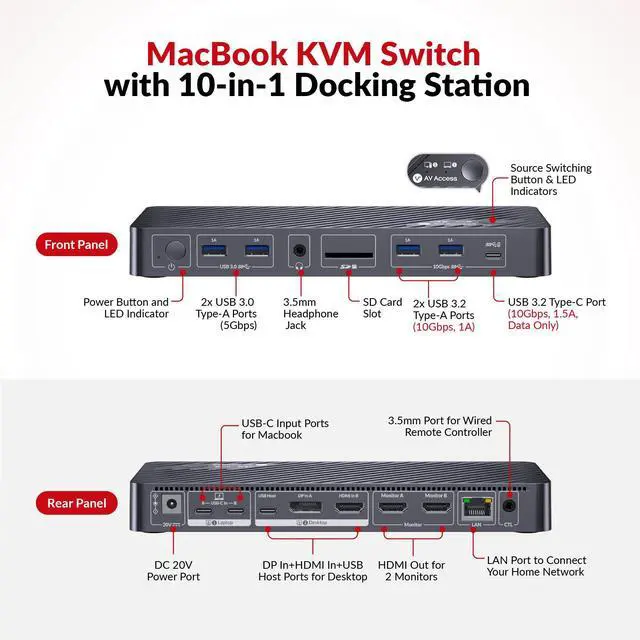

Beyond switching functionality, the device also serves as a 10-in-1 docking station, offering a wide range of expansion ports, including:

1. 2 × HDMI video outputs;
2. 2 × USB 3.2 Gen 2 (10Gbps) Type-A ports;
3. 1 × USB 3.2 Gen 2 (10Gbps) Type-C port;
4. 2 × USB 3.2 Gen 1 (5Gbps) Type-A ports;
5. 1 × SD card slot;
6. 1 × Gigabit Ethernet port;
7. 1 × 3.5mm headset jack.

The KVM supports EDID emulation to maintain continuous power, display, and network connections during switchingensuring a stable and uninterrupted desktop experience.

Features

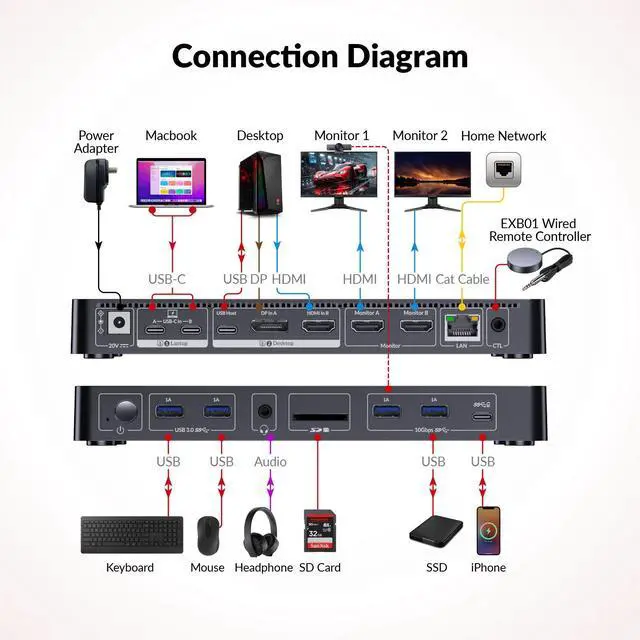

1. 2x1 4K KVM switch docking for MacBook, switch between one MacBook and one desktop for two monitors and share a series of peripheral devices.
2. Support switching inputs between two combined USB-C inputs for the MacBook and one set of HDMI+DP+USB-C 3.2 host input for the desktop:

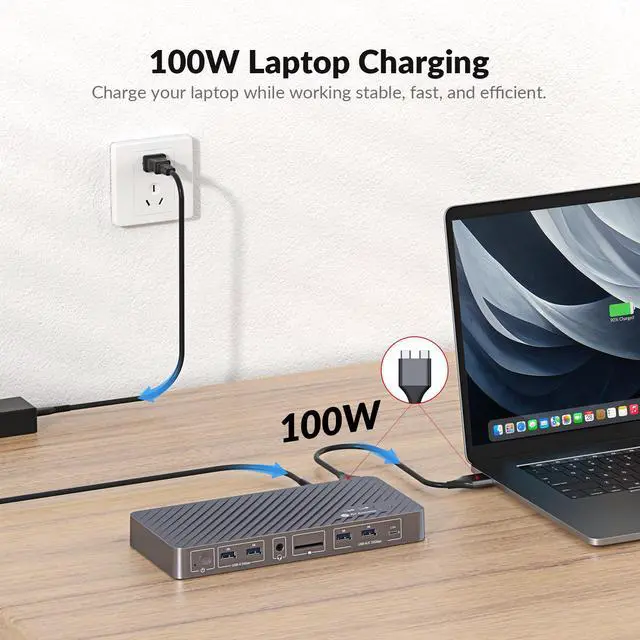

3. Two combined USB-C inputs: USB-C InA supports 4K@60Hz 4:4:4 8bit video transmission, USB 3.2 data (up to 10Gbps), 100W charging and 1G network connection and USB-C InB supports 4K@60Hz 4:4:4 8bit video transmission only;
4. One set of HDMI+DP+USB-C 3.2 host input: one HDMI 2.0b input and one DP 1.2a input, each supports transmission of 4K@60Hz video signals. One USB-C host port, supports USB 3.2 data transmission up to 10Gbps and 1G network connection.
5. Two HDMI 2.0b output ports support resolution up to 4K@60Hz 4:4:4 8bit and HDCP 2.2.
6. Provide multiple peripheral ports, including:
7. 2x USB 3.0 type-A ports on front panel, support 5V/1A power output and 5Gbps data transfer;
8. 2x USB 3.2 type-A ports on front panel, support 5V/1A power output and 10Gbps data transfer;
9. 1x USB 3.2 type-C port (USB data only), supports 10Gbps data transfer rate, and 1.5A current output;
10. 1x SDXC card slot, supports up to 2TB SDXC card inserted, and maximum data transmission is 104MB/s;

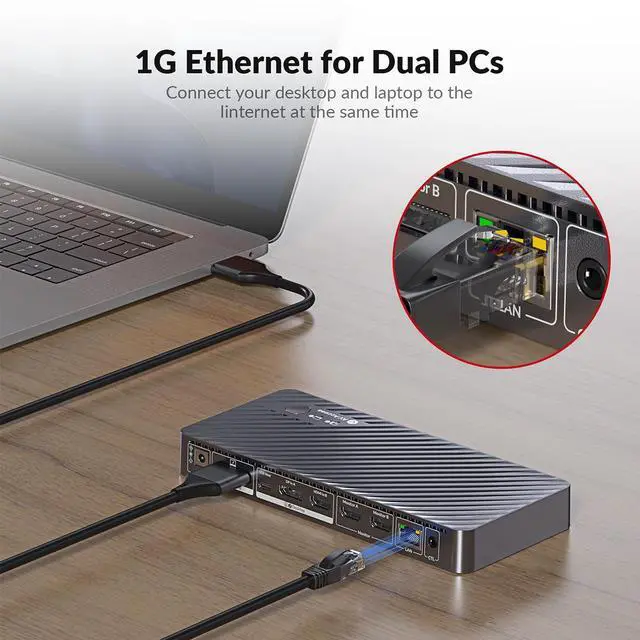

11. 1x LAN port, support for 1Gb Ethernet performance;
12. 1x 3.5mm TRRS (stereo + microphone) headset port.
13. Supports high refresh rates such as 240Hz, 165Hz, and 144Hz.
14. Support automatic wake-up function, when switch to the standby computer, it will be automatically waken up.
15. Support CEC trigger on HDMI outputs. When the current channel detects an input signal, it sends a CEC Power-ON command to the HDMI output port.
16. Support connecting to the Wired Remote Controller (EXB01) for remote switching.

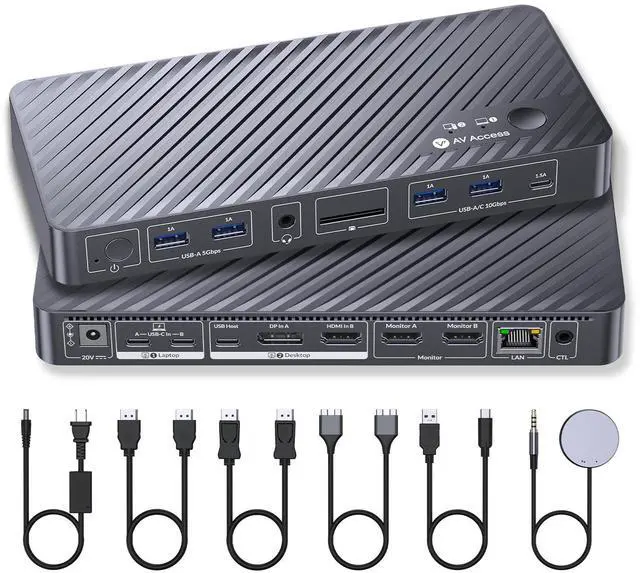

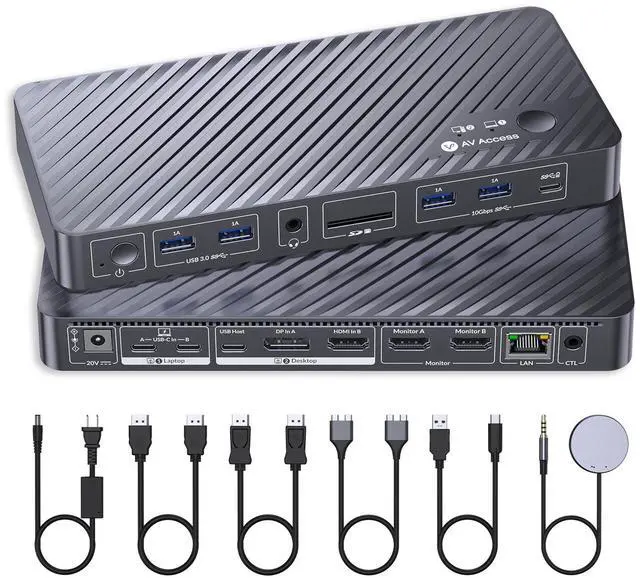

Package Contents

Before you start the installation of the product, please check the package contents:

1. KVM Dock Switcher x 1
2. Power Adapter (DC 20V/6A) x 1
3. HDMI 2.0 Cable (L = 1.5m) x 1
4. DP 1.2a Cable (L = 1.5m) x 1
5. Dual USB Type-C to Dual USB Type-C Cable (USB 3.2 Gen 2, L = 0.8m) x 1
6. USB Type-A to USB Type-C Cable (L = 1.8m) x 1
7. Wired Remote Controller (EXB01) x1
8. User Manual x 1
