Will this work with a laptop hard drive?

Laptop HDs mostly are 2.5" (width). This device works with both desktop (size 3.5") and 2.5" hard drives. Note to slot on top. That cover opens up when a full size hard drive is inserted, while the smaller 2.5" hard drive just goes through the open slot.

I assume this will work with USB 2 as well as 3 although slower...?

Yep, works fine with my 2.0 slots

Can i use a hard drive WD15ears from Western digital in this dock ?

Yes,but be aware if you use a usb2 connection and a drive that large, data transfers (depending on what you are doing) can take many hours....I have never had a problem of any kind with this dock and it is very fast on usb3. If you are patient, it just always works! It IS a little bulky (large) for what it does.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

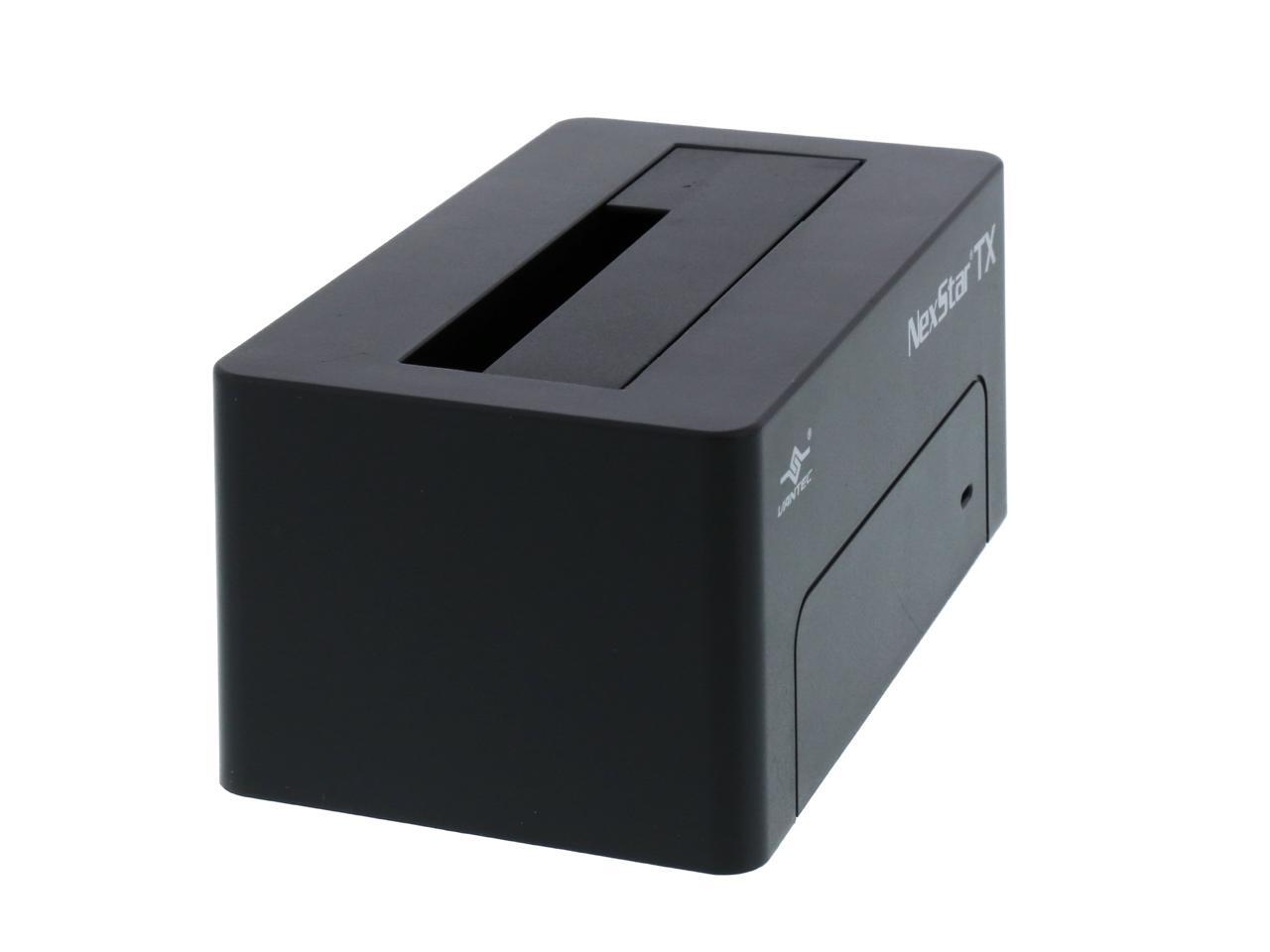

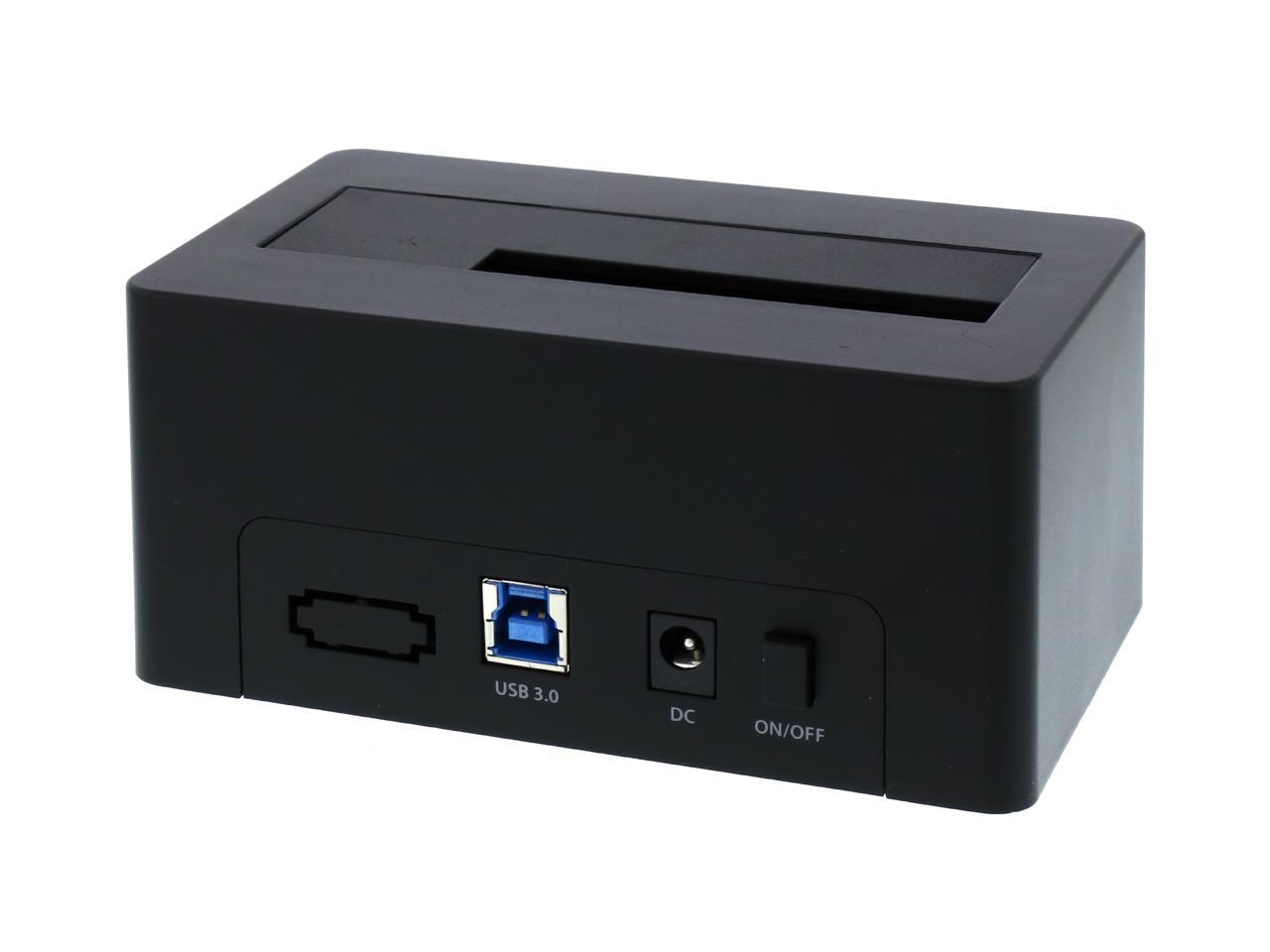

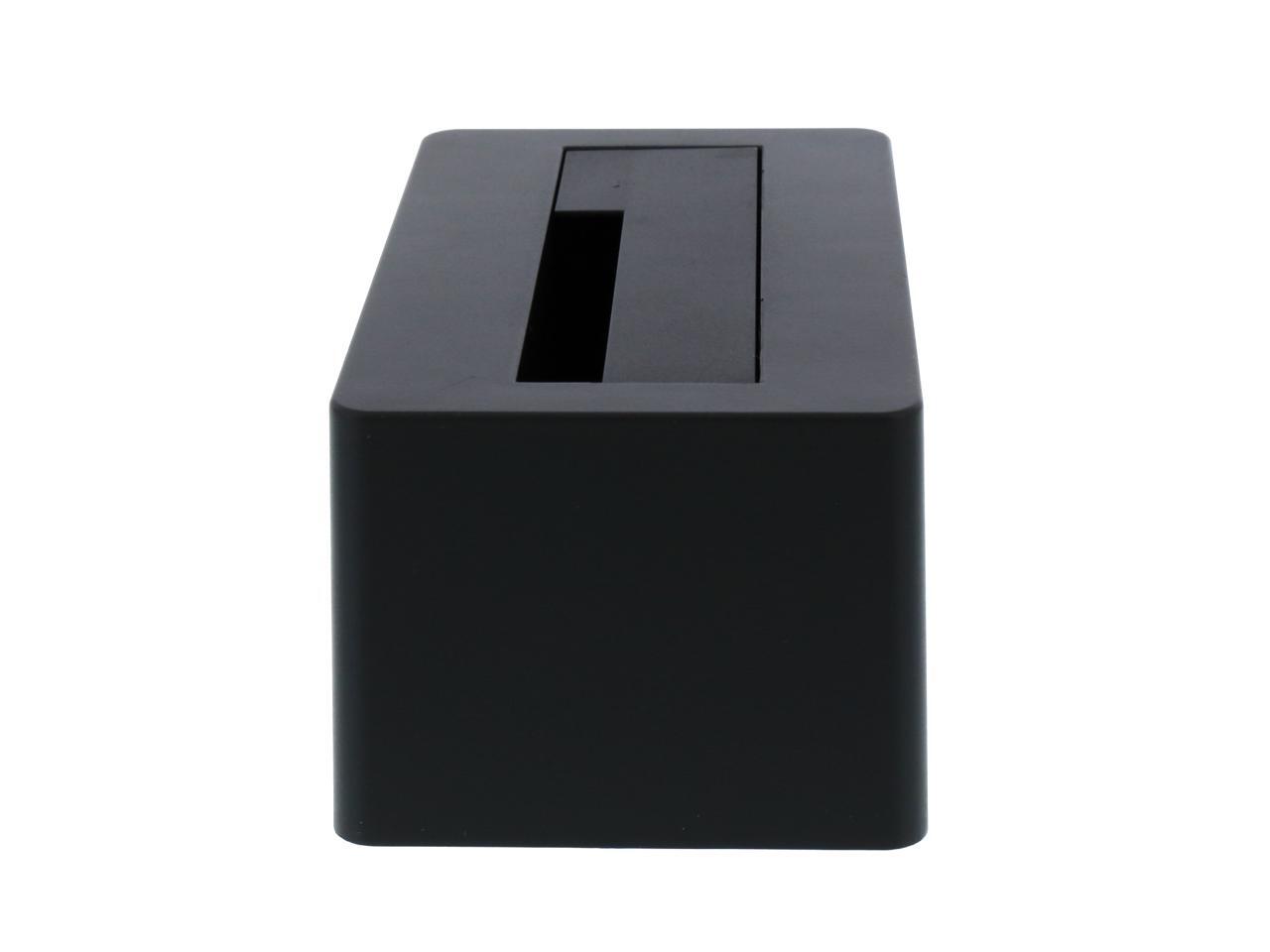

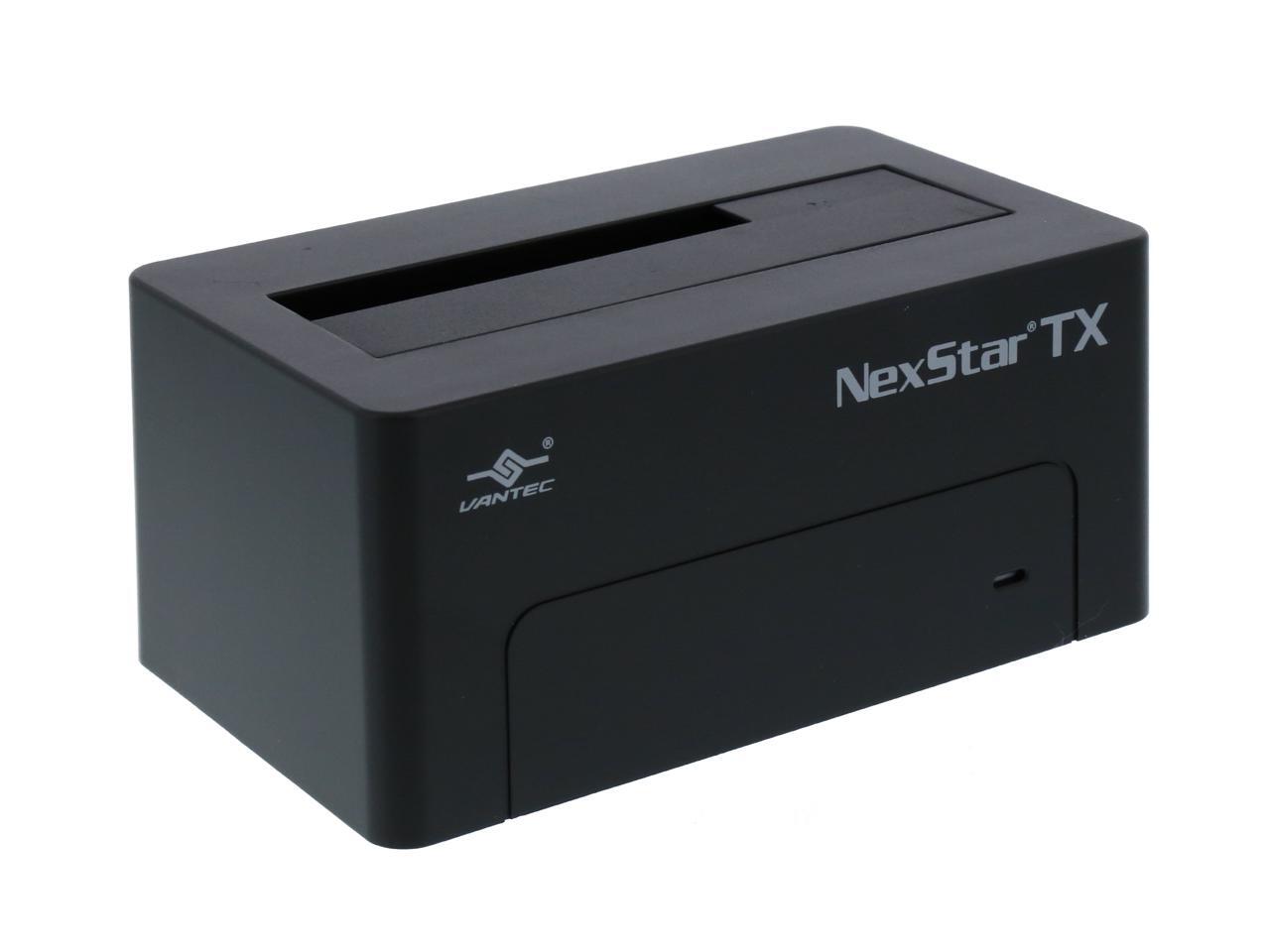

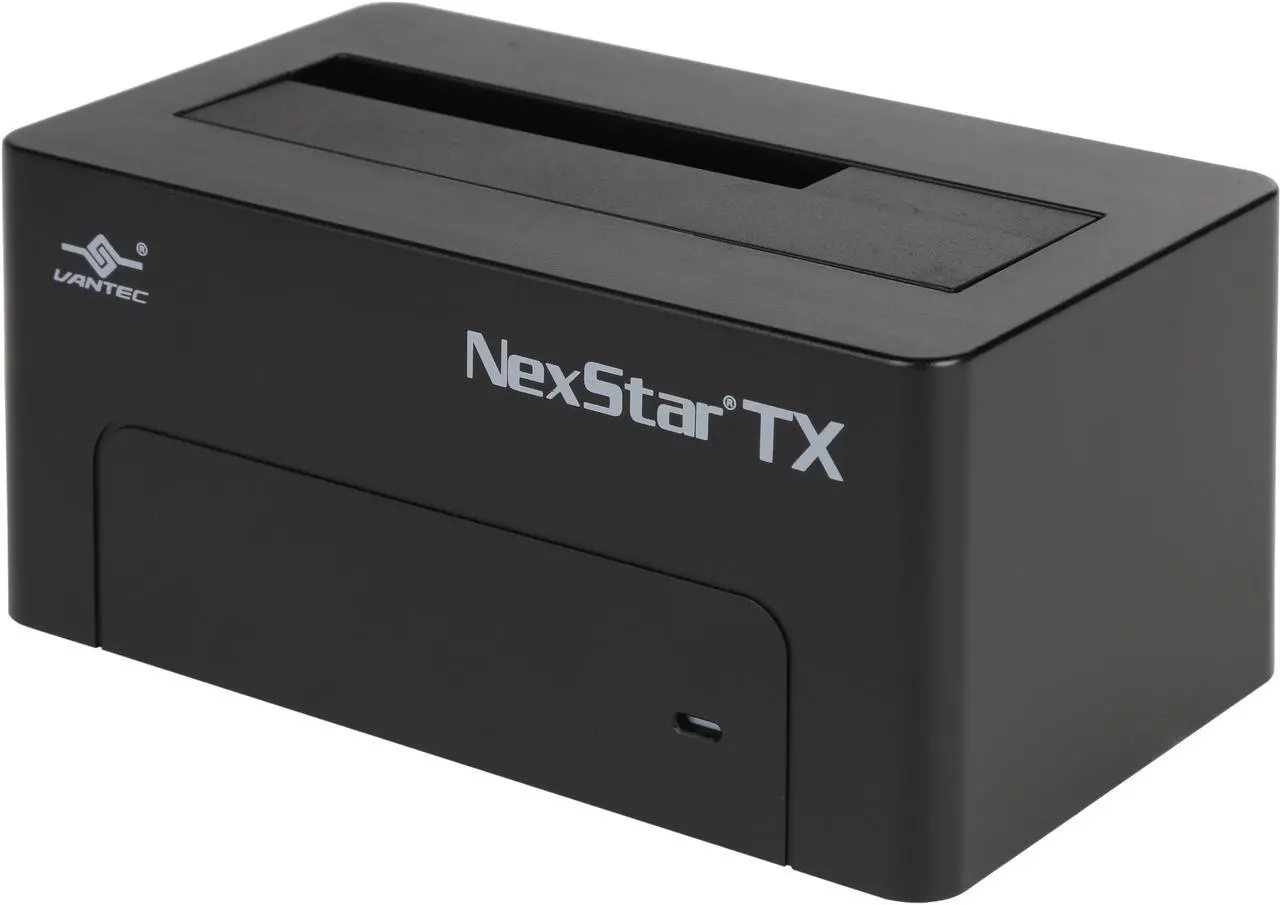

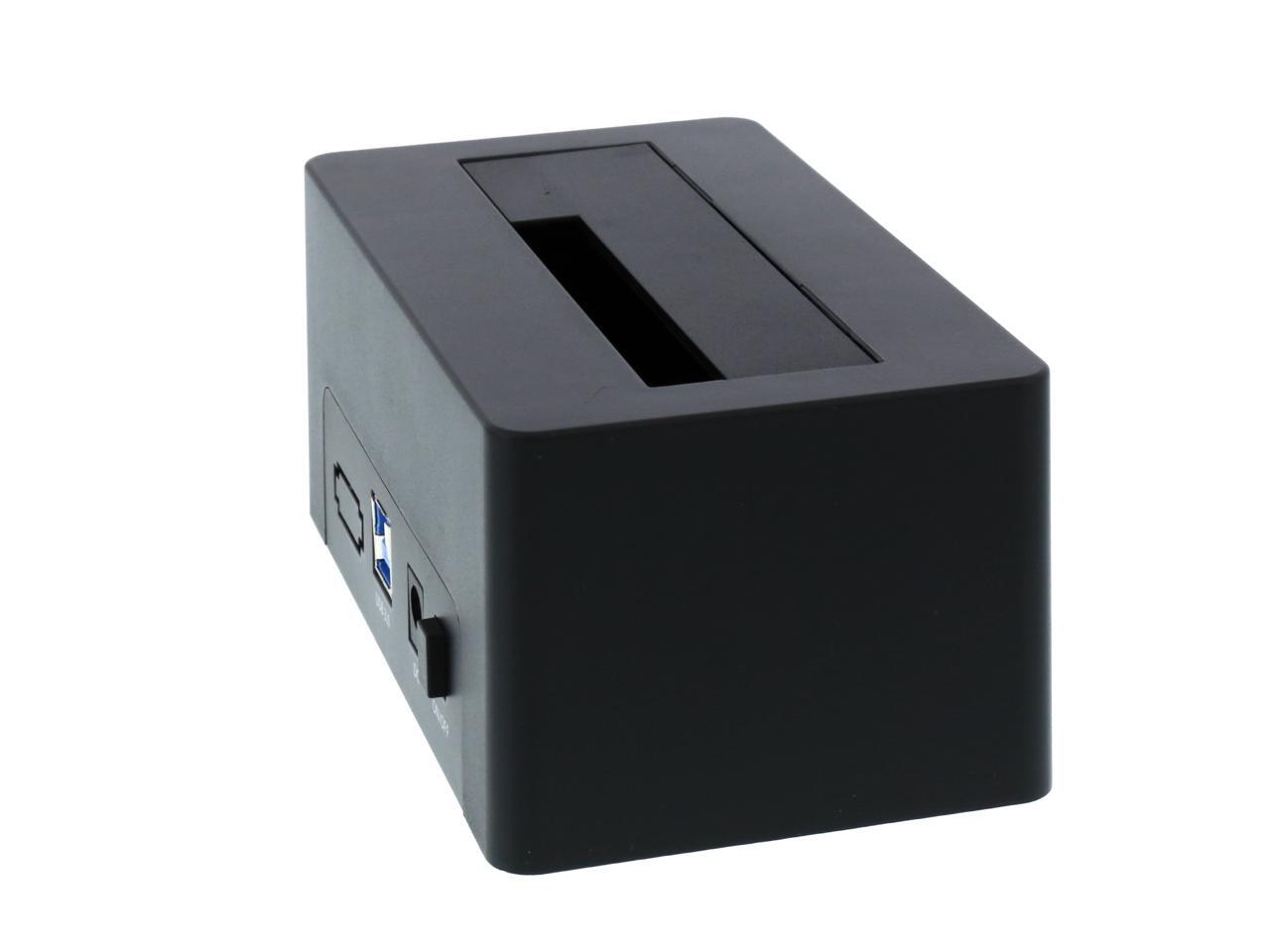

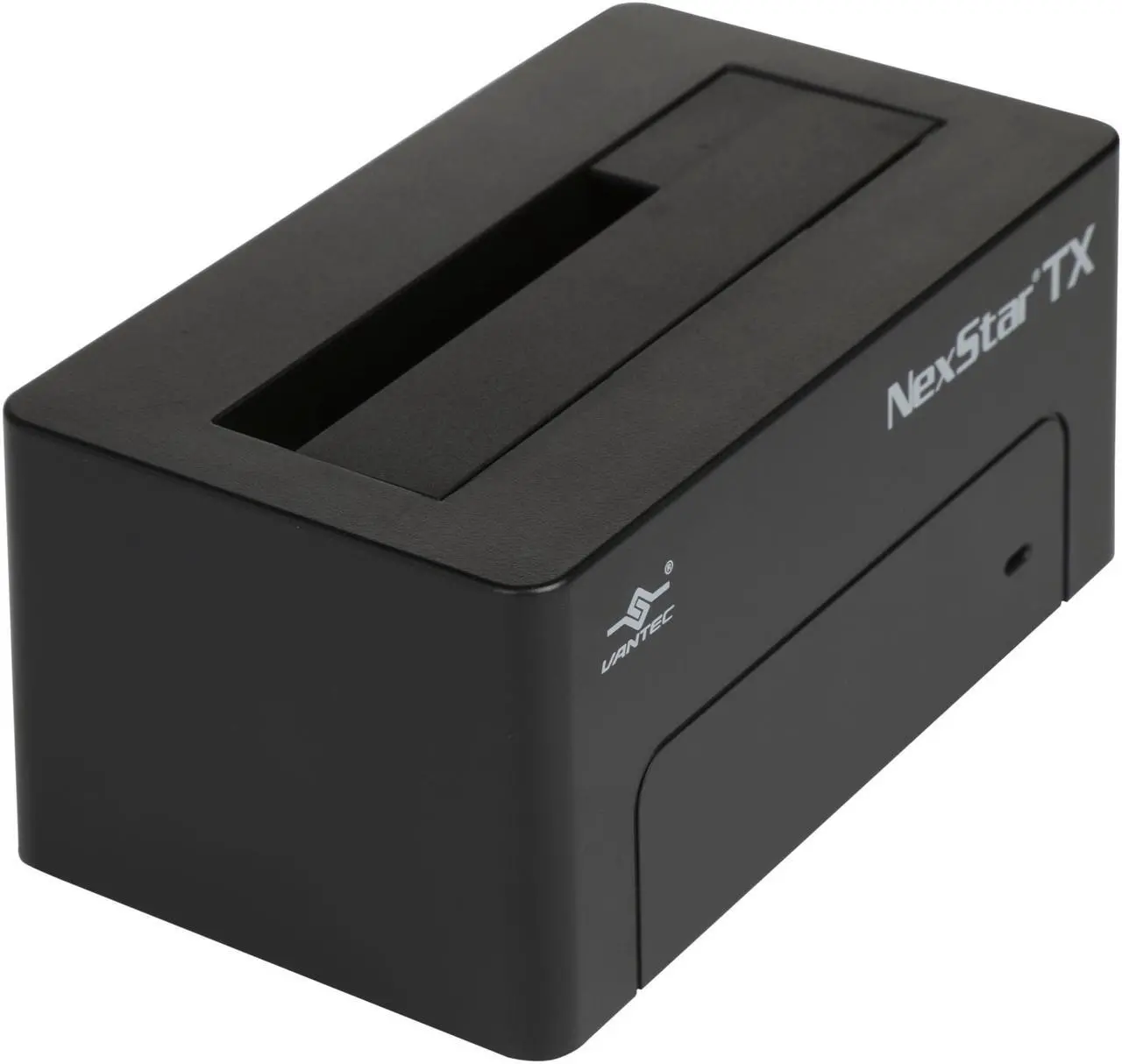

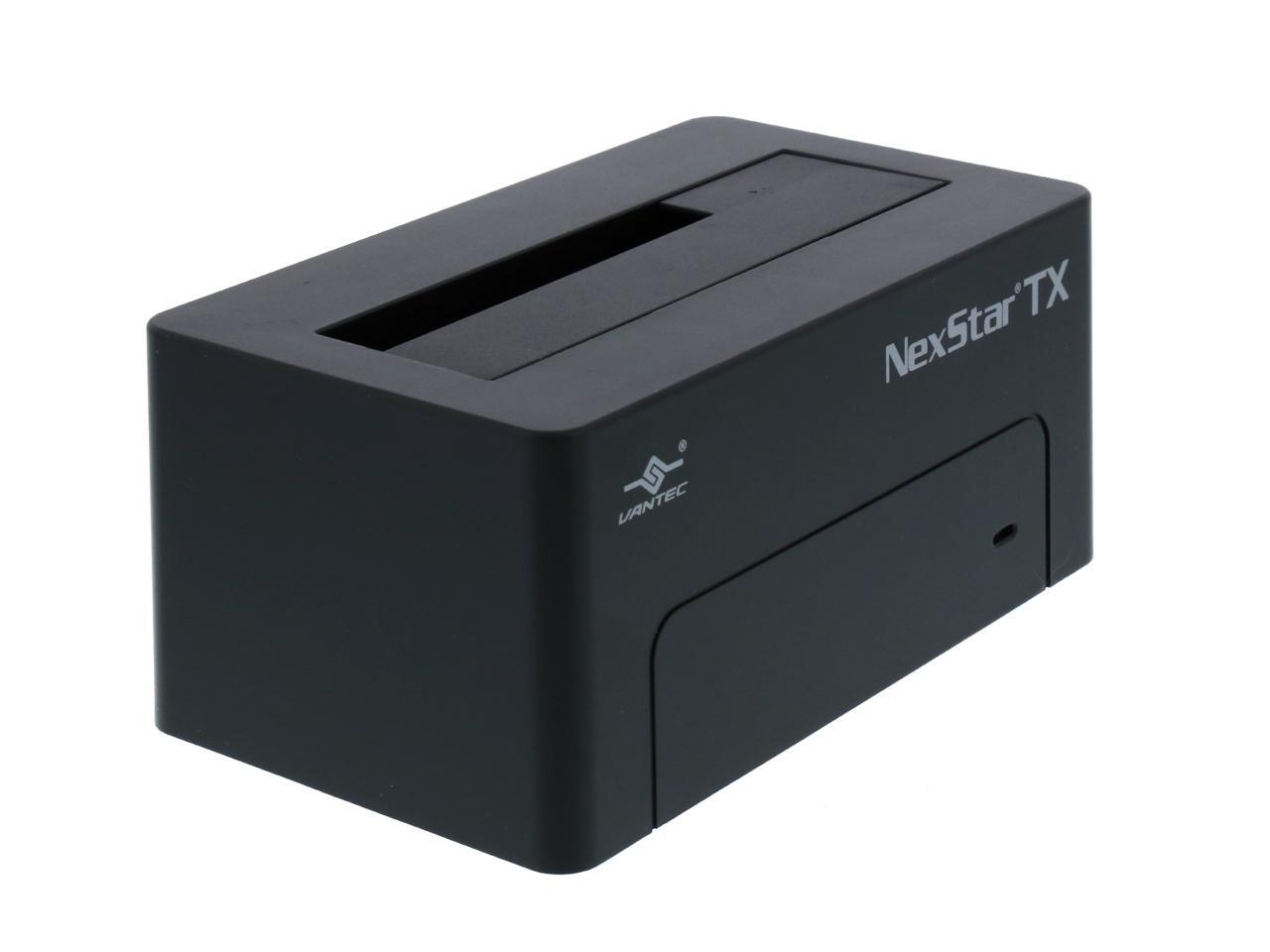

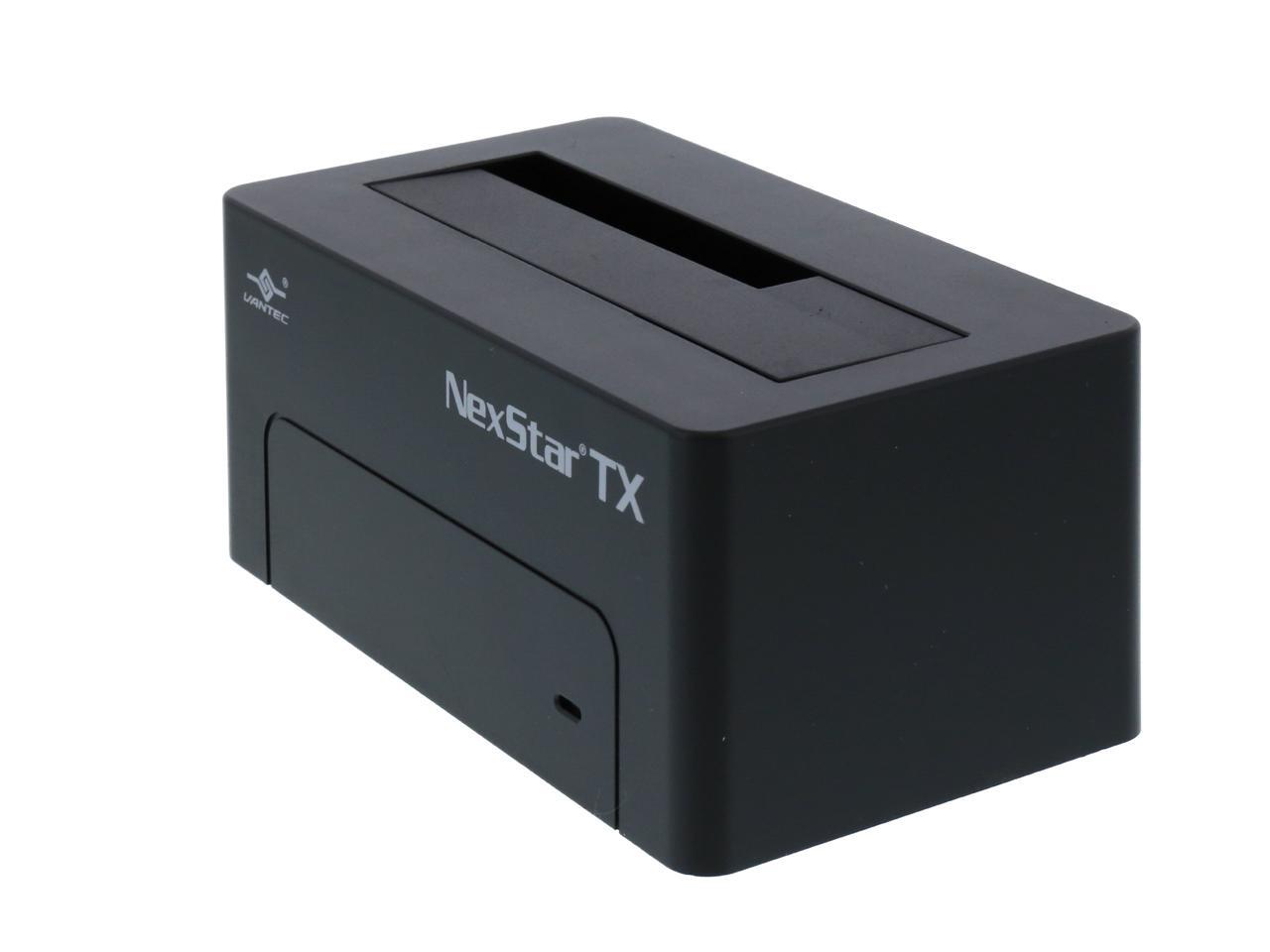

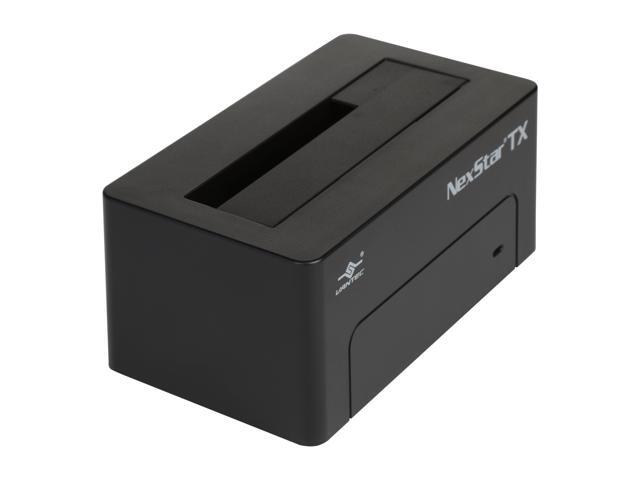

Main image of VANTEC NST-D328S3-BK Plastic 2.5"/3.5" HDD/SSD/Hybrid Drive Black Standard SATA III USB Type B NexStar TX USB 3.0 Hard Drive Dock

100%

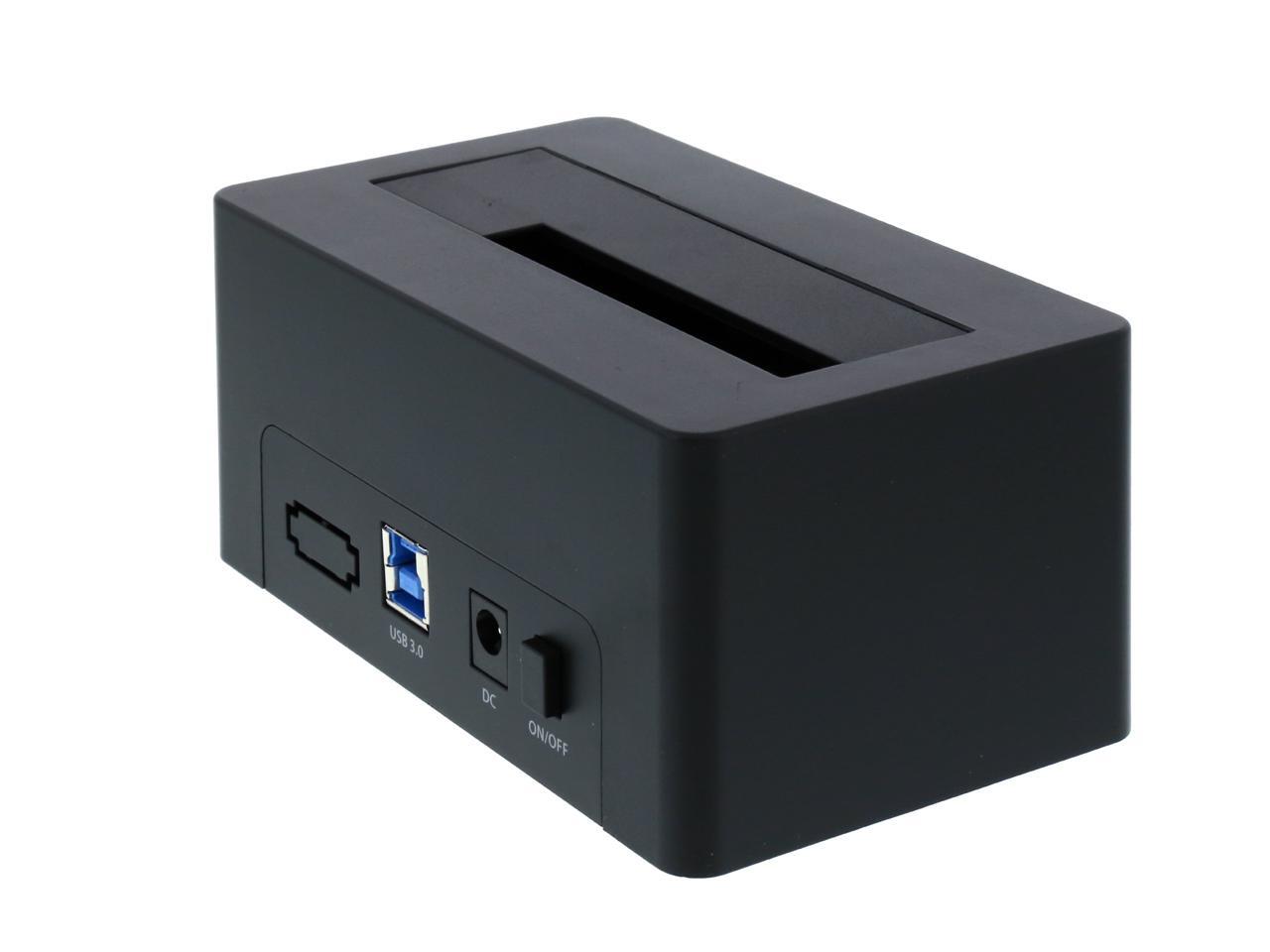

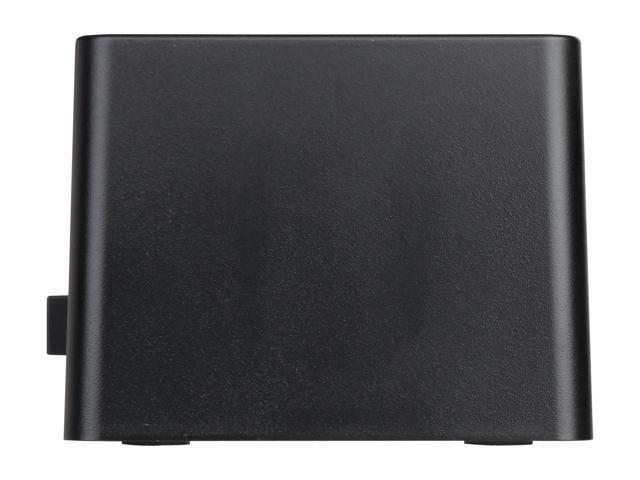

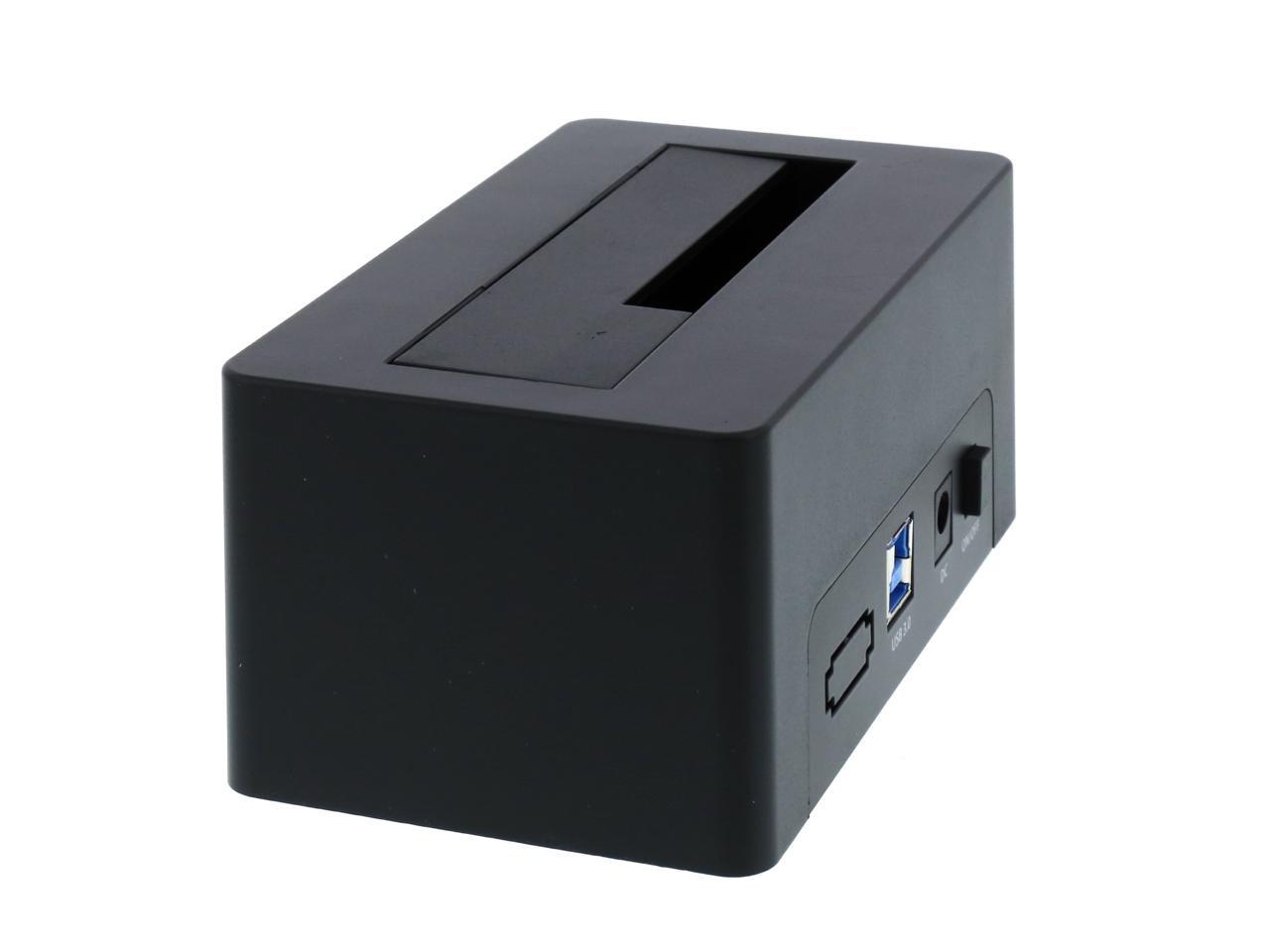

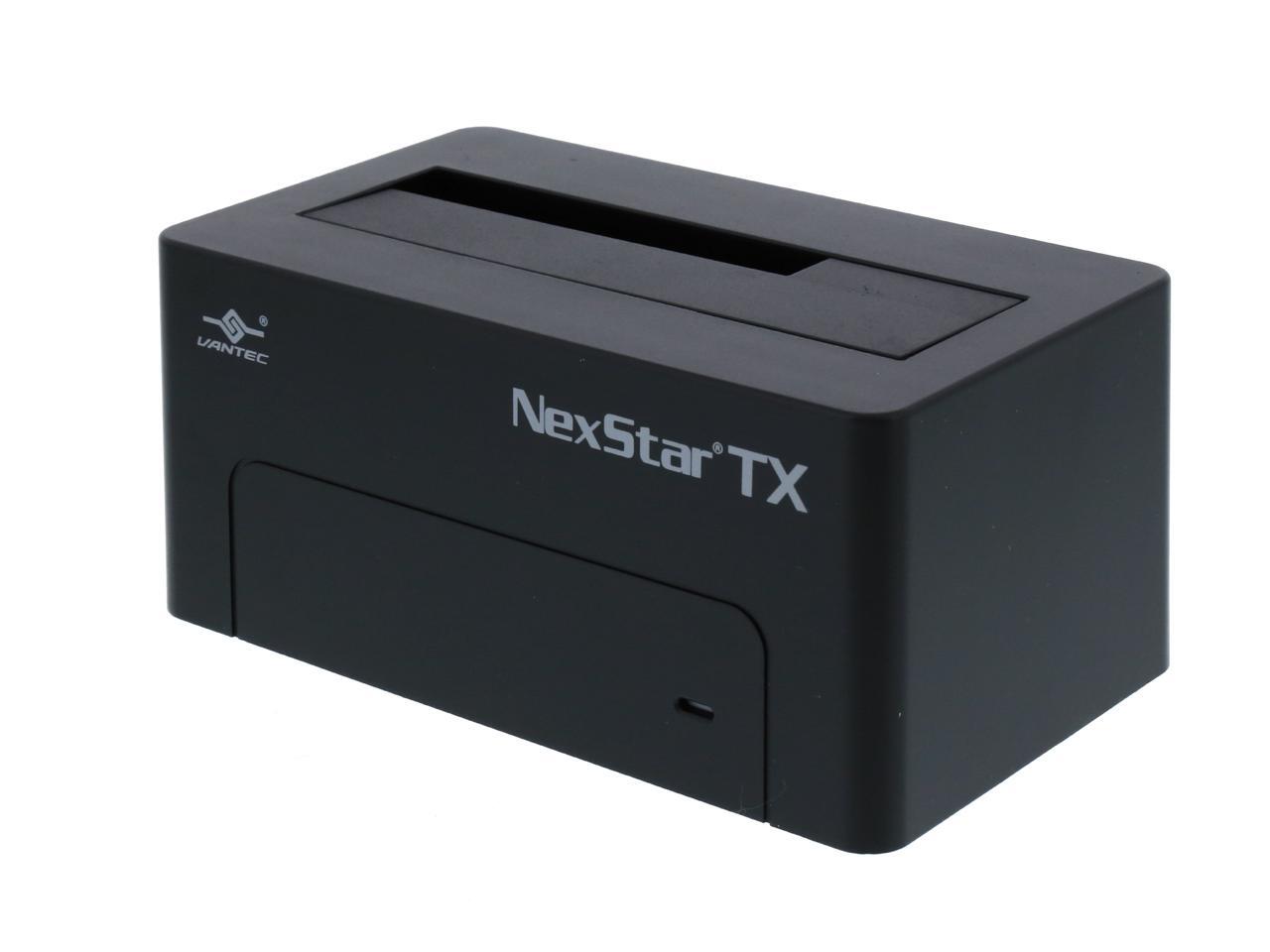

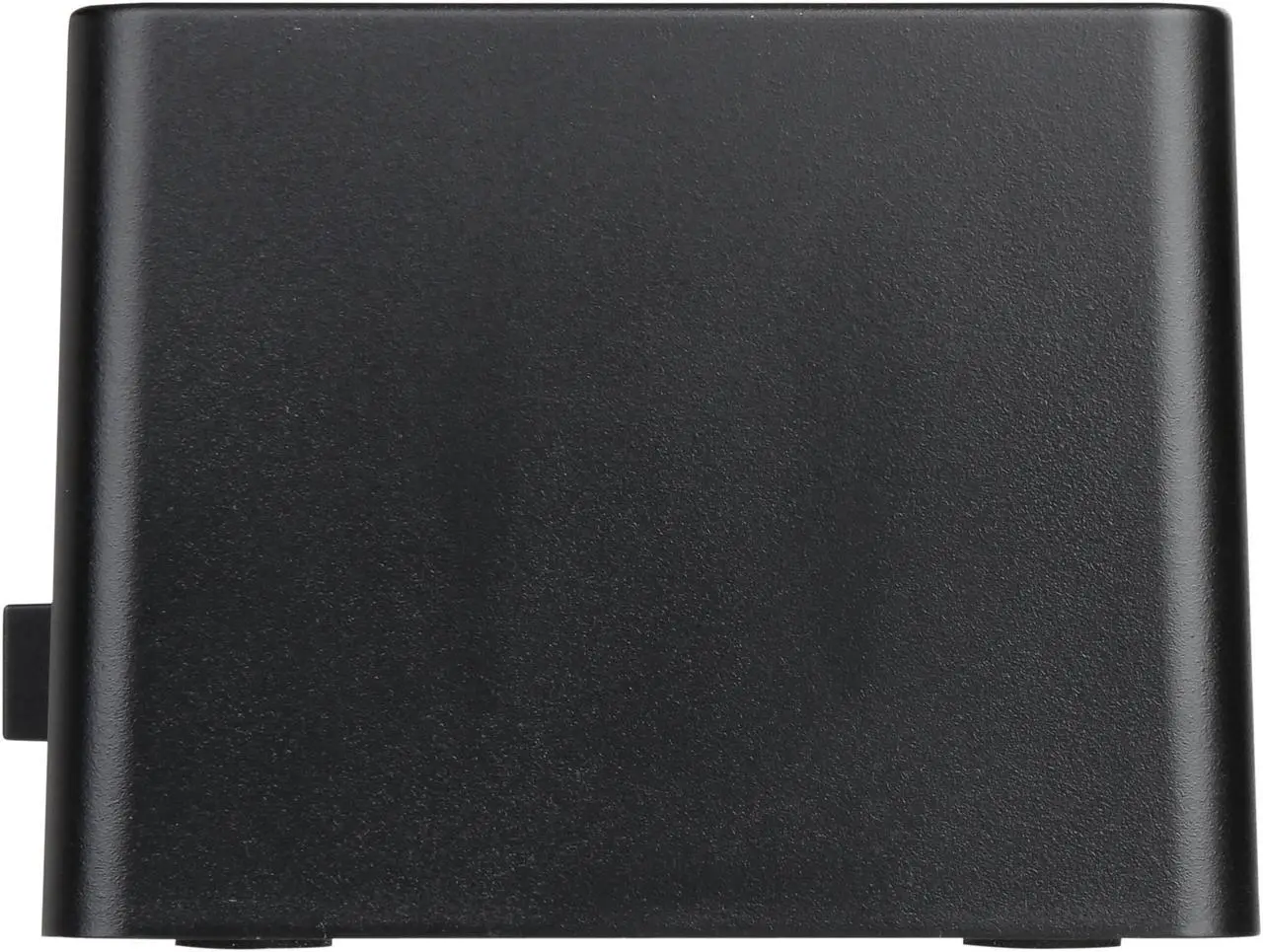

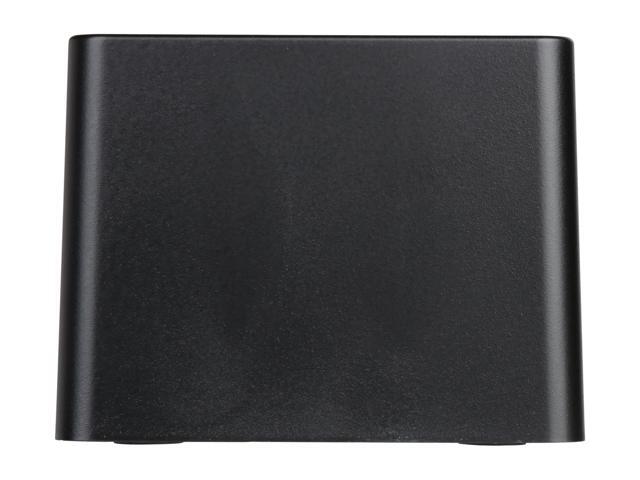

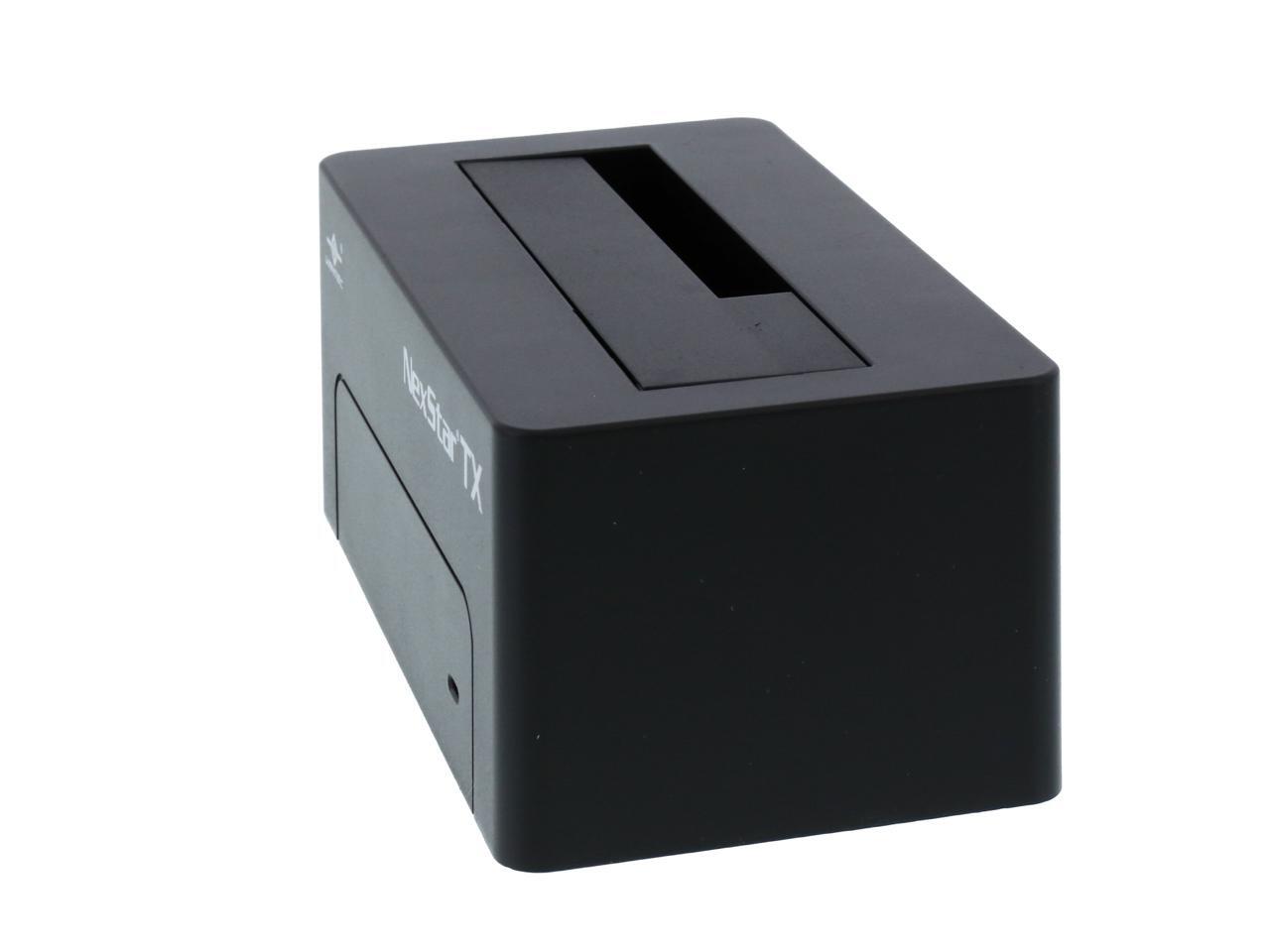

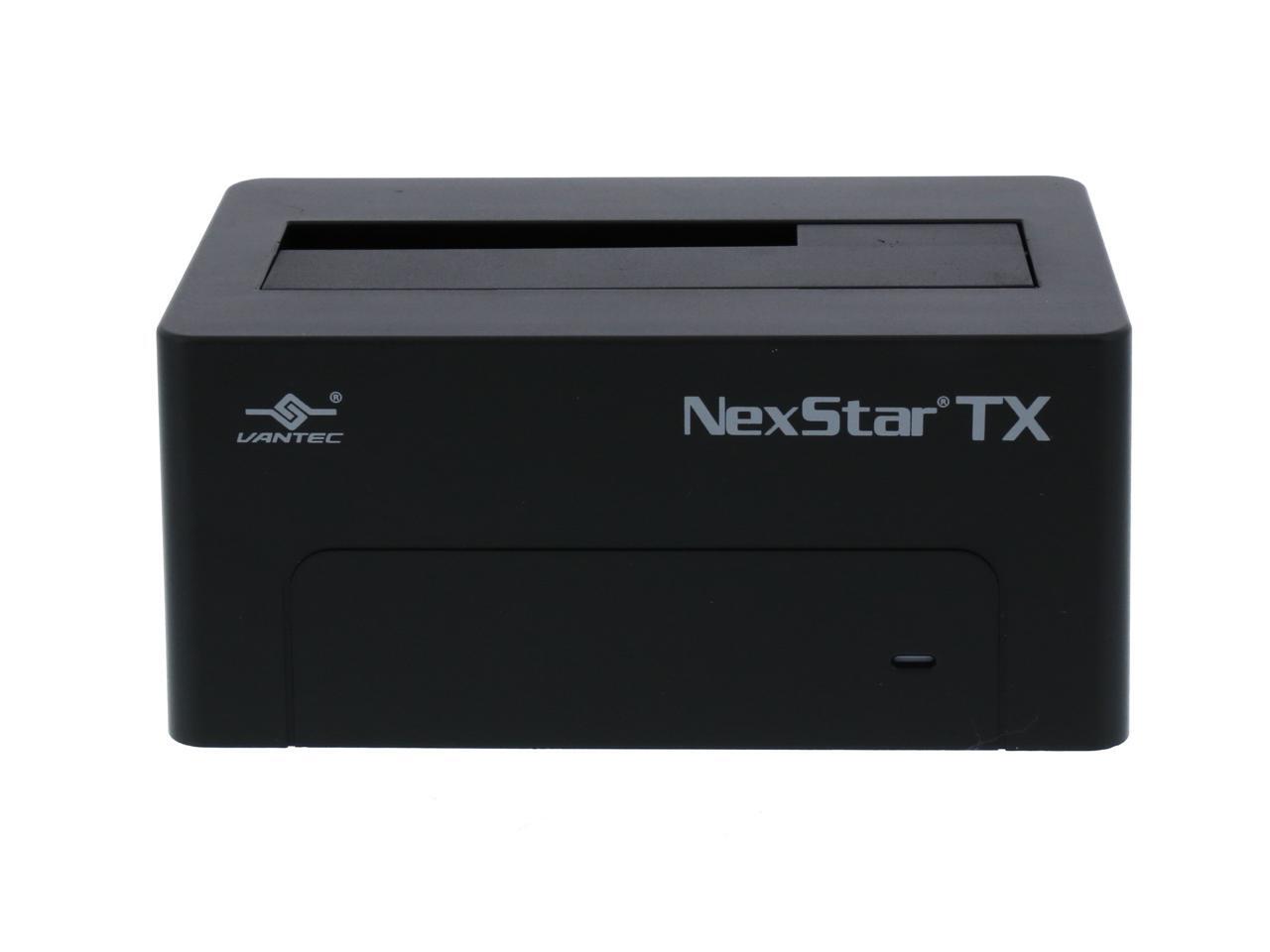

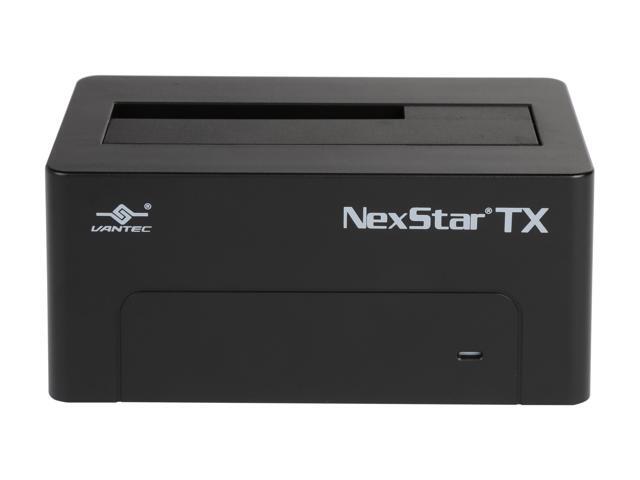

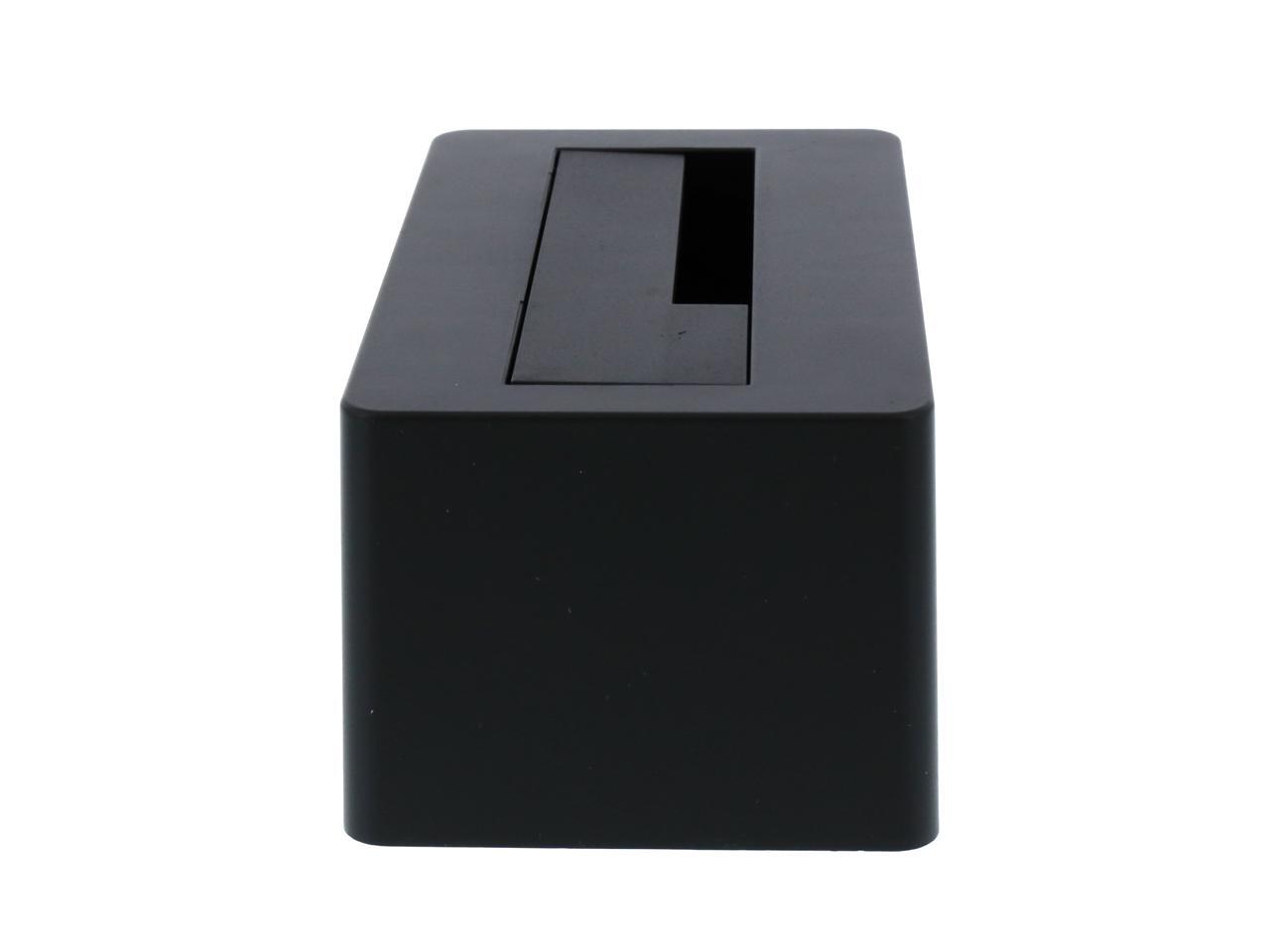

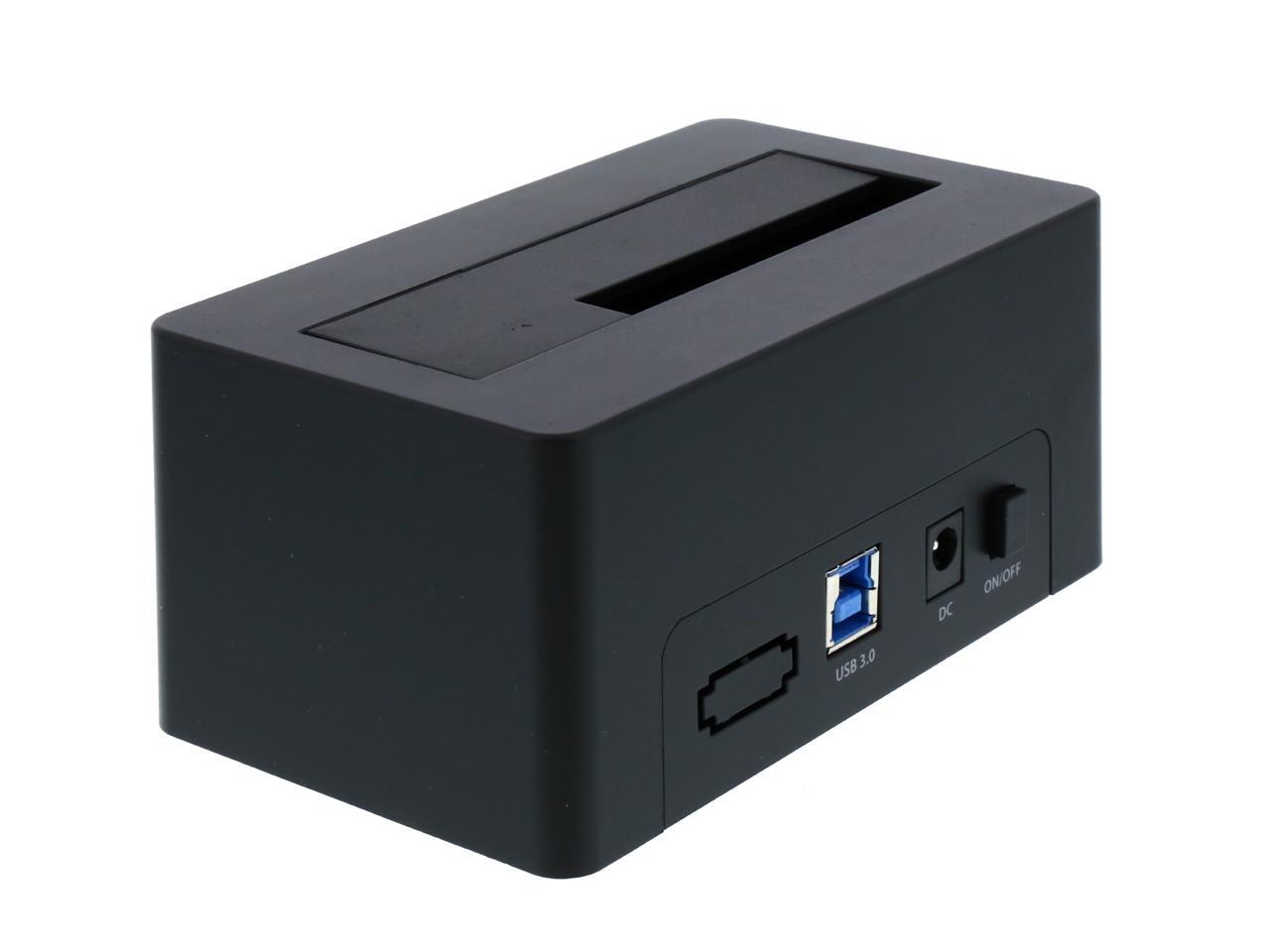

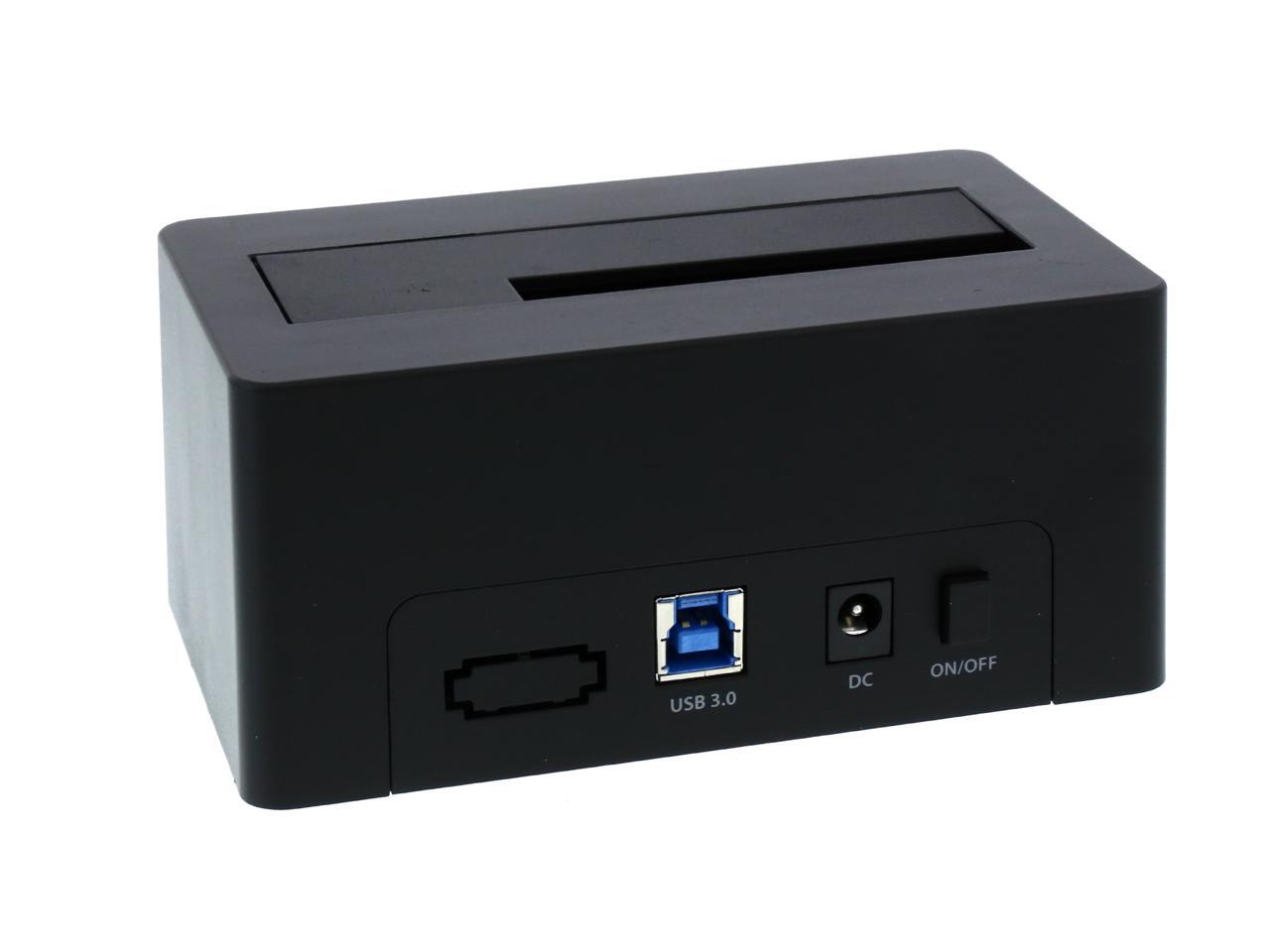

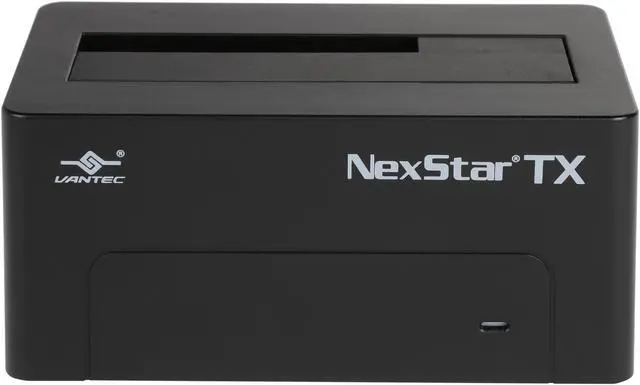

Alt view image 2 of 7 - VANTEC NST-D328S3-BK Plastic 2.5"/3.5" HDD/SSD/Hybrid Drive Black Standard SATA III USB Type B NexStar TX USB 3.0 Hard Drive Dock

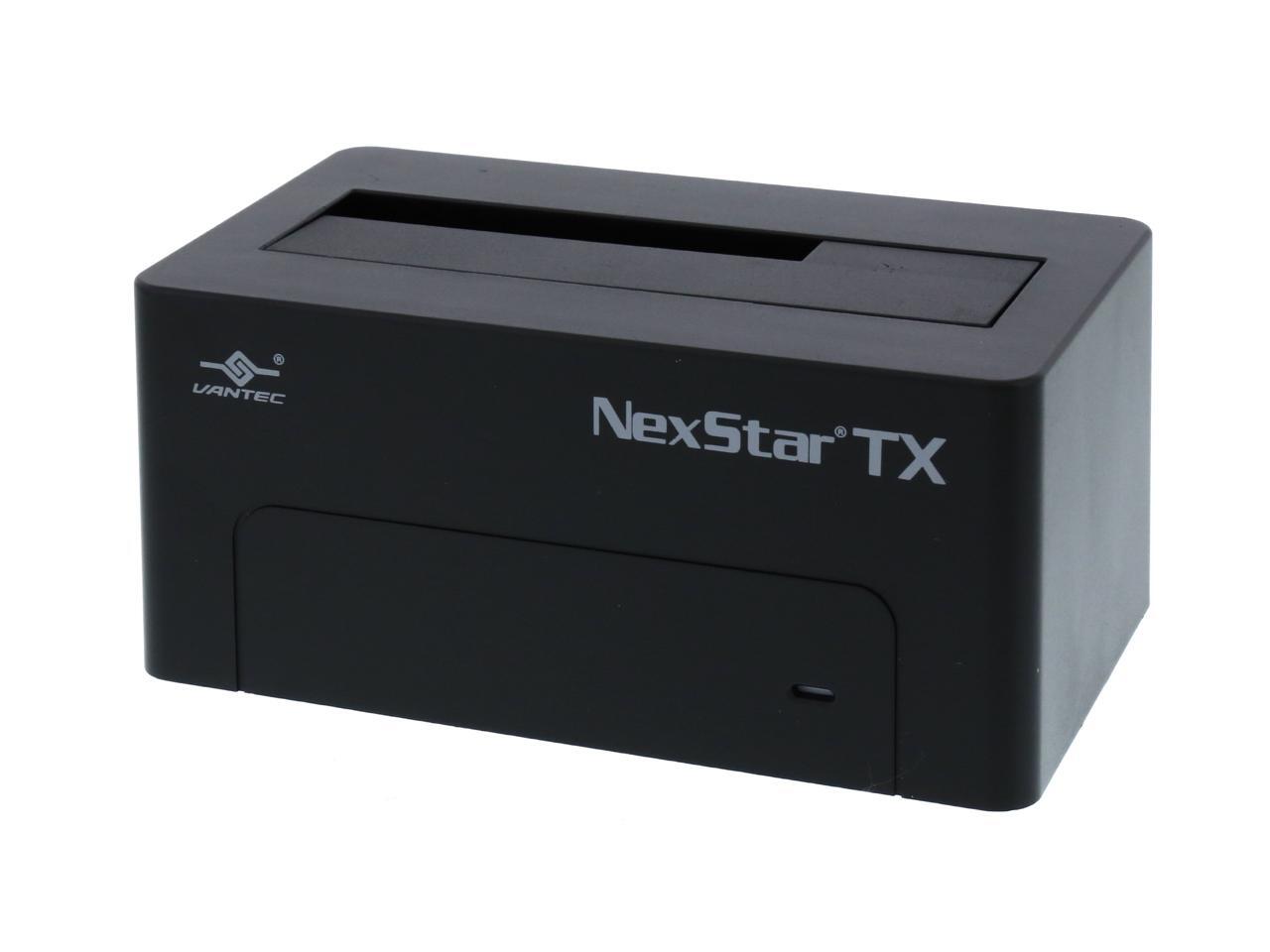

Alt view image 3 of 7 - VANTEC NST-D328S3-BK Plastic 2.5"/3.5" HDD/SSD/Hybrid Drive Black Standard SATA III USB Type B NexStar TX USB 3.0 Hard Drive Dock

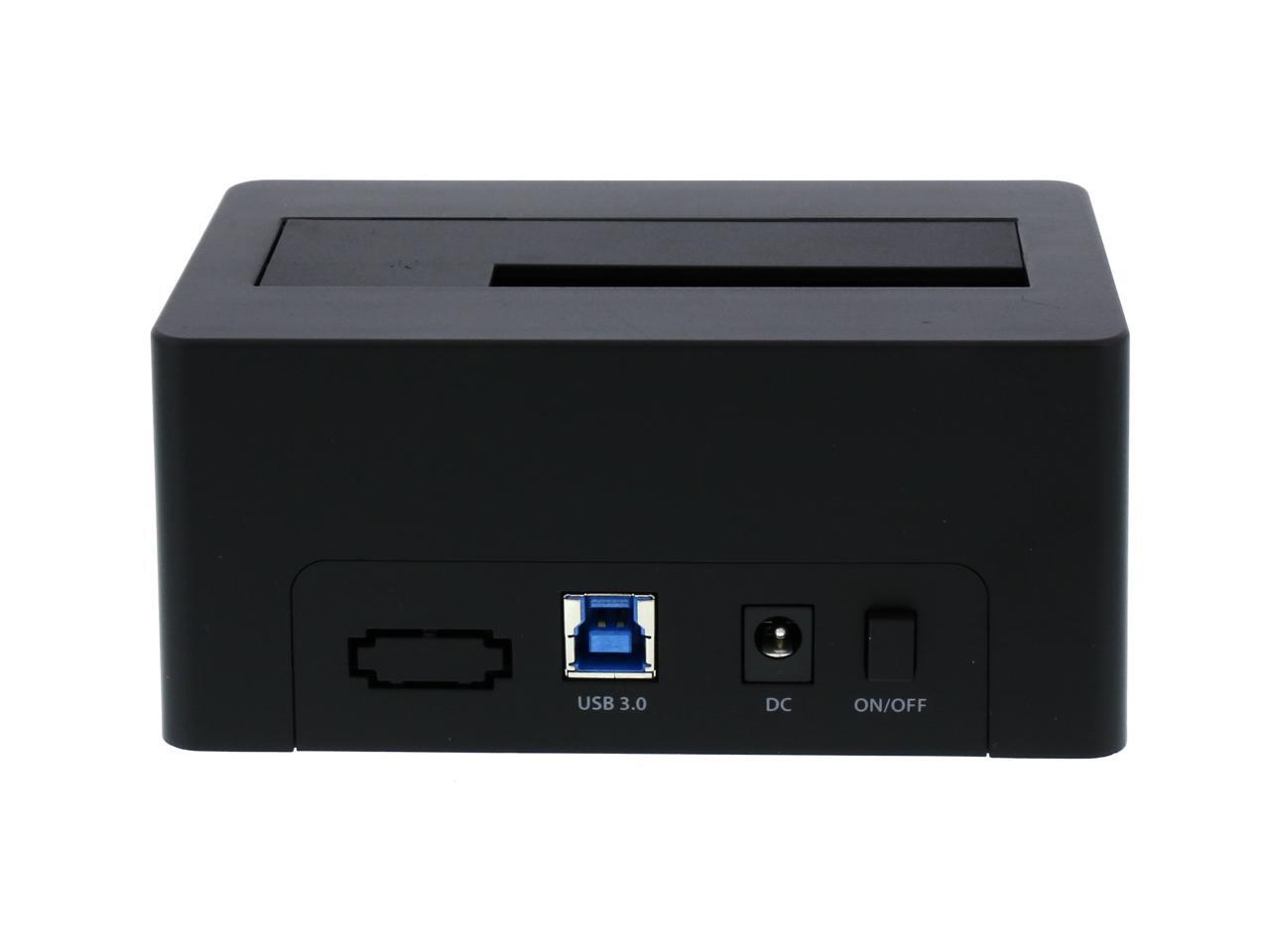

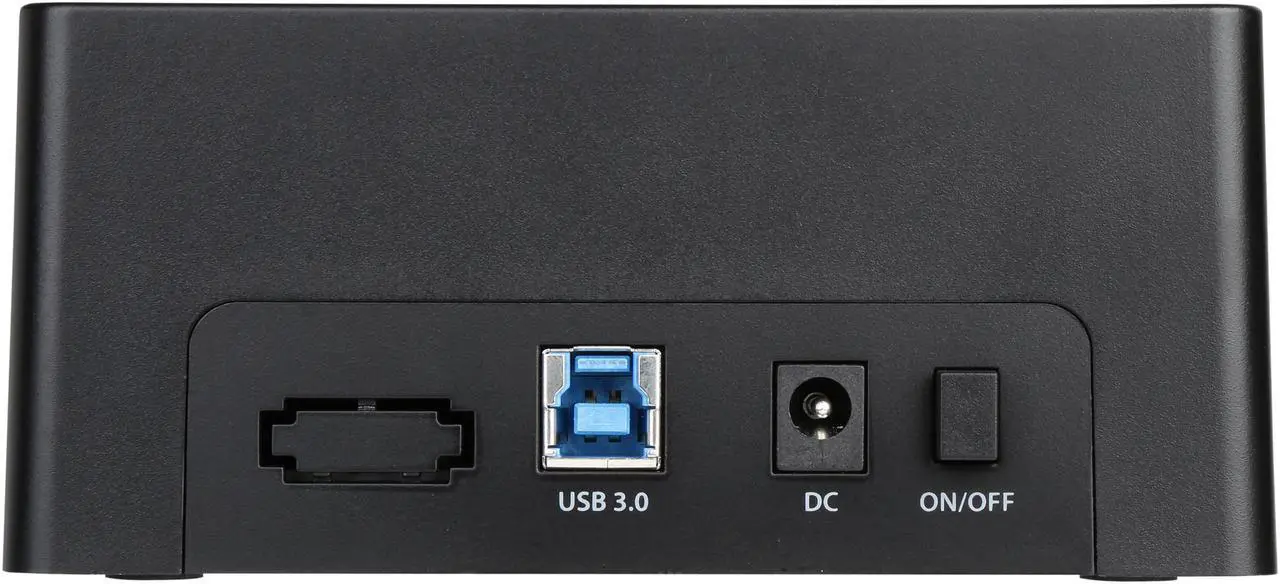

Alt view image 4 of 7 - VANTEC NST-D328S3-BK Plastic 2.5"/3.5" HDD/SSD/Hybrid Drive Black Standard SATA III USB Type B NexStar TX USB 3.0 Hard Drive Dock

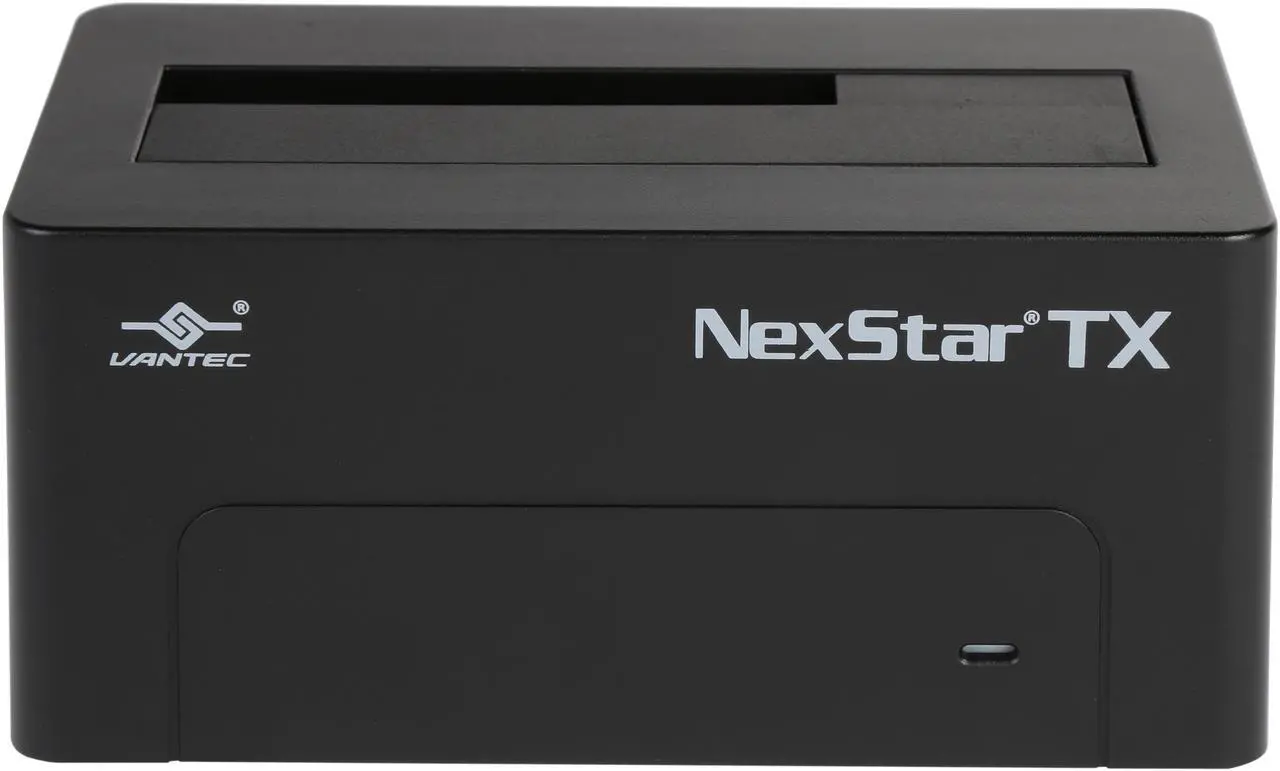

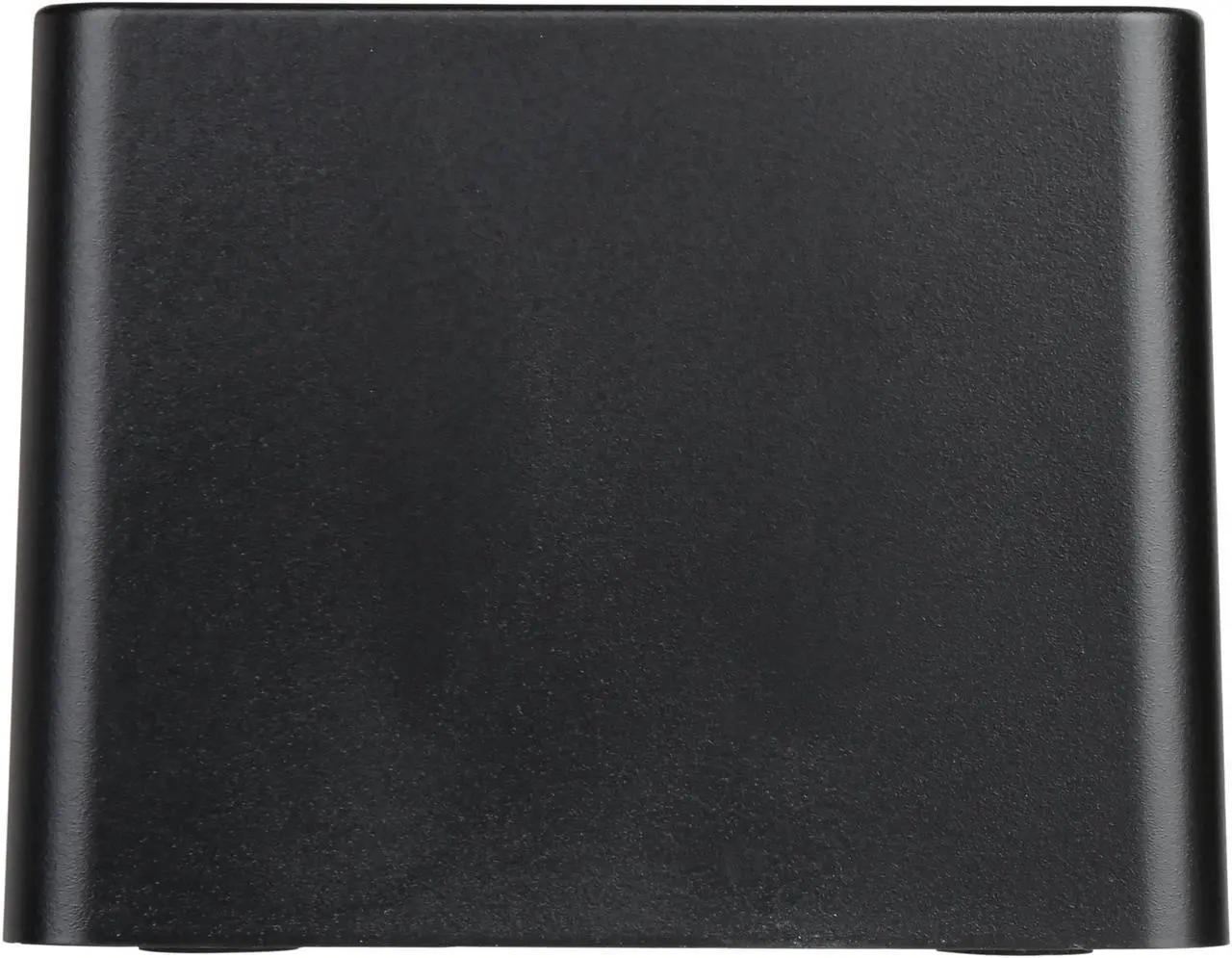

Alt view image 5 of 7 - VANTEC NST-D328S3-BK Plastic 2.5"/3.5" HDD/SSD/Hybrid Drive Black Standard SATA III USB Type B NexStar TX USB 3.0 Hard Drive Dock

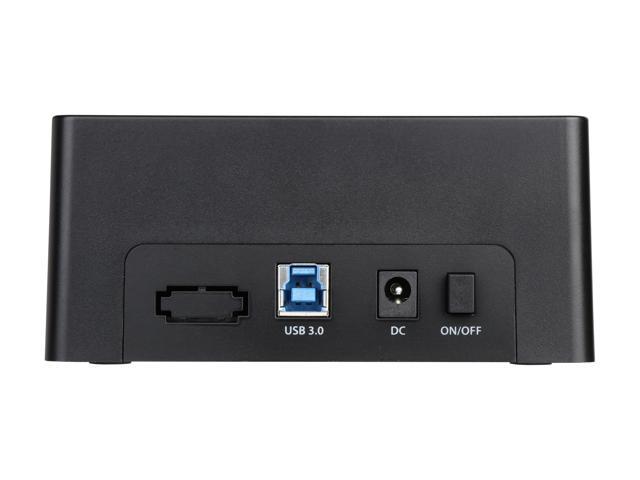

Alt view image 6 of 7 - VANTEC NST-D328S3-BK Plastic 2.5"/3.5" HDD/SSD/Hybrid Drive Black Standard SATA III USB Type B NexStar TX USB 3.0 Hard Drive Dock

Alt view image 7 of 7 - VANTEC NST-D328S3-BK Plastic 2.5"/3.5" HDD/SSD/Hybrid Drive Black Standard SATA III USB Type B NexStar TX USB 3.0 Hard Drive Dock

360^°

Shop All Vantec Products

VANTEC NST-D328S3-BK Plastic 2.5"/3.5" HDD/SSD/Hybrid Drive Black Standard SATA III USB Type B NexStar TX USB 3.0 Hard Drive Dock

(24) Write a Review

2.5"/3.5" HDD/SSD/Hybrid Drive
USB Type B
Up to 8TB
Plastic

Overview

Specs

Reviews (24)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

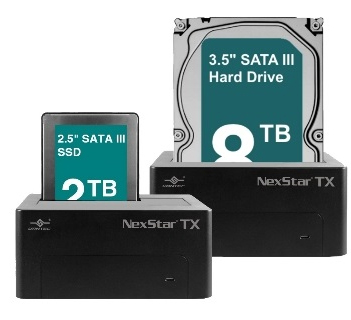

Big in Capacity, Fast in Speed

VANTEC NexStar TX 2.5 inch to 3.5 inch SATA SSD/HDD Converter

Single Bay USB 3.0 Hard Drive Dock for 2.5" or 3.5" HDD/SSD

Turn Bare Drive into USB 3.0 External Storage in an instant !

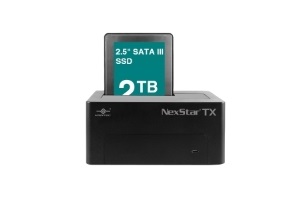

Add any Big or small SATA HDD/SSD !

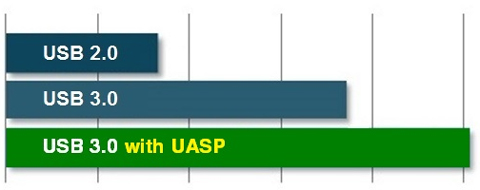

Faster USB 3.0 with UASP

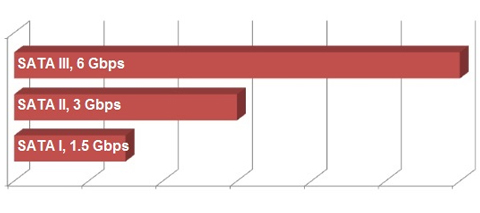

Ready for Fast SATA III Drive

Simple Functional Design for You

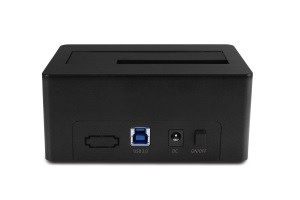

Connect to any USB port, Insert any Standard SATA 2.5" or 3.5" HDD/SSD and power it ON for Extra Storage...

Gallery

Specifications

Model:	NST-D328S3-BK
Device Support:	SATA I/II/III HDD/SSD/Hybrid Drive
Device Size:	2.5"/3.5" HDD/SSD/Hybrid Drive
Internal Interface:	Standard SATA III
External Interface:	USB Type B
Interface Cable:	USB Type A to Type B
USB cable Length:	787 mm / 31 inches
POwer Supply:	Univeral Switching AC adapter, Output: 12VDC, 2A
HDD Capacity:	Up to 8TB (check for the latest updates on current capacity)
Material:	Plastic (ABS)
Dimension:	130 x 72 x 58 mm / 5.1 x 2.8 x 2.3 inches
Weight:	370g / 13 ozs

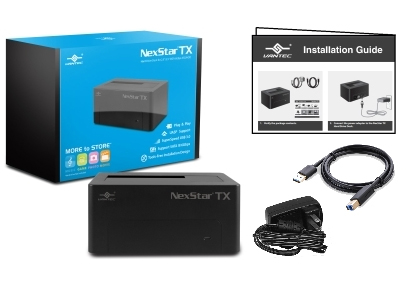

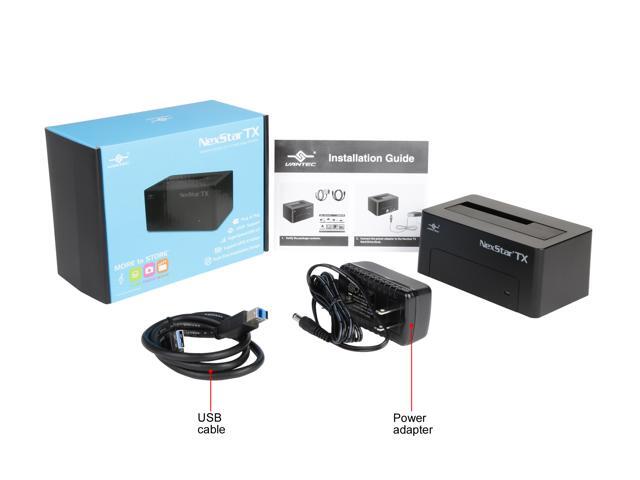

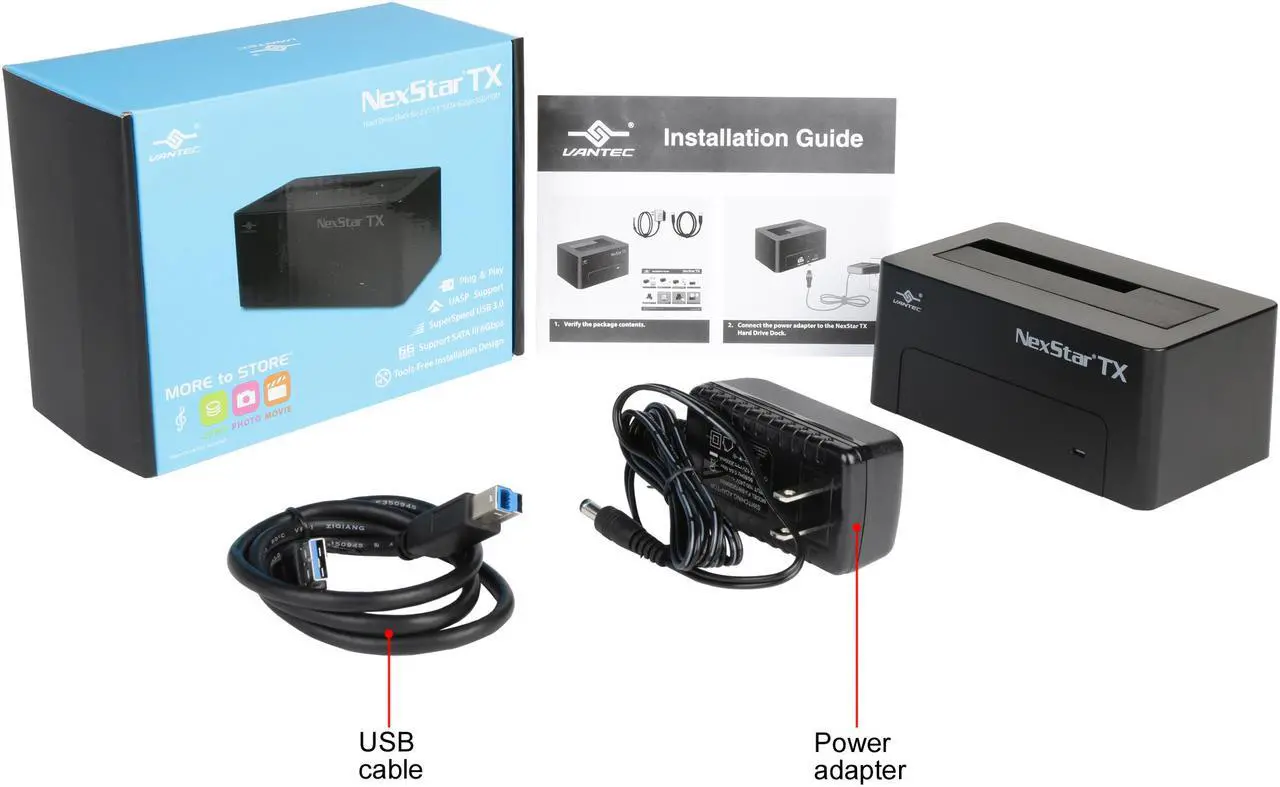

What's in the Box

1) NexStar TX USB 3.0 HDD Dock, 2) USB 3.0 cable, 3) External power supply, 4) Quick Install Guide

Warranty Information

1 year standard warranty from the date of purchase.

Model
Brand	VANTEC
Model	NST-D328S3-BK

Details
Color	Black
Size	2.5"/3.5" HDD/SSD/Hybrid Drive
Type	Dock
AC Adapter	Yes
Material	Plastic
Internal Interface	Standard SATA III
External Interface	USB Type B
Number of Bay	1
Maximum Capacity (per Bay)	Up to 8TB
Power	12V2A

Compatibility
Operating Systems Supported	Windows 7, 8 , 10 or later Mac OS X 10.6 or later Computer with USB 3.0 or USB 2.0 port

Features
Features	SuperSpeed USB 3.0 transfer rates of up to 5Gbps, backward compatible with USB 2.0/1.1 Support High performance SATA 6 Gbps interface - Twice the interface speed with backwards compatibility to legacy SATA standards SATA I/II Insert and Use 2.5”/3.5” SATA HDD/SSD into the Single Bay dock for ultimate convenience Hot-Swappable: Plug & Play Without Rebooting Adopt UASP to enhance maximum performance for latest Windows OS

Dimensions & Weight
Dimensions	5.10" x 2.80" x 2.30"
Weight	370g

Package Contents
Package Contents	NexStar TX USB 3.0 HDD Dock USB 3.0 cable Power Adapter Quick Installation Guide

Additional Information
First Listed on Newegg	December 08, 2016
