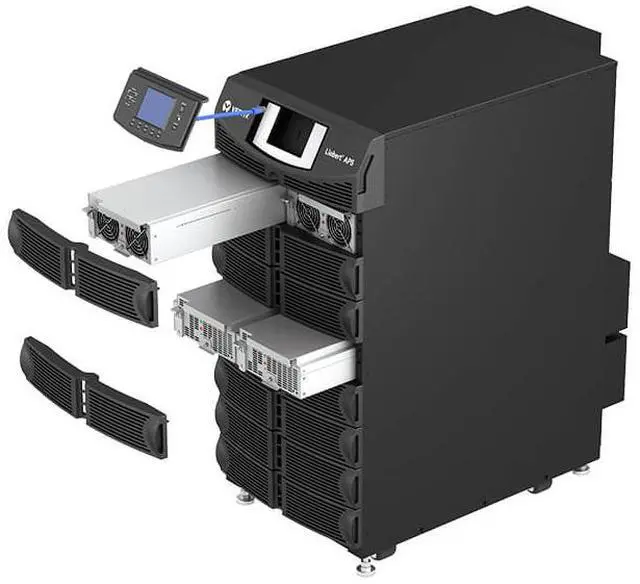

Vertiv Liebert AL6D0NHXGNNXLKB, 20kVA/18.0kW, 208/120VAC LLNG, 8min runtime - Hot swappable power, battery and control modules allow for maintenance on the system without disturbance to attached loads - OEM
- Power / Device Type: UPS
- Power Device / Form Factor: Rack/Tower
- UPS Technology: Double Conversion; Online
- Voltage Output: 208/120VAC
- Power / Voltage Required: 208/120VAC
- Min Operating Temperature: 0 Celsius
- Max Operating Temperature: 40 Celsius
- Humidity Range Operating: 0 - 95%, non-condensing
- Power Provided (VA): 20000 VA
- Surge Suppression: Yes
- Battery / Run Time: 8 min
- Battery Technology: VRLA; Lithium-ion
- COO: CHINA
- Model: AL6D0NHXGNNXLKB
- Width: 17 Inch
- Depth: 34 Inch
- Height: 38 Inch
- Weight: 220 Kg
+
+
Learn more about the Vertiv AL6D0NHXGNNXLKB
| Brand | Vertiv |
|---|---|
| Series | Liebert |
| Model | AL6D0NHXGNNXLKB |
| International Version | 208V |
|---|---|
| Input Voltage Range | 200/100, 208/120, 220/110, 230/115, 240/120 VAC |
| Input Frequency | 40 Hz to 70 Hz auto-sensing |
| Input Connection | 4-Wire (L-L-N-G) |
| VA Rating | 20kVA |
|---|---|
| Watts | 18kW |
| Output Voltage | 200/100, 208/120, 220/110, 230/115, 240/120 VAC |
| Output Frequency | 60Hz default; 50/60Hz user-configurable |
| Battery Type | Lithium Ion |
|---|---|
| Battery Run Time | Full Load: 8 mins. Half Load: 18 mins. |
| Temperature | Operating temperature: 32°F - 104°F (0°C - 40°C) |
|---|---|
| Humidity | 0 - 95%, non-condensing |
| Dimensions | 38" x 17" x 34" |
|---|---|
| Weight | 484 lbs. |
| First Listed on Newegg | June 03, 2026 |
|---|
