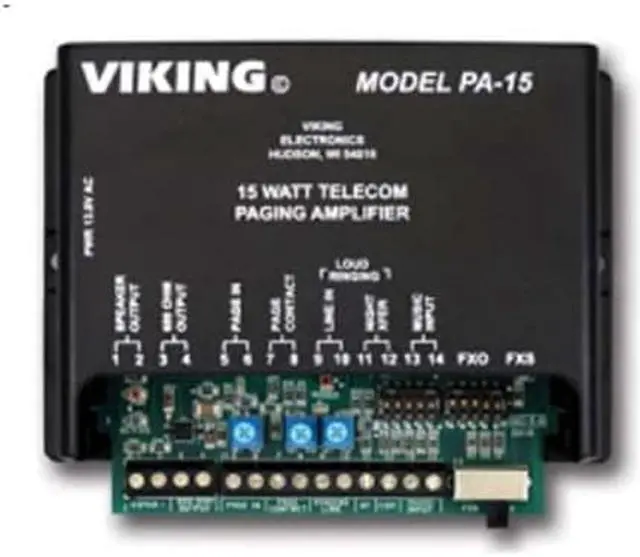

Viking Electronics - PA-15 - 15 Watt Paging Amplifier with Background Music and Loud Ringing

The Viking 15 Watt Paging/Loud Ringing Amplifier interfaces with virtually any telephone system to provide 15 watts of paging power - enough to drive fifteen 8-ohm paging horns or speakers.

The PA-15 provides 36V talk battery for interfacing with an FXO or unused analog line input/trunk port. With the flip of a switch, the unit can connect to a FXS or PABX/Centrex station ring trip port or connect to a 600 ohm paging port. When interfacing with systems that do not provide a paging contact closure, the built-in voice activation (VOx) is in control.

After paging, the PA-15 auto disconnects on CPC, busy signal, silence or default disconnect timer (helps prevent accidental paging system lock-up if phone is hung-up incorrectly). The unit will generate adjustable loud ringing from an independent ringing analog FXS / PABX / Centrex station or from a dry contact closure. This amplifier can provide background music (muted during page) if connected to an external music source.
