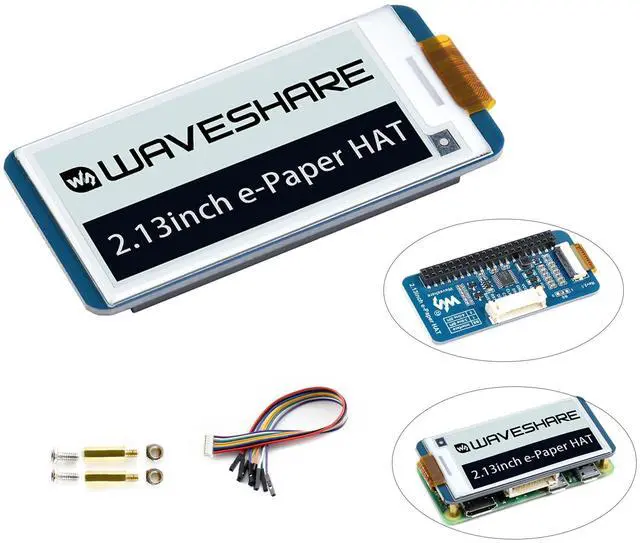

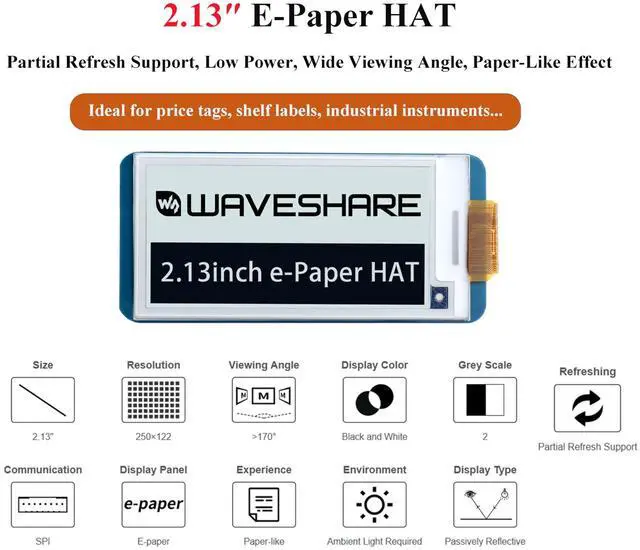

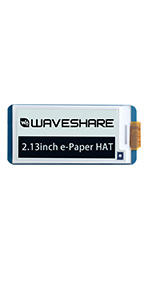

250x122, 2.13inch E-Ink display HAT for Raspberry Pi, SPI interface

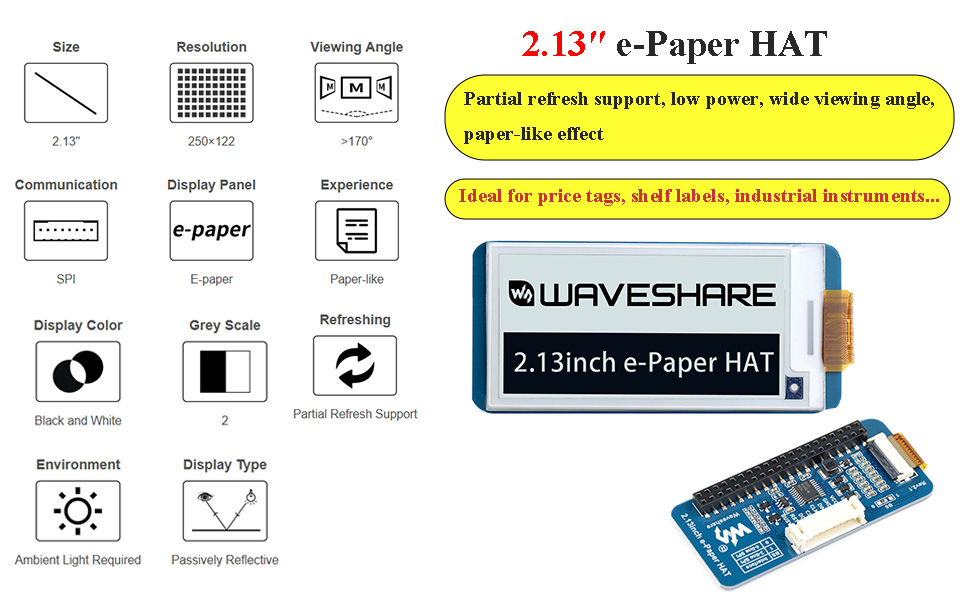

Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing

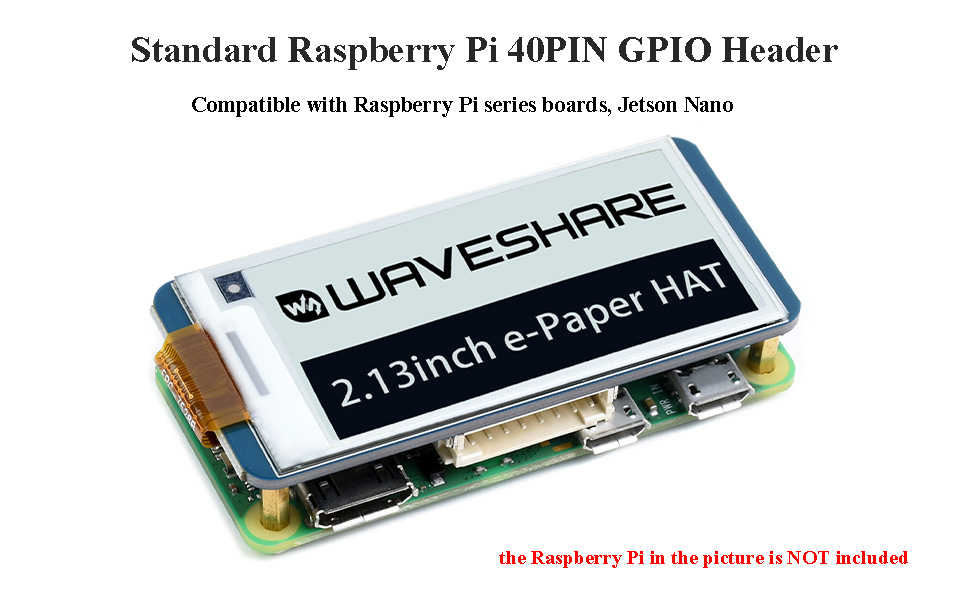

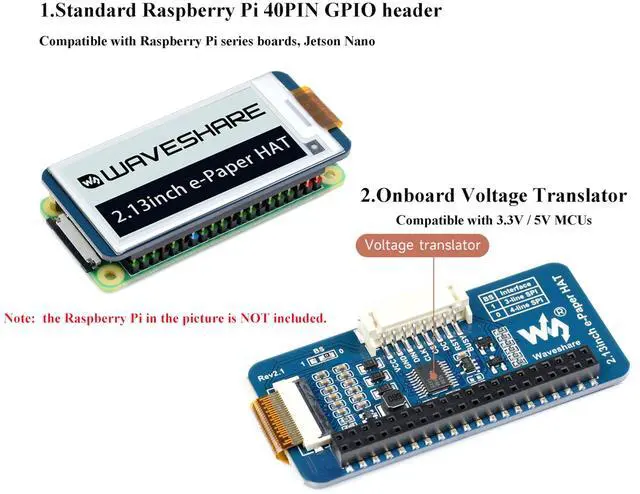

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

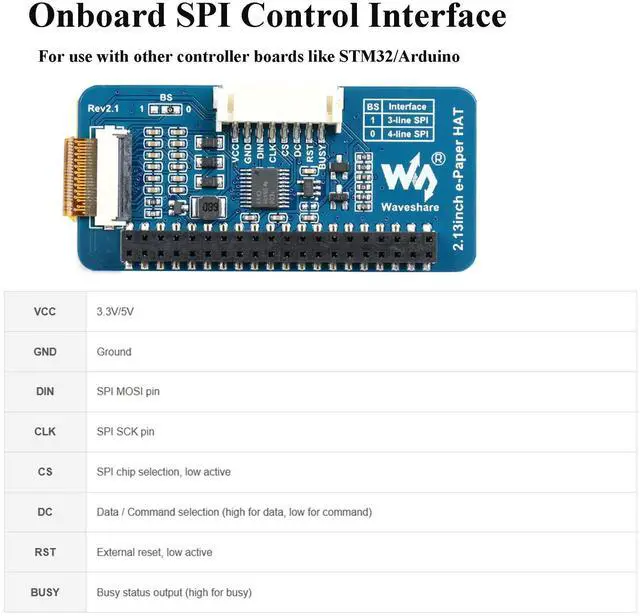

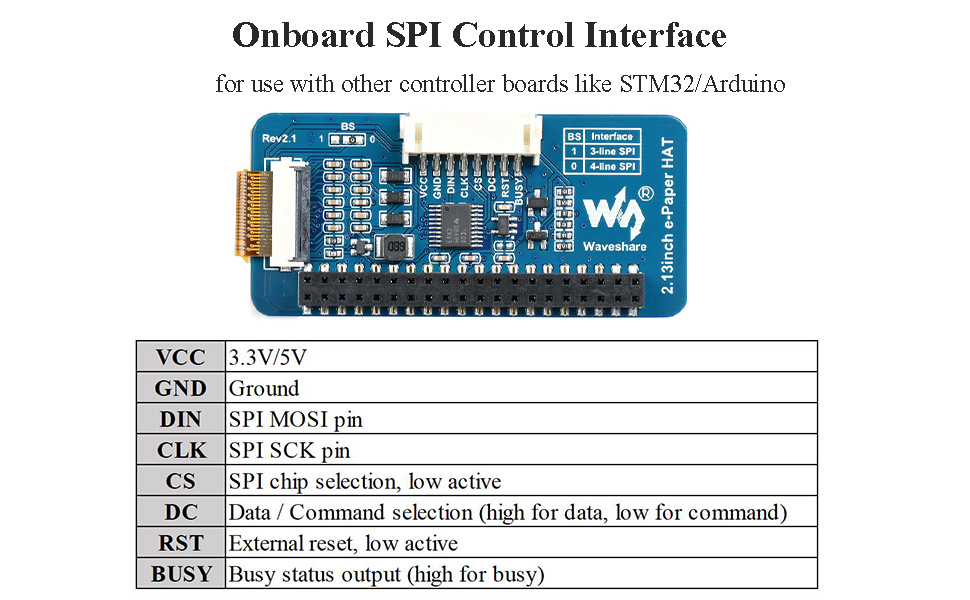

- SPI interface, for connecting with controller boards like Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications

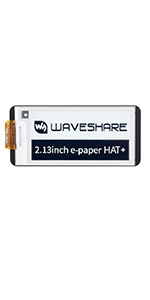

 2.13inch e-Paper HAT |  2.13inch e-Paper HAT (B) |  2.13inch e-Paper HAT+ |  2.7inch e-Paper HAT |  7.5inch e-Paper HAT | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Size | 2.13inch | 2.13inch | 2.13inch | 2.7inch | 7.5inch |
| Resolution | 250×122 | 250×122 | 250×122 | 264×176 | 800×480 |
| Display Color | black, white | red, black, white | black, white | black, white | black, white |
| Partial Refresh | ? | no data | ? | ? | ? |
| Grey Scale | 2 | 2 | 2 | 4 | 2 |
| Full Refresh Time (s) | 2 | 15 | 2 | 6 | 5 |
| Display Size (mm) | 48.55 × 23.70 | 48.55 × 23.70 | 48.55 × 23.70 | 57.29 × 38.19 | 158.18 × 118.64 |
| Outline Dimension (mm) | 65.0 × 30.2 | 65.0 × 30.2 | 65.0 × 30.5 | 85.0 × 56.0 | 170.2 × 111.2 |
| Interface | SPI | SPI | SPI | SPI | SPI |
250x122, 2.13inch E-Ink display HAT for Raspberry Pi, SPI interface
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- SPI interface, for connecting with controller boards like Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

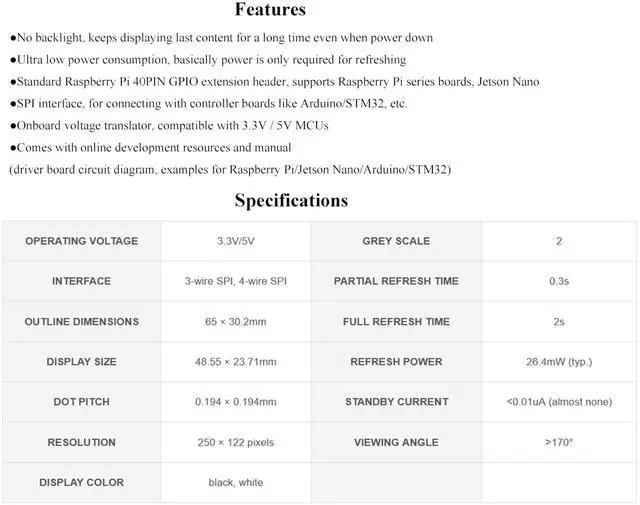

Specifications
| Operating Voltage | 3.3V/5V |
| Interface | 3-wire SPI, 4-wire SPI |
| Resolution | 250 × 122 pixels |
| Display Color | black, white |
| Grey Scale | 2 |
| Partial Refresh Time | 0.3s |
| Full Refresh Time | 2s |
| Refresh Power | 26.4mW (typ.) |
| Standby Current | <0.01uA (almost none) |
| Viewing Angle | >170° |

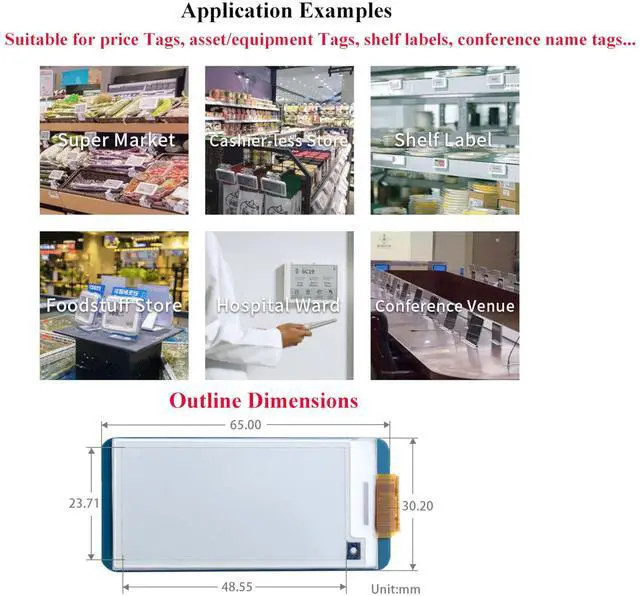

| Outline Dimensions | 65 × 30.2mm |
| Display Size | 48.55 × 23.71mm |
| Dot Pitch | 0.194 × 0.194mm |

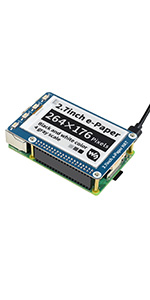

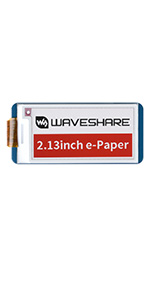

2.13inch e-Paper HAT | 2.13inch e-Paper HAT (B) | 2.13inch e-Paper HAT+ | 2.7inch e-Paper HAT | 7.5inch e-Paper HAT | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Size | 2.13inch | 2.13inch | 2.13inch | 2.7inch | 7.5inch |
| Resolution | 250×122 | 250×122 | 250×122 | 264×176 | 800×480 |
| Display Color | black, white | red, black, white | black, white | black, white | black, white |
| Partial Refresh | ? | no data | ? | ? | ? |
| Grey Scale | 2 | 2 | 2 | 4 | 2 |
| Full Refresh Time (s) | 2 | 15 | 2 | 6 | 5 |
| Display Size (mm) | 48.55 × 23.70 | 48.55 × 23.70 | 48.55 × 23.70 | 57.29 × 38.19 | 158.18 × 118.64 |
| Outline Dimension (mm) | 65.0 × 30.2 | 65.0 × 30.2 | 65.0 × 30.5 | 85.0 × 56.0 | 170.2 × 111.2 |
| Interface | SPI | SPI | SPI | SPI | SPI |
