waveshare RP2040-Plus Board with Pre-Soldered Header, Pico-Like MCU Board Based on Raspberry Pi RP2040, Dual-Core Arm Cortex M0+ Processor Onboard 4MB Flash,USB-C Connector,Recharge Header,etc

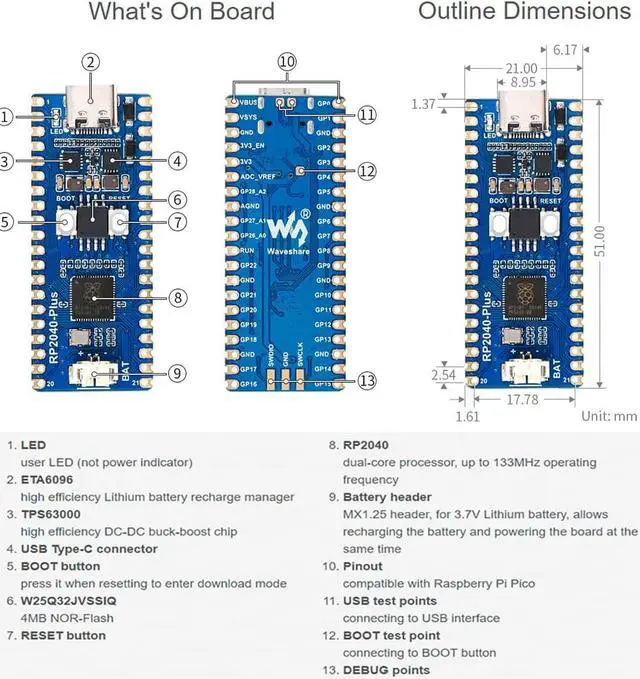

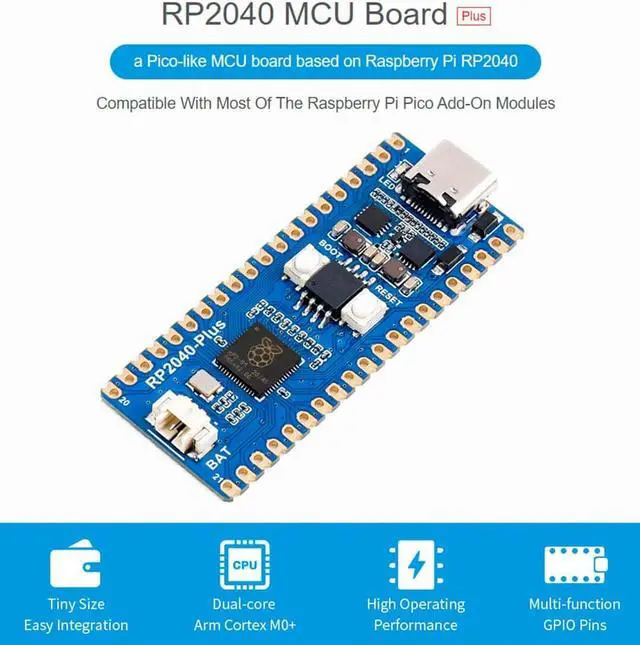

RP2040-Plus with Pre-Soldered Header, a Pico-like MCU Board Based on Raspberry Pi Microcontroller RP2040. 1) As same as Raspberry Pi Pico, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins. 2) The most different features of RP2040-Plus are that it onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip. 3) RP2040-Plus Board with Pre-Soldered Pinheader

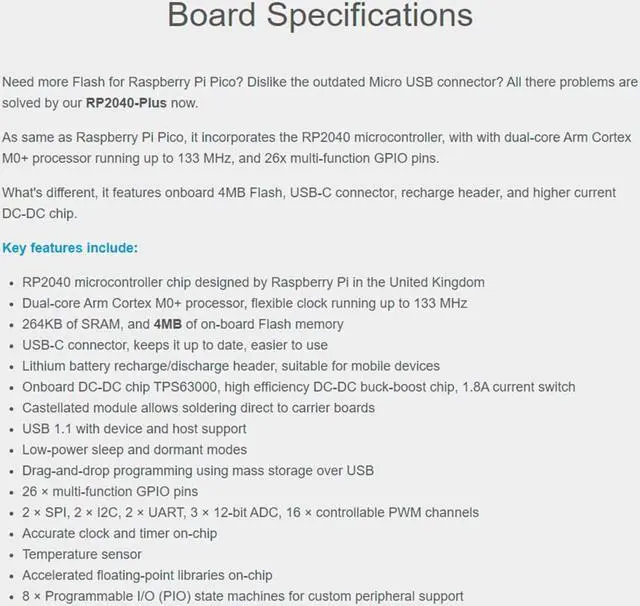

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz. 264KB of SRAM, and 4MB of on-board Flash memory. USB-C connector, keeps it up to date, easier to use

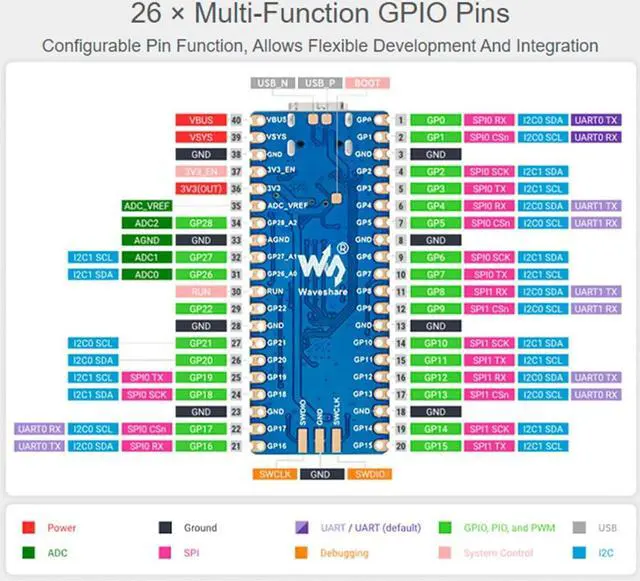

Lithium battery recharge/discharge header, suitable for mobile devices. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch. 26 × multi-function GPIO pins,configurable pin function, allows flexible development and integration.2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels.
Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB.
Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support. User Manual/Resource:waveshare.com/wiki/RP2040-Plus
