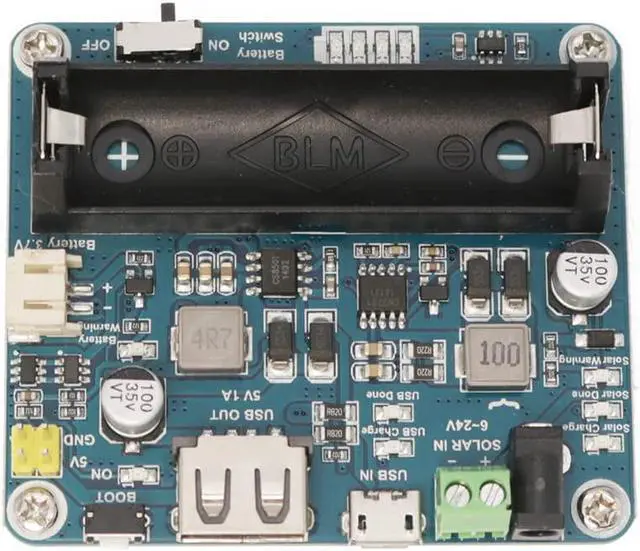

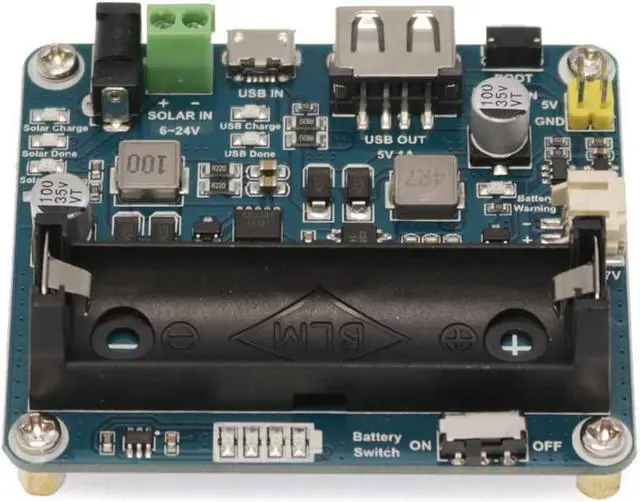

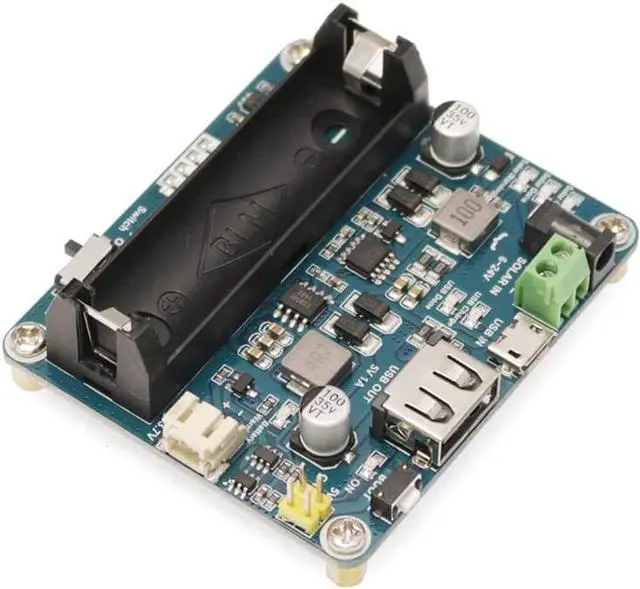

Waveshare Solar Power Management Module for 6V~24V Solar Panel Support Solar Panel/USB Connection Battery Charging with MPPT Function and Multi Protection Circuits
- Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel,Multi protection circuits: over charge / over discharge / reverse protection / over heat / over current, stable and safe to use
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel,Multi protection circuits: over charge / over discharge / reverse protection / over heat / over current, stable and safe to use
Supports solar panel / USB connection battery charging

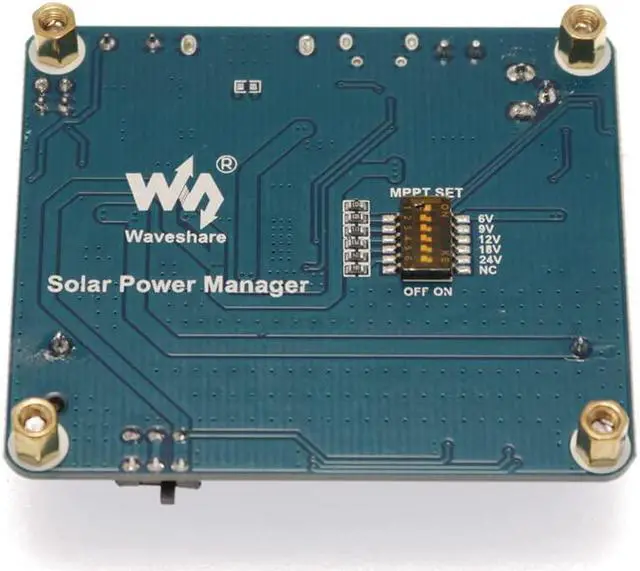

For 6V~24V solar panel, DC-002 jack input or screw terminal input,Onboard MPPT SET switch, select the level closed to input level to improve charging efficiency
Two 5V output interfaces: pinheaders and USB port,Onboard high capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
14500 battery holder and PH2.0 battery connector, for connecting multi kinds of 3.7V Li battery,Several LED indicators, for monitoring the status of solar panel and battery
Supports solar panel / USB connection battery charging
For 6V~24V solar panel, DC-002 jack input or screw terminal input,Onboard MPPT SET switch, select the level closed to input level to improve charging efficiency
Two 5V output interfaces: pinheaders and USB port,Onboard high capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
14500 battery holder and PH2.0 battery connector, for connecting multi kinds of 3.7V Li battery,Several LED indicators, for monitoring the status of solar panel and battery
