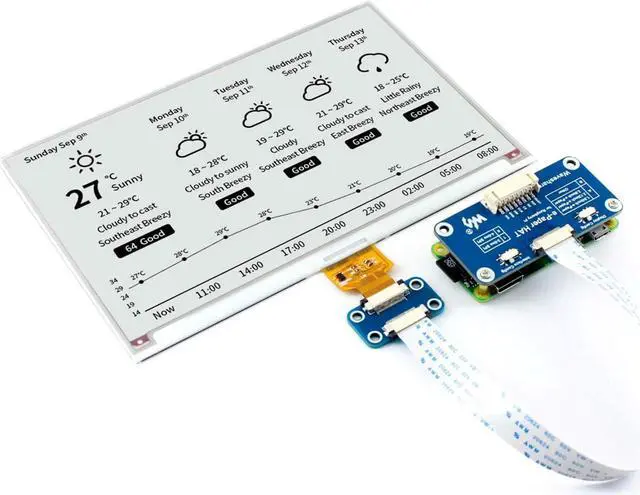

waveshare 7.5inch E-Ink Display HAT,800x480 Pixel Black,White Two-Color SPI Interface E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH and Jetson Nano no/Ard/Nucleo

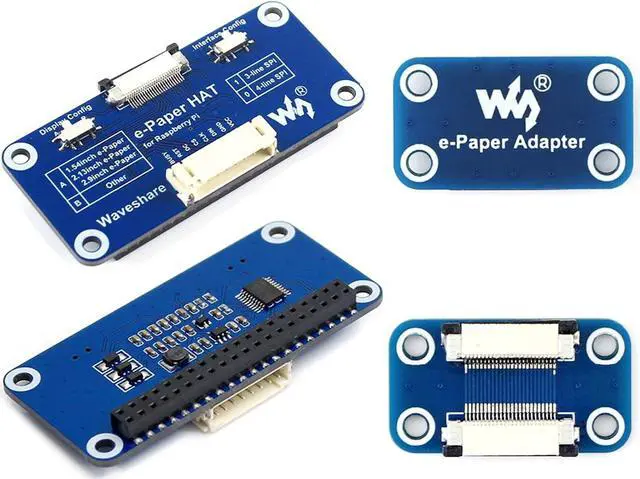

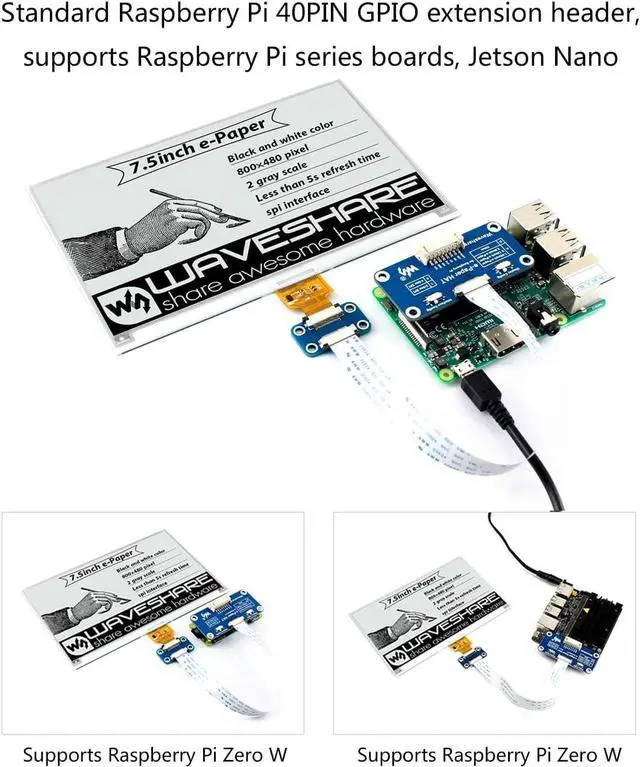

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, and Jetson Nano
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, and Jetson Nano
No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.

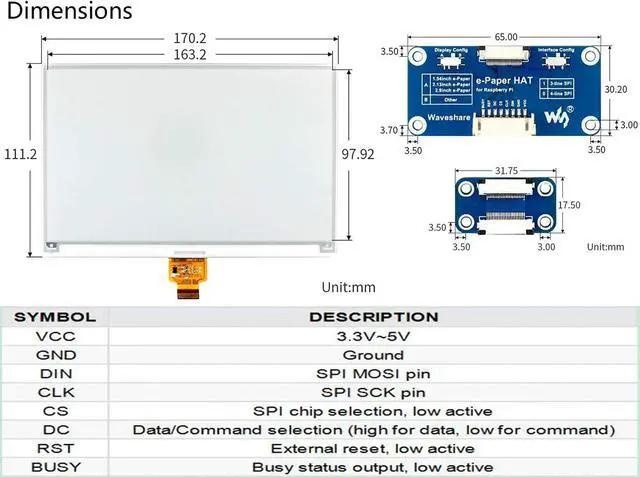

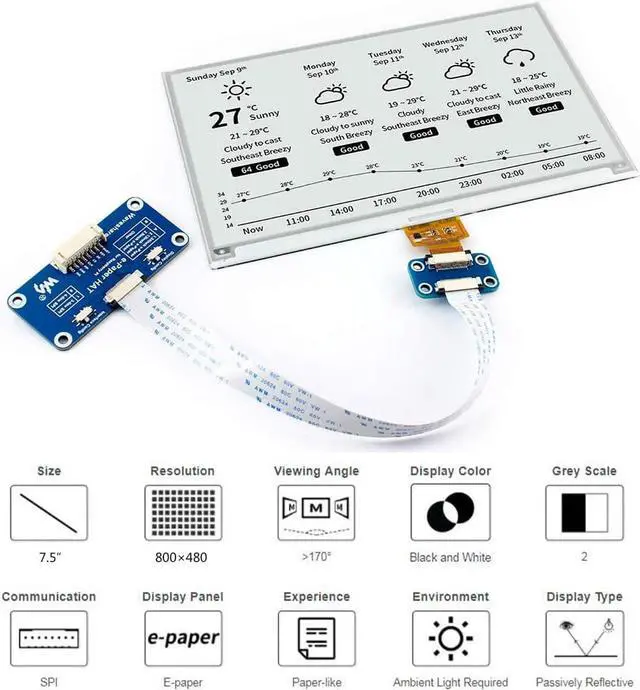

Operating voltage: 3.3V~5V Interface: SPI Outline dimension: 170.2mm × 111.2mm Display size: 163.2mm × 97.92mm Dot pitch: 0.205 × 0.204 Resolution: 800×480 Display color: black, white
Grey scale: 2 Full refresh time: 5s Refresh power: 38mW(typ.) Standby power: <0.017mW Viewing angle: >170°
No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Operating voltage: 3.3V~5V Interface: SPI Outline dimension: 170.2mm × 111.2mm Display size: 163.2mm × 97.92mm Dot pitch: 0.205 × 0.204 Resolution: 800×480 Display color: black, white
Grey scale: 2 Full refresh time: 5s Refresh power: 38mW(typ.) Standby power: <0.017mW Viewing angle: >170°
