2.13inch E-Ink Display HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/WH and Jetson Nano, 212x104 Pixel White Black Red Three-Color SPI Interface No Backlight
- This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

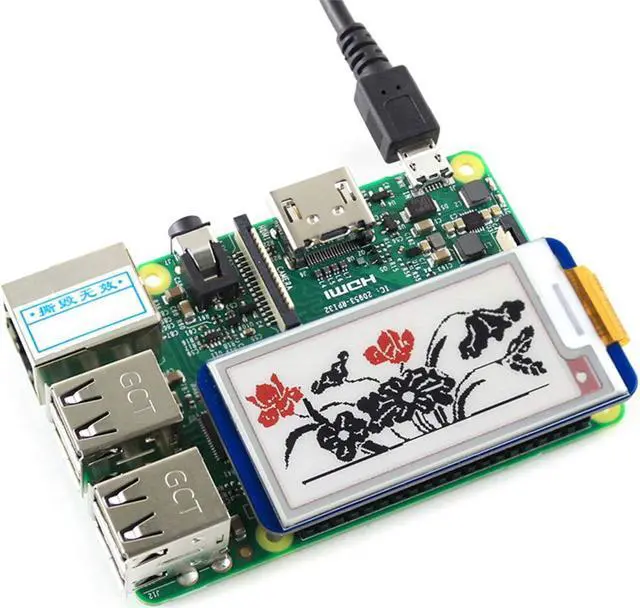

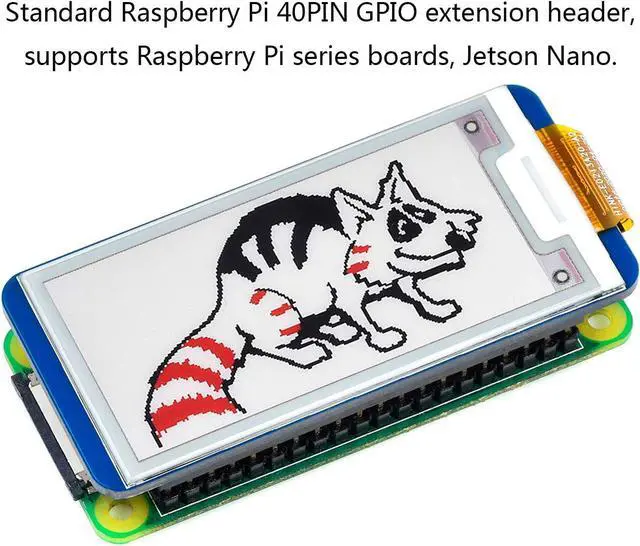

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.

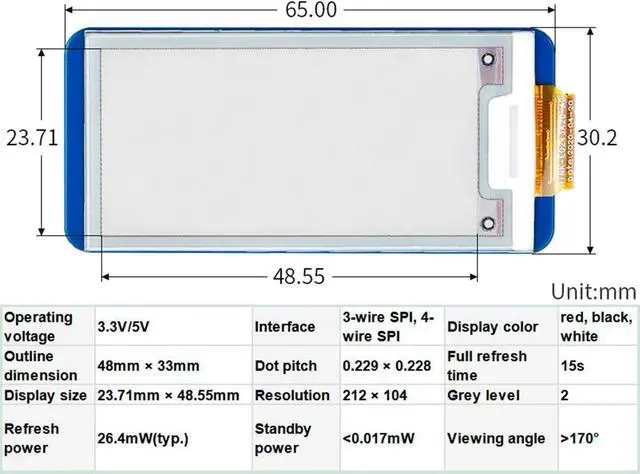

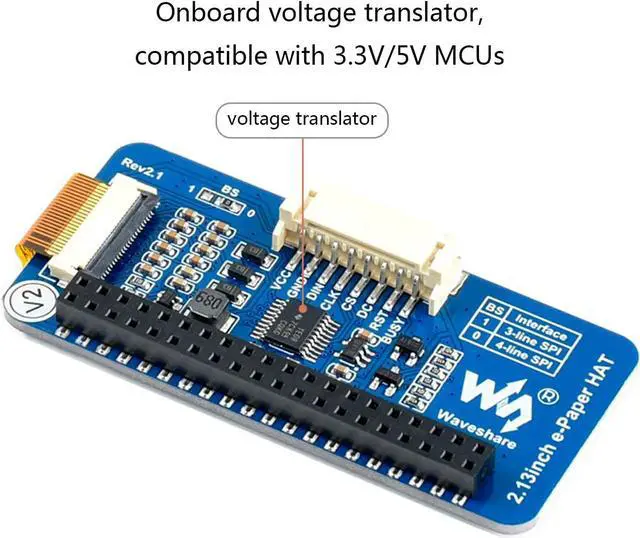

Operating voltage: 3.3V/5V. Interface: 3-wire SPI, 4-wire SPI. Outline dimension: 65mm × 30.2mm. Display size: 23.71mm × 48.55mm. Dot pitch: 0.229 × 0.228. Resolution: 212 × 104.
Display color: red, black, white. Grey level: 2. Full refresh time: 15s. Refresh power: 26.4mW(typ.). Standby power: <0.017mW. Viewing angle: >170°.
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.
Operating voltage: 3.3V/5V. Interface: 3-wire SPI, 4-wire SPI. Outline dimension: 65mm × 30.2mm. Display size: 23.71mm × 48.55mm. Dot pitch: 0.229 × 0.228. Resolution: 212 × 104.
Display color: red, black, white. Grey level: 2. Full refresh time: 15s. Refresh power: 26.4mW(typ.). Standby power: <0.017mW. Viewing angle: >170°.
