Stepper Motor HAT Dual Onboard 2-CH HR8825 Motor Driver Chip,Drive two Stepper Motors Up To 1/32 Microstepping,Apply to 3D Printer, Sculpturing machine, Mechanical Arm,for Raspberry Pi/ Jetson Nano

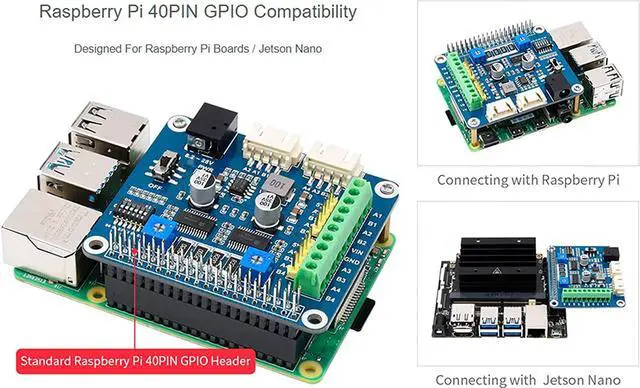

Stepper Motor HAT (B),Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

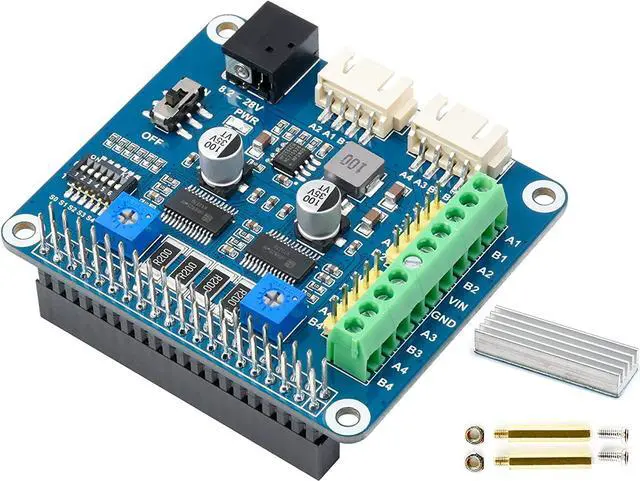

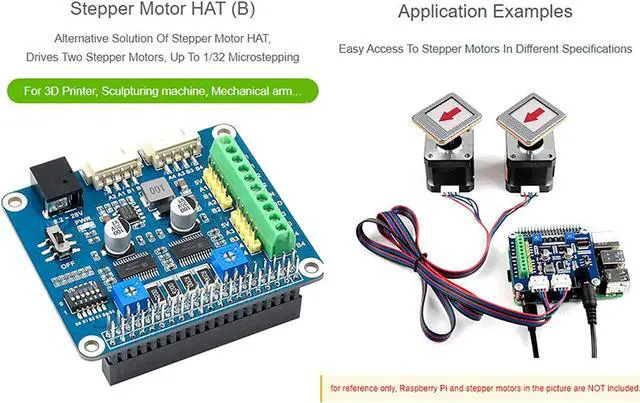

Stepper Motor HAT (B),Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.

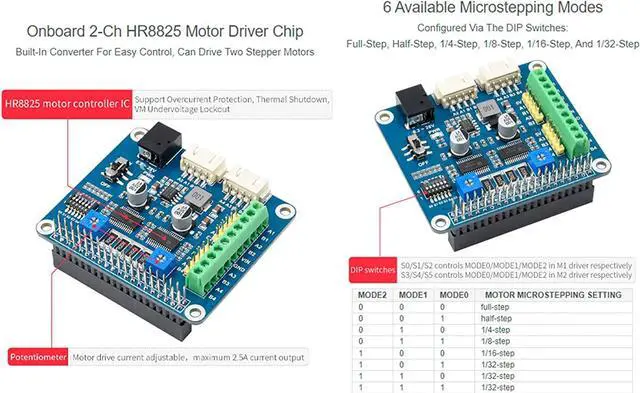

6 available microstepping modes. Configured via the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step

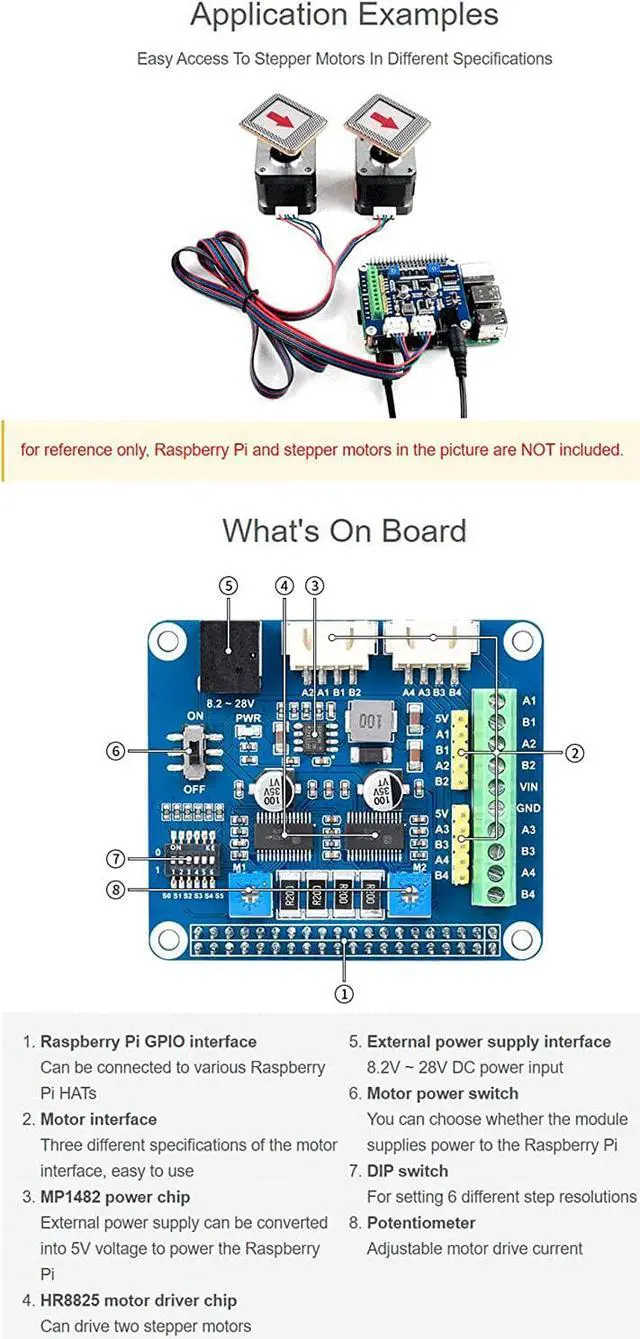

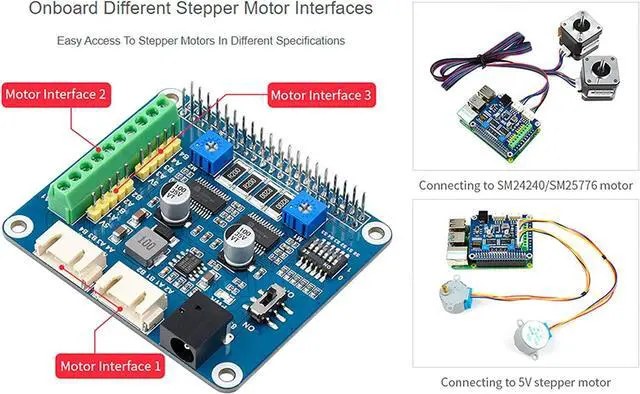

Adjustable motor drive current via potentiometer, maximum 2.5A current output. Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard Different Stepper Motor Interfaces:Easy access to stepper motors in different specifications

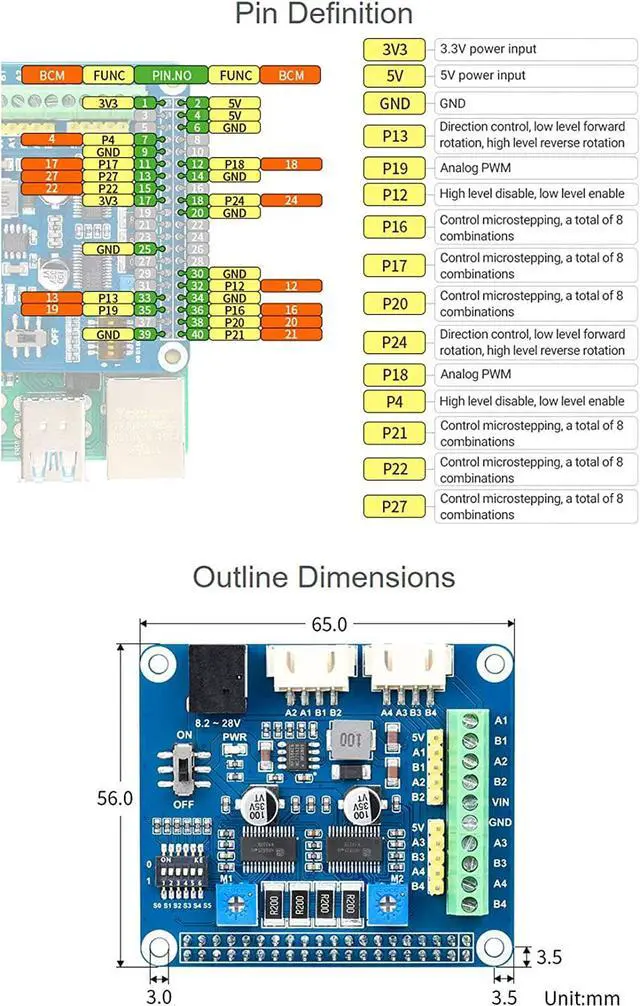

Motor controller: HR8825. Motor drive voltage: 8.2V~28V. Motor drive current: 2.5A. Logic voltage:3.3V. Dimension: 65mm x 56mm. Mounting hole size: 3.0mm.
Comes with development resources and manual (examples in BCM2835, wiringPi, and python): waveshare.com/wiki/Stepper_Motor_HAT_(B)
