ESP32-C6 1.47inch Capacitive Touch Display Dev Board with Pin Header,IPS | 172×320 Pixels, 262K Color LCD,Supports Wi-Fi 6 and Bluetooth 5 (LE),for Human-machine Interface and LVGL GUI Development

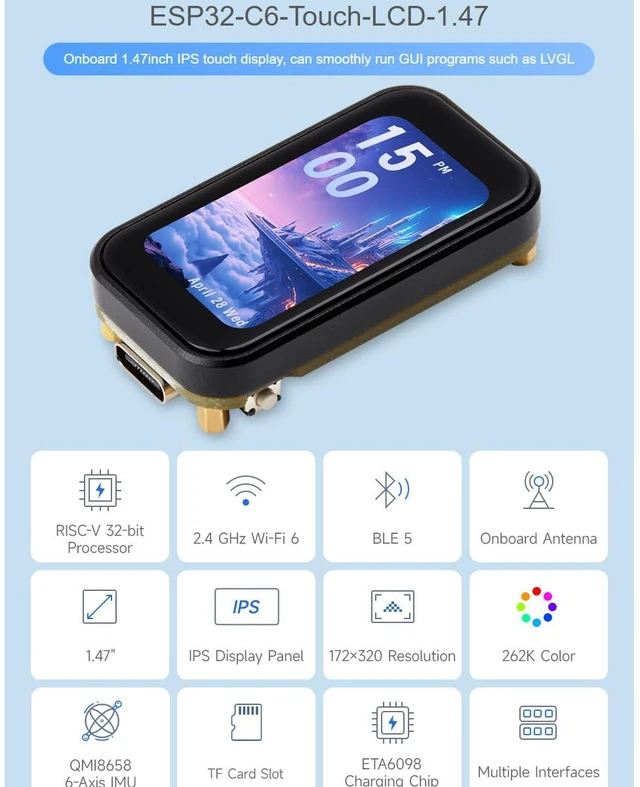

- Capacitive Touch Display: Onboard 1.47inch IPS touch display with 172×320 resolution and 262K color depth, can smoothly run GUI programs such as LVGL
- Dual RISC-V Processor Architecture: Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, with main frequency up to 160 MHz, providing powerful computing capability and reliable security features
- Advanced Wireless Connectivity: Integrates 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40 MHz bandwidth support, Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

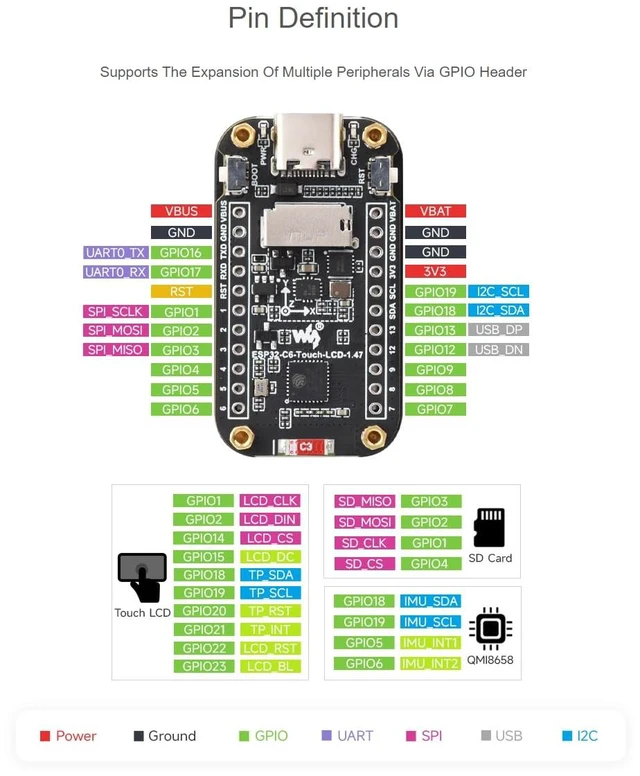

- Expandable GPIO Interface: Supports the expansion of multiple peripherals via GPIO header for flexible hardware integration and customization
- AXS5106L Touch Driver: Features AXS5106L touch driver chip for responsive and accurate capacitive touch control on the display
- Generous Memory Configuration: Built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, integrates 8MB Flash for ample program and data storage
- Multiple Development Options: Compatible with Arduino IDE and ESP-IDF development frameworks, providing flexible development tools for various project requirements and programming preferences
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
ESP32-C6 1.47inch Touch Display Development Board with pre-soldered Header, 172×320 Resolution, 262K Display Color, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor
Features
ESP32-C6-Touch-LCD-1.47 uses ESP32-C6FH8 chip with 2.4GHz WiFi 6 and Bluetooth BLE 5 support, integrates 8MB Flash, Onboard 1.47inch IPS display
can smoothly run GUI programs such as LVGL. It is suitable for the quick development of the HMI and other ESP32-C6 applications.
Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz

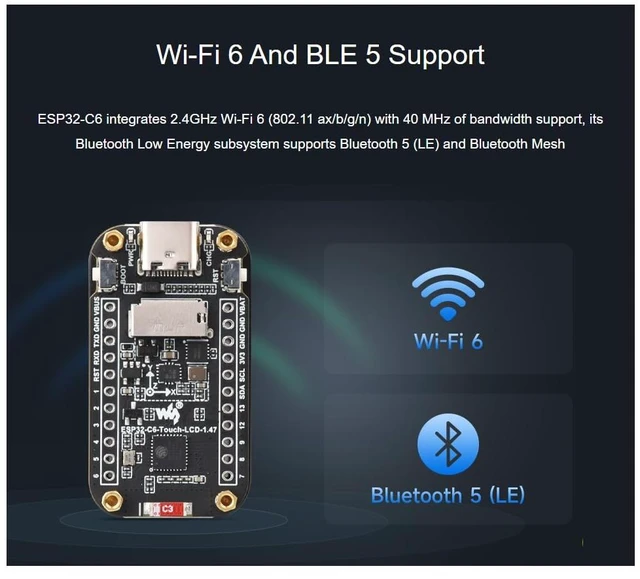

Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, integrates 8MB Flash

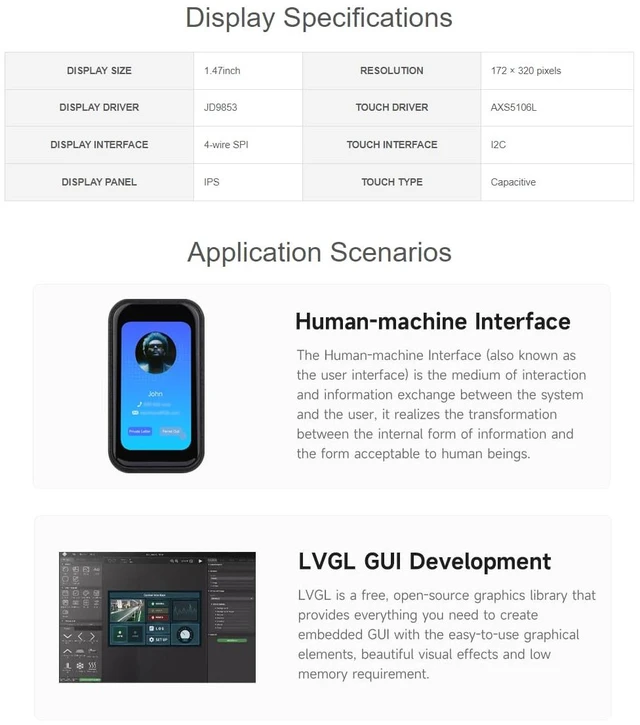

Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
Adapting multiple IO interfaces, supports full-speed USB standard
Onboard TF card slot for external TF card storage of pictures or files
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Usage Instructions
ESP32-C6-Touch-LCD-1.47-M currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you
can choose the right development tool according to your project needs and personal habits.
Package Content
ESP32-C6-Touch-LCD-1.47 with pre-soldered header × 1 Note
Development Resources is provided , please contact us if you have any problem .
