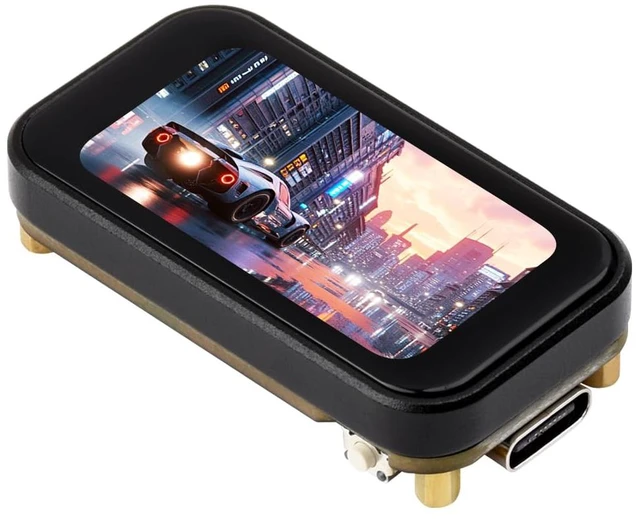

ESP32-C6 1.47inch Capacitive Touch Display Development Board, IPS Screen | 172×320 Pixels,262K Color LCD,Supports Wi-Fi 6 and Bluetooth 5 (LE), for Human-machine Interface and LVGL GUI Development

ESP32-C6 1.47inch Touch Display Development Board, 172×320 Resolution, 262K Display Color, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor

Features

ESP32-C6-Touch-LCD-1.47 uses ESP32-C6FH8 chip with 2.4GHz WiFi 6 and Bluetooth BLE 5 support, integrates 8MB Flash, Onboard 1.47inch IPS display

can smoothly run GUI programs such as LVGL. It is suitable for the quick development of the HMI and other ESP32-C6 applications.

Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz

Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE), with onboard antenna

Built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, integrates 8MB Flash

Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color

Adapting multiple IO interfaces, supports full-speed USB standard

Onboard TF card slot for external TF card storage of pictures or files

Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Usage Instructions

ESP32-C6-Touch-LCD-1.47 currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you

can choose the right development tool according to your project needs and personal habits.

Package Content

ESP32-C6-Touch-LCD-1.47 × 1

Black header × 2

Note

Development Resources is provided , please contact us if you have any problem .
