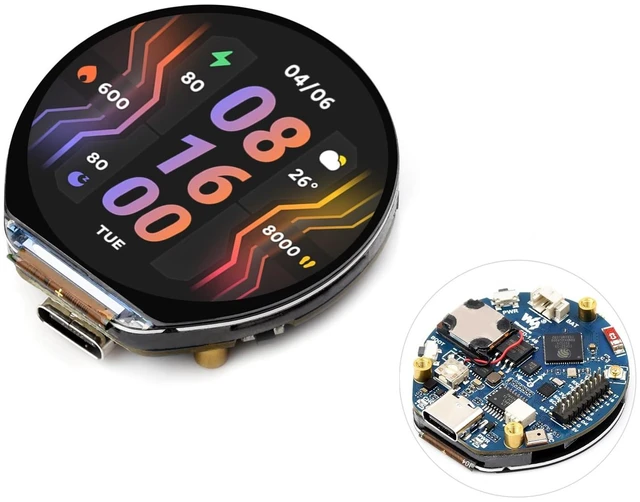

ESP32-S3 1.46inch Round Display Development Board, 412×412 IPS Touch Screen | 16.7M Color,Onboard Speaker And Microphone,Integrates QSPI Interface Display,Supports WiFi and Bluetooth
- ESP32-S3 1.46 LCD Development Board: Integrates QSPI Interface Display with multiple peripheral interfaces.

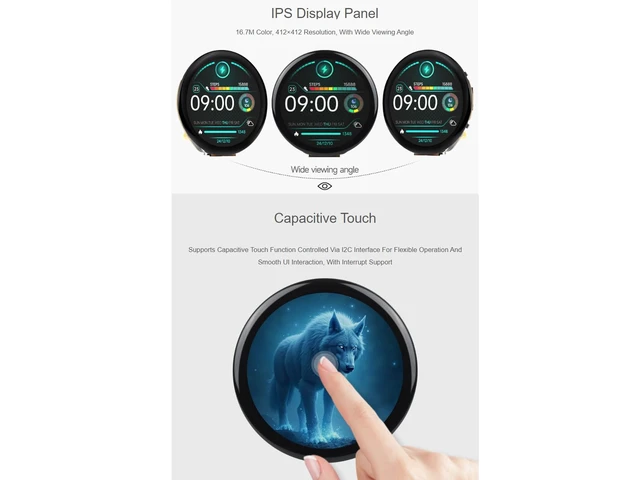

- IPS Display Panel: Features 16.7M color depth with 412×412 resolution and wide viewing angle for clear visual output
- Capacitive Touch Function: Supports capacitive touch controlled via I2C interface for flexible operation and smooth UI interaction with interrupt support
- Onboard Audio Input And Output: Supports high-quality audio processing, providing clear audio input and output, equipped with an offline voice model, enabling device control via setting shortcut commands

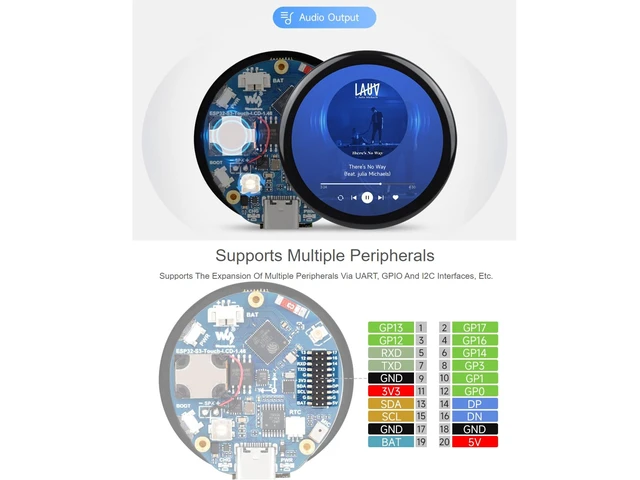

- Multiple Peripheral Support: Supports the expansion of multiple peripherals via UART, GPIO and I2C interfaces for connectivity options
- Dual-Core Processor: Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor operating up to 240MHz main frequency
- Wireless Connectivity: Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with onboard antenna for wireless communication capabilities
- Onboard Sensors: Features QMI8658 6-axis IMU with 3-axis accelerometer and 3-axis gyroscope for detecting motion gestures and counting steps
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
ESP32-S3 1.46inch Round Display Development Board, 412×412, Supports WiFi & Bluetooth, Accelerometer And Gyroscope Sensor, Onboard Speaker And Microphone, ESP32 With Display
Features

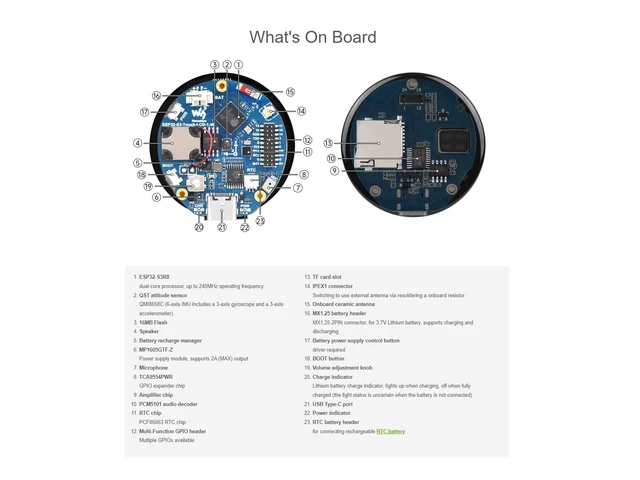

ESP32-S3-Touch-LCD-1.46 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and
PSRAM. Onboard 1.46inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, it is suitable for the
quick development of the HMI and other ESP32-S3 applications.
Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard Type-C port, more convenient, better device compatibility
Onboard 1.46inch LCD display, 412×412 resolution, 16.7M color
Supports touch function controlled via I2C interface, with interrupt support
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved RTC battery header (supports charging) for RTC function requirement
Onboard programmable PWM and BOOT buttons for easy custom function development
Onboard 3.7V MX1.25 lithium battery recharge/discharge header
Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Adapting multiple GPIO pins which can be mapped to various function interfaces, making it convenient for customers to customize and develop
Package Content
ESP32-S3-Touch-LCD-1.46 x1
