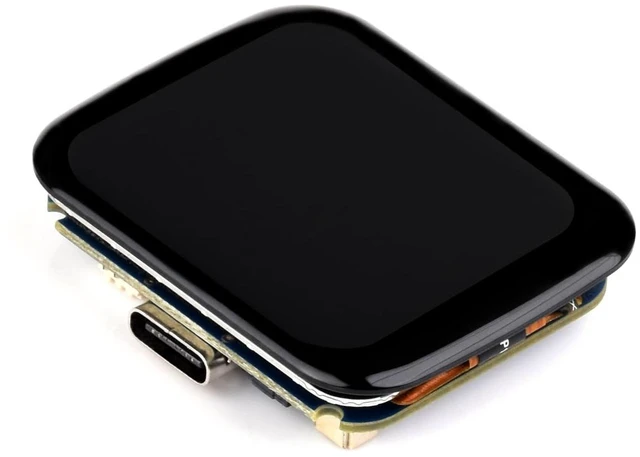

ESP32-S3 Development Board Onboard 1.69inch Touch LCD Display 240×280 | 262K Color Micro LCD Display With ESP32-S3,Accelerometer And Gyroscope Sensor
- High-Performance Microcontroller Development Board: ESP32-S3-Touch-LCD-1.69 features cost-effective design with powerful processing capabilities for embedded applications and IoT projects
- Compact Design with Integrated Display: Tiny size board includes onboard 1.69inch capacitive touch LCD screen with 240280 resolution and 262K colors for clear display of color pictures and graphics

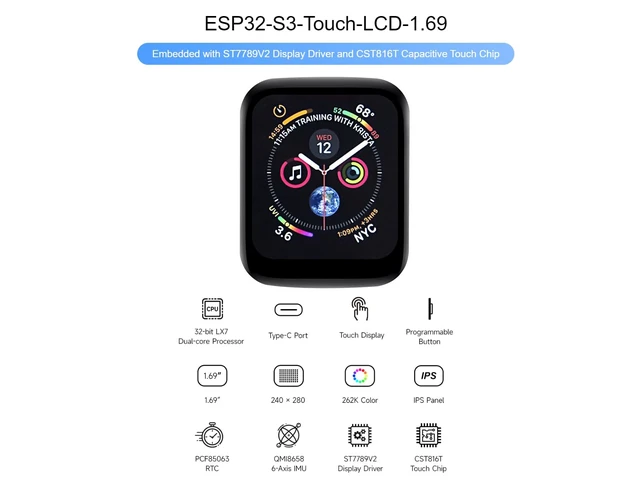

- Advanced Display and Touch Technology: Embedded with ST7789V2 Display Driver and CST816T Capacitive Touch Chip for responsive touch interface and efficient screen control
- Versatile Smart Device Development Platform: Suitable for various smart devices development projects and can realize human-computer interaction functions for interactive applications
- Comprehensive Onboard Features: Includes lithium battery recharge manager, 6-axis sensor with 3-axis accelerometer and 3-axis gyroscope, and RTC functionality for development and quick product integration
- Powerful ESP32-S3R8 Processor: Equipped with Xtensa 32-bit LX7 dual-core processor running up to 240MHz with 8MB PSRAM and 16MB Flash memory for demanding applications
- Wireless Connectivity Options: Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with onboard antenna for seamless wireless communication and connectivity
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features

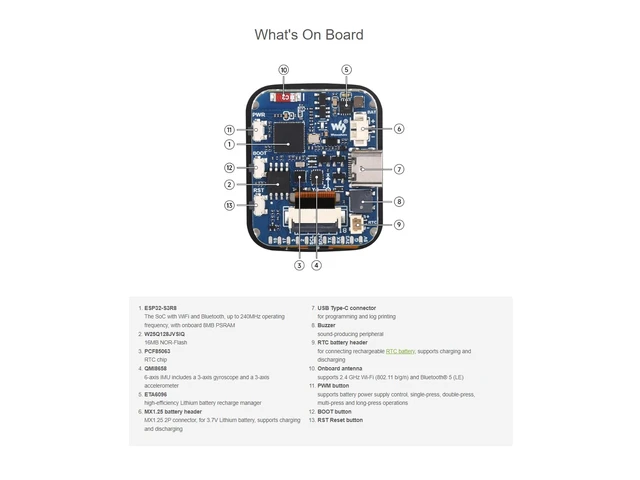

ESP32-S3-Touch-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.69inch LCD display, Lithium battery
recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and
integrate it into products quickly.
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures
Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources

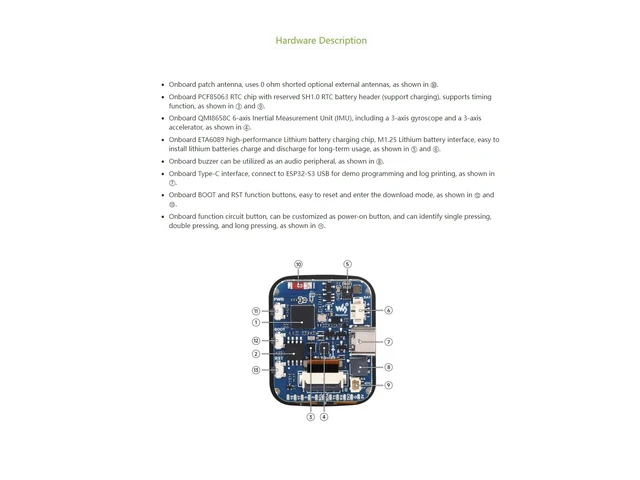

Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement

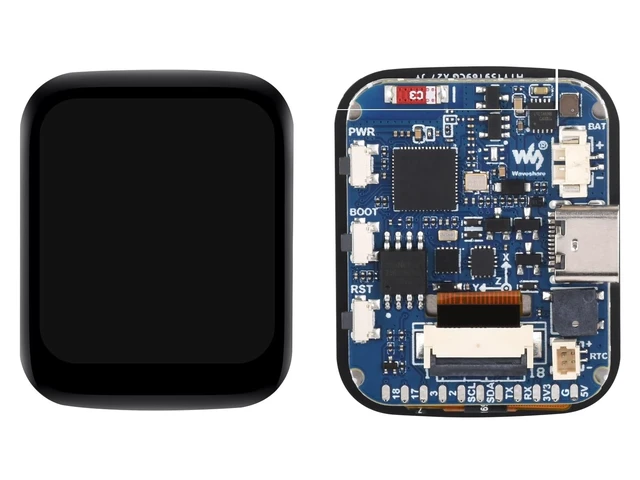

Onboard RST, BOOT and a programmable PWM button for easy custom function development
Onboard 3.7V MX1.25 lithium battery recharge/discharge header
Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
High touch screen transmittance, fast response and long lifetime
Package Content
ESP32-S3-Touch-LCD-1.69 x1
