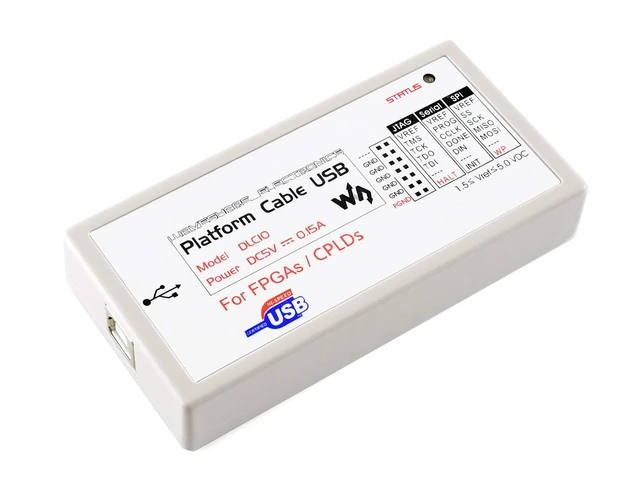

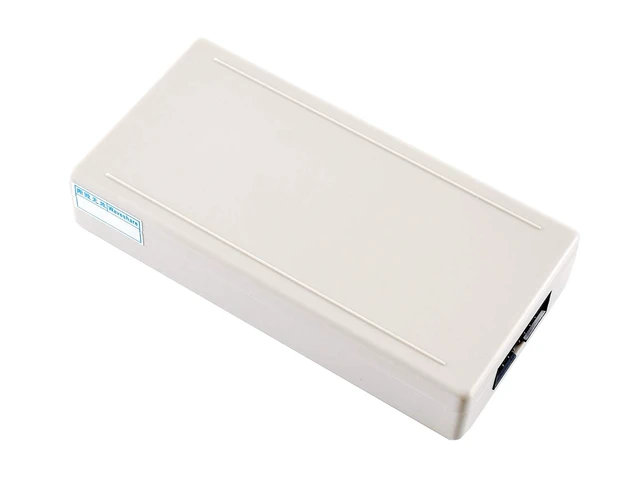

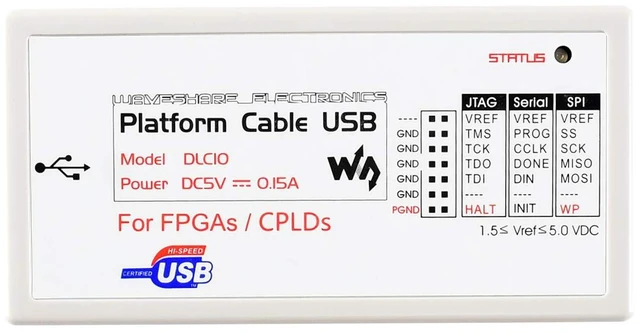

Waveshare XILINX JTAG Download Debugger Compatible XILINX Platform Cable USB FPGA CPLD in-Circuit Debugger Programmer
- Category:XILINX FPGA/CPLD configuration and programming Cable
- Software:Xilinx ISE, iMPACT, ChipScope
- Interfaces:JTAG, Slave-Serial and SPI
- Solution:CY7C68013A+XC2C256

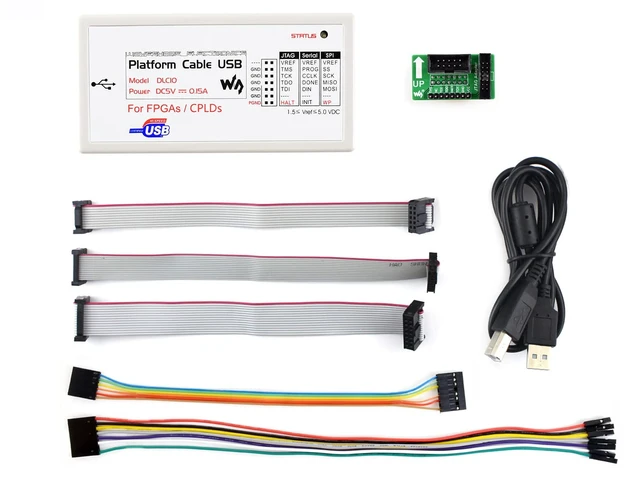

- User Guide CD?schematic,software, drivers and examples
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

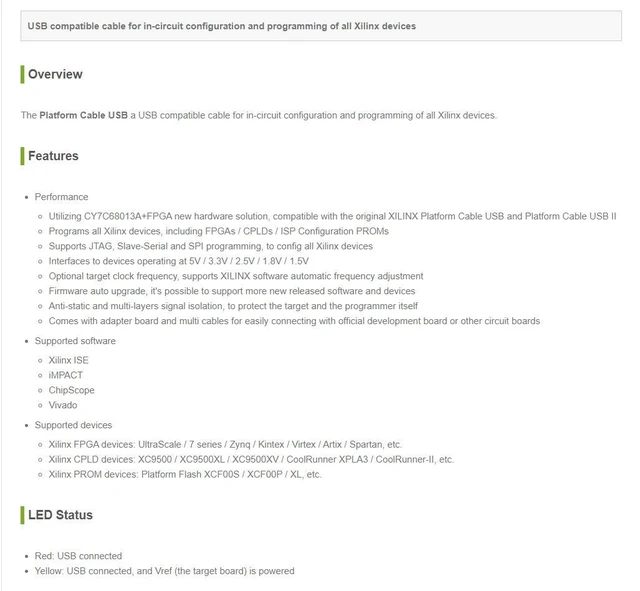

Key Features
Performance
Using CY7C68013A+XC2C256 solution, fully compatible with the original XILINX Platform Cable USB
Supports all Xilinx devices, FPGA configuration and PROM/CPLD programming
Supports JTAG, Slave-Serial and SPI
Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
Selectable target clock frequency, supports software automatic frequency adjustment
Supported Software
Xilinx ISE
iMPACT
ChipScope
Supported Devices
All Xilinx devices, FPGA configuration and PROM/CPLD programming
Connects to PC
Computer connection via USB interface

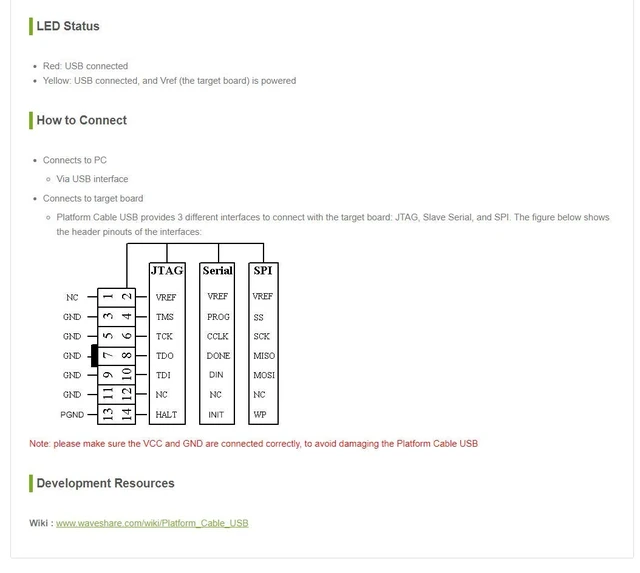

Connects to target board
Target board connection via JTAG, Slave Serial, SPI interfaces.
