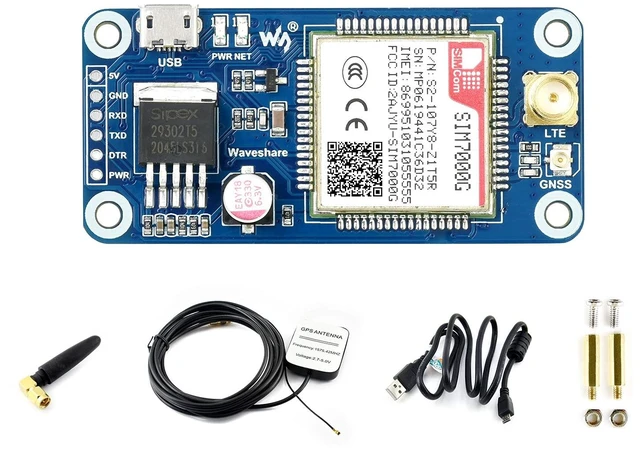

Waveshare SIM7000G NB-IoT/Cat-M/Edge/GPRS HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, GNSS Positioning, Global Band Support
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
- Supports GNSS positioning (GPS, BeiDou, GLONASS). Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Breakout UART control pins, to connect with host boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0 resistor. SIM card slot, compatible with both normal SIM card and NB-IoT specific card
- 2x LED indicators, easy to monitor the working status.Baudrate: 300bps~3686400bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product information
| Brand | waveshare |
| Model Name | SIM7000G |
| Connectivity Technology | GPIO, USB |
| Included Components | USB cable, quick start guide |
| Operating System | Linux |
| Processor Brand | Waveshare |
| Wireless Compability | 802.11b |
| Compatible Devices | Raspberry Pi models (5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH), Arduino, STM32 host boards |
| RAM Memory Technology | LPDDR4X |
| Processor Count | 1 |
| Total Usb Ports | 1 |
| Item Dimensions L x W x H | 2.56"L x 1.19"W x 1.19"H |
| Built-In Media | USB cable, quick start guide |
| Number of Items | 1 |
| UPC | 794304544741 |
| Manufacturer | Waveshare |
| Model Number | SIM7000G NB-IoT HAT (EN) |
| Mfr Part Number | SIM7000G NB-IoT HAT (EN) |
