WAVLINK 40Gbps USB4 NVMe PCIe SSD Enclosure ---- Unlock the Full Speed Potential of Your SSD!
Equipped with an advanced USB4 port and the included high-quality USB4 data cable, the WAVLINK upgraded SSD enclosure offers lightning-fast transfer speeds of up to 40Gbps, four times faster than USB 3.2. When combined with the right computer configuration and a compatible SSD, this enclosure can achieve read and write speeds of up to 3800MB/s. Say goodbye to long wait times when transferring large files like games, educational software, and personal data backups now you can complete these tasks in seconds. And the integrated IC chip (ASM2464PD) generates less heat while enhancing transmission speed and stability, ensuring optimal working performance.

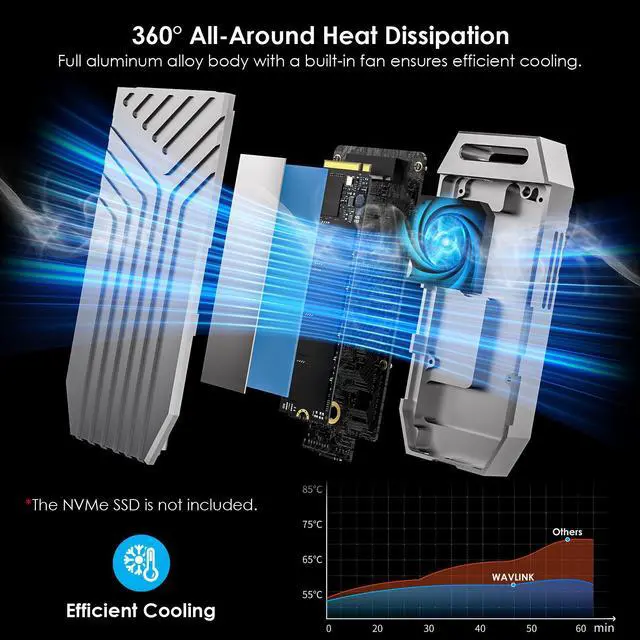

Efficient Heat Dissipation

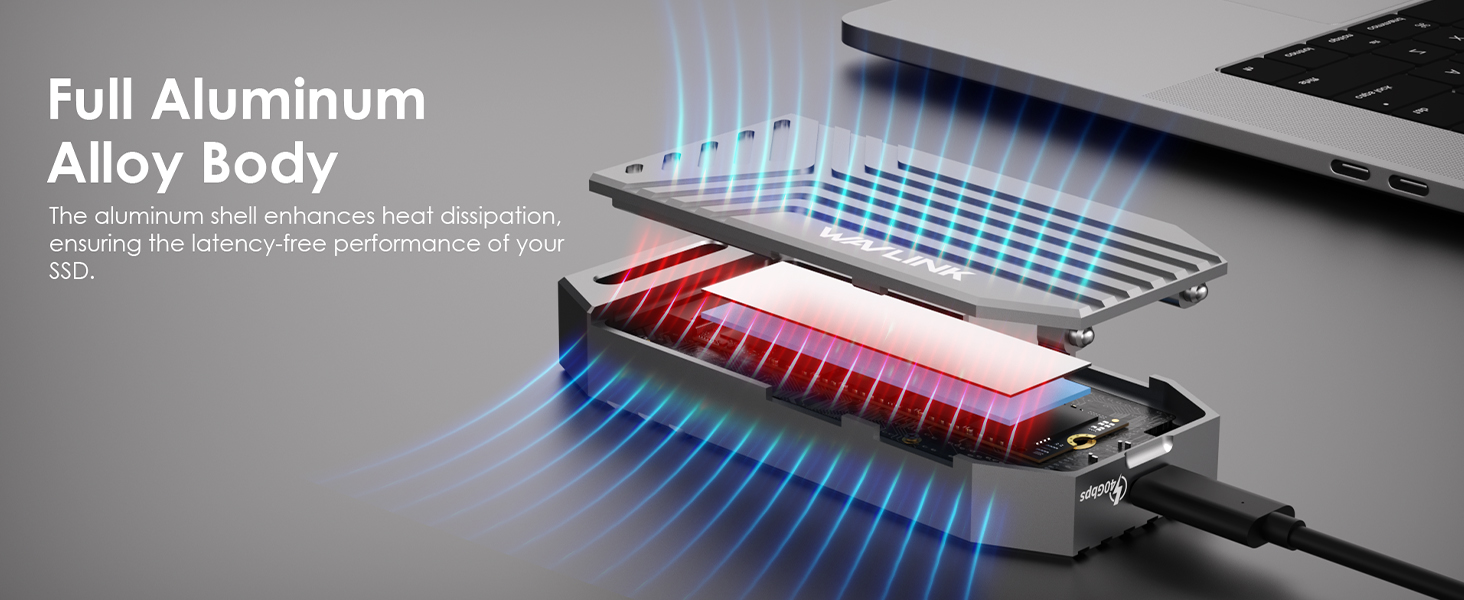

The RapidFire U41F ensures efficient heat dissipation to prevent transmission interruptions and SSD damage. It features a full aluminum alloy body, a built-in cooling fan, dual thermal pads, and a dual-sided perforated design for 360° all-around cooling, maintaining optimal performance and longevity.

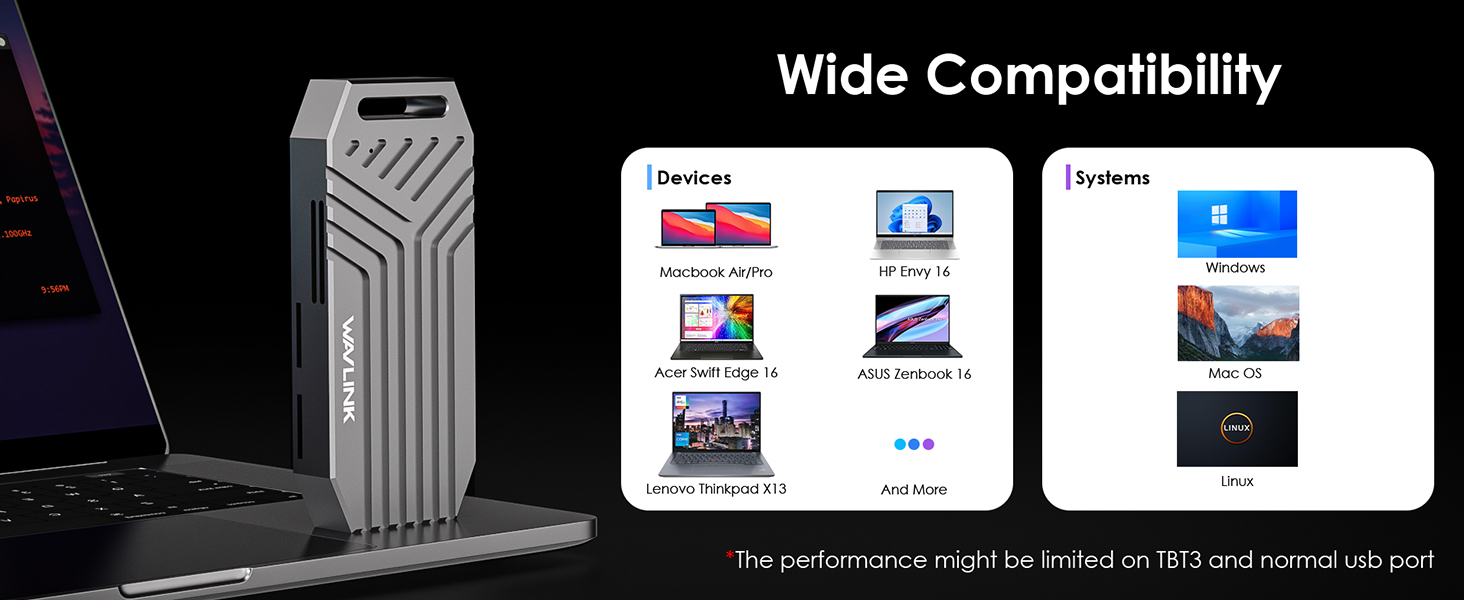

Widely Compatible
Designed to work with laptops running Windows, Mac OS and Linux.
Please note: The performance might be limited on Thunderbolt 3 and normal USB-C port. To get the advertised performance, the host should support Thunderbolt 4 or USB 4 and it should support the data transfer speed of 40Gbps.

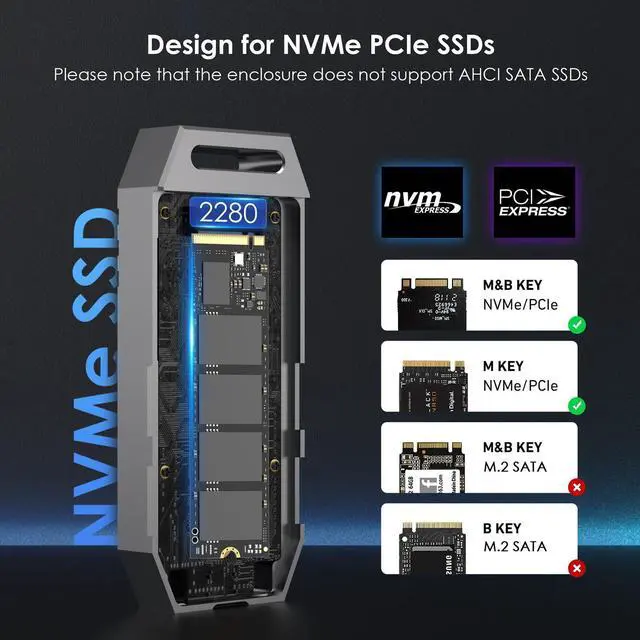

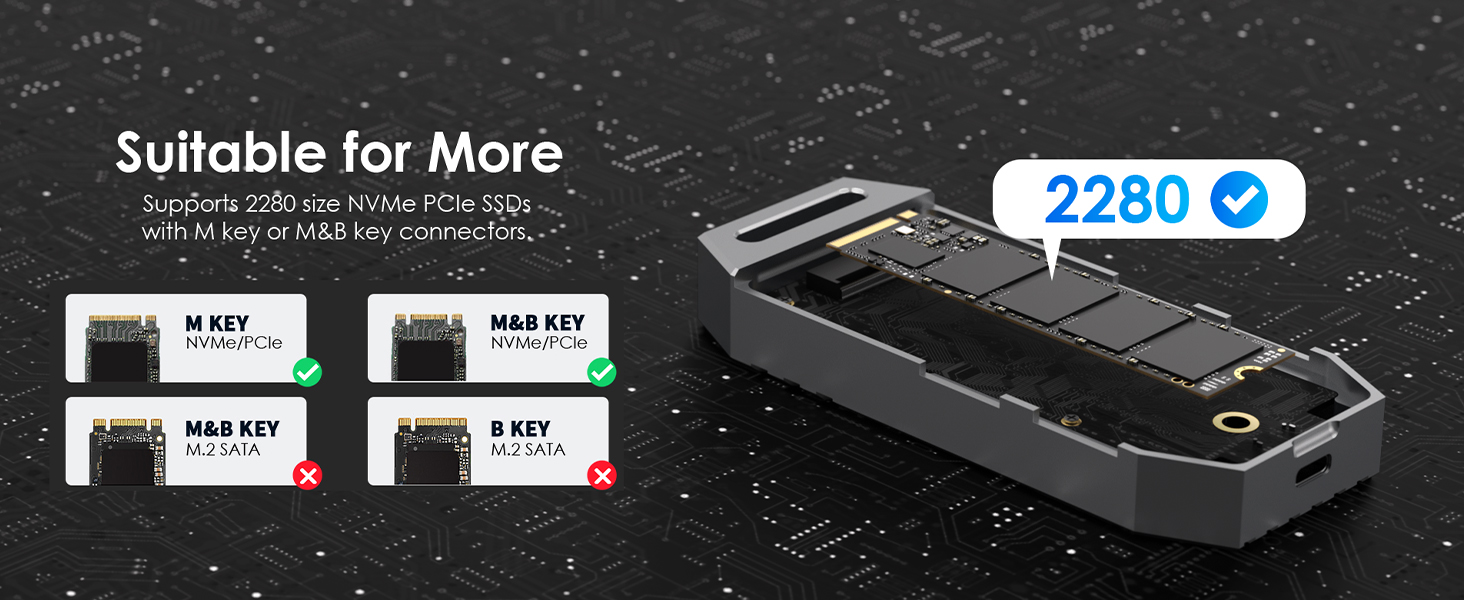

Suitable for Most SSDs
The enclosure supports both one-side SSDs and double-side SSDs in 2280 size. The SSD should have an M-key or M&B-key connector and support PCIe and NVMe protocols. Please note that this enclosure does not support AHCI/ SATA SSDs or SSDs with a B-key connector.

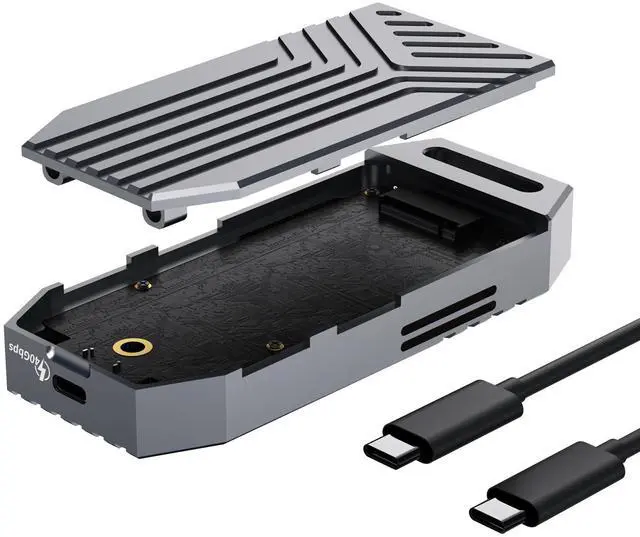

How to Install the SSD?

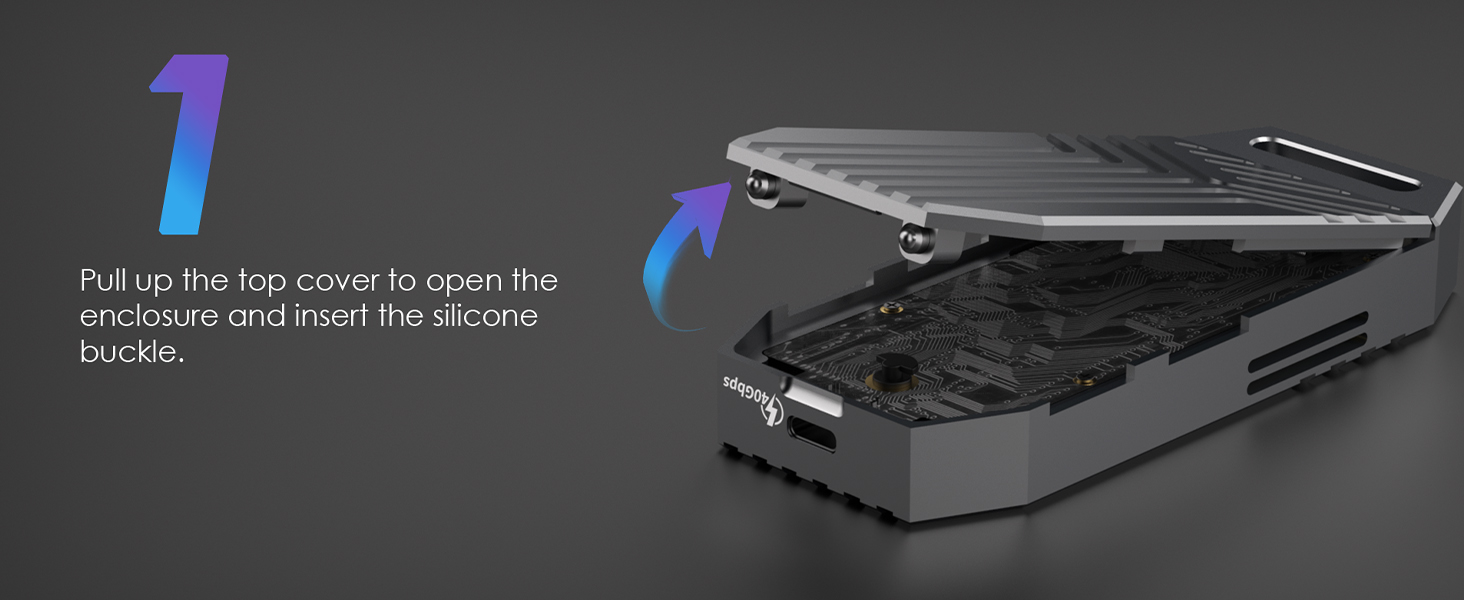

Step 1: Pull up the top cover to open the enclosure and insert the silicone buckle.

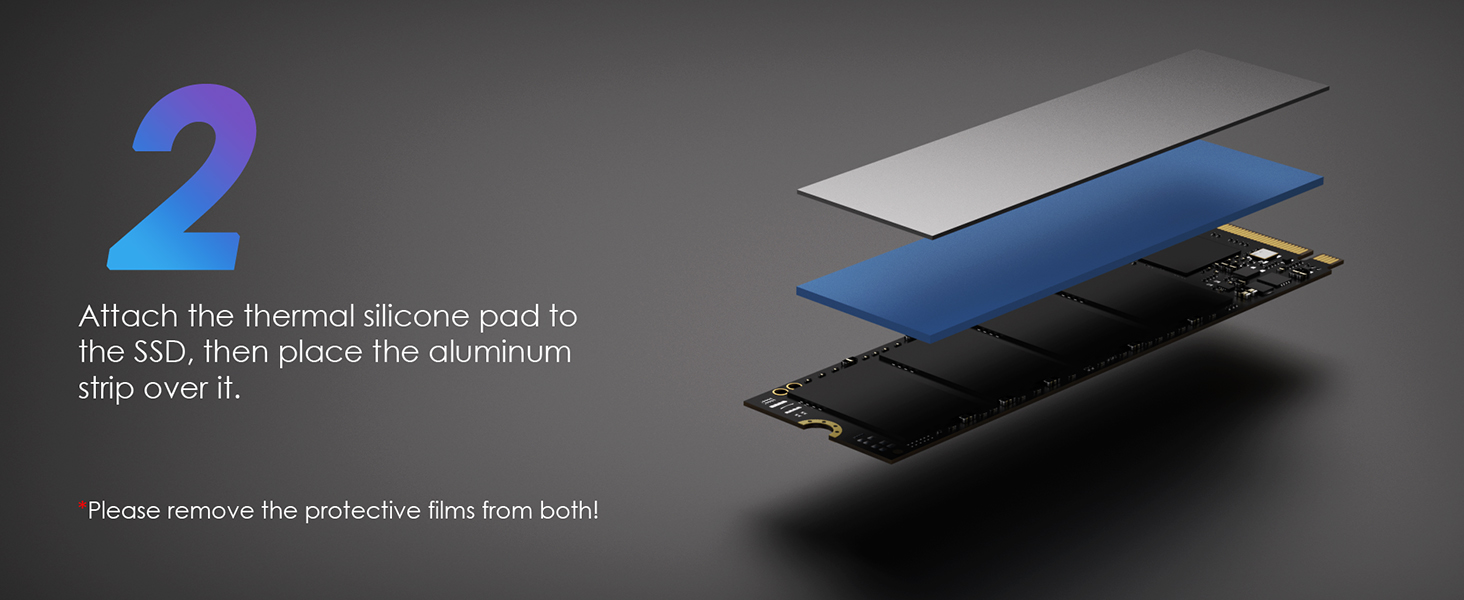

Step 2: Attach the thermal silicone pad to the SSD, then place the aluminum strip over it.

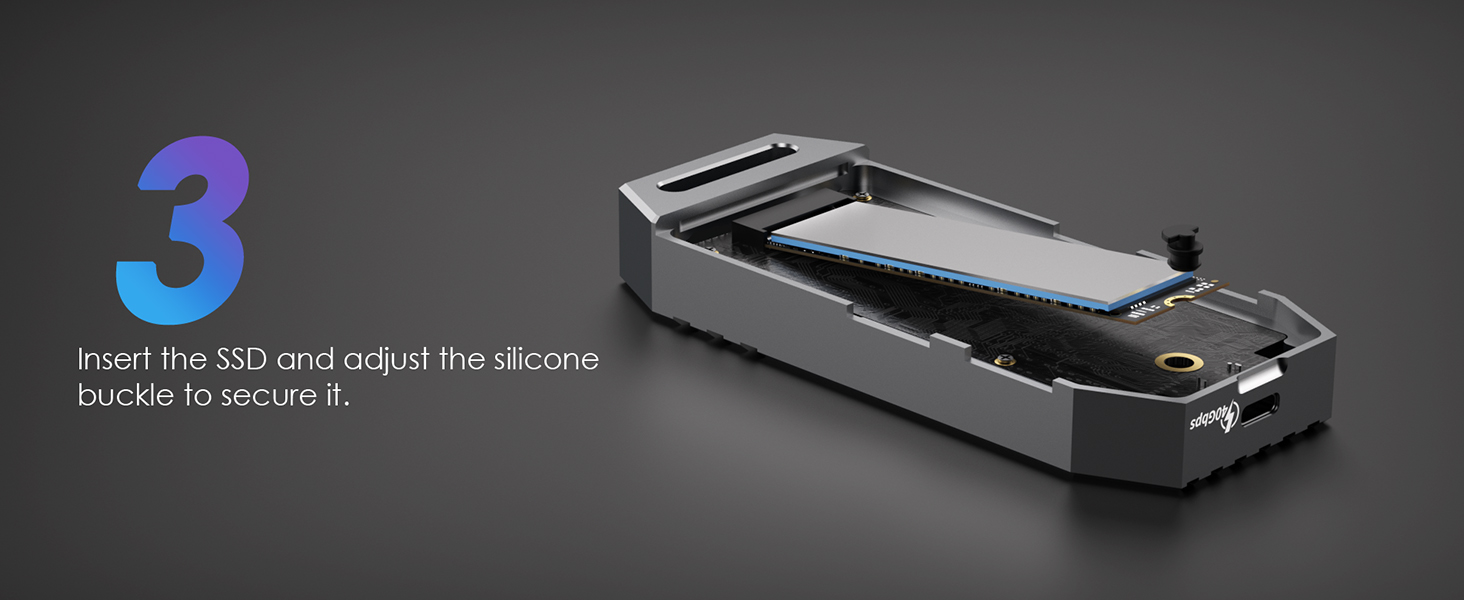

Step 3: Insert the SSD and adjust the silicone buckle to secure it.

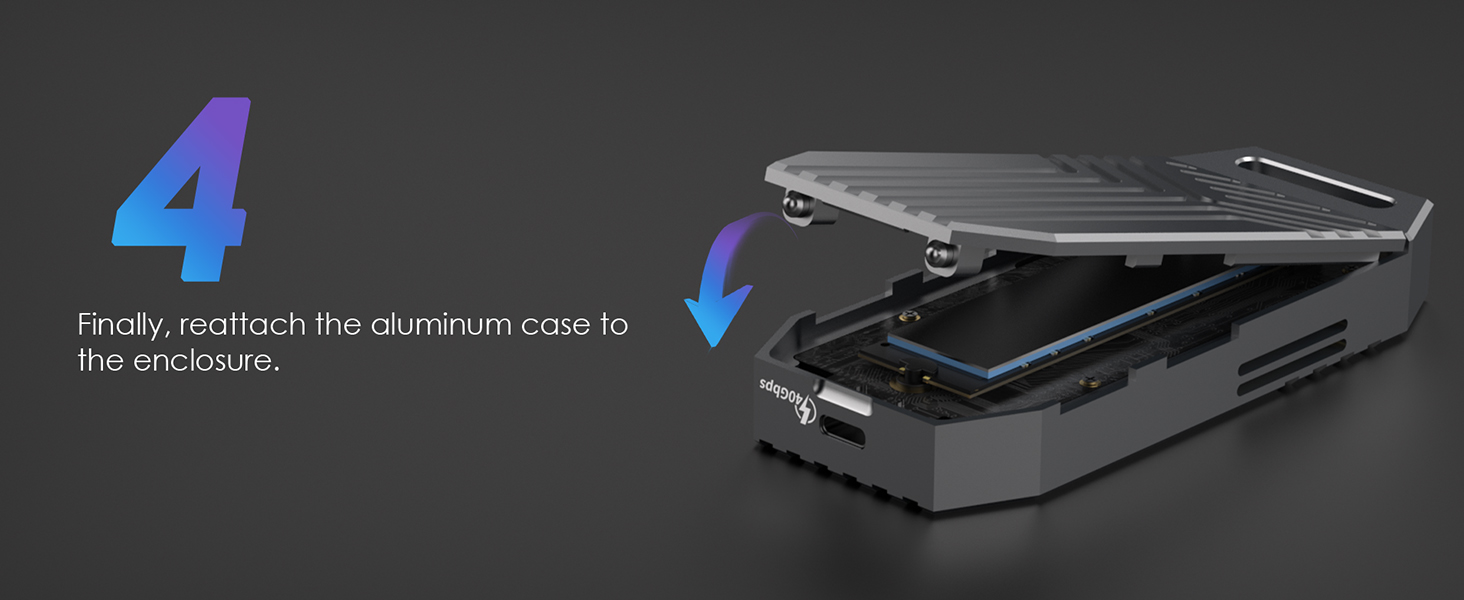

Step 4: Finally, reattach the aluminum case to the enclosure.
Travel-Friendly Design

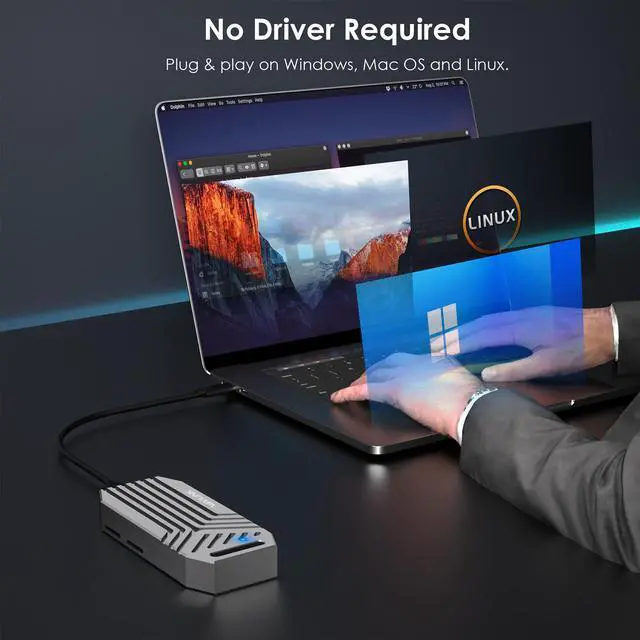

The pocket-size enclosure measures only 4.7 x 2 x 0.7 in and weighs 142g, ideal for carrying it to school, the office or on business trips. The tool-free installation adds additional convenience to your on-the-go use. The enclosure also supports plug and play, just connect it with your USB-C laptop to experience ultra-fast data transmission without installing any drivers.
Applicable to Multiple Scenarios
Featuring a 40Gbps USB4 port and an effective heat dissipation system, the SSD enclosure ensures swift and stable data transmission of large files, such as XBOX/Switch games, extensive education software, media files, and personal data backups, making the enclosure particularly well-suited for students, IT enthusiasts, photographers, etc.
Unleash the Power of a 8TB SSD
Experience the ultimate storage solution with support for a massive 8TB SSD. Expand your storage capabilities without limits and say goodbye to worries about running out of space. Upgrade your laptop to a high-capacity storage platform and enjoy the freedom and convenience it brings!
Compatibility Notes
Systems: Windows, Mac OS, Linux.
Host: Computers with a USB-C port; (The performance might be limited on TBT3 and normal usb port. To get the advertised performance, the host should support TBT4 or USB4 and it should support 40Gbps. )
SSD: Support M key and B&M Key PCIe NVMe SSDs(both one-side and double-side) in 2280 size; NOT support B Key SSDs and AHCI SATA SSDs.
Specification:
1.
Model: WL-RapidFire U41F
2.
Unit Size: 11.8 x 5 x 1.74 cm/ 4.7 x 2 x 0.7 in (WxDxH)
3.
Cable Length: 25cm/ 9.8 in
4.
Unit Weight: 142g/ 5.0 oz
5.
Housing Material: Aluminum Alloy
6.
LED Light: Blue
Features
- A USB4 Type-C port with transfer speeds of up to 40Gbps, is compatible with Thunderbolt 4/3 and USB4.
- Compatible with USB 3.2 / 2.0.
- Compatible with M. 2 NVMe PCIe 3.0 / 4.0 / 5.0 M key 2280 SSD.
- Tool-free for quick and easy installation.
- Full aluminum alloy housing designed for 360° cordless efficient heat dissipation.
- The Velcro handy strap enables easy attachment and detachment from the rucksack, with a compact shape versatile for use in various scenarios.
In the Box
- 1 x USB4 PCIe NVMe SSD Enclosure
- 1 x USB-C to USB-C Cable
- 1 x Handy Strap
- 1 x Pouch
- 1 x Thermal Silicone Pad
- 1 x Aluminum Strip
- 1 x Quick Start Guide
- Several Screws
Warm Tips:
1. The NVMe SSD is not included.
2. The performance might be limited on TBT3 and normal usb port. To get the advertised performance, the host should support TBT4 or USB4 and it should support 40Gbps.

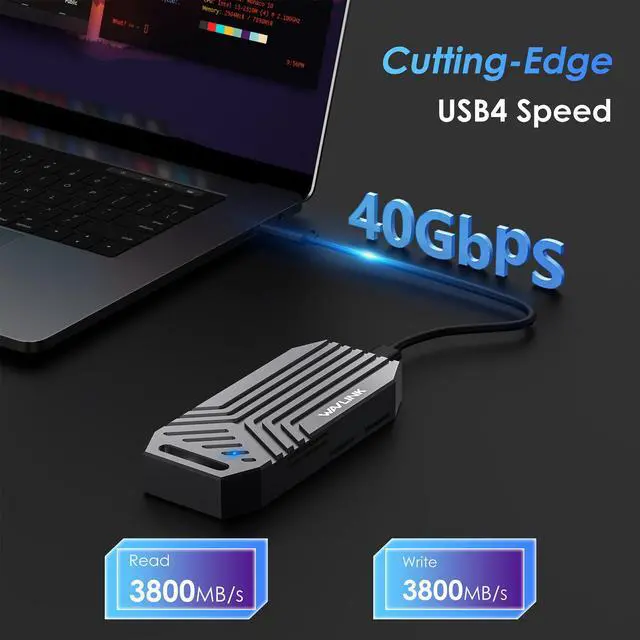

3. This test result for Max. 3800MB/s reading and Max. 3800MB/s writing is the best result tested by our own test environment, and the specific effect is determined by the computer configuration and your SSD.
4. If the SSD is brand-new and unformatted, please perform partition installation so that the computer can read the data normally. If the SSD is formatted and has stored data, you have no need to perform partition installation because the computer can read the data normally.
5. Please ensure you remove the protective films from both the aluminum strip and the thermal silicone pad during installation.
