WAVLINK USB 4 Docking Station, 40Gbps 96W PD Charging, Single Display 8K, Dual Monitors with 2X DisplayPort, 10Gbps USB3.1x3, USB3.0x2, Gigabit RJ45, For Windows/Mac OS, Work with Thunderbolt 4/3

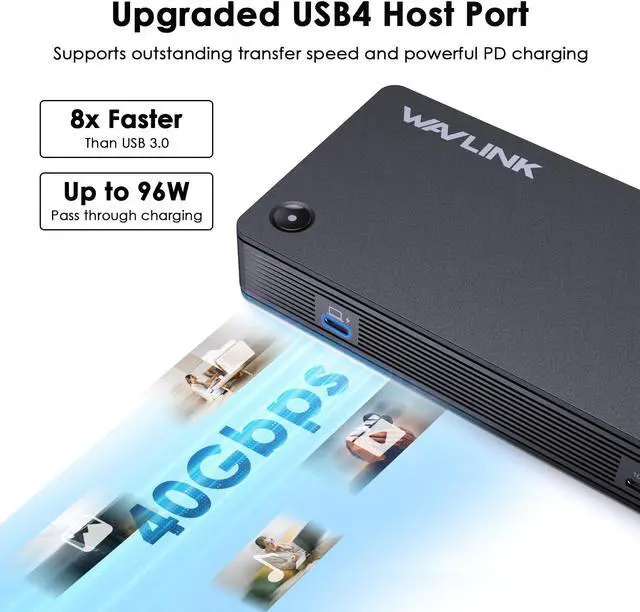

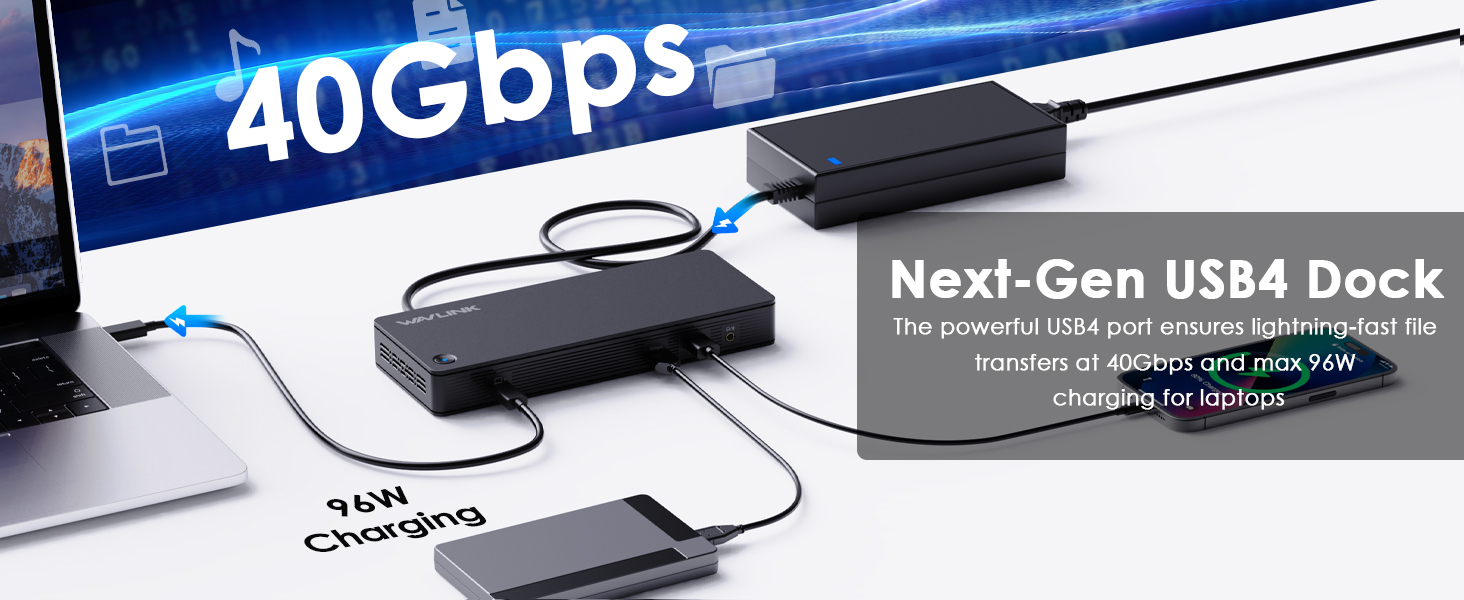

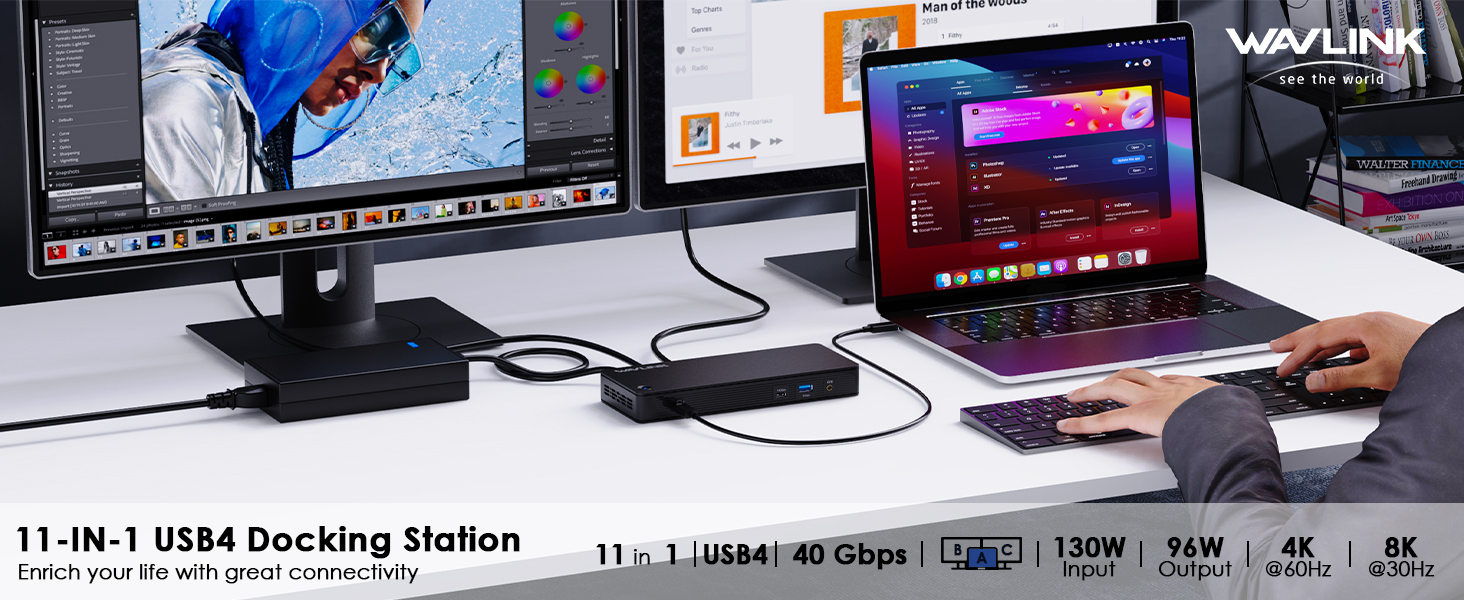

Unlock the full potential of your device with WAVLINK UTD22. With its USB4 upstream port, you can enjoy lightning-fast data throughput speeds of up to 40Gbps and charge your device at an impressive rate of 96W. This powerful dock allows you to connect a single 8K display or dual 4K displays, giving you a stunning visual experience.

It also enables high-speed file transfers through its 3x10Gbps USB3.1 and 2x5Gbps USB3.0 ports. UTD22 is compatible with most laptops running Windows 10/11 and Mac 11 or later, ideal for TBT3/TBT4/USB4 laptops. Transform your laptop into a powerhouse of connectivity with the WAVLINK 40Gbps USB-C dock. Upgrade your workspace today!

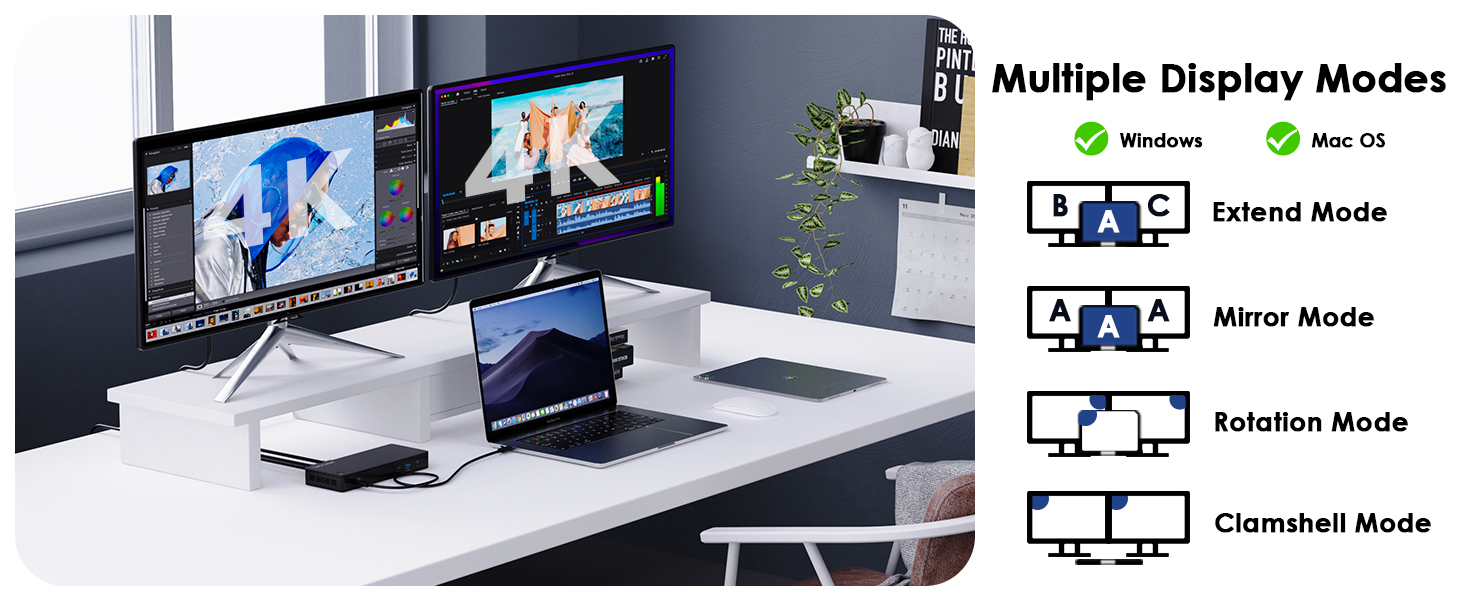

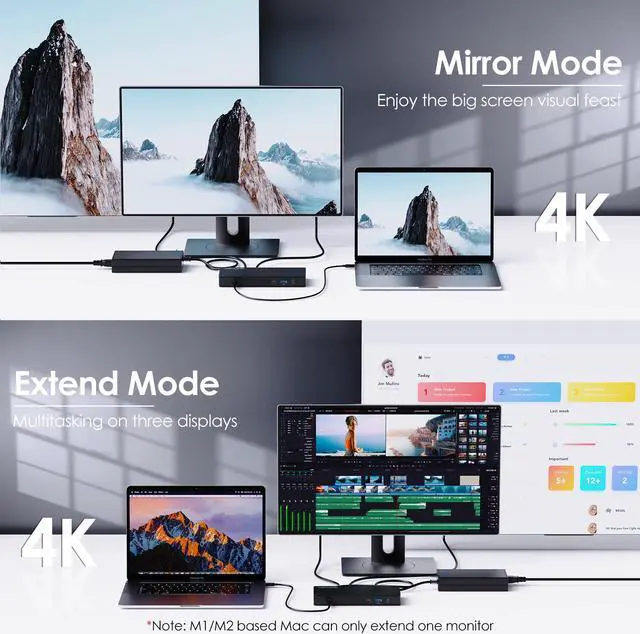

Expand your workspace for multitasking or mirror captivating videos on a larger screen to appreciate every intricate detail.

Note: M1/M2 based Mac can only extend one monitor.

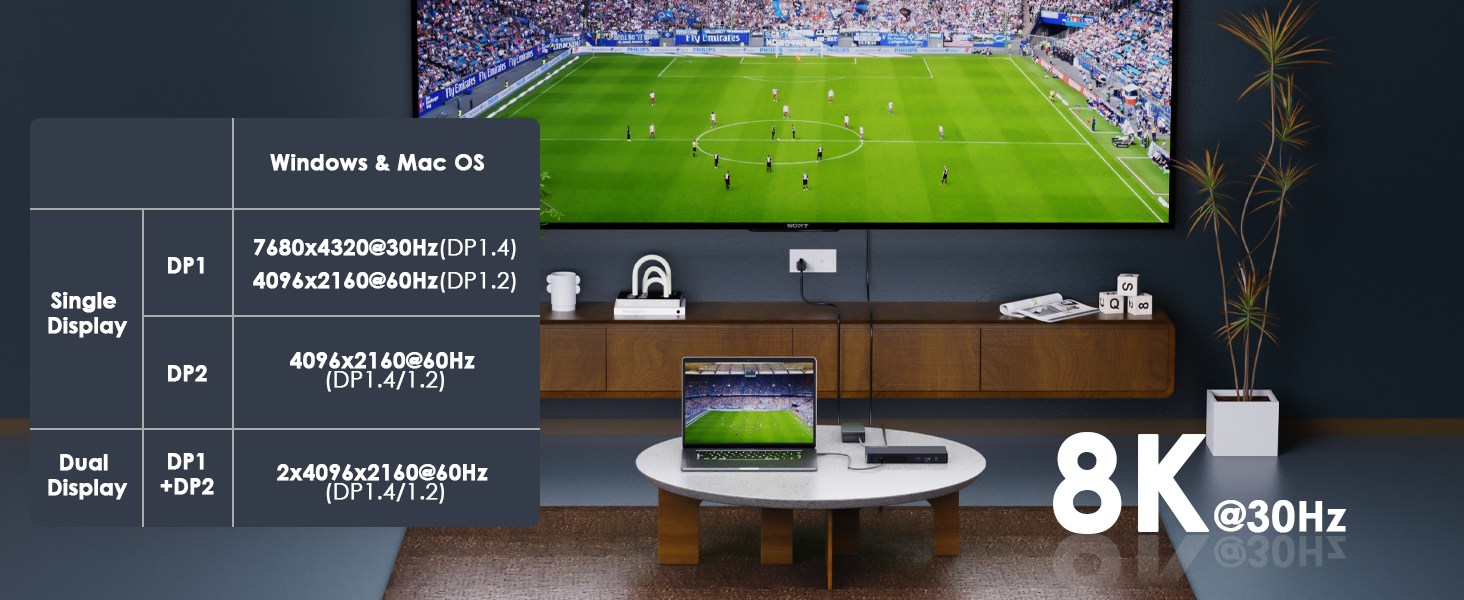

Multiple Display Resolution(Max. Resolution)

Single Display:

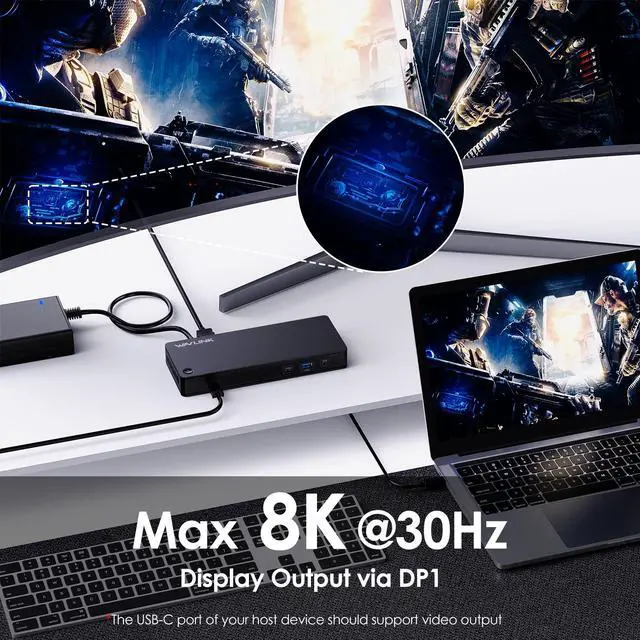

DP1: 7680x4320@30Hz(DP1.4), 4096x2160@60Hz(DP1.2)

DP2: 4096x2160@60Hz(DP1.4/1.2)

Dual Display:

DP1+DP2: 2x4096x2160@60Hz(DP1.4/1.2)

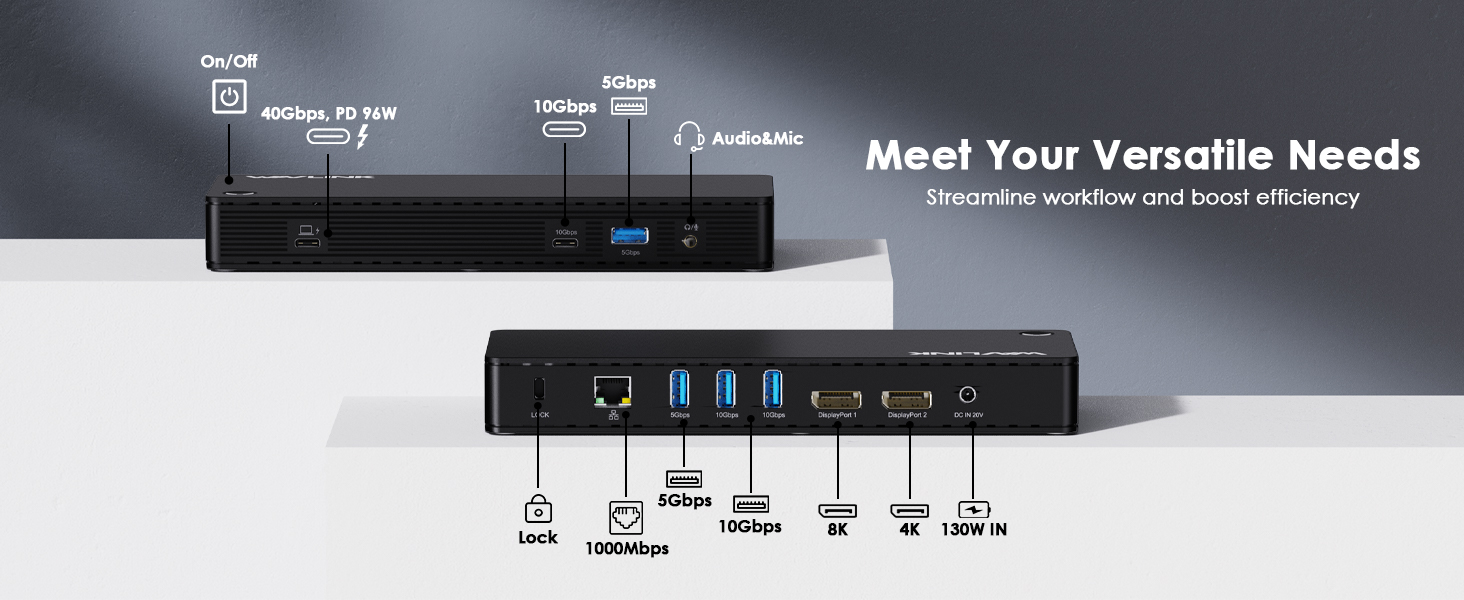

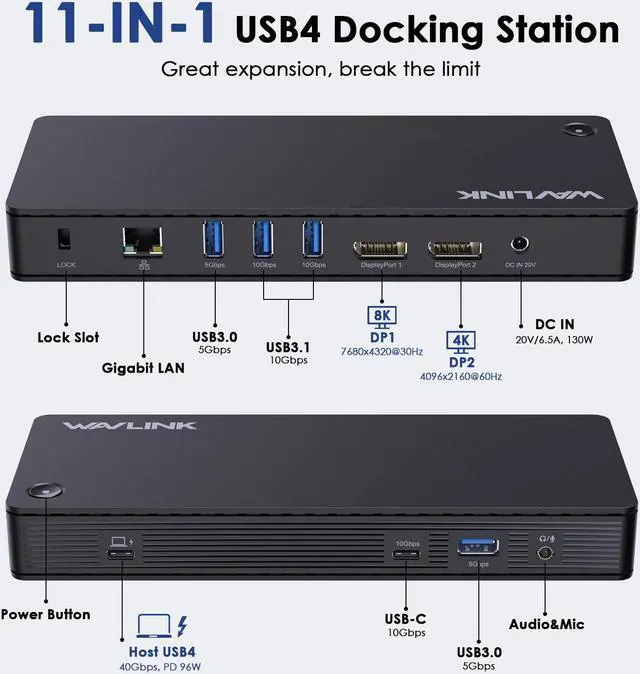

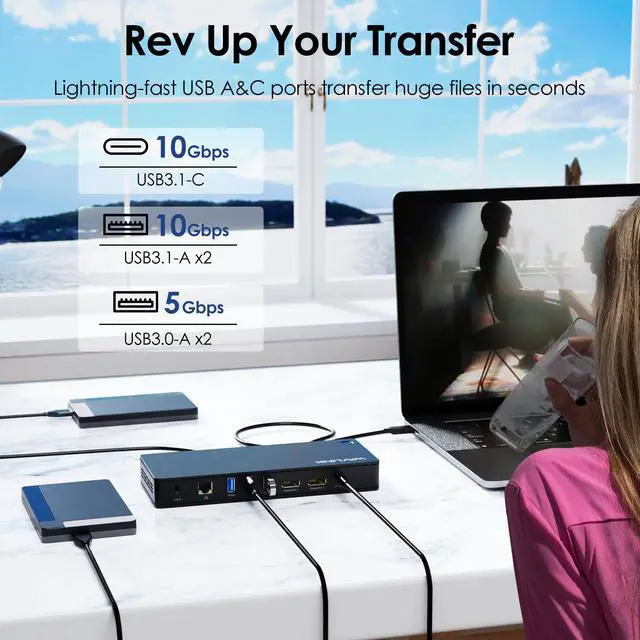

WAVLINK USB-C dock adds five high-speed data transfer ports to your laptop through a USB-C port, including 1*10Gbps USB3.1-C, 2*10Gbps USB3.1-A and 2*5Gbps USB3.0-A, offering you multiple connection options and extremely fast data syncing speed.

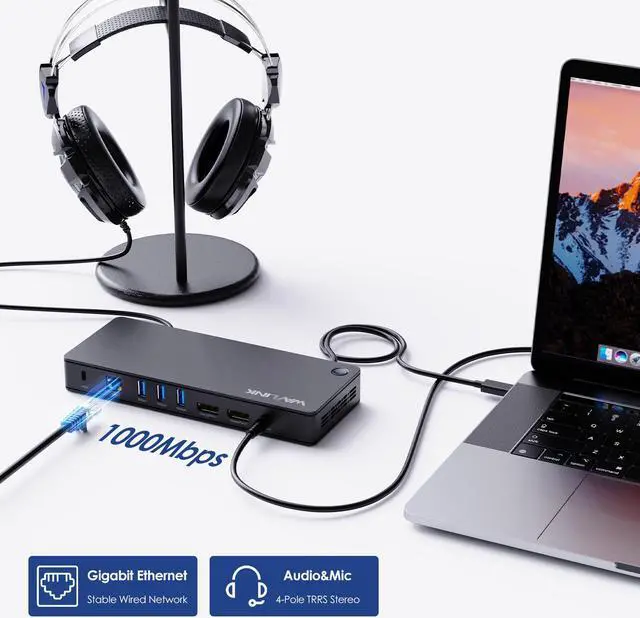

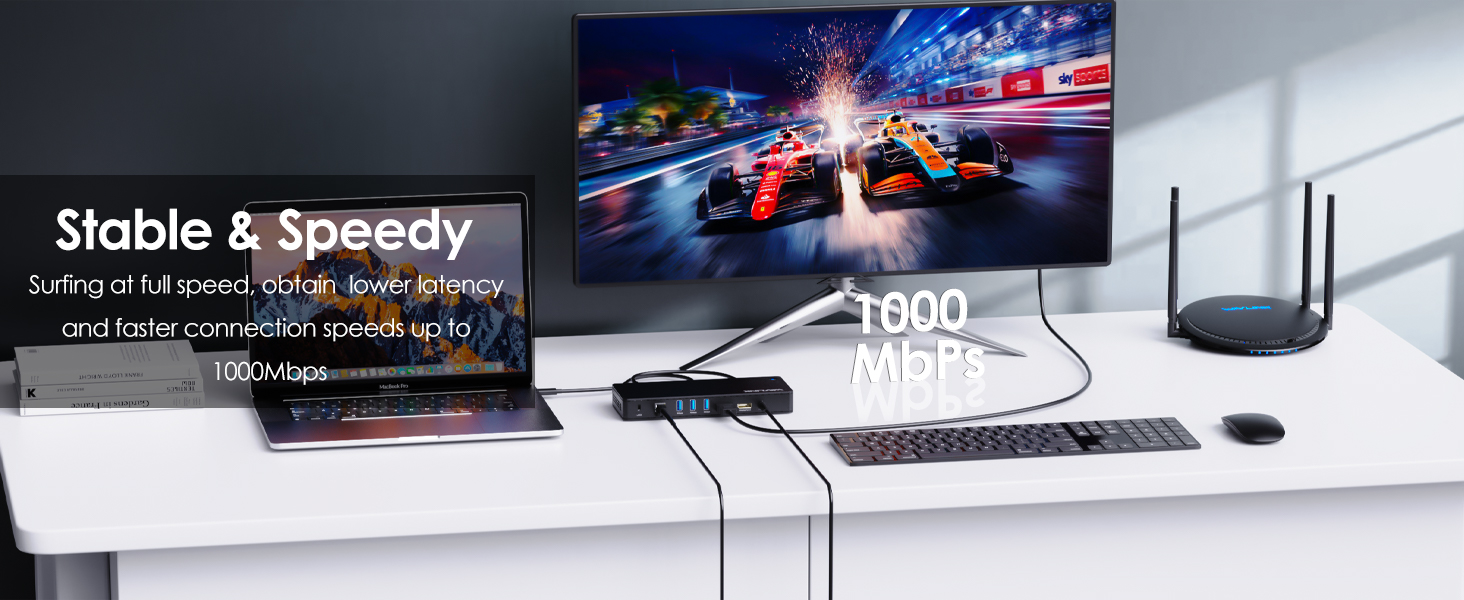

Supports up to 1000Mbps, the Ethernet port ensures a stable and smooth wired network connection, much more safe and reliable than a WiFi network, say goodbye to lag and delays. Also backward compatible with 100/10Mbps.

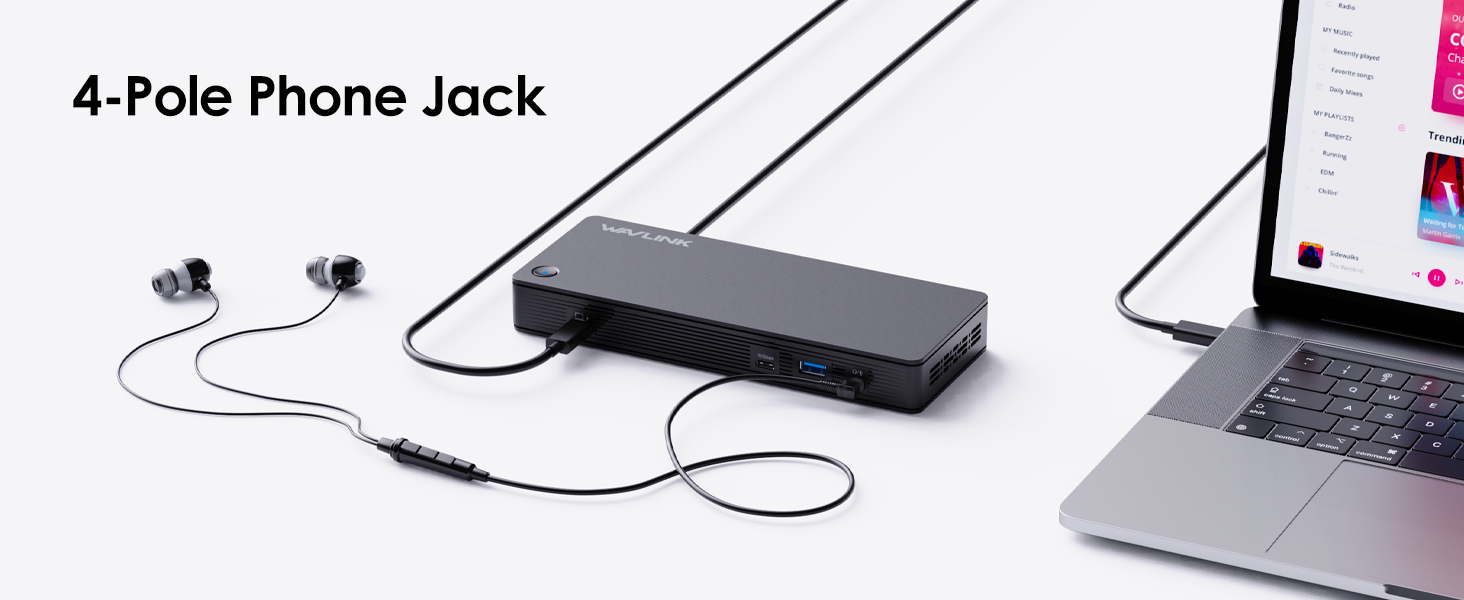

Audio out and mic in are combined in one 4-pole phone jack, saving more space but still supporting high-quality stereo sound. Plug and play, use it to answer phone calls or or indulge in your favorite tunes.

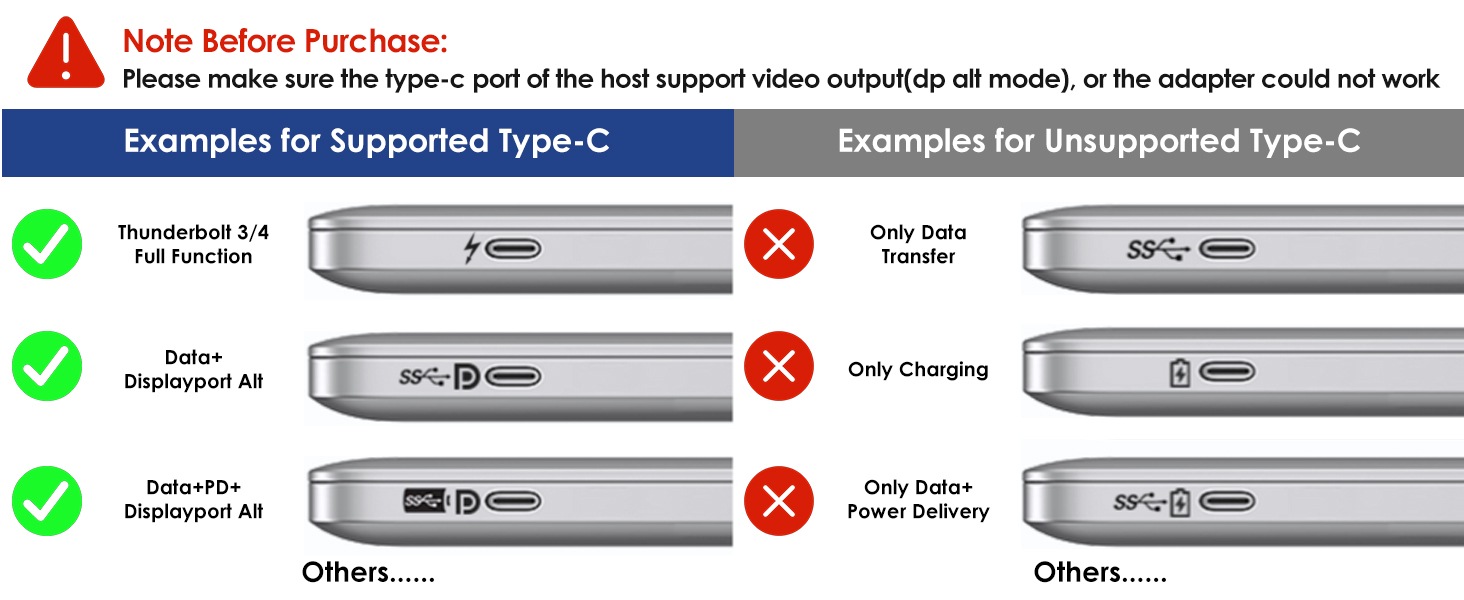

Step 1: Please check the model of your laptop, it should be on the back of the label;

Step 2: Search "brand + the model number of the device + manua" in Google, for example: "asus ux435 manual";

Step 3: Check the manual and navigate to the view and check the type-c specification, if it states it supports power delivery which means it supports charging.

If it states the type-c port supports display which means it could support video output.

If the specification states bandwidth the type-c port supports only, which means the type-c port might not support video output and charging. You could also contact the manufacturer to confirm that.

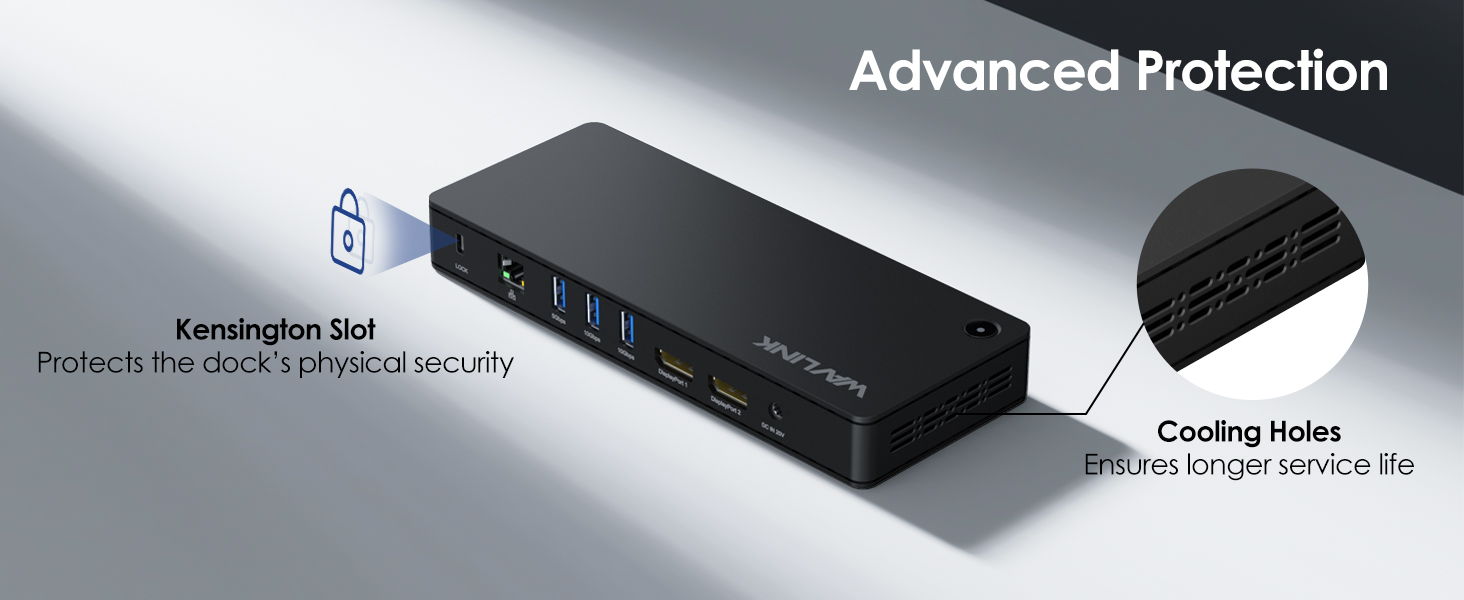

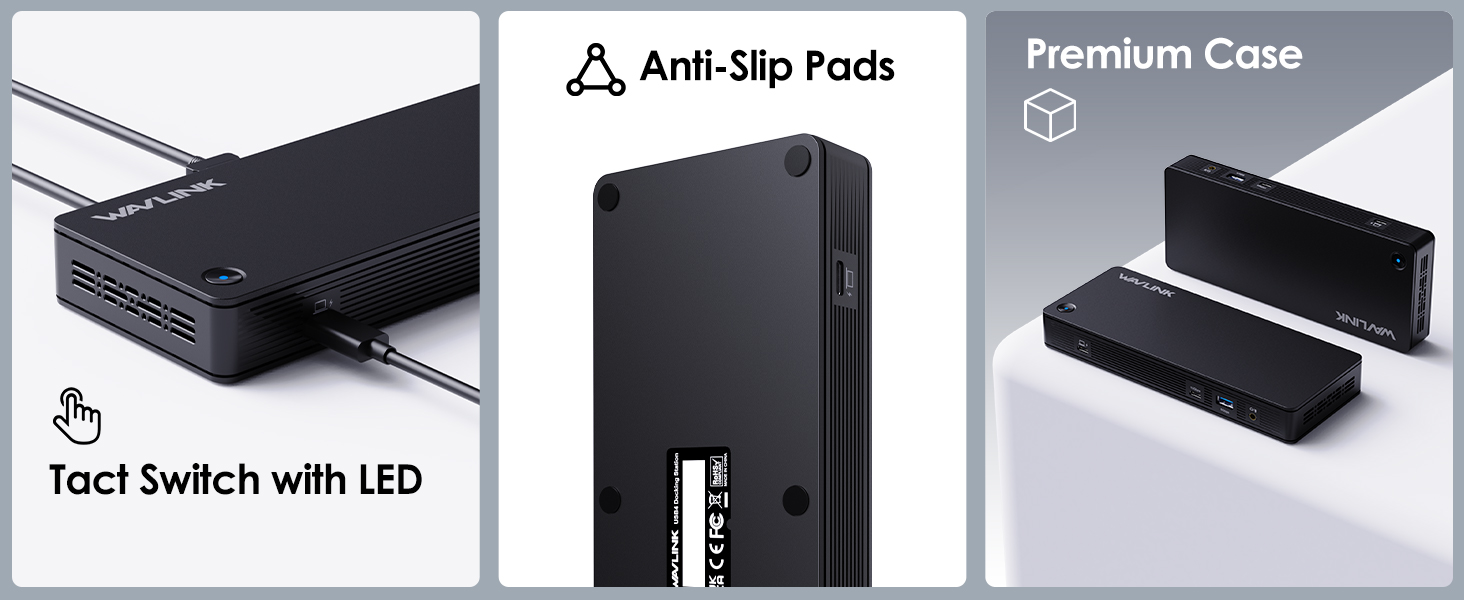

Control the adapter's power with one simple click using the tact switch and LED light. Anti-slip pads enhance stability on any surface, while the matte black shell offers a fingerprint-resistant and stylish aesthetic.


This USB-C docking station is compatible with laptops featuring Thunderbolt 4, Thunderbolt 3, USB 4, and other full-featured USB-C ports that support video output and charging. Please note: For more USB-C non-USB4/TBT3/TBT4 laptops, the performance will be limited. Supports plug & play, requiring no driver installation for convenient use. Compatible with Windows 10/11, Mac 11 or later.

-The type-C port of your host should support video output and charging to enjoy the full function of this dock.

-For more USB-C non-USB4/Thunderbolt 3/Thunderbolt4 laptops, the performance will be limited. Some laptops with Thunderbolt 3 port might support single monitor only(The other monitor goes black), including the m1/m2 based Mac. While the m1/m2 pro/max based Mac and laptops with Thunderbolt 4 port could support dual 4K@60Hz monitors via our device.

-The USB-C 3.1 port is only for data transfer, it doesn't support video output.

-The dock supports clamshell mode and rotation mode on both Windows and Mac OS.

-The dock supports HDCP.

In the Box

1 x USB4 Dual 4K Docking Station

1 x 0.7m USB-C 40Gbps Cable

1 x DC 20V/6.5A 130W Power Adapter

1 x Quick Start Guide
