USB C Laptop Docking Station with Dual HDMI for Windows/ Linux/ Mac Laptops
This USB C Dock is a great work with your USB-C New Laptop. you can extend video to your monitor/projector/TV with HDMI from your Laptop. USB 3.0 ports to connect your hard drives etc, USB 2.0 prot to connect your keyboard/mouse without any lag, provide you usb c 100w to your usb c laptops.
Please note before purchasing

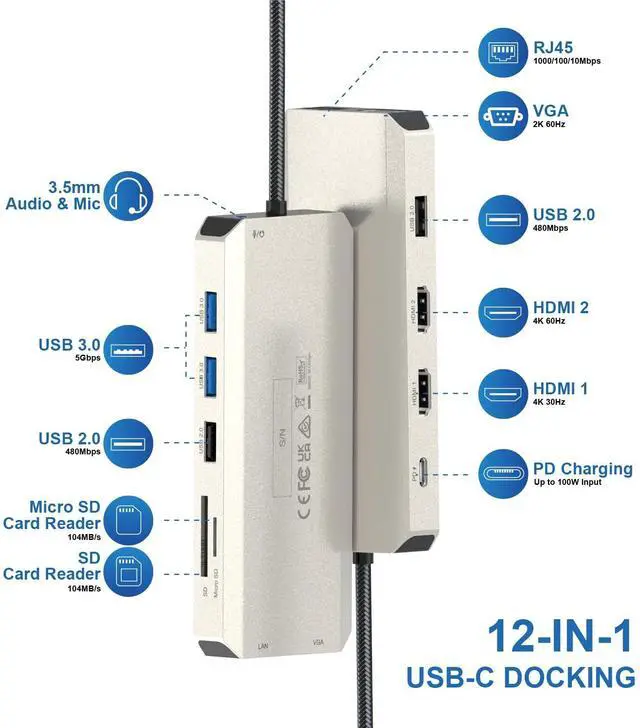

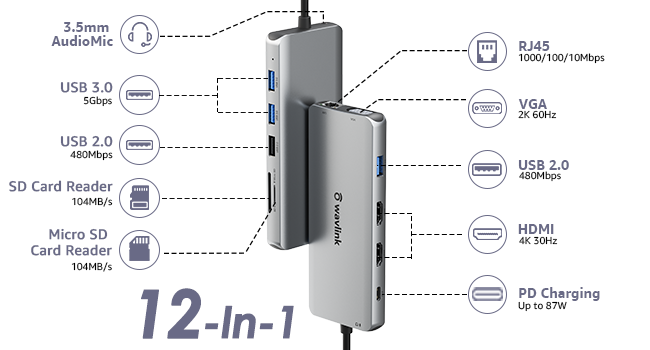

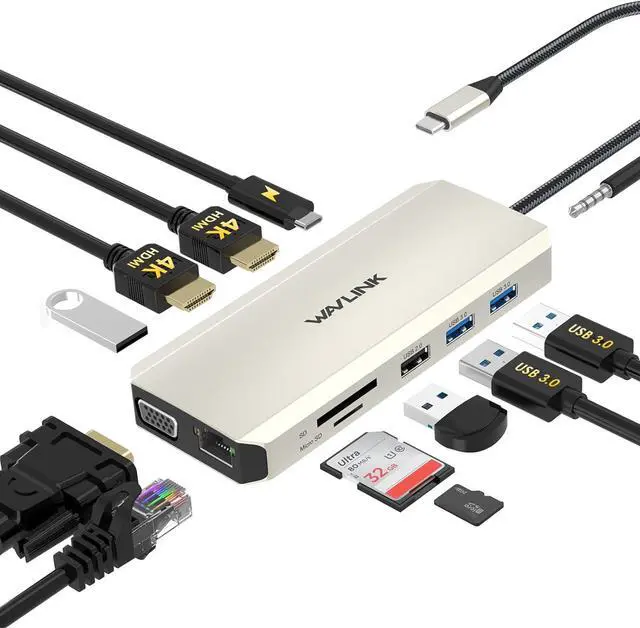

2x HDMI ports, 1x VGA port, 2x USB2.0, 2x USB3.0 ports, 1x RJ45 Ethernet port, 1x USB C Power Delivery port,
1x SD TF Card reader, 1x TF Card reader, 1x 3.5mm Audio Jack.

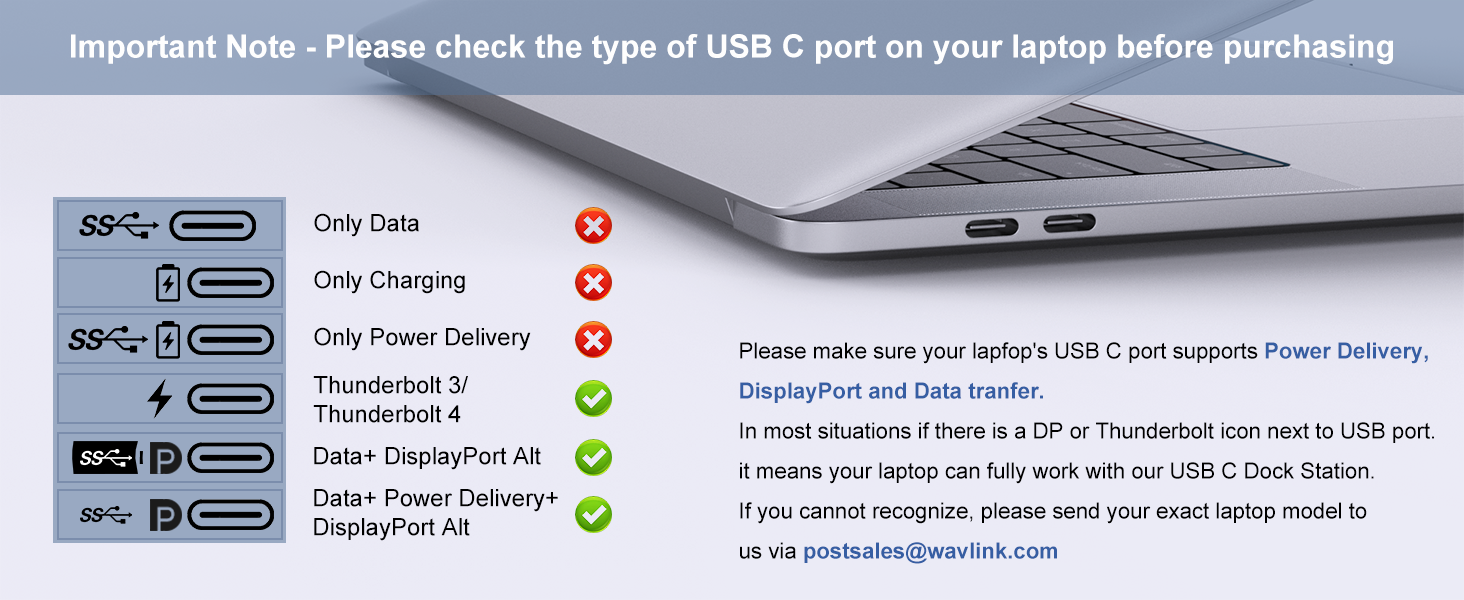

Not all laptop's USB-C port support video output. Please check the features supported by your laptop's built-in USB C port.
For video display, Ensure that your laptop’s USB-C port supports the Power Delivery, DP Alt Mode and Data Transferto access the full feature of this USB-C hub. Thunderbolt 3/4/USB-C 3.1 Gen 2/USB-C 3.2 Gen 2,the above types of USB-C ports all support video output.

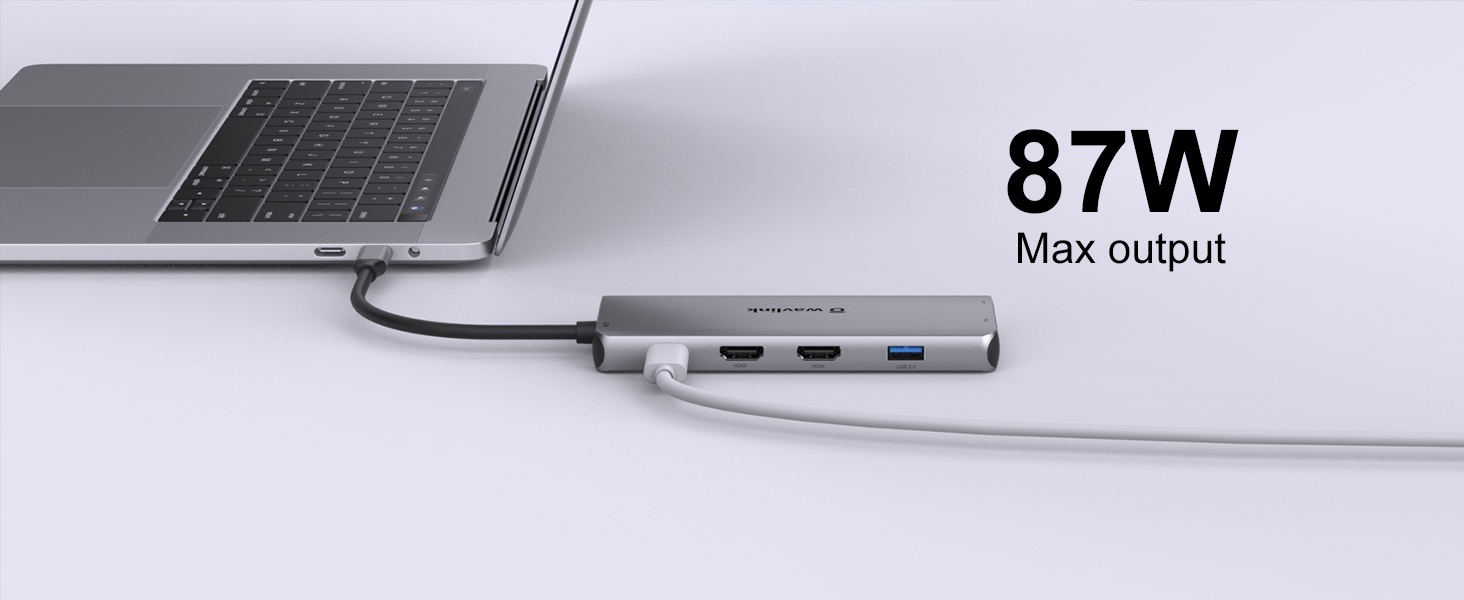

USB-C to Power Delivery Charging (PD3.0)
USB type-c hub supports a high-level of charging up to 87W - Maximum 60W to laptop and 27W to other ports.
*Additional charger is needed

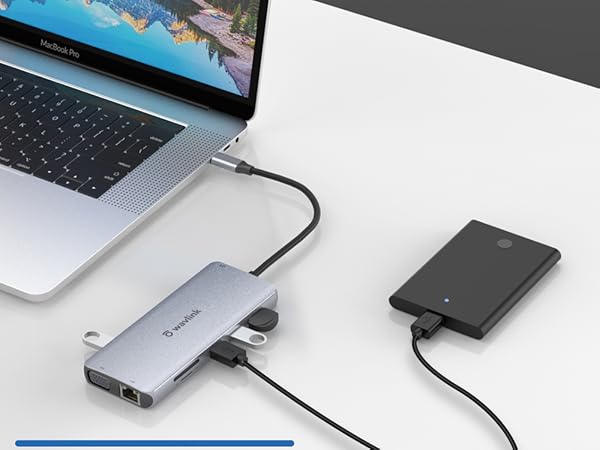

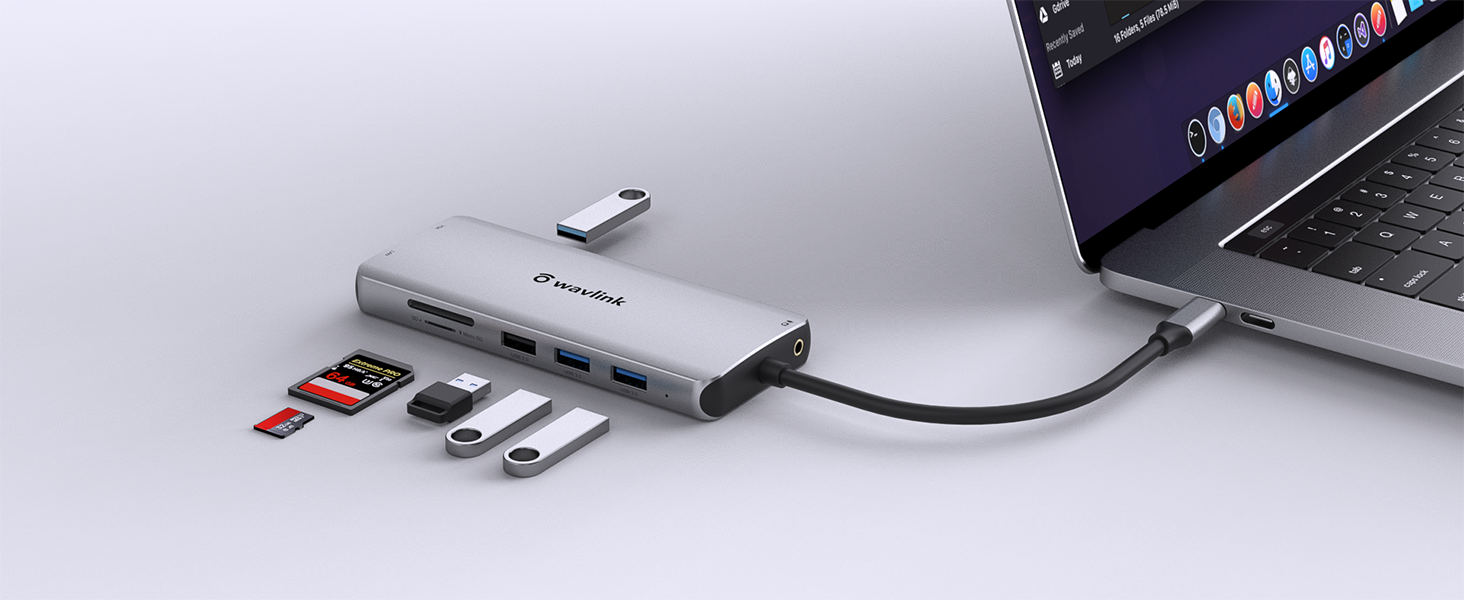

2 x USB 2.0 and 2 x USB 3.0 ports
USB 3.0 Up to 5Gb/s speed, maximum power output 5V/0.9A, backwards compatible with USB2.0/USB1.1. Design for the connection of 2.4 GHz wireless devices, such as wireless keyboards/mouse/thumb drive...

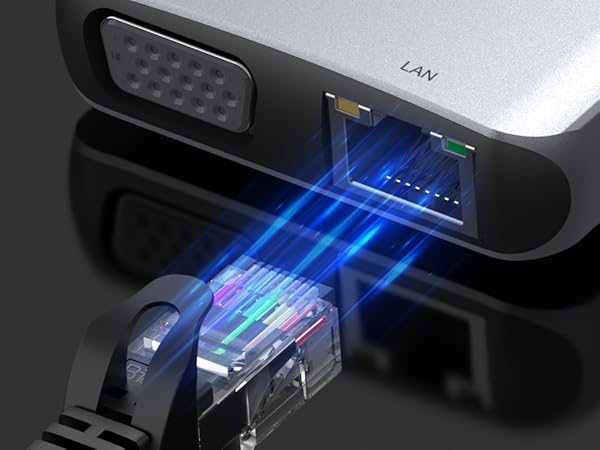

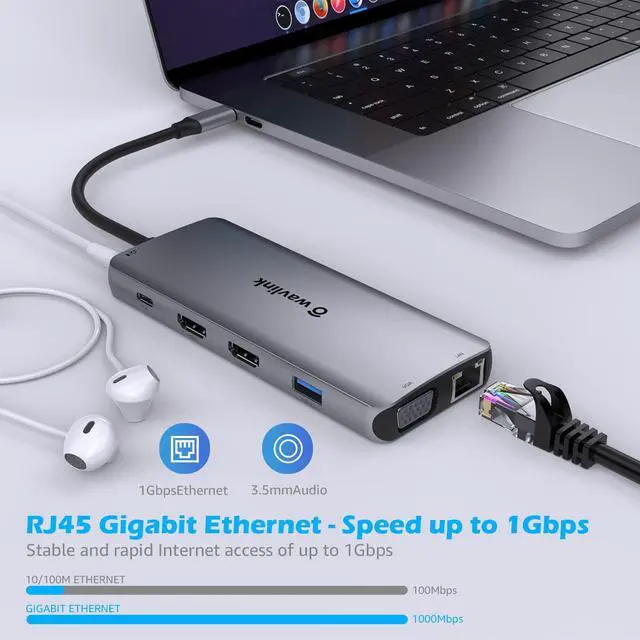

USB- C To RJ45 Gigabit Ethernet
Obtain stable wired access connection speeds up to 1000Mbps. USB Type C to LAN Gigabit Ethernet (RJ45) Network Adapter supports large downloads at maximum speeds without interruption.

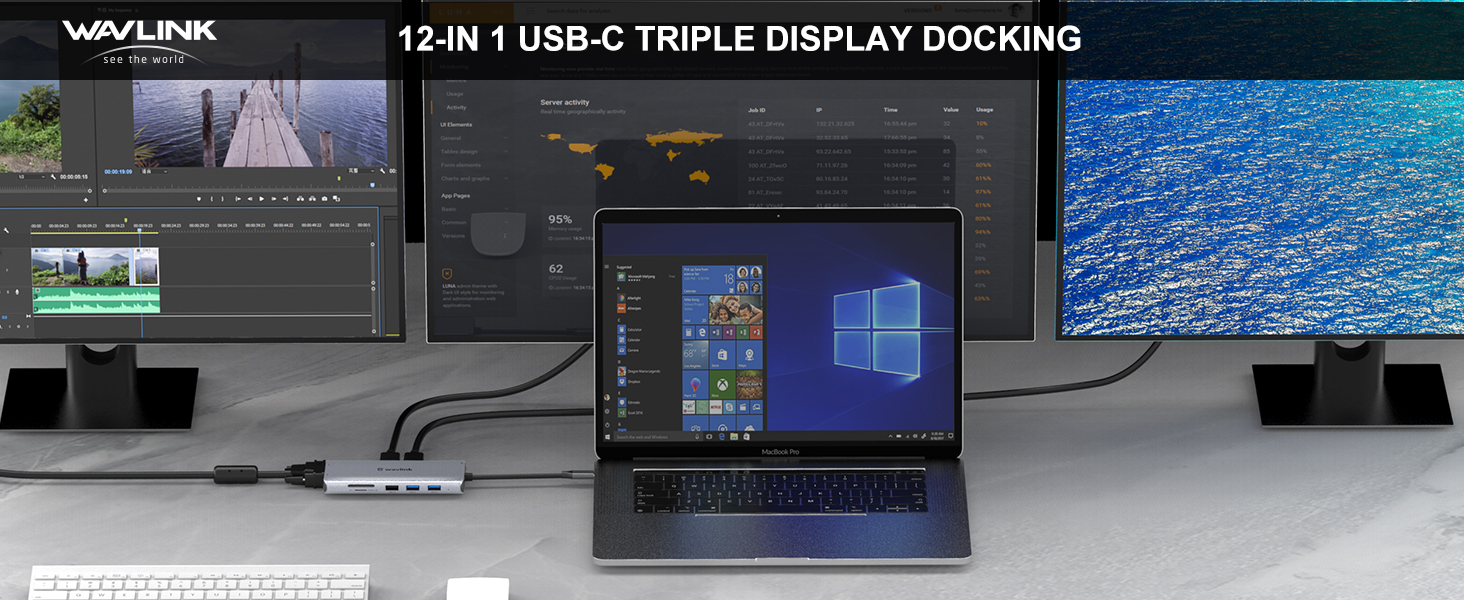

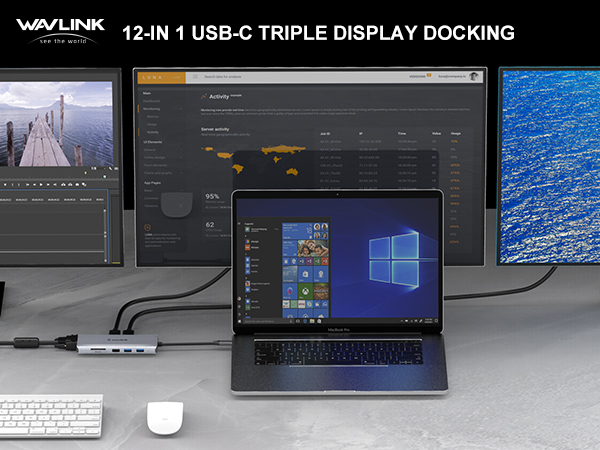

Mutiple Display Modes
Multi Monitor USB Type C Hub Docking Station For Windows and Mac OS
Universal laptop docking station support SST(Single-Stream Transport) & MST(Multi-Stream Transport) for Windows. Mac OS ONLY support SST mode.
video
Merchant VideoHDMI 1 port - Max resolution up to 4K (3840X2160P@60Hz); HDMI 2 port - Max resolution up to 4K (3840X2160P@30Hz); VGA port - Max resolution up to 2K (1920X1080P@60Hz)
HDMI + HDMI ports - Max resolution up to 4K+2K (3840X2160P@30Hz+1920X1080P@60Hz); HDMI + VGA port - Max resolution up to 2K (1920X1080P@60Hz)
For Windows: 3 x 2K@60Hz extensions in mirror/extend mode with the host laptop closed
- Mirror Mode: The Screen of 3 monitors and Laptop are same
- Extend Mode I: Three Monitors Screen are different from Laptop; Extend Mode II: One of Monitor Screen is same with Laptop
- Triple Display Mode: The Four Screen of 3 monitors and Laptop are different
For Mac OS: 3 x 2K@60Hz extensions display the same content with the host laptop open
- Mirror Mode: The Screen of 3 monitors and Laptop are same; Extend Mode: External three monitors screen are same but different from Laptop
MAC User Must Pay Attention !
Due to the limitation of Mac system, external monitors will display the same content(such as A+B+B). 3 different screens can not be achieved !
Reminder 1. When more external devices are connected through this hub, it is recommended to power it up through the USB-C port.
Reminder 2. This USB-C hub docking station much be directly plug to the USB-C port of your laptop. It may not work if plugged to a convert or other port adapters.
Reminder 3. USB C Charging doesn't works for laptop own a AC charging adapter, those laptop (Dell/HP/ThinkPad...) do not allow 3rd party charger to charge their laptop in other ways
Reminder 4.When connecting an external hard drive to this hub, connect the laptop's power adapter to the USB-C power supply port.
Reminder 5. Resolution Problem - The final resolution of HDMI output depends on your host devices. (Only when your devices support 4K resolution, the video output will be 4K). For Windows laptop Under DP1.4 source, Single HDMI can up to 4K@60Hz. Dual displays, one HDMI port resolution up to 4K@30Hz and another 2k@60Hz. If you connect VGA port, the resolution of all monitors will be limited to 1920 x 1080@60Hz when dual or triple display with VGA. Resolution can only reach up to 1920*1080@60Hz when connecting 3 monitors at the same time. For Windows laptop on DP1.2, due to laptop's limited bandwidth, one of the monitors resolution will be lower than 1080P.
USB C to Docking Station Compatible with most laptops with Type-C
- Compatible with Apple MacBook, Apple MacBook Pro 2016/2017/2018/2019/2020, Apple iMac/ iMac Pro (21.5 inch, 27 inch), Google Chromebook Pixel, Huawei MateBook, Huawei MateBook Pro, Dell XPS 13/15, Dell Latitude/Precision; HP Spectre x360/ZBook; Lenovo Yoga/ThinkPad X1 Carbon/ X1 Extreme; MSI GS65 /GS75; Razer Blade Stealth; Alienware 13/15/17; IPad Pro (only for ios 13.0 and up), Surface Book2, Samsung S9, S9 Plus, S8, S8 Plus, Note 9, Note 8, Huawei New version phones and more type-c port of full function with data transfer and USB-C Power Delivery and Video DP Alternate Mode.
- Incompatible with the laptop without USB-C ports like: Most Acer series, Apple USB SuperDrive, Surface Laptop 3, and Nintendo Switch.
