WAVLINK Thunderbolt 5 Docking Station 120Gbps Data Transfer, Dual 8K/Quad 4K Display for MacBook M4-M5 Pro/Max, 64Gbps M.2 Slot, 140W Pass-through Charging, 2.5GBE, Fan Cooling
- Intel-Certified Thunderbolt 5-Experience a massive 120Gbps total bandwidth, with data transfer speeds hitting 80Gbpsdouble that of Thunderbolt 4.
- Dual 8K or Quad 4K Ultra-Clarity-Enjoy dual 8K@60Hz displays or go big with four 4K screens (2x 4K@120Hz + 2x 4K@60Hz) on Windows. On macOS, it supports up to three extended displays plus one mirrored display. Perfect for immersive gaming, streaming, or creative workflows. Note: Due to macOS limitations (no MST support), multi-display capabilities on Mac are reduced. Please check your Mac models native display support.

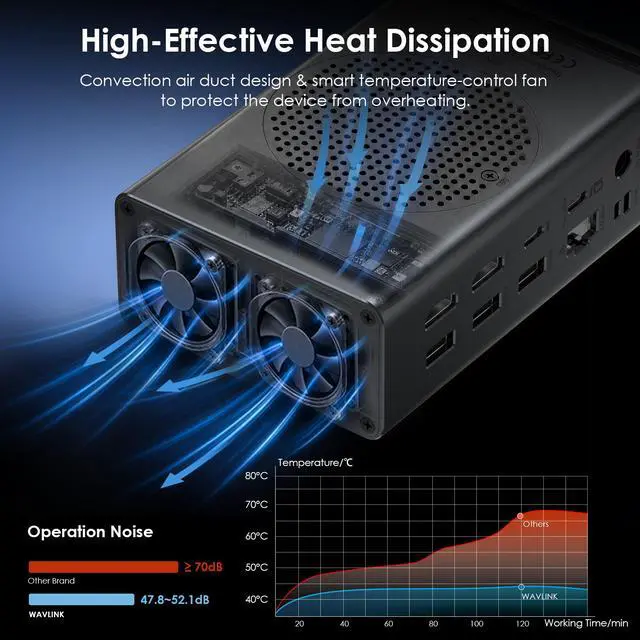

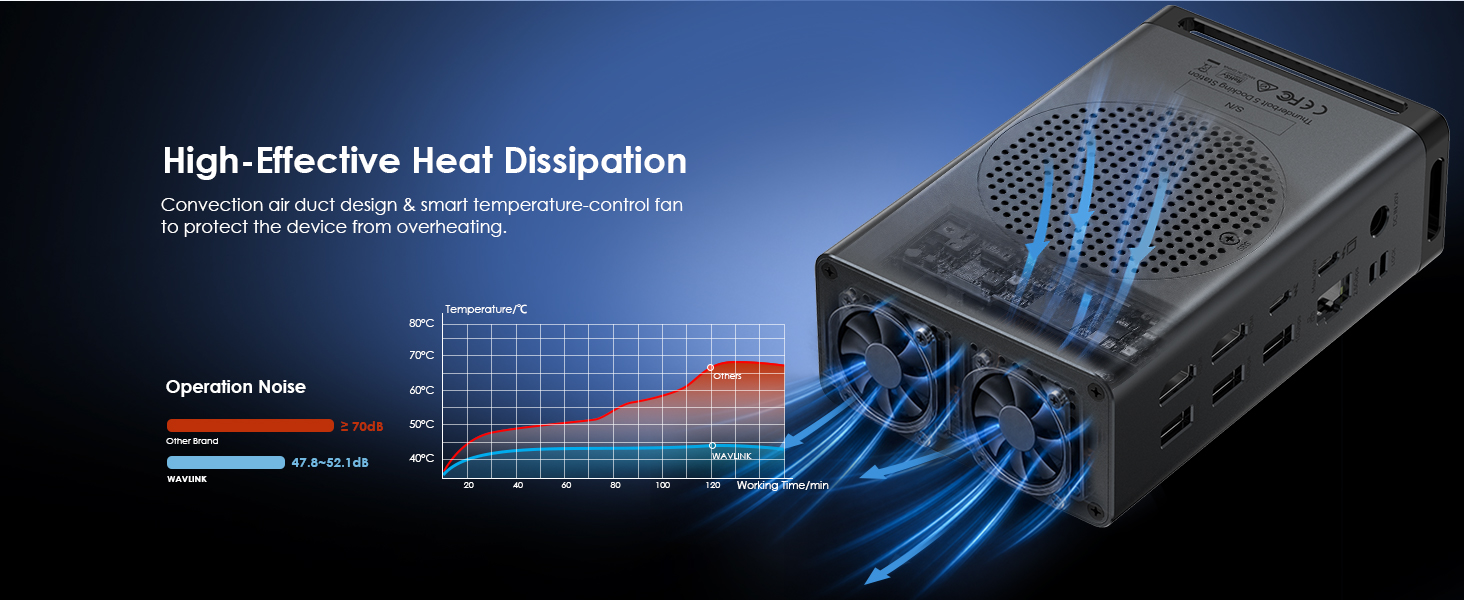

- Smart Cooling System-Equipped with a temperature-controlled fan, optimized ventilation grills, an aluminum alloy shell, and a floating chassis design.

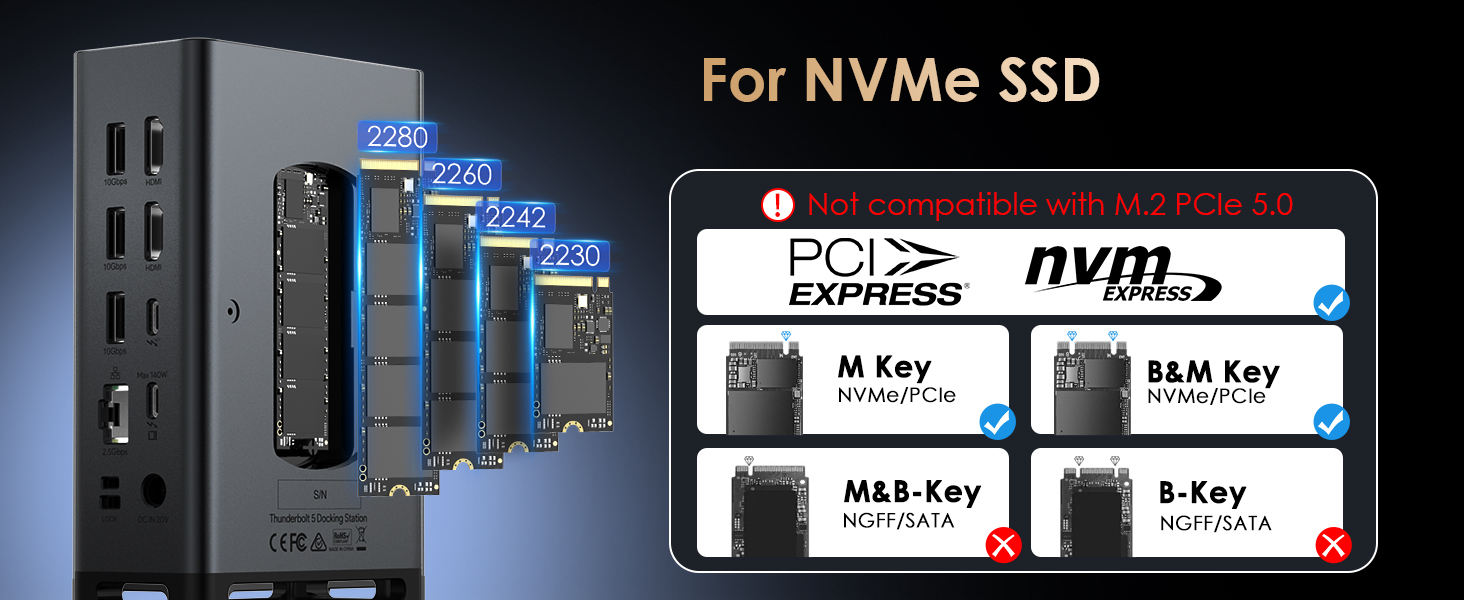

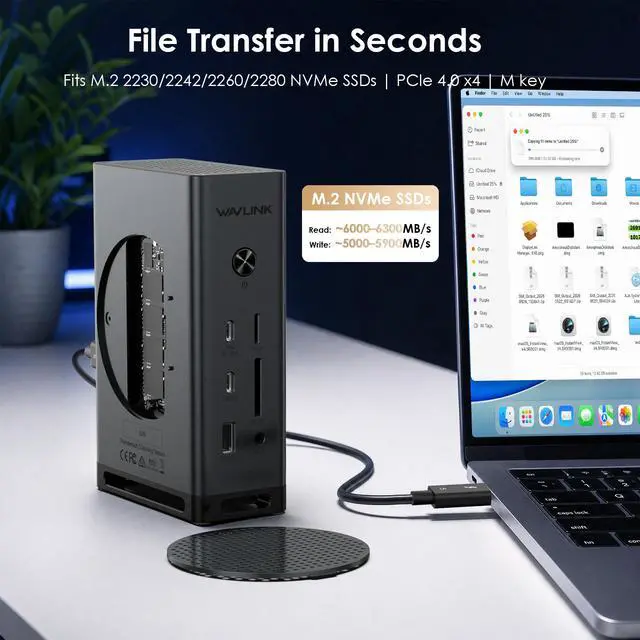

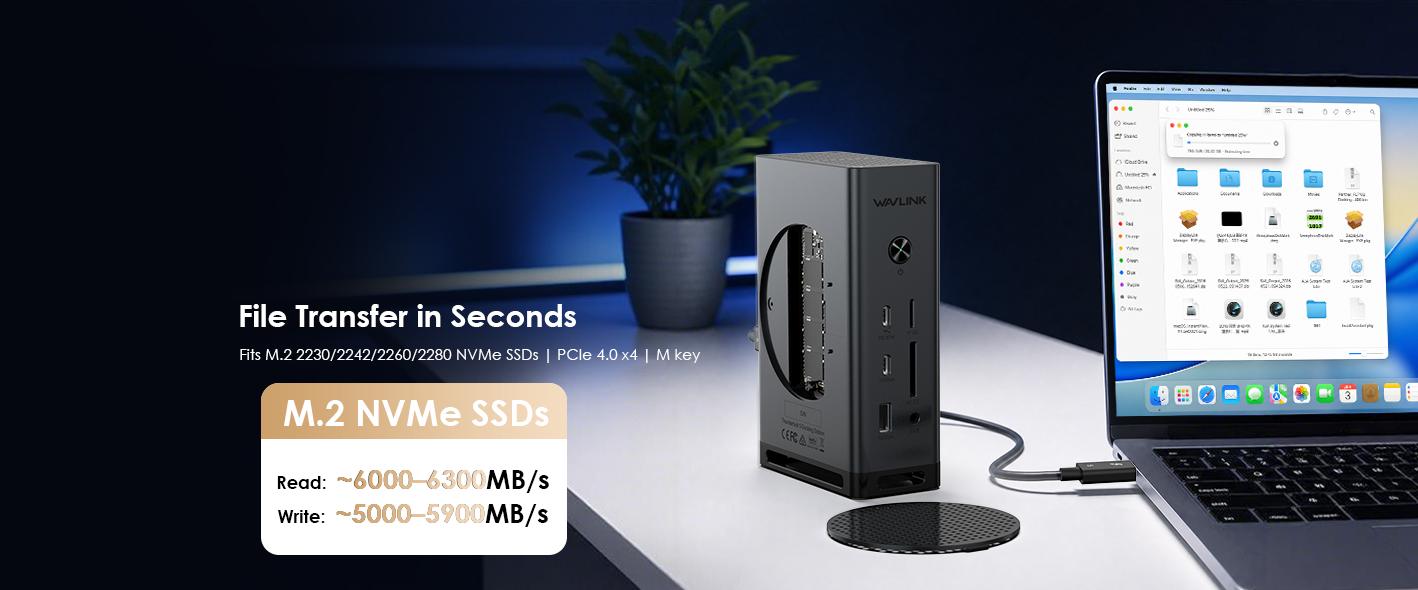

- 64Gbps M.2 SSD Slot] Add or expand storage directly on the dock. The built-in M.2 slot supports PCIe 4.0 x4 SSDs (sizes 2230, 2242, 2260, 2280) with blazing read/write speeds up to 6200 MB/s and 5900 MB/sideal for video editing, large file transfers, or running games.

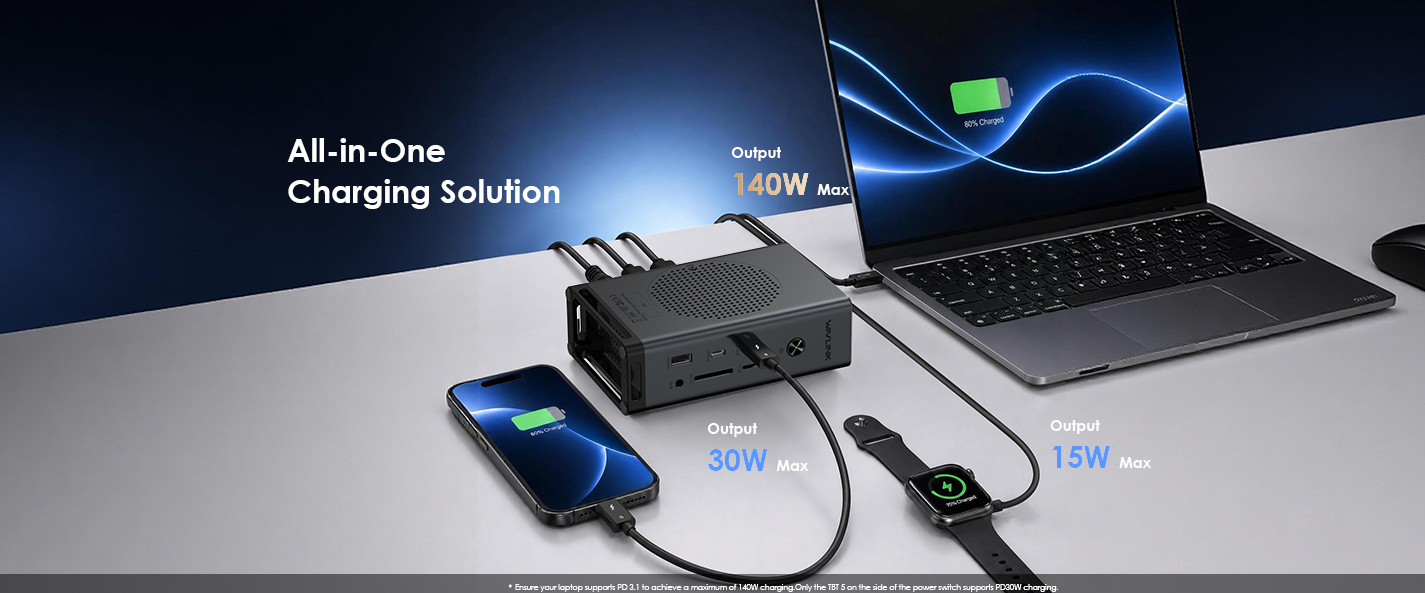

- 140W Passthrough Charging-Keep your laptop powered with up to 140W charging via the upstream Thunderbolt 5 port. The two downstream Thunderbolt 5 ports also provide 15W and 30W charging respectivelyperfect for keeping your iPad, iPhone, or wireless earbuds topped up while you work

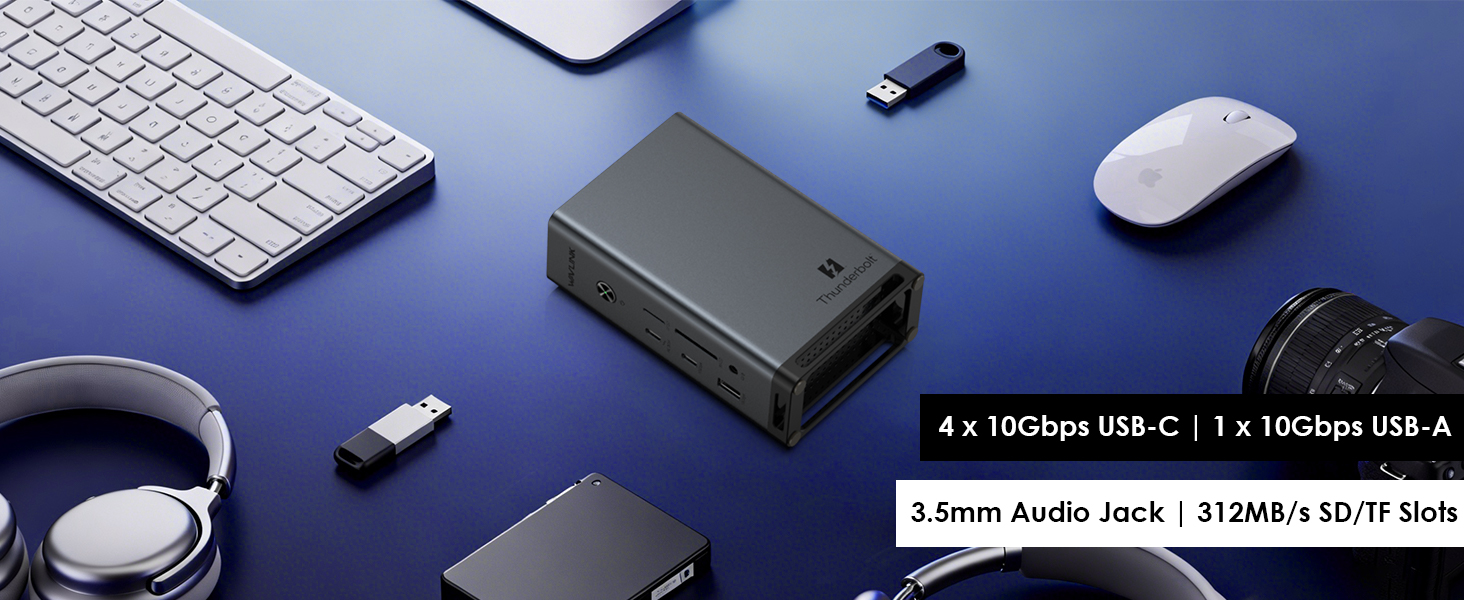

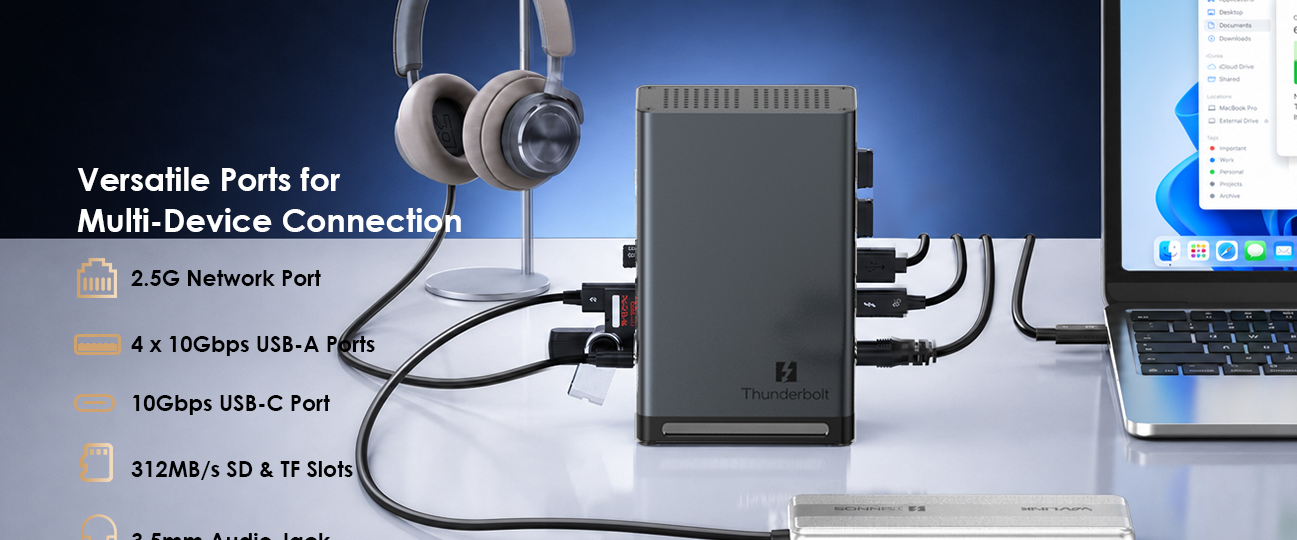

- Versatile Connectivity-A 2.5Gb Ethernet port ensures a lag-free wired network connection. SD and TF card slots support fast transfers up to 312MB/s. Five USB-A/C ports (up to 10Gbps each) let you connect all your peripherals
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

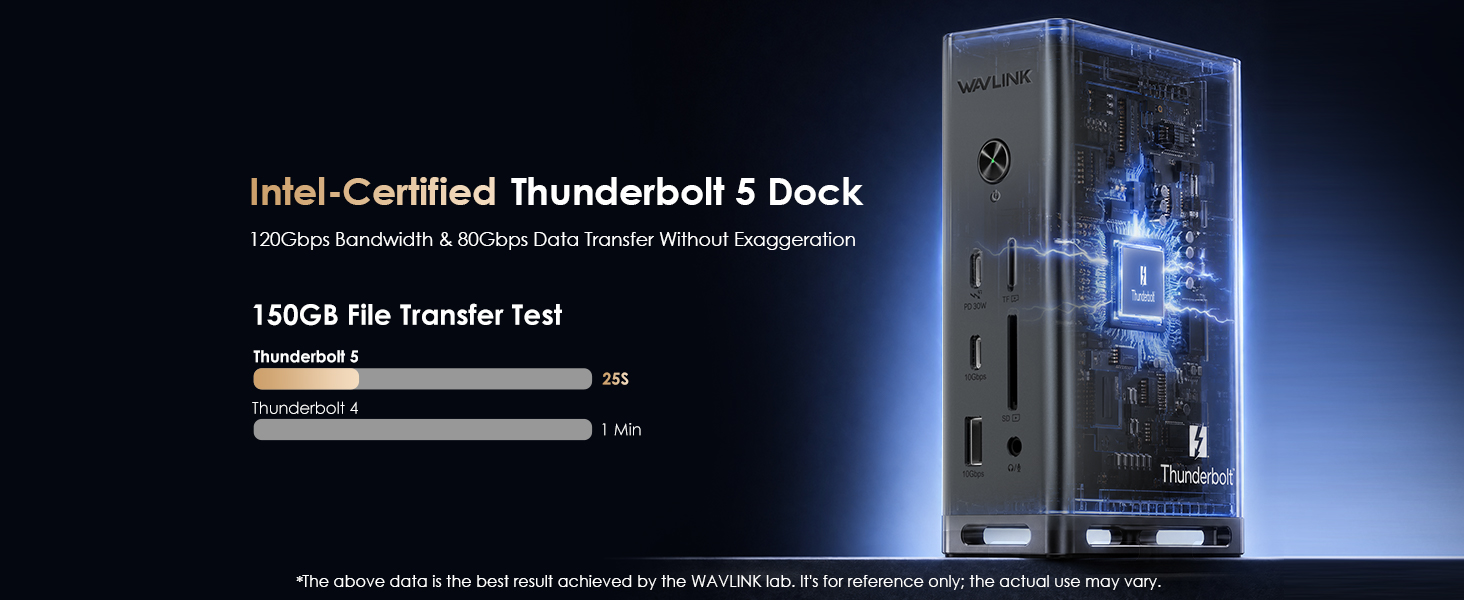

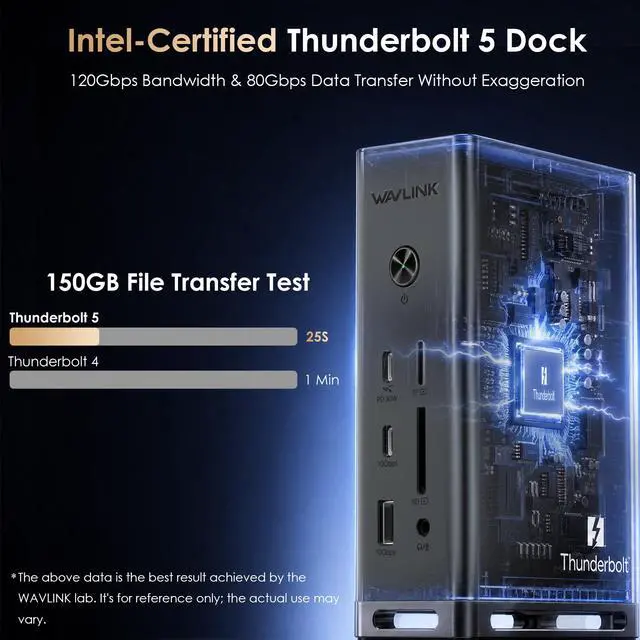

The WAVLINK Thunderbolt 5 15-in-1 M.2 Ultra Docking Station is an Intel-certified game changer that transforms a single laptop port into a complete workstation. With two Thunderbolt 5 downstream ports, it delivers 120Gbps of total bandwidth and 80Gbps data transfer, allowing you to move a 150GB file in just 25 seconds while driving dual 8K@60Hz displays. Two additional HDMI ports enable a quad-display setup with 2 x 4K@120Hz and 2 x 4K@60Hz. The rear M.2 NVMe slot supports PCIe 4.0 x 4 for blazing read/write speeds up to 6200/5900MB/s. Gamers will appreciate the 2.5Gb Ethernet port for a fast, stable wired connection, while the SD/TF card reader offers easy access to files from cameras, drones, and phones. Five USB-A/C ports provide up to 10Gbps of peripheral connectivity, and the 3.5mm combo audio jack is perfect for headsets during live streaming, gaming, or video calls.

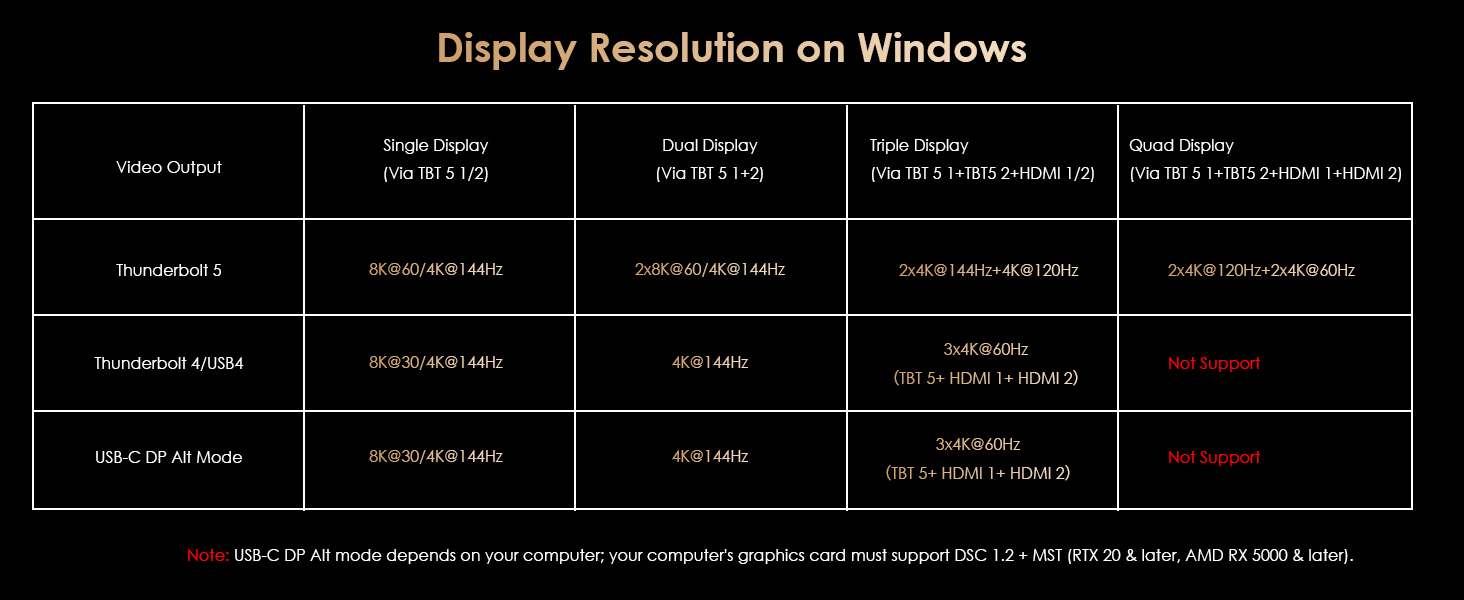

Display Resolution for Windows
Single Display
TBT 1/2: 8K@60Hz/4K@144Hz
HDMI 1/2: 8K@30Hz/4K@120Hz
Dual Display
TBT5 1+TBT5 2: 8K@60Hz/4K@144Hz+8K@60Hz/4K@144Hz
TBT5 1+HDMI1/2 or TBT5 2+ HDMI 1/2: 8K@60Hz/4K@144Hz+8K@30Hz/4K@120Hz
HDMI 1+HDMI 2: 2x4K@120Hz

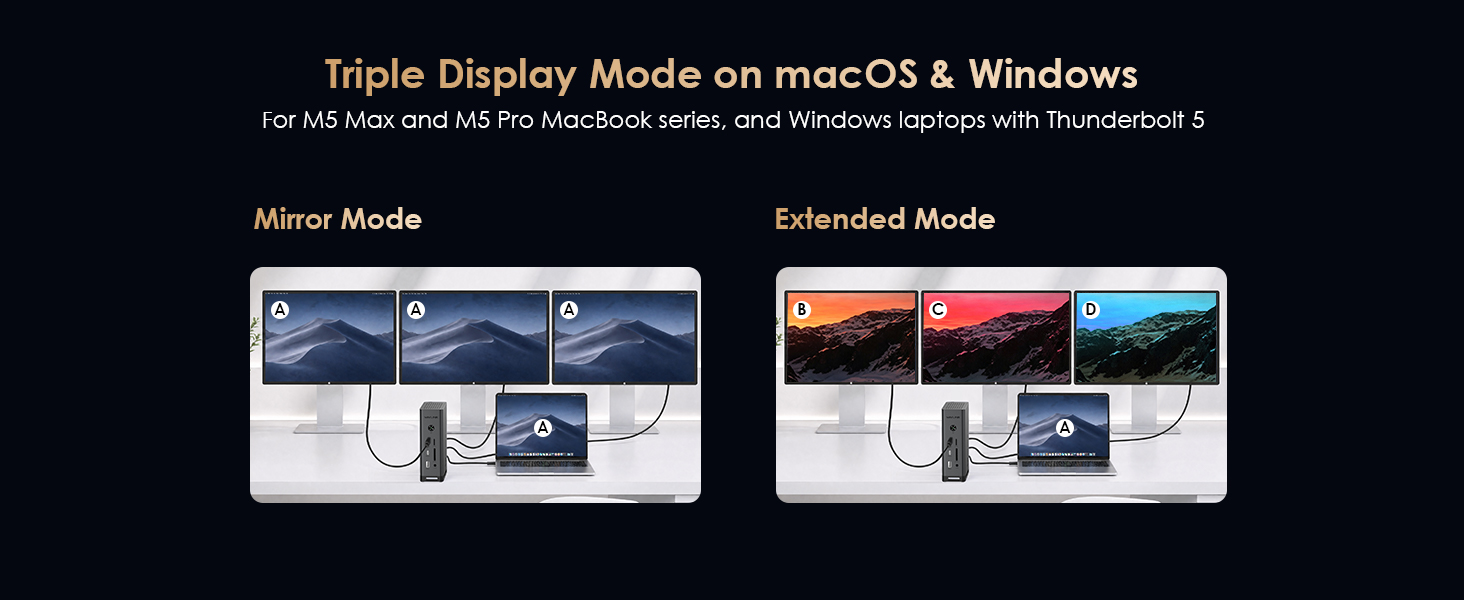

Triple Display
TBT5 1+TBT5 2+HDMI 1/2: 2x4K@144Hz+4K@120Hz
HDMI 1+HDMI 2+TBT5 1/2: 4K@144Hz+2x4K@120Hz

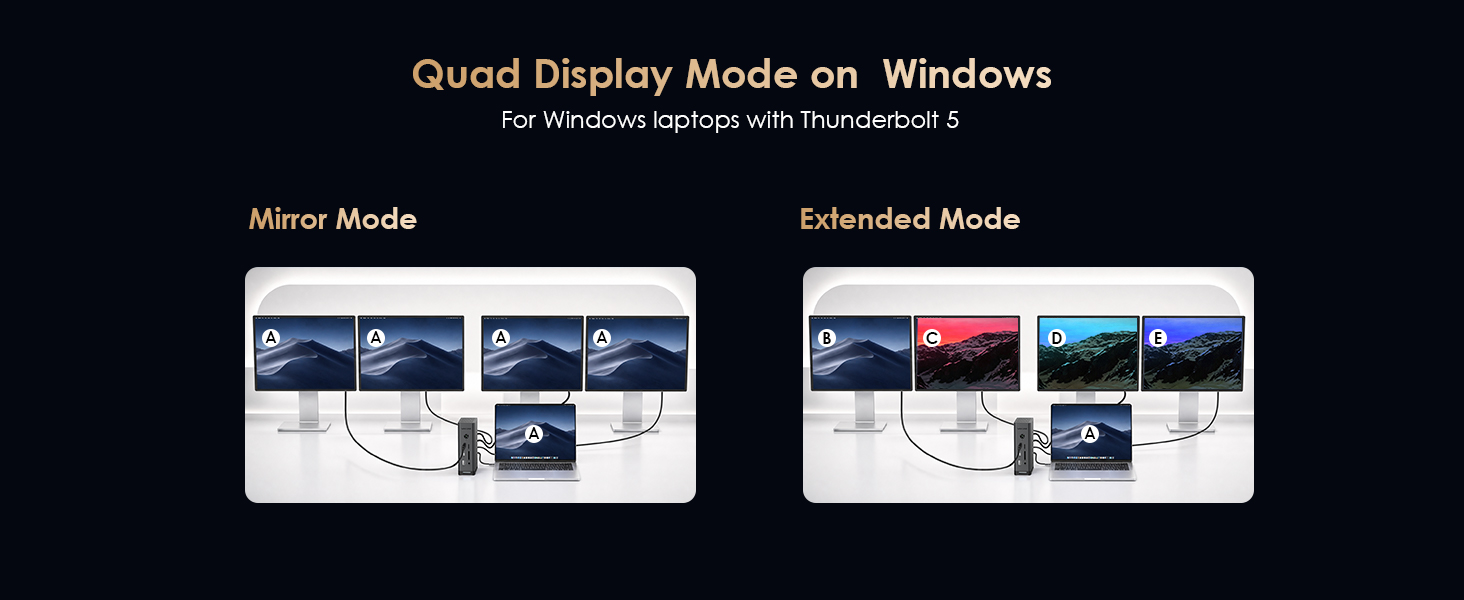

Quad Display
TBT5 1+TBT5 2+HDMI 1+HDMI 2: 2x4K@120Hz+2x4K@60Hz

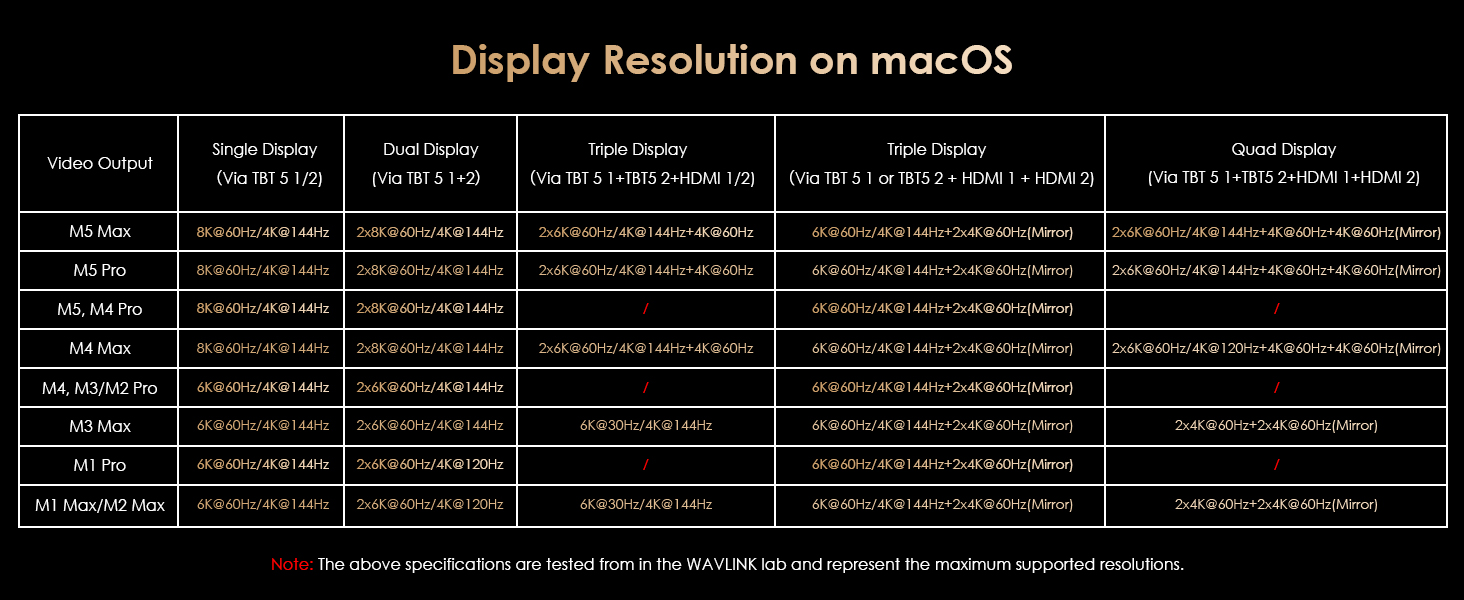

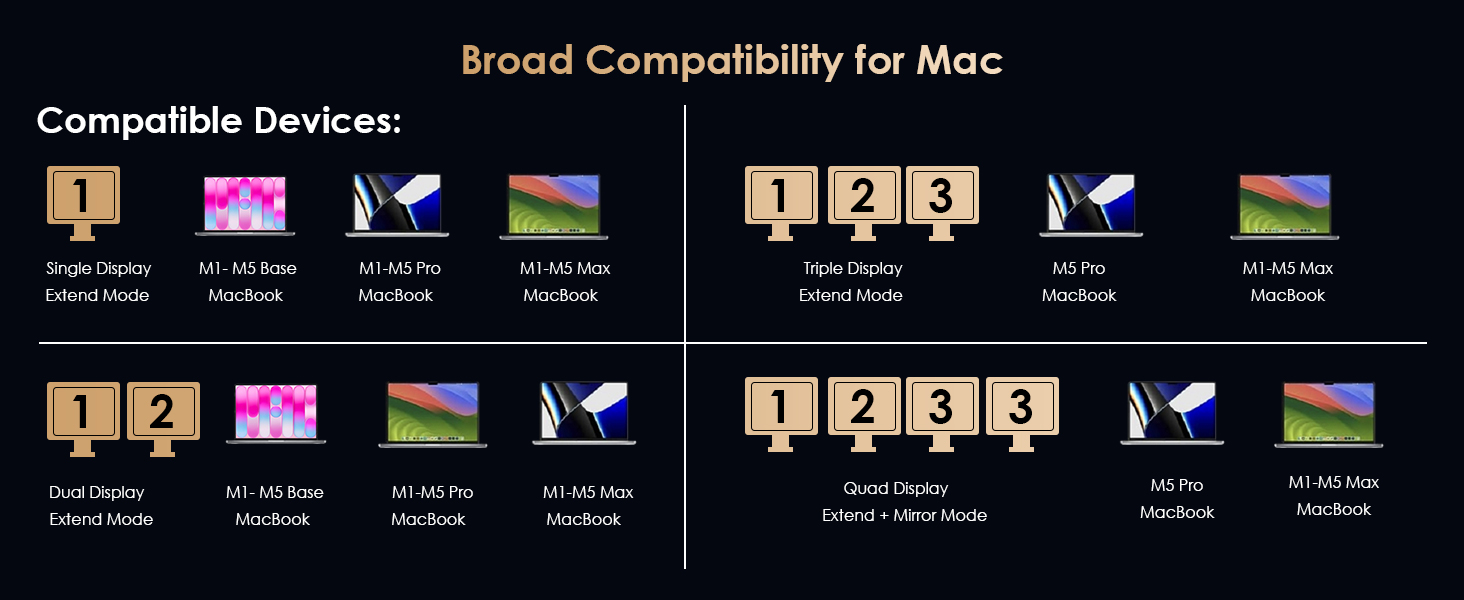

Display Resolution for macOS
Single Display
TBT 1/2: 8K@60Hz/4K@144Hz
HDMI 1/2: 8K@30Hz/4K@60Hz

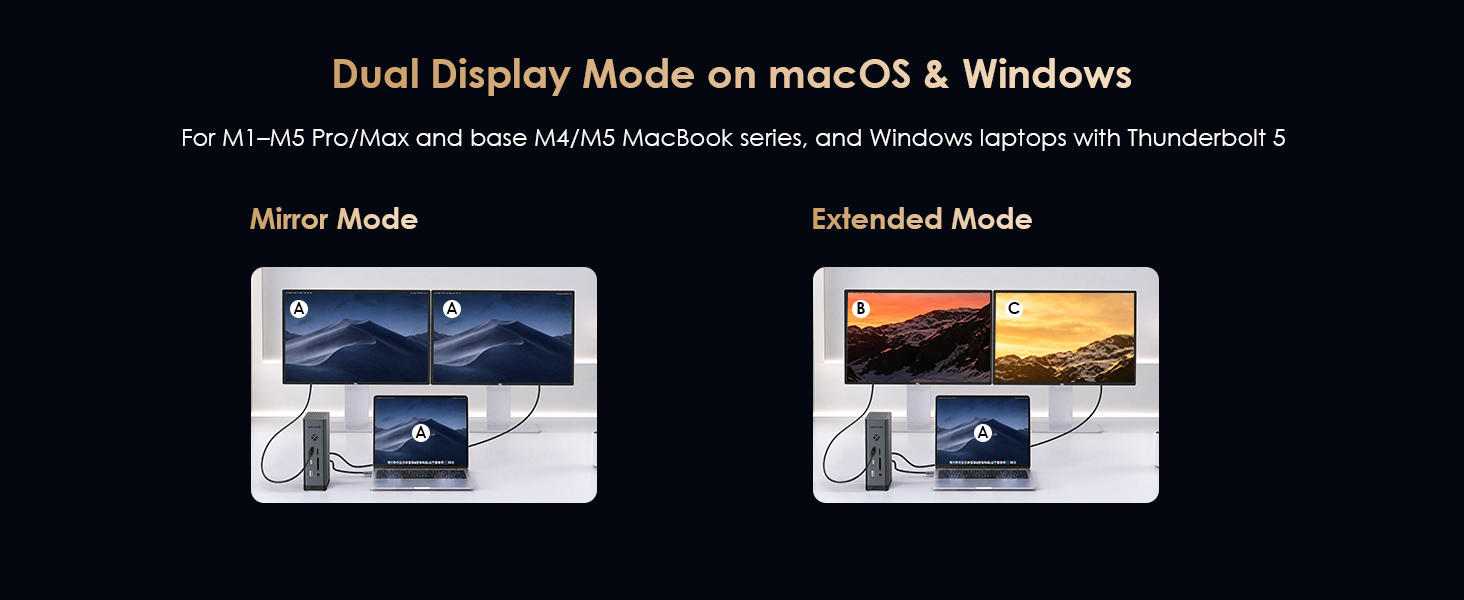

Dual Display
TBT5 1+TBT5 2: 8K@60Hz/4K@144Hz+8K@60Hz/4K@144Hz
TBT5 1+HDMI1/2 or TBT5 2+ HDMI 1/2: 8K@60Hz/4K@144Hz+8K@30Hz/4K@60Hz
HDMI 1+HDMI 2: 4K@60Hz+4K@60Hz(Mirror Mode)
Triple Display
TBT5 1+TBT5 2+HDMI 1/2: 2x4K@144Hz+4K@60Hz
HDMI 1+HDMI 2+TBT5 1/2: 4K@144Hz+4K@60Hz+4K@60Hz(Mirror Mode)
Quad Display
TBT5 1+TBT5 2+HDMI 1+HDMI 2: 2x4K@120Hz+4K@60Hz+4K@60Hz(Mirror Mode)
Note:
The host computer must support Thunderbolt 5 and DP2.1 to output four displays. If it only supports one or two video outputs, the product will also output accordingly.
The actual output capability may vary depending on your computer's system, software, hardware, and others. To enable triple or quad display mode on the macOS system, the computer must support triple display functionality.
*Because Apple computers do not support MST technology, the two HDMI interfaces do not support expansion but only support mirroring on macOS.
Feature

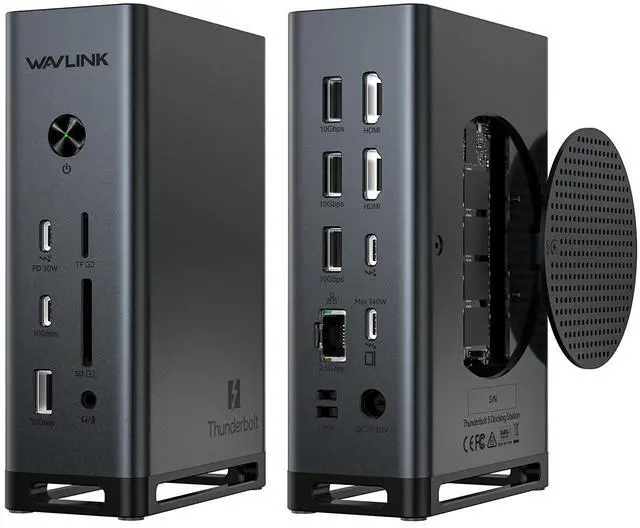

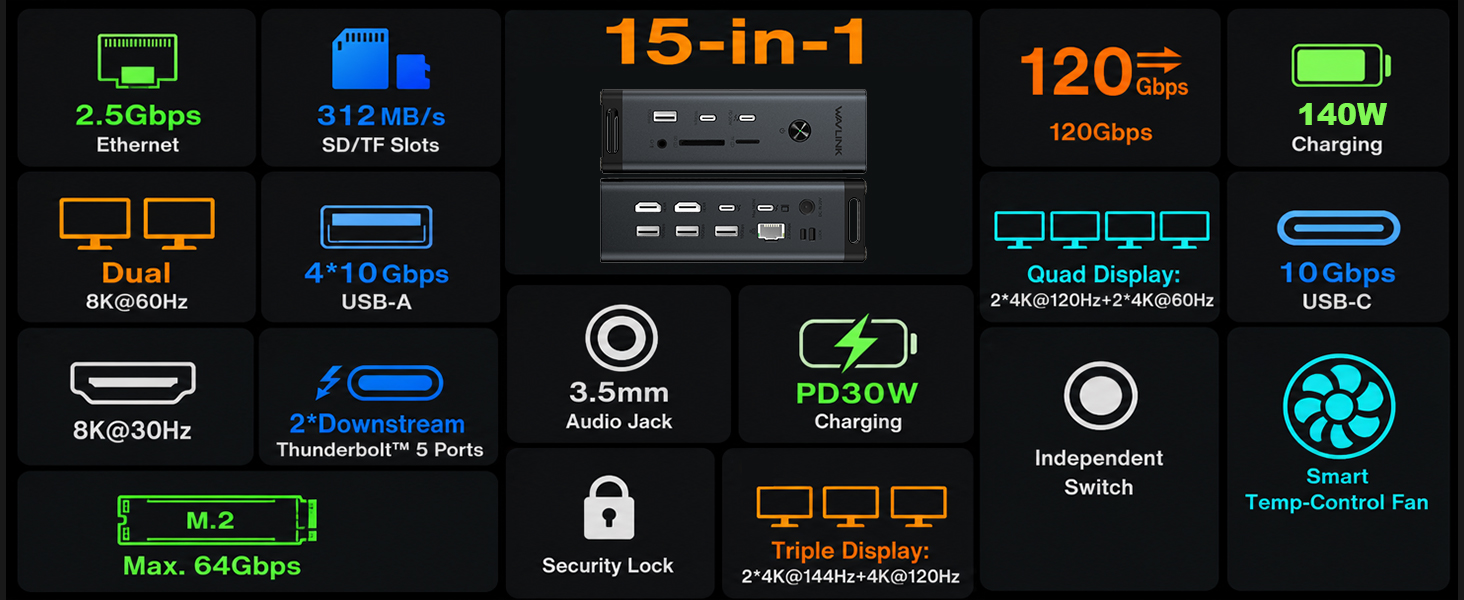

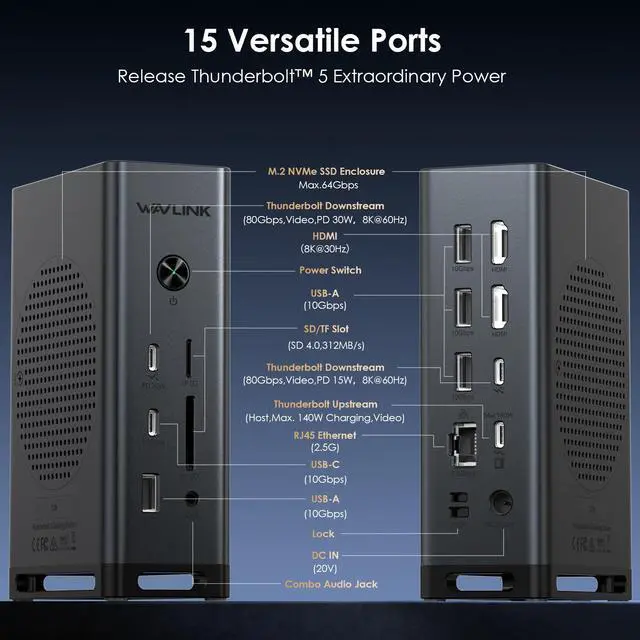

15 Versatile Ports
1x UFP & 2x DFP TBT 5 Ports, Thunderbolt 5 Up to 120
Gbps Bandwidth & 80 Gbps Data Transfer
Dual Display 8K@60Hz/Triple Display 2x4K@144Hz+4K@120Hz/Quad Display 2x4K@120Hz+2x4K@60Hz
M.2 NVMe SSD PCIe 4x4 Slot up to 64 Gbps
Host Charging Port PD 140W, 1x 30W & 1x 15W TBT DFP
Smart Cooling System
2.5 Gigabit Ethernet Port
1 x USB-C 10Gbps , 4 x USB-A 10Gbps
SD4.0 SD & MicroSD Card Reader up to 312 MB/s
3.5mm Combo Audio In/Out
System Requirement
Windows 11 or higher
Mac OS 11 or higher
Compatible with Thunderbolt 5/4, USB4, and USB 3.0
computers featuring a USB-C port.
In the Box
Thunderbolt 5 15-In-1 Quad 4K Display M.2 Ultra
Docking Station
1 x 20V Power Adapter
1 x Thunderbolt 5 Cable
1 x Screw Driver
1 x Thermal Silicone Pad
1 x Quick Start Guide
(Note: NVMe SSD is not included)
Size and Weight
Size (L*W*H): 6.1*4.0*2.0 in / 15.4*10.1*5.1 cm.
Weight: 26.2oz/743g
Color: Grey and Black
