Wavlink WL-UG69PD8 Pro
Quad 4K Universal Docking Station
This gadget adds display, network, audio and peripheral connectivity plus memory card reader to your computer via a single USB-C connection. You can plug in devices of your choice, say, up to four monitors, to get more productive throughout your day.
Single & Dual display 5K@60 Hz
Supports resolutions up to 5120 x 2880@60 Hz when connecting dual DP ports simultaneously to a 5K monitor
Quad Display 4K@60 Hz
Support quad display, max. resolution up to 3840x2160@60 Hz
Super-Speed USB 3.0
3 x USB 3.0 (5Gbps) & 1 x USB 3.1 (10Gbps) for different needs
Dual PD Quick Charging
The USB-C (host) charges your laptop with max. 100W power, and the USB-C port on the front supports 30W PD charging for any device that complies with USB PD charging
2.5G Ethernet Port
2.5G Ethernet port provides stable full network performance in wired connection, enhancing your use experience.
Two in One
Audio Out & Mic in Port
Integrated combo audio headset and microphone port can connect microphones, headphones or mini stereos, improving the access experience qualitatively and efficiently.
SD/Micro SD V4.0
Integrated SD V4.0 Card Reader with SD/Micro SD slot supports UHS-II theoretical bus speed up to 312MB/s
Built-in-Heat sink
76252mm² heat dissipation area enables stable operation even in 60 ° high temperature environment
Future-Proof Connectivity: Upgrade Your Laptop With Wavlink Docking Station Better Heat Dissipation: Double-sided ventilation holes and anti-dust mesh with built-in heat sink (76252mm² coverage) ensure stable and efficient operation of the dock.
Reliable Security: Integrated lock slot accommodates standard security locks to safeguard equipment from being taken by others (the security lock is not included).
Anti-slip Button Cushion: The whole bottom of this dock is fully covered by anti-skid silicone, which can provide maximum protection for your device from sudden sliding off.
2-in-1 Audio & Mic: If you need to use headset or microphone often, the Audio&Mic 2-in-1 port is what you need with crystal-clear audio output and mic input.
100W Power Delivery: Supports up to 100W pass-through charging so that you can power your laptop at full speed. Eliminate "Low Battery Anxiety" from your life! 30W
PD Quick Charging: Refill your phone or tablet at blazing fast speeds with 30W PD output through the front USB-C port, 6x faster than 5V/1A chargers.
Multifunctional USB 3.1 Port: USB 3.1 port provides effortless data transfer up to 10Gbps and supports BC 1.2 and Apple 2.4A fast charging.
SD/TF Card Reader: SD/TF card can be used at a speed up to 312MB/s, capacity up to 2TB, easy to transfer photos or videos from cards to laptop in seconds.
2.5X Faster Than Gigabit: This LAN port offers stunning and stable wired network connection to new Type-C/Thunderbolt 3 laptops that are lack of RJ45 network port.
Triple USB 3.0 Ports: Connect your peripherals including a mouse, keyboard, USB flash drive, SSD, etc. via the high speed USB 3.0 port for data transfer of up to 5Gbps.
Overview:? Enterprise-level universal docking station is an ideal choice for large enterprises and designers. This docking can provide you 4 displays output with 5120 x 1440@60Hz resolution; 2.5G bps Ethernet giving you to high bandwidth networking; the SD 4.0 Card Reader supporting UHS-II SD card as full duplex mode theoretical speed up to 312MB/s fast for copying any photos or movies from your media memory card to backup to your PC directly.? One Type-C cable connection, which can provide up to 100W of Power Delivery 3.0 charging for your computer during data transmission. For USB-A connection, computer without PD function. For downstream charging, one USB-C port provides up to 30W charging for your Pad / Mobile phone or any USB-C devices support USB PD charging.? One USB 3.1 Type-A (10G), three USB 3.0 Type-A (5G) ports to extend more connectivity to USB devices and one 4-pole earphone jack combo with audio out and mic in basically satisfy a lot of users' needs.
Features:
1. This universal docking station works with USB Type-C, Thunderbolt 3 & compatible with USB-A computers. 2. 180Watt Power adapter provide maximum 100W power delivery to charge your computer.

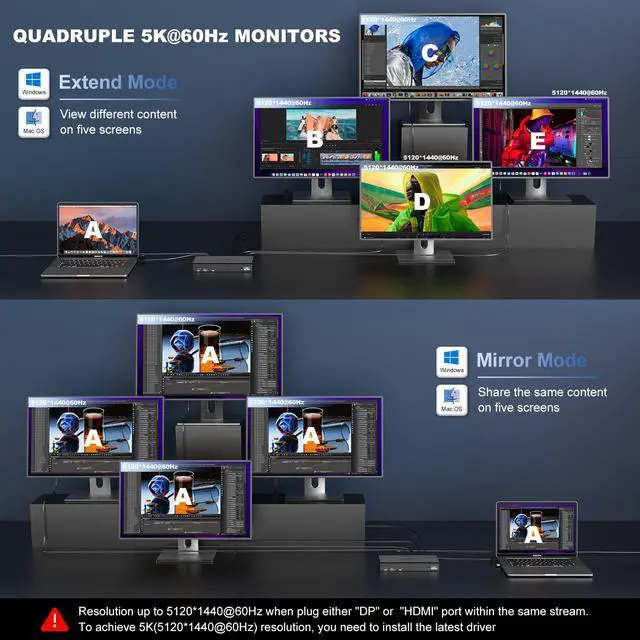

3. Mirror&Extend mode to connect multiple screens: Quad DisplayPort or Quad HDMI or multiple DP + HDMI displays for easy deployment. 4. HDMI or DisplayPort output support audio 5.1 Channel surround-sound.
5. One USB 3.1 Type-A (10G) supports BC 1.2 fast charging and max 10Gbps data transmission and three USB 3.0 Type-A (5G) ports extend more connectivity to USB devices. 6. 2.5G Ethernet network RJ-45 backward 10/100/1000 Ethernet.
7. Integrated TRRS 4-pole phone jack to give audio speaker out and mic in.
8. One USB-C individual 30W PD charging port for any USB-C devices supports USB PD charging. (No data transmission)
9. Integrated SD V 4.0 Card Reader with SD/Micro SD slot support UHS-II theoretical bus speed up to 312MB/s.
10. Supports Windows7/8/ 8.1 /10/11(32/64-bit), Mac OS 10.8 -12. x or later, Chrome OS, Android &Ubuntu.
Tips: -The dock is self-powered and needs to be connected to the power adapter to work normally. -This dock works with Thunderbolt 3 laptop
