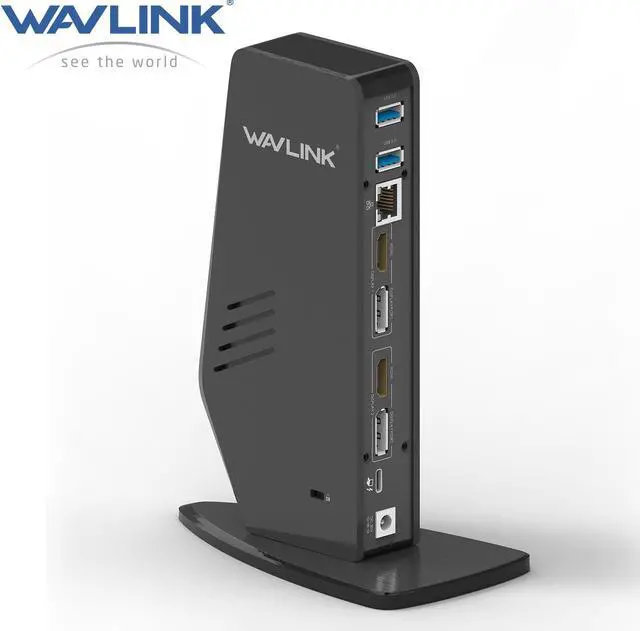

The Wavlink UG69PD5 is one of the Top universal USB 3.1 Type-C Power delivery docking station. Simple cable connection to your computer USB C Port, You can have access to large screen displays, stereo speakers, external hard drive, optical disk drive, printers, USB keyboard, mouse and other USB devices.
In addition, The 100Watt Power Adapter supports USB Power Delivery (up to 65 Watts Max. for Laptop charging) while connected, and 40Watt power for all downstream devices You needn't to worry about unplugging the dock to be able to charge your laptop. Needn't to use two separate power adapters for dock and laptop any more. Use 5K/Dual 4K docking station and charge laptop simultaneously! (Requires host computer supports Power Delivery 2.0 charging).
Please download the latest driver from displaylink:
www.displaylink.com/downloads

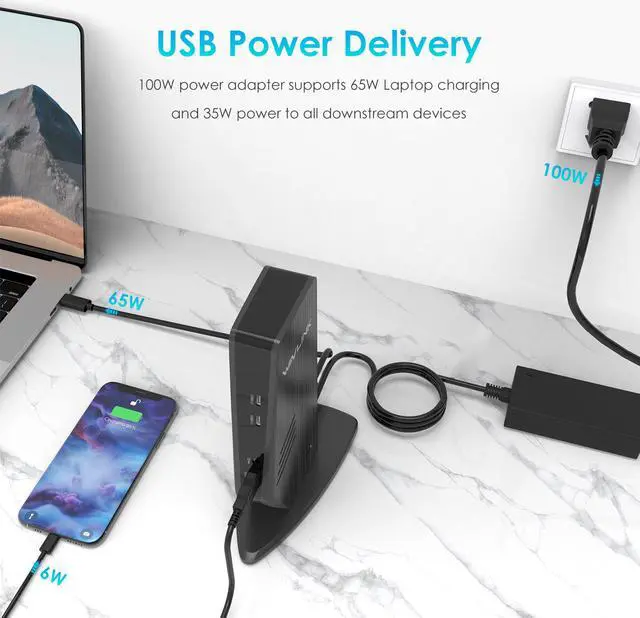

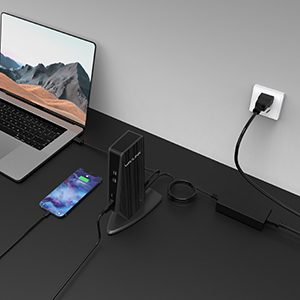

Dock provides usb-c power delivery up to 65W maximum of upstream charging to compatible and also power to the others peripherals simultaneously with 100Watt Power Adapter and 40Watt power for all downstream devices(such as cell phone )You can do anything you want without worrying Low-Power.
Note: Use PD Function, PC computer or laptop must with an available USB PD USB-C Port(Thunderbolt 3 compatible)

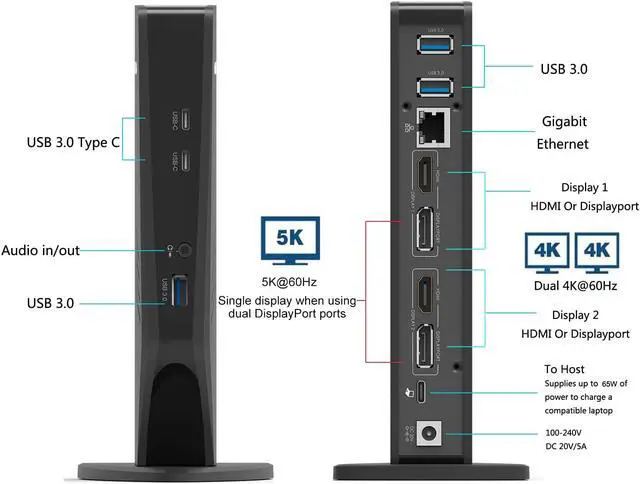

A single usb c port from your laptop expands to 13 ports! Enables additional dual 4k display, gigabit Intel Ethernet, audio input/output, and USB-C 3.0 (5Gbps) , USB A 3.0 expansion.

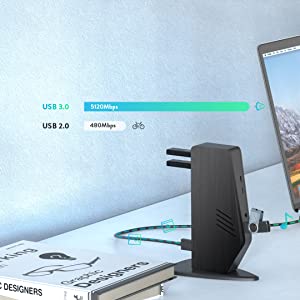

3 x USB3.0 Ports, 2 x USB-C Ports speed up to 5Gbps.
In contrast with traditional USB standards, USB3.0 and USB-C both transfer data at 5Gbps, which is blazing-faster than USB2.0, thus, you can transfer files, share images or employ any other relevant process fast as lightning

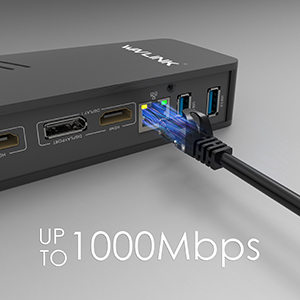

Built 10/100/1000BASE-T Gigabit Ethernet RJ45, wired network connections are faster and more reliable than any Wi-Fi. The dock helps you tap into the full performance of wired network connections.

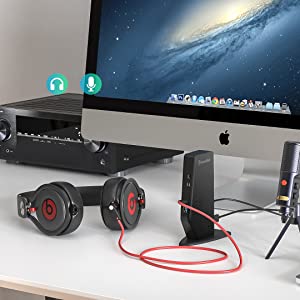

For anyone who wants to access audio files, one can connect microphones, headphones or mini stereos to this "two in one" audio/mic port.
Three different devices can be connected to this one port, improving the access experience qualitatively and efficiently.
Generate a 4K monitor workstation

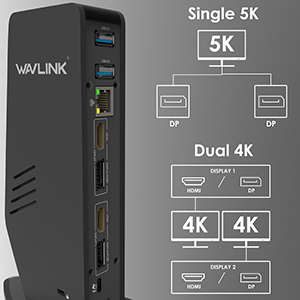

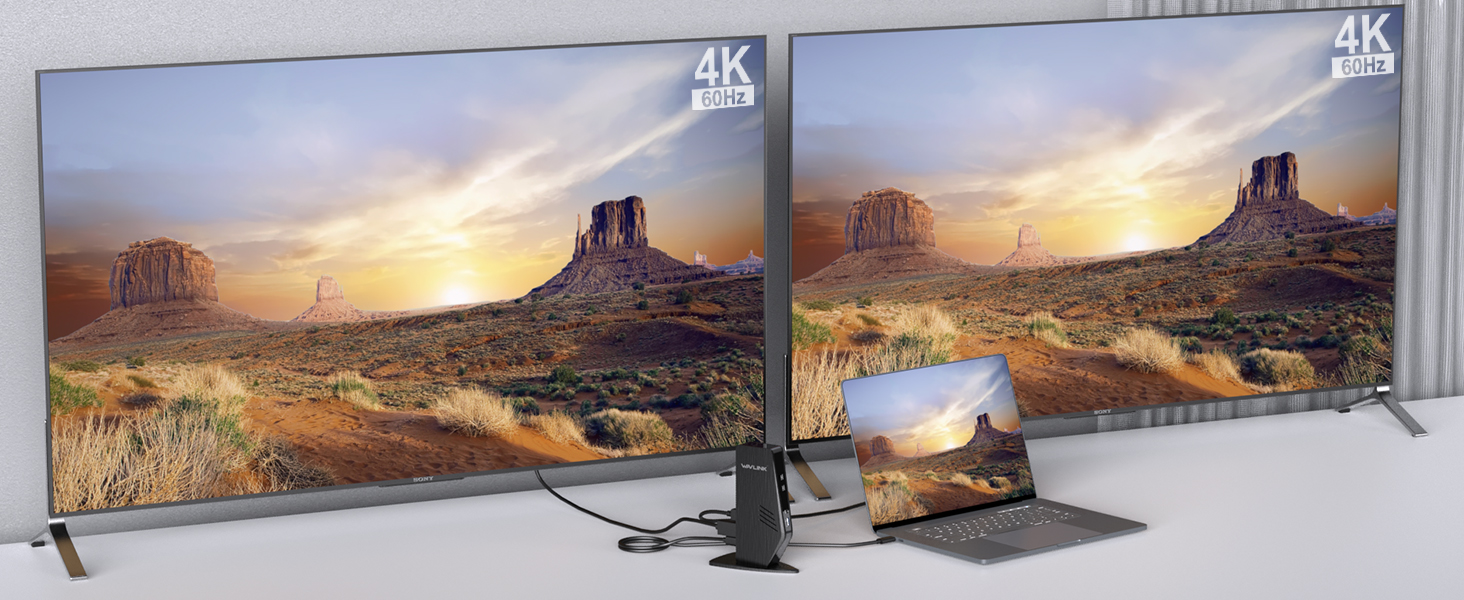

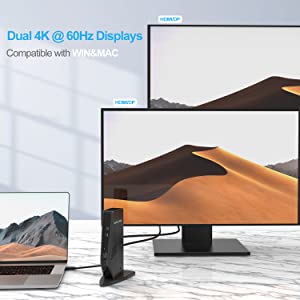

Support dual 4K Display: Dual 3840x2160@60Hz (4K UHD) video outputs through DP + DP, DP + HDMI and HDMI + HDMI.

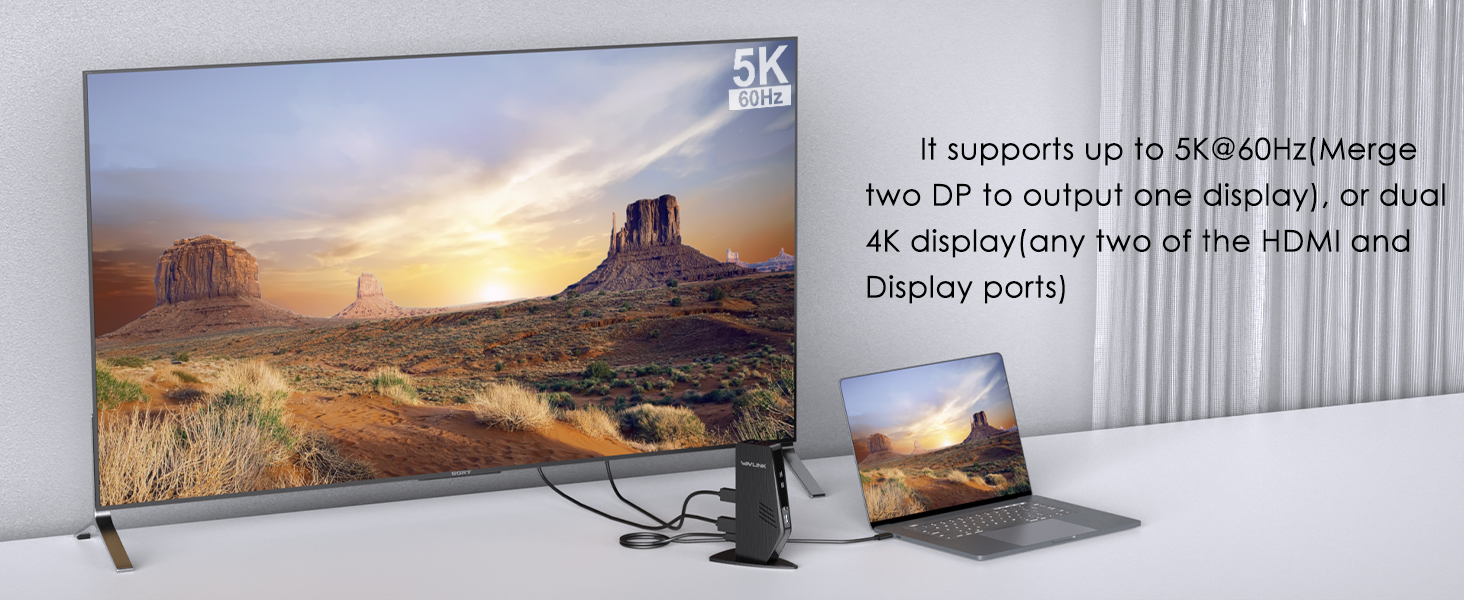

Single 5K Display: DisplayPort output up to 5120 x 2880@60Hz when using dual DP simultaneously and with single 5K monitor/TV.
Support dual 5K Display: New 10.0 release version support dual DP 5120x1440@60hz for Windows 7, 8.1 and Windows 10 and Windows 10 v1607 and later.
DisplayLink New Version Support
DisplayLink is pleased to announce the new 10.0 release, supporting:
- The new 10.0 release support Dual DisplayPort (5120x1440) displays with Windows 7, 8.1 and Windows 10 and Windows 10 IoT Enterprise.
-New version do not support Dual 5K HDMI.
-New version do not support other OS system,such as : win 8,mac.
For Laptops without USB-C ports You can use this docking station as a high performance tools to make your application, as we had offered the USB-C to USB-A cable in the package. This cable is not for power delivery but only for transferring date, if you need to charge your latop, please connect it to the original power adapter. For Laptops own USB-C ports As you know, USB-C charging function and Alternate Mode ("Alt Mode") video output not supported on all USB-C systems.
So, Power Delivery (60W) and host-charging USB-C DisplayPlay Alternate mode technology must be supported by your device's system (USB-C ports) That is to say 69PD5 is compatibile with specific USB-C Windows systems such as the Microsoft Surface Book 2, Dell XPS 9350 / 9360 / 93
Compatible With:
Legacy Windows XP - Vista/ Vista /7 / 8.1 / 10
-Mac OS X 10.8 onwards
-Chrome OS R51 onwards
-Ubuntu 14.10 onwards
Not Compatible With: Windows XP (64-bit ) and Surface RT. Not supported Linux
Not compatible with Acer G-Sync enabled monitors' DisplayPort port, like the Acer XB321HK.
Does not support DisplayPort MST daisy-chain connections or Dual-Link DVI conversions.
Drivers& Updates: displaylink.com/downloads
Troubleshooting: support.displaylink.com
Mac macOS High Sierra needs attention:
1, Since macOS High Sierra 10.13, the user has to explicitly enable this system extension in the Security & Privacy system preference after installation and before the DisplayLink software is allowed to run.
2, macOS Catalina 10.15 requires the user to permit "Screen Recording" in order for DisplayLink devices to work properly.
