WAVLINK Universal USB C Laptop Docking Station Dual Monitors with 65W Charging Dual 4K@60Hz/Single 5K@60Hz for Windows, Mac OS, Chrome OS, Android 5.0 Later (2 HDMI & 2 DP, 5 USB 3.0 A&C, LAN, Audio)

Wavlink Latest Technology - Power delivery 5K docking station is coming

For laptop can connect to any host with Standard A or Type C connectors providing a fully backward-compatible and future proof docking solution. Allow you to connect up to two additional monitors and eleven accessories through a single USB cable.

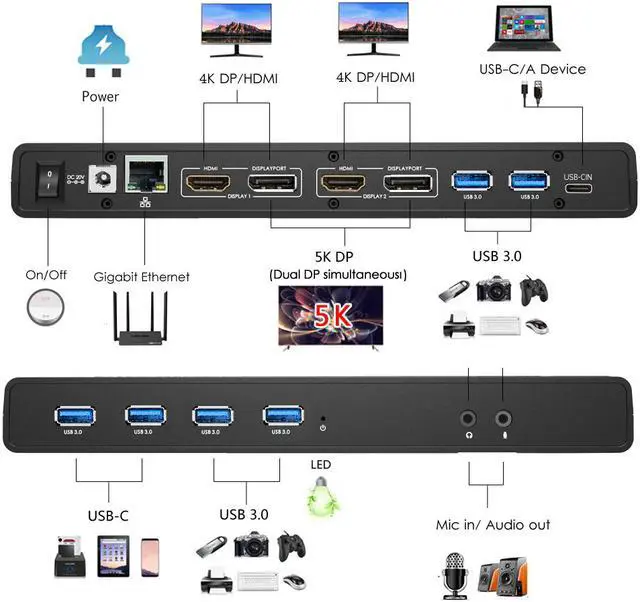

The item provides:



- USB-C Ultra 5K Universal Docking Station:DisplayPort+DisplayPort output resolutions up to 5120 x 2880@60Hz at a single display

- An HDMI port OR a displayport for connecting external monitor and support for resolutions up to 4096 x 2160@60Hz

- Dual 4K HDM / 4K HDMI + 4K DisplayPort :The maximum resolution will be 3840x2160 (UHD) if both video outputs are being used.

- Built 10/100/1000BASE-T Gigabit Ethernet RJ45 f,Wired network connections are faster and more reliable than any Wi-Fi.

- With separate microphone input and amplified audio output,you can enjoy crystal-clear conference calls or any other project benefits from having your voice heard.

- 6 x SuperSpeed USB3.0 ports provides up to 5Gbps data transfer speeds, which is 10 times faster than USB2.0.

- Supports 5.1 Channel Surround Sound,supports Extend and Mirror Video Mode.

System requirements-Compatible with both Type-C and Type-A Laptop/Desktop Windows&XP system, limited support for Mac OS.

-Build in DisplayLink DL-6950 Chipset ,please see more detail on DisplayLink website and download the lastest drive.

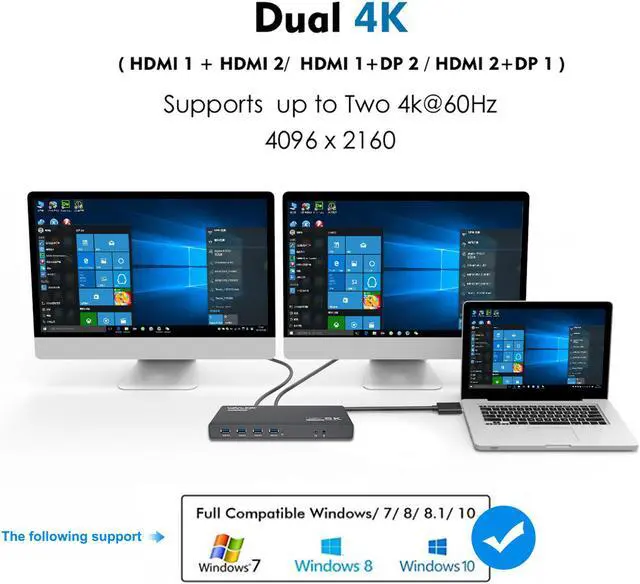

Dual 4K@60Hz / Single 5K@60Hz

Dual DisplayPorts output resolutions up to 5120 x 2880@60Hz at a single display.

An HDMI or a displayport for connecting external monitor supports resolutions up to 4096 x 2160@60Hz.

The maximum resolution will be 3840x2160 (UHD) if Dual HDMI / HDMI+DisplayPort are being used.

It will greatly help you work on high-resolution works, graphically intensive images, video editing, CAD drawings, medical images and so on.

6 x USB 3.0

USB 3.0 provides up to 5Gbps data transfer speeds, which is 10 times faster than USB 2.0. The item features 6 USB 3.0 ports, allowing for SuperSpeed data transfer between peripherals. These ports are also compatible with USB 2.0.

Blazing-fast Gigabit Ethernet

Built 10/100/1000BASE-T Gigabit Ethernet RJ45, wired network connections are faster and more reliable than any Wi-Fi. The dock helps you tap into the full performance of wired network connections.

65W Host Charging

Dock provides usb-c power delivery up to 65W maximum of upstream charging to compatible and also power to the others peripherals simultaneously with 100Watt Power Adapter. You can do anything you want without worrying Low-Power.

Supported Operating Systems

WINDOWS


Windows 7, Windows 8, 8.1, Windows 10, Windows Vista is 7.7, Windows XP is 7.6

MAC OS X


OS X 10.6 - 10.15 OS

Tips: macOS 10.13.4 - 10.13.6 has single extended display support with AirPlay

ANDROID and CHROME


ANDROID: Available on the Google Play Store. For Android v5.0 (Lollipop) or Later

CHROME: DisplayLink USB devices are supported on Chromebooks.

For more information: support.displaylink.com/knowledgebase/articles/891030

Note:



MacOS 10.13.4 no longer supports DisplayLink. Turn off automatic updates to remain on 10.13.3.

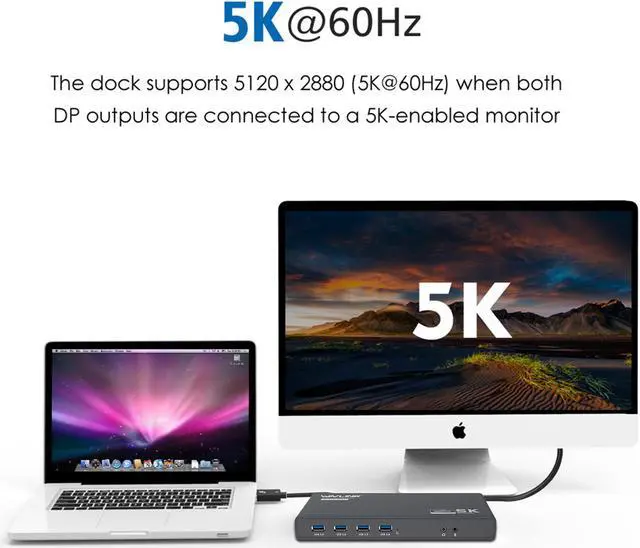

Max 5K(5120 x 2880@60Hz) resolution only via dual Display Ports

What in the box:

1 x USB C Dual 4K Universal Dock station
1 x 100W power adapter
1 x USB 3.0 C to C Cable
1 x USB 3.0 A to C Cable
1 x Instruction Manual.
